Mycond OXA-HD — heating unit with air humidification

Water heating and 20 kg/h of fog humidification in one unit

Air flow rate: 6700 ... 9700 m³/h

Heating capacity: 28 ... 103 kW

Want to buy or have questions?

Mycond

OXA-HD

Mycond OXA-HD is a ceiling heating unit with built-in high-pressure mist humidification. One machine holds both temperature and humidity — exactly what textile, printing and electronics production needs.

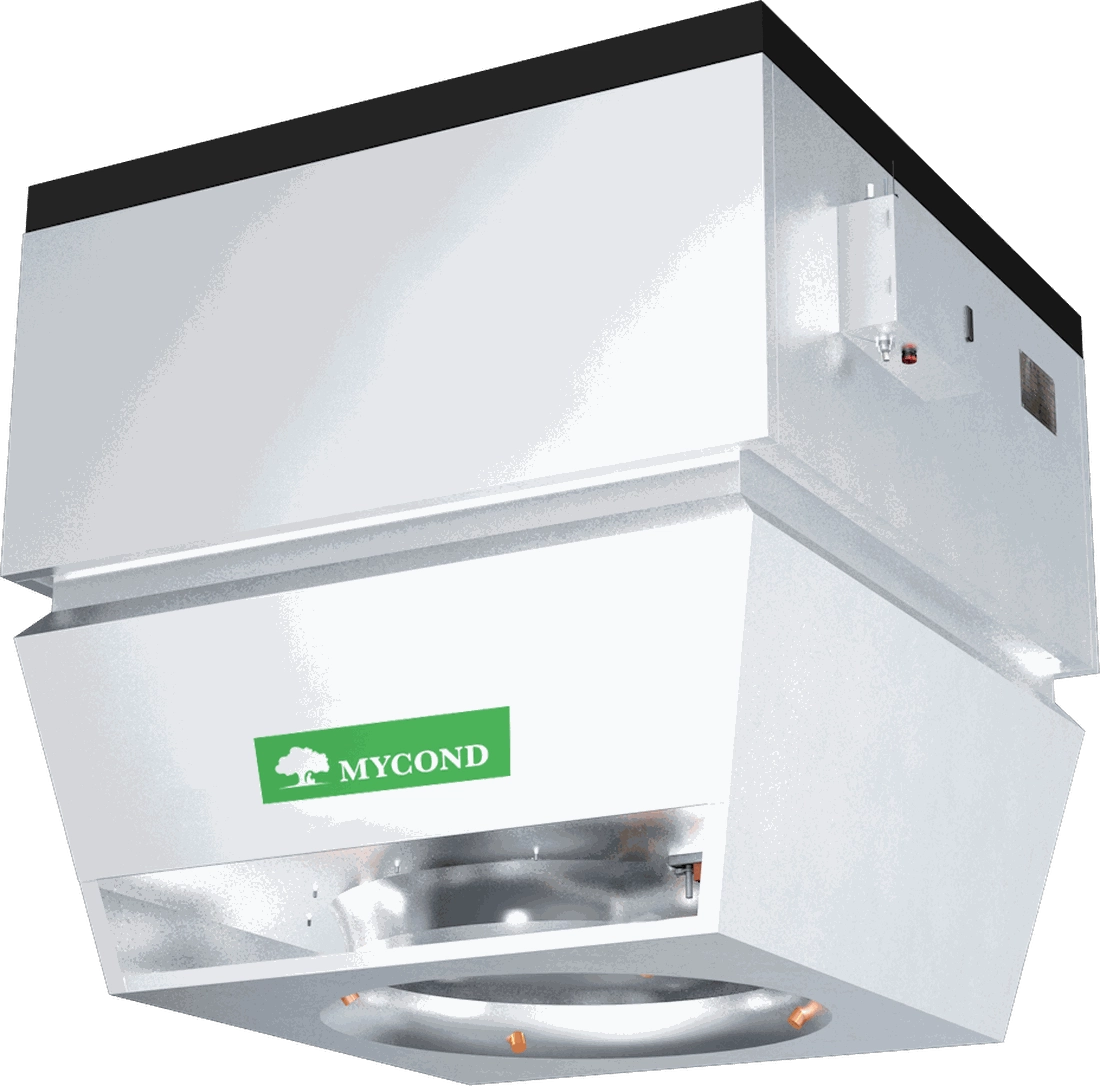

Mycond OXA-HD unit with water coil and high pressure humidification nozzles

Why it pays off

Heating 28…103 kW from hot water.
Humidification 20 kg/h at 5–7 MPa nozzle pressure.
Four nozzles as standard, up to six on request.
Air flow 6700–9700 m³/h.
Mounting height up to 17 m, noise below 60 dB.
Controlled by the OXA-V terminal and wireless hygrostats.

Why humidity matters as much as temperature

Heated air in winter dries down to 15–20% relative humidity. Every process engineer knows the consequences: yarn breaks, static build-up, dust, printing defects, timber shrinkage and complaints about dry air.

Airflow and mist distribution from a Mycond OXA-HD unit in a textile hall

The OXA-HD atomises water at 5–7 MPa straight into the warm jet: droplets a few microns across evaporate inside the airstream, so nothing settles on the floor or the machines. The feed water is distilled or low-mineral, which keeps white dust off the equipment.

Wireless control

Mycond OXA wireless control system with OXA-V terminal and OXA-T2 sensors

What the controller actually adjusts

Humidification output — nozzle groups switch on by hygrostat, constant droplet size at 5–7 MPa.
Guide vane position — the supply angle keeps the mist evaporating before it reaches the working zone.
Fan speed — frequency control across the whole range.
Wireless sensors — humidity and temperature read at the machines, not at the unit.
Protection — humidification is blocked without airflow, plus phase monitoring, anti-freeze and soft start.

Technical data

Model	OXA-HD-I	OXA-HD-II
Fan speed, rpm	0~900	0~860
Air flow, m³/h	0~6700	0~9700
Voltage, V	380±5%	380±5%
Electric power, kW	0~0.85	0~1.80
Installation height, m	4~10	4~17
Humidification	High pressure misting nozzles
Feed water	Distilled / low-mineral water
Spray flow, kg/h	20	20
Nozzle pressure, MPa	5–7	5–7
Noise, dB	<60	<60

Standard configuration is four nozzles at 5 kg/h each. More than six nozzles per unit is not recommended — local humidity under the diffuser becomes too high.

Heating performance

Water, °C	Model	Q, kW (10 °C)	Q, kW (15 °C)	Q, kW (20 °C)
90/70	OXA-HD-I	66	61	56
70/50	OXA-HD-I	46	42	38
90/70	OXA-HD-II	103	96	88
70/50	OXA-HD-II	74	66	59

Dimensions

Dimension, mm	OXA-HD-I	OXA-HD-II
A	900	1100
B	1000	1165
C	735	850
G	480	568
H	765	935
N (internal thread)	DN32	DN40
P (humidification pipe)	φ9.52	φ9.52
Weight, kg	131	186
Water volume, l	5.8	9.8

Dimensional drawing of the Mycond OXA-HD unit with callouts

DWG drawings are available on request.

Where it is used

Mycond OXA unit in a weaving mill: heated and humidified air above the looms

Weaving mill: humidity keeps the yarn intact, and the warm jet is driven from under the roof down to the looms.

textile and garment production;
printing houses and packaging plants;
electronics and assembly areas sensitive to static;
woodworking and furniture production;
tobacco and pharmaceutical facilities.

We size and lay out OXA systems for industrial facilities across Europe, including the moisture balance calculation — send the process data and you get a layout with a quotation.

Frequently asked questions about the Mycond OXA-HD

What water does the humidifier need?

Distilled or treated low-mineral water — it prevents white dust on the equipment and keeps the nozzles clear.

Will there be condensate on the floor?

No. Droplets a few microns across evaporate inside the warm jet, and the controller blocks humidification whenever the fan is off.

Can humidification be switched off in summer?

Yes — humidification and heating are controlled separately; in summer the unit simply destratifies the air.

How much moisture does one unit add?

Up to 20 kg/h in the standard four-nozzle configuration; the number of units follows from the hall moisture balance.
