Mycond OXA-HK — heating, cooling and humidification

Three functions in one casing: heating, chilled water cooling and mist humidification

Air flow rate: 6900 ... 10100 m³/h

Cooling capacity: 22 ... 104 kW

Heating capacity: 48 ... 144 kW

Want to buy or have questions?

Mycond

OXA-HK

Mycond OXA-HK holds the entire indoor climate of a hall: heating up to 144 kW, cooling up to 104 kW and 20 kg/h of mist humidification, with air flow up to 10 100 m³/h.

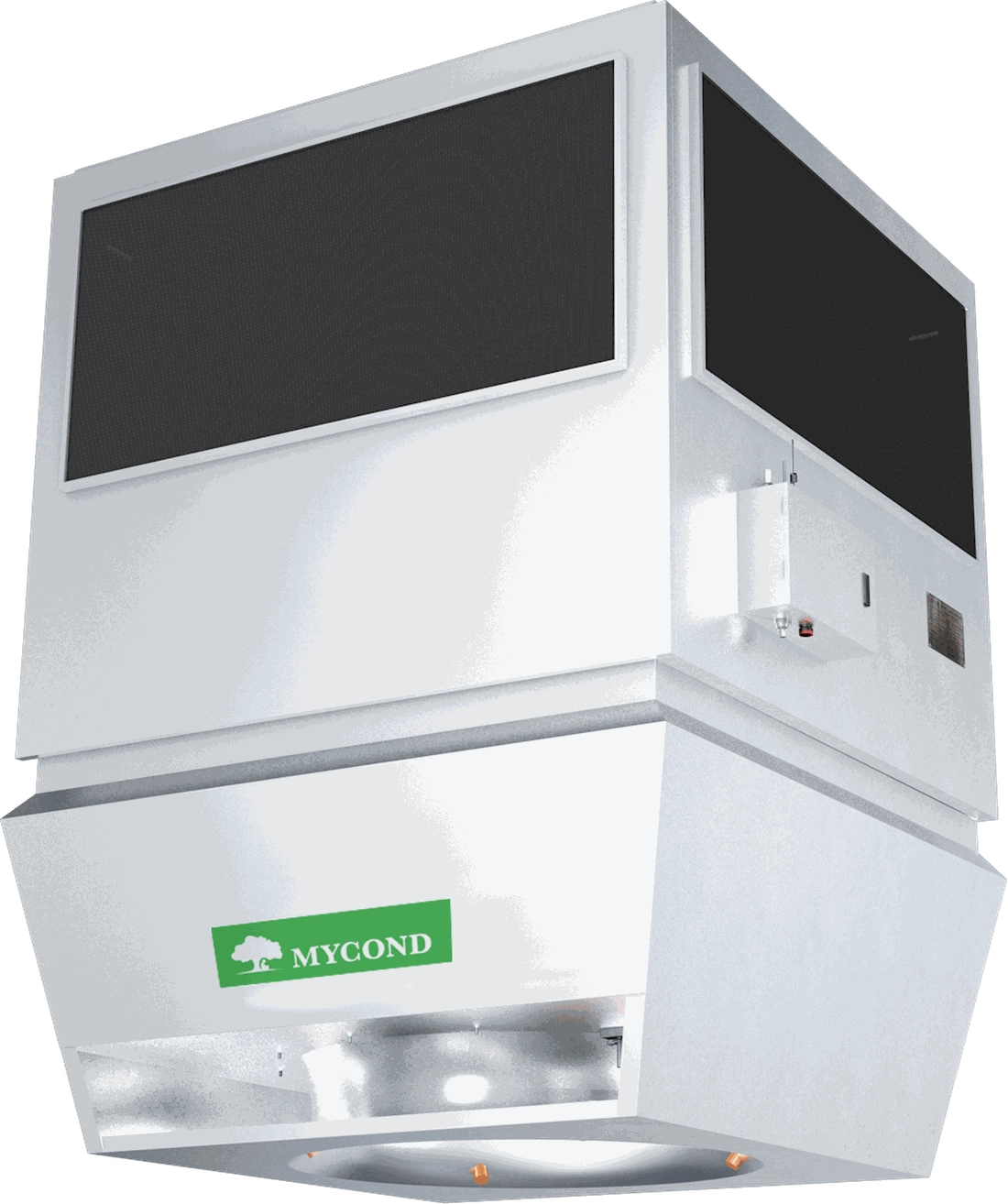

Mycond OXA-HK unit with water coil, humidification nozzles and condensate drain

Why it pays off

Heating 48…144 kW and cooling 22…104 kW.
Humidification 20 kg/h at 5–7 MPa.
Air flow 6900–10 100 m³/h.
Mounting height up to 23 m — the highest in the combined range.
Droplet eliminator and DN25/DN32 condensate drain.
Wireless control with hygrostats in the working zone.

Year-round climate without three separate systems

In winter the unit heats from the boiler circuit and keeps the humidity that would otherwise fall to 15–20%. In summer the same machine runs on chilled water. Instead of three systems there is one casing under the roof, one control system and one service contract.

High-pressure humidification also works in cooling mode, which matters for plants where humidity is specified all year: textiles, printing, tobacco, electronics.

Wireless control

Mycond OXA wireless control system with OXA-V terminal and OXA-T2 sensors

What the controller actually adjusts

Humidification output — nozzle groups by hygrostat, constant droplet size at 5–7 MPa.
Guide vane position — a tight jet down in winter, a wider pattern in summer.
Fan speed — frequency control across the whole range.
Wireless sensors — temperature and humidity read at the machines.
Supervision — Modbus RTU into the BMS, alarm log, smartphone access.
Protection — humidification blocked without airflow, phase monitoring, anti-freeze, soft start.

Technical data

Model	OXA-HK-I	OXA-HK-II
Fan speed, rpm	0~900	0~860
Air flow, m³/h	0~6900	0~10 100
Voltage, V	380±5%	380±5%
Electric power, kW	0~0.85	0~1.80
Installation height, m	4~15	4~23
Humidification	High pressure misting nozzles
Spray flow, kg/h	20	20
Noise, dB	<60	<60

Heating performance

Water, °C	Model	Q, kW (10 °C)	Q, kW (15 °C)	Q, kW (20 °C)
80/60	OXA-HK-I	76	68	61
70/50	OXA-HK-I	62	55	48
90/70	OXA-HK-II	144	138	125
70/50	OXA-HK-II	134	119	105

Cooling performance (7/12 °C)

tₐₗ, °C	rh, %	Model	Q, kW
24	50	OXA-HK-I	24
28	70	OXA-HK-I	65
24	50	OXA-HK-II	38
28	70	OXA-HK-II	104

Dimensions

Dimension, mm	OXA-HK-I	OXA-HK-II
A	900	1100
B	1250	1440
C	735	920
J	660	789
K	890	1032
L	1050	1292
M (internal thread)	DN40	DN50
N (external thread, condensate)	DN25	DN32
Weight, kg	154	237
Water volume, l	10.0	13.2

Dimensional drawing of the Mycond OXA-HK unit with callouts

DWG drawings are available on request.

Where it is used

Mycond OXA unit above a beverage bottling line

Beverage bottling hall: the unit holds temperature and humidity above the line without blocking access to the equipment.

textile and knitwear production;
beverage bottling halls and food plants;
printing houses and label production;
electronics and pharmaceutical facilities;
warehouses with specified humidity.

We size and lay out OXA systems for industrial facilities across Europe, including the moisture balance — send the process data and you get a layout with a quotation.

Frequently asked questions about the Mycond OXA-HK

How does it differ from the OXA-K?

Same heating and cooling unit, plus a built-in high-pressure humidification system rated at 20 kg/h.

Is water treatment required?

Yes — distilled or low-mineral water and a high-pressure pump station for the nozzles.

At what height is it installed?

From 4 to 23 m depending on the size; supply angle and speed are matched to the height.

Does it need a drain?

Yes, in cooling mode — a DN25 or DN32 male-threaded condensate connection.
