Ventilation

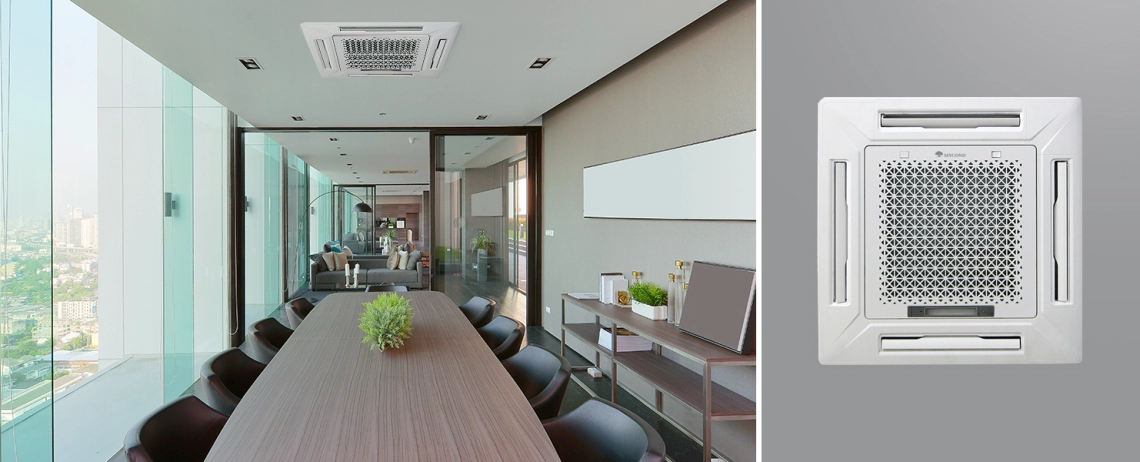

A wide range of cooling and heating capacities allows them to be used for spaces of any size. And the elegant stylish design of decoration panel will suit any interior.
2.4 ... 12.6 kW
Cooling capacity : 3,7 ... 18,9 kW
Heating capacity :
Wireless remote control
Features and advantages :
- Due to its compact casing (570 x 570 mm), the device can be installed in standard suspended ceiling systems using the 600 x 600 module.
- 4-way air distribution system allows you to evenly cool or heat the room without creating drafts and discomfort
- Revolutionary centrifugal fan design ensures quiet operation and high airflow
- Optimized heat exchanger provides high cooling and heating efficiency
- Powerful drainage pump provides a water head up to 1200 mm
- High efficiency filter with a filtering element made of synthetic fiber for even fresher and cleaner air
- Fresh air intake port

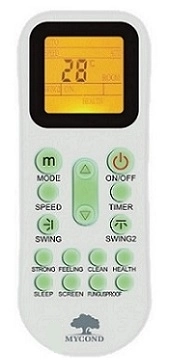

- IR remote control unit has simple programming with easy to read buttons for control. Comfortable and lightweight design that makes it perfect for daily use
| Specifications | Units | MCFK-03T2 | MCFK-04T2 | MCFK-05T2 | MCFK-06T2 |
| Air flow rate, H/M/L |
m3/h |
510/440/360 | 680/580/480 | 850/730/600 | 1020/765/510 |
| Total cooling capacity, H/M/L | kW | 3,3/2,8/2,4 | 3,9/3,4/2,8 | 4,5/3,6/3,1 | 5,4/4,6/3,5 |
| Heating capacity, H/M/L | kW | 4,8/4,2/3,7 | 5,8/5,1/4,5 | 6,8/5,9/5,2 | 8,1/6,9/5,3 |
| Operating current | A | 0,23 | 0,27 | 0,31 | 0,41 |
| Noise level | dB(A) | 39 | 42 | 44 | 44 |
| Water flow rate | kg/h | 620 | 700 | 940 | 1150 |
| Pressure drop in the heat exchanger | kPa | 26 | 27 | 29 | 31 |
| Fan/motor type | Centrifugal fan / Collector electric motor | ||||
| Insulation | Class B | Class B | Class B | Class B | |
| Power supply | 220-230 V / 1 phase / 50 or 60 Hz | ||||
| Motor power consumption | W | 55 | 62 | 75 | 90 |
| Heat exchanger | Copper pipes with aluminium fins, 2 rows | ||||
| Max. operating pressure | MPa | 1,6 | 1,6 | 1,6 | 1,6 |
| Inlet/outlet water pipe | mm | DN20, 3/4” | DN20, 3/4” | DN20, 3/4” | DN20, 3/4” |
| Condensate pipe | mm | DN20, 3/4” | DN20, 3/4” | DN20, 3/4” | DN20, 3/4” |
| Unit dimensions | mm | 570x570x260 | 570x570x260 | 570x570x260 | 835x835x240 |
| Panel dimensions | mm | 650x650x55 | 650x650x55 | 650x650x55 | 950x950x55 |
| Packed unit dimensions | mm | 650x650x290 | 650x650x290 | 650x650x290 | 910x910x310 |
| Packed panel dimensions | mm | 710x710x80 | 710x710x80 | 710x710x80 | 1000x1000x100 |
| Net weight, unit | kg | 18 | 18 | 18 | 24 |
| Net weight, panel | kg | 3 | 3 | 3 | 5 |
| Packed unit weight | kg | 20,3 | 20,3 | 20,3 | 28 |
| Packed panel weight | kg | 5 | 5 | 5 | 7 |
| Specifications | Units | MCFK-08T2 | MCFK-10T2 | MCFK-12T2 | MCFK-14T2 |
| Air flow rate, H/M/L |
m3/h |
1360/1020/680 | 1700/1275/850 | 2040/1530/1020 | 2380/1785/1190 |
| Total cooling capacity, H/M/L | kW | 7,2/6,2/4,7 | 9,1/7,7/5,9 | 10,8/9,2/7,1 | 12,6/10,7/8,2 |
| Heating capacity, H/M/L | kW | 10,8/9,2/7,0 | 13,5/11,5/8,8 | 16,2/13,8/10,5 | 18,9/16,1/12,3 |
| Operating current | A | 0,59 | 0,67 | 0,84 | 0,98 |
| Noise level | dB(A) | 45 | 48 | 50 | 51 |
| Water flow rate | kg/h | 1400 | 1680 | 1820 | 2245 |
| Pressure drop in the heat exchanger | kPa | 34 | 36 | 39 | 42 |
| Fan/motor type | Centrifugal fan / Collector electric motor | ||||
| Insulation | Class B | Class B | Class B | Class B | |
| Power supply | 220-230 V / 1 phase / 50 or 60 Hz | ||||
| Motor power consumption | W | 131 | 145 | 186 | 225 |
| Heat exchanger | Copper pipes with aluminium fins, 2 rows | ||||
| Max. operating pressure | MPa | 1,6 | 1,6 | 1,6 | 1,6 |
| Inlet/outlet water pipe | mm | DN20, 3/4” | DN20, 3/4” | DN20, 3/4” | DN20, 3/4” |
| Condensate pipe | mm | DN20, 3/4” | DN20, 3/4” | DN20, 3/4” | DN20, 3/4” |
| Unit dimensions | mm | 835x835x240 | 835x835x280 | 835x835x280 | 835x835x280 |
| Panel dimensions | mm | 950x950x55 | 950x950x55 | 950x950x55 | 950x950x55 |
| Packed unit dimensions | mm | 910x910x310 | 910x910x350 | 910x910x350 | 910x910x350 |
| Packed panel dimensions | mm | 1000x1000x100 | 1000x1000x100 | 1000x1000x100 | 1000x1000x100 |
| Net weight, unit | kg | 25,5 | 26,5 | 28 | 28 |
| Net weight, panel | kg | 5 | 5 | 5 | 5 |
| Packed unit weight | kg | 29 | 31 | 32,5 | 32,5 |
| Packed panel weight | kg | 7 | 7 | 7 | 7 |
Rated test conditions:
Cooling: inlet air temperature +27 °C DB / +19.5 °C WB, inlet water temperature +7 °C, outlet water temperature +12 °C.
Heating: inlet air temperature +21 °C, inlet water temperature +60 °C, the same water flow rate as in the cooling mode.
Sound pressure level has been measured in a sound insulated room, with a reference point at 1.5 m below the vertical axis of the unit.
Dimensions

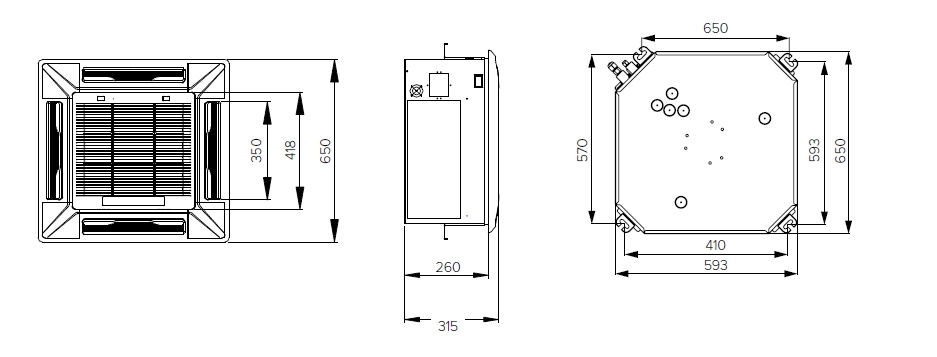

Appearance and dimensions of fan coil units MCFK 03\04\05
Dimensions

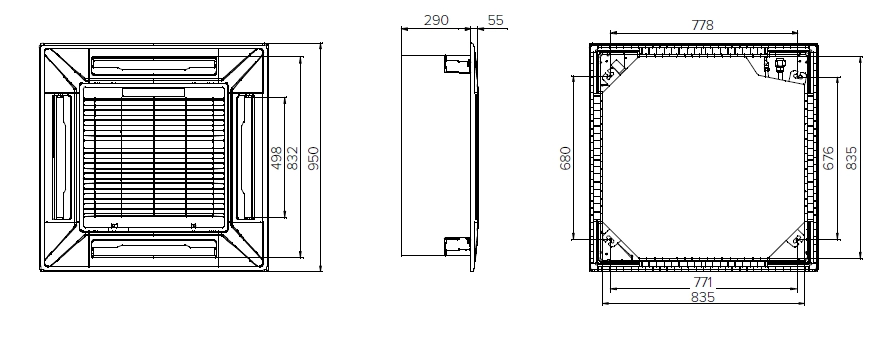

Appearance and dimensions of fan coil units MCFK 06/08
Dimensions

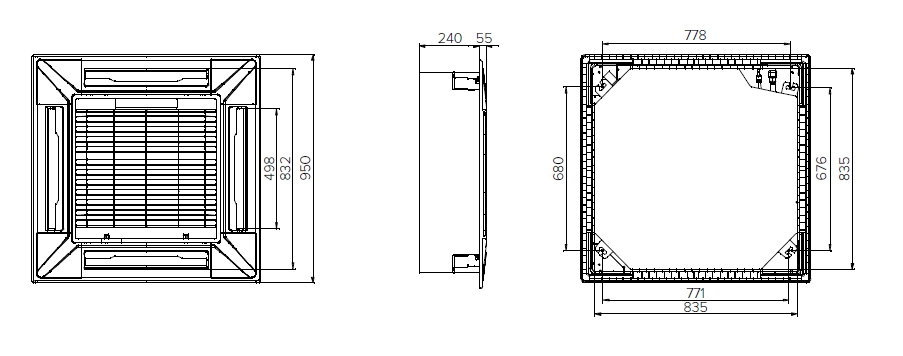

Appearance and dimensions of fan coil units MCFK 10/12/14

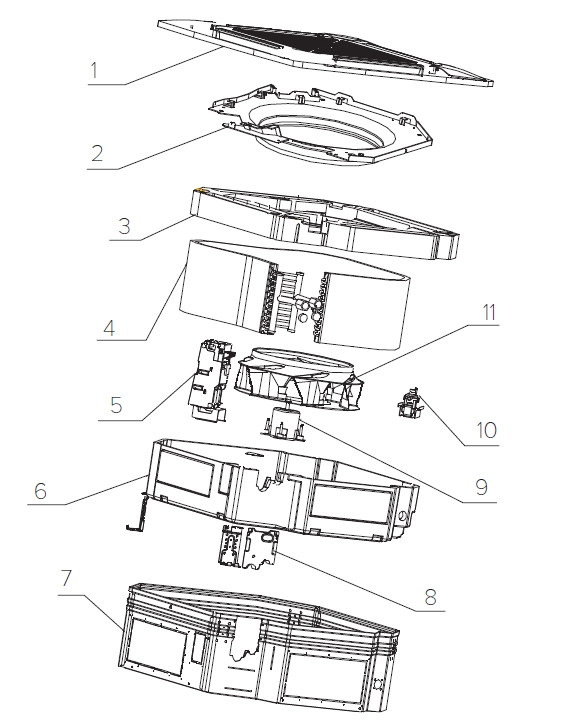

Components*
Legend:
1 – Decorative panel with a filter
2 – Air flow adjustment panel
3 – Drainage pan
4 – Heat exchanger
5 – Control box
6 – Heater insulation material
7 – Main body
8 – Pipe fixture
9 – Fan motor
10 – Drainage pump
11 – Fan
* The components may vary depending on the model. This schematic drawing refers to models MCFK 10/12/14.
