Buffer tank MBT 80 & MBT 100

Name: Buffer tank MBT 80 & MBT 100
Brand: Myсond - HVAC systems

The perfect solution for a heat pump-based heating/cooling system. MBT tanks have space-saving dimensions and effective thermal insulation. They are easy to install and can be connected to multiple heat sources

Want to buy or have questions?

Mycond

Buffers and tanks

Key benefits

Space-saving dimensions
Easy and quick installation
Wall-mounted MBT 80 buffer tank
8 connections of 1 ½” threads for multiple heat sources
4 connections of ½” threads for temperature sensors or thermostats
Inner thread 1 ½’ for immersion heater (only MBT 100)
Effective thermal insulation (thickness 50 mm) and external PVC casing
Heating and cooling operation modes

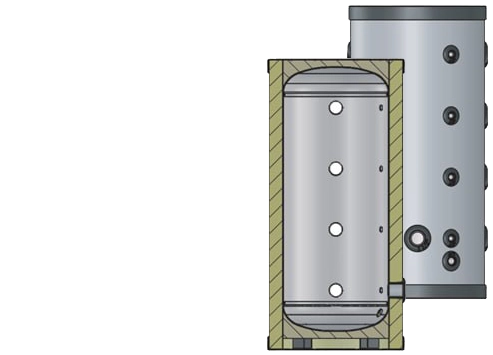

MyCond MBT 80 & MBT 100 Diagram of buffer tank showcasing energy optimization.

Parameters	Unit	MBT 80	MBT 100
Volume	L	80	100
Height (without levelling feet)	mm	865	1.036
Diameter	mm	490	490
Weight	kg	44	52
Operating pressure	Bar	3	3
Inlet/outlet connections	inch	1”	1 ½”
Number of connections	pcs	4	8
Operation mode		Heating / cooling
Immersion heater		no	Yes (option)
Installation type		wall-mounted	Floor standing
