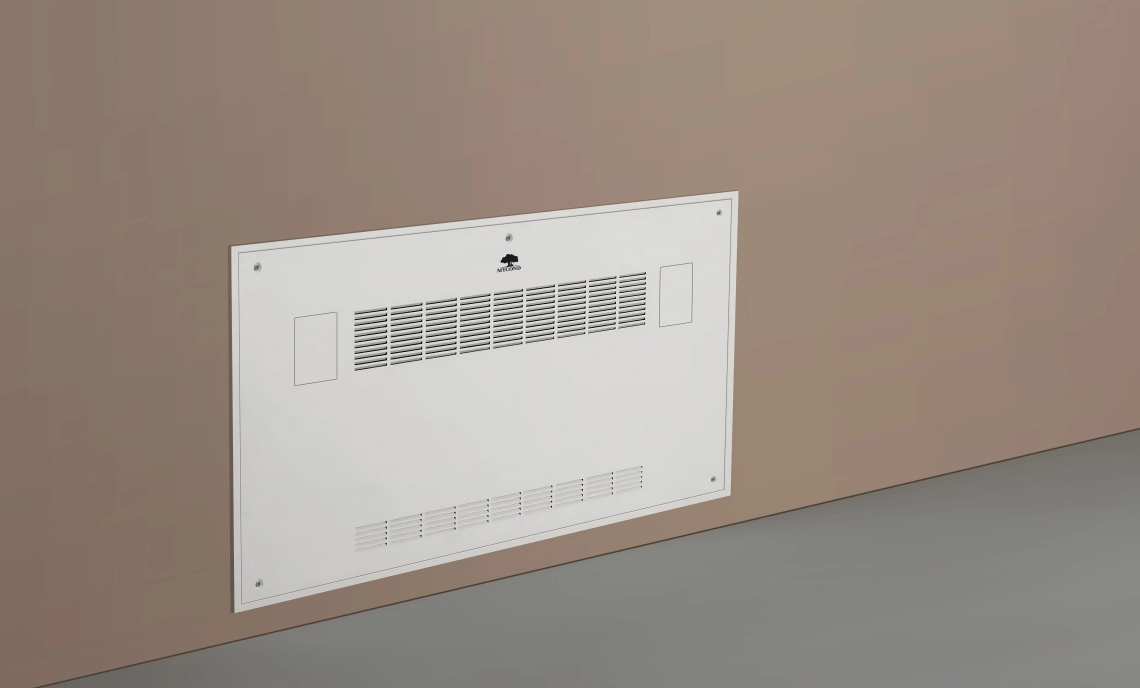

Built-in floor standing

Built-in floor-standing units are designed to complement the architectural aesthetics of the room or building. They can be customized to match the interior design, offering a cohesive and visually appealing solution
Built-in floor standing
2.50 ... 8.00 kW
Heating сapacity:
2.20 ... 7.10 kW
Cooling capacity:
Key features:
  • Compact and thin, only 220 mm depth
  • Ideal for installation under window
  • High-efficiency standard filter
  • Static pressure up to 30 Pa
  • Filter as standard
  • Convenient vertical mounting inverter control



Advantages:
  • Convenient installation
  • Ease of maintenance
  • Convenient management

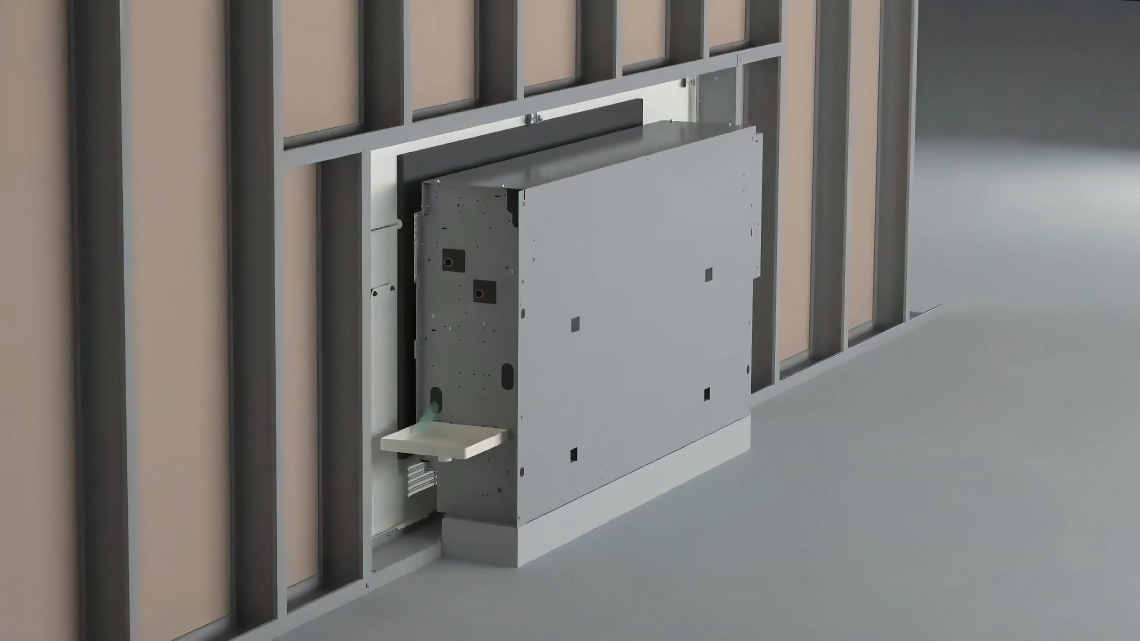

Require very little installation space: only 221mm
Require very little installation space: only 221mm

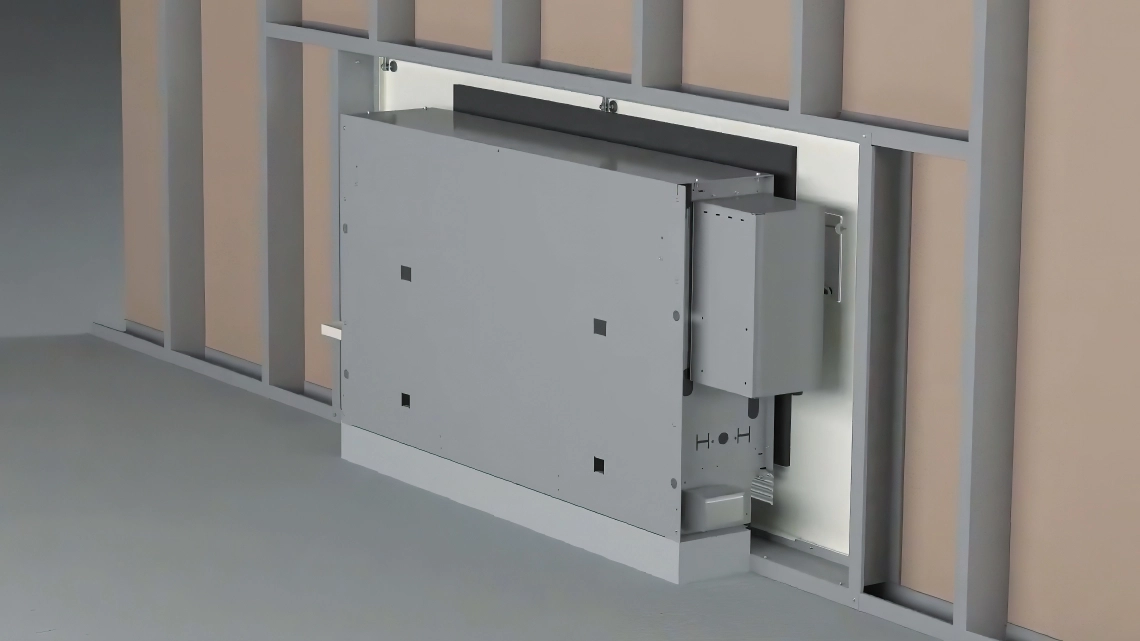

  • Good solution for installation beneath a window
  • High efficiency filter fitted as standard
Wide range of capacities
Wide range of capacities

The concealed floor units cover a wide range of capacities and can be built into counter in order to maintain the aesthetics of the room.

Excellent air distribution
Excellent air distribution

Using a design that has been refined for years, this unit has exceptional airflow distribution from a range  of sides so that your room will be comfortable no matter where it is installed.

Specifications Units MIEL-07X1EV1AA MIEL-09X1EV1AA MIEL-12X1EV1AA MIEL-16X1EV1AA MIEL-18X1EV1AA MIEL-24X1EV1AA
Capacity
Cooling kW 2,20 2,80 3,60 4,50 5,60 7,10
Heating kW 2,50 3,20 4,00 5,00 6,30 8,00
Electrical Parameters
Power supply Ph/V/Hz 1/220~230/50/60
Ventilation
Air flow (H/M/L) m3/h 750/650/550 750/650/550 750/650/5500 950/830/720 950/830/720 950/830/720
Sound pressure
(H/M/L)
dB(A) 38/35/33 38/35/33 40/37/35 40/37/35 42/39/36 42/39/36
Sound power
(H/M/L)
dB(A) 51/48/46 51/48/46 53/50/48 53/50/48 55/52/49 55/52/49
Installation – Dimensions
Net dimensions
(WxDxH)
mm 1116x221x624
Packaged unit
dimensions
(WxDxH)
mm 1425x315x685
Net/gross
weight
Kg 29,0/37,0 29,0/37,0 29,0/37,0 31,0/39,0 31,0/39,0 31,0/39,0
Ø Liquid pipe mm
(inch)
6,35 (1/4) 6,35 (1/4) 6,35 (1/4) 6,35 (1/4) 6,35 (1/4) 9,52 (1/4)
Ø Gas pipe mm
(inch)
9,52 (3/8) 9,52 (3/8) 12,70 (1/2) 12,70 (1/2) 12,70 (1/2) 15,88 (5/8)
Static pressure
(Standard/Max.)
Pa 0/30 0/30 0/30 0/30 0/30 0/30

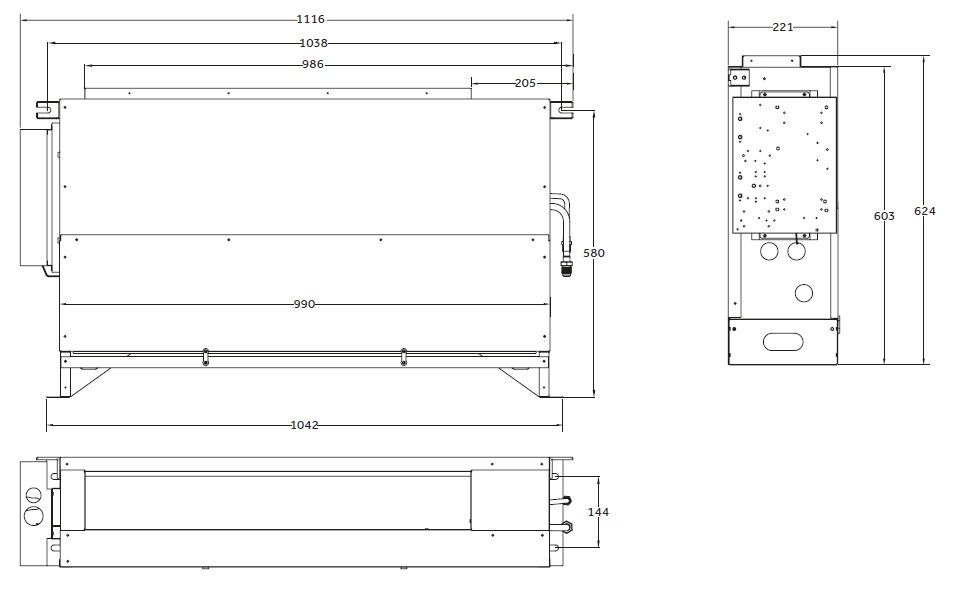

Dimensions
MIEL-07X1EV1AA MIEL-09X1EV1AA MIEL-12X1EV1AA MIEL-16X1EV1AA MIEL-18X1EV1AA MIEL-24X1EV1AA
Dimensions
