Compact Cassette
Cooling capacity: 1.50 ... 4.50 kW
Heating capacity: 1.70 ... 5.00 kW
Key features:
- Panel design max 620x620 dimensions, maximum compatibility with module ceilings
- Independent control of the 4 Vanes
- 6 positioning levels per single vane, with 1296 possible combinations
- DC inverter fan motor 5 fan speeds ONLY selectable with wired controller MWI-R201ABK and with wireless controller MIR-RS01
- Standard condensate drain pump
- Preparation for fresh air input (pre-cut)

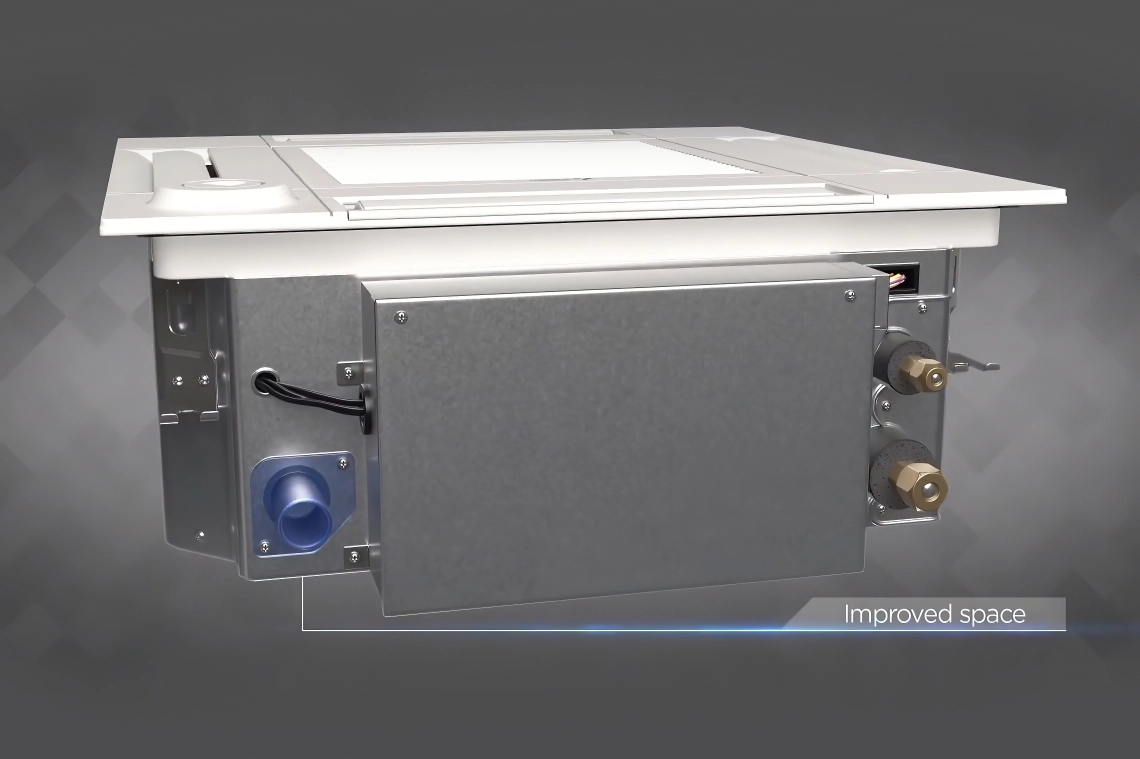

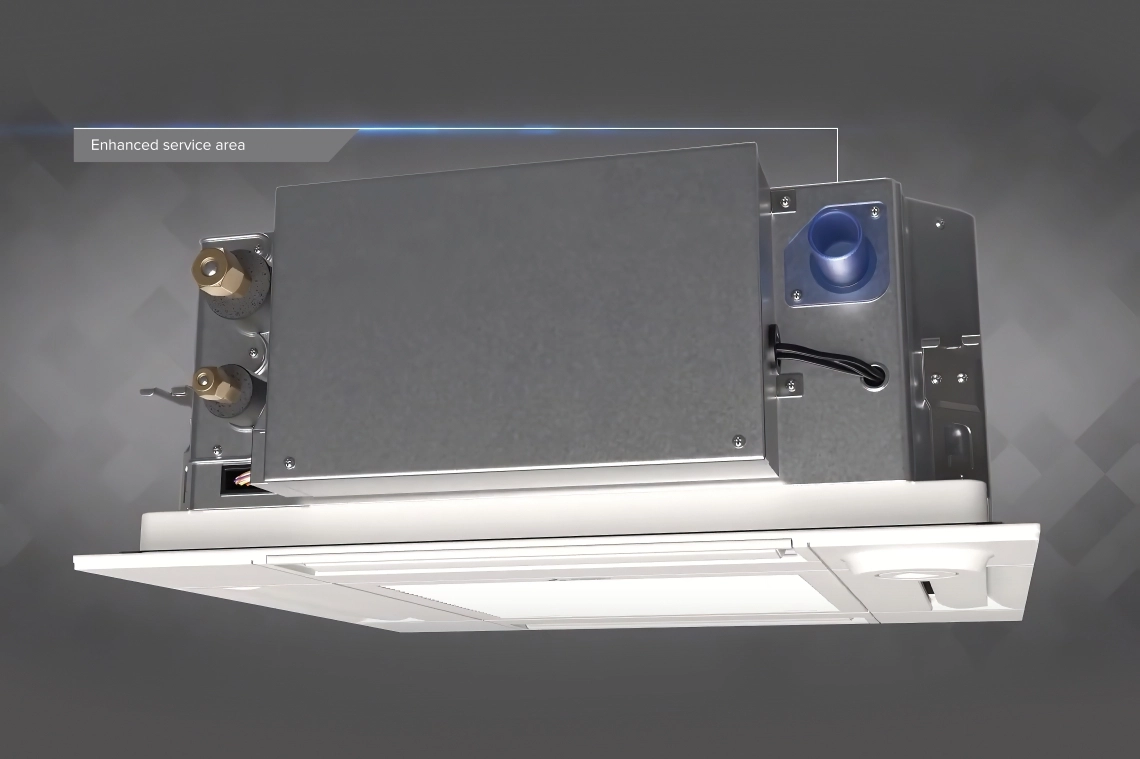

Іmproved space
For easy access to drainage connection and control board

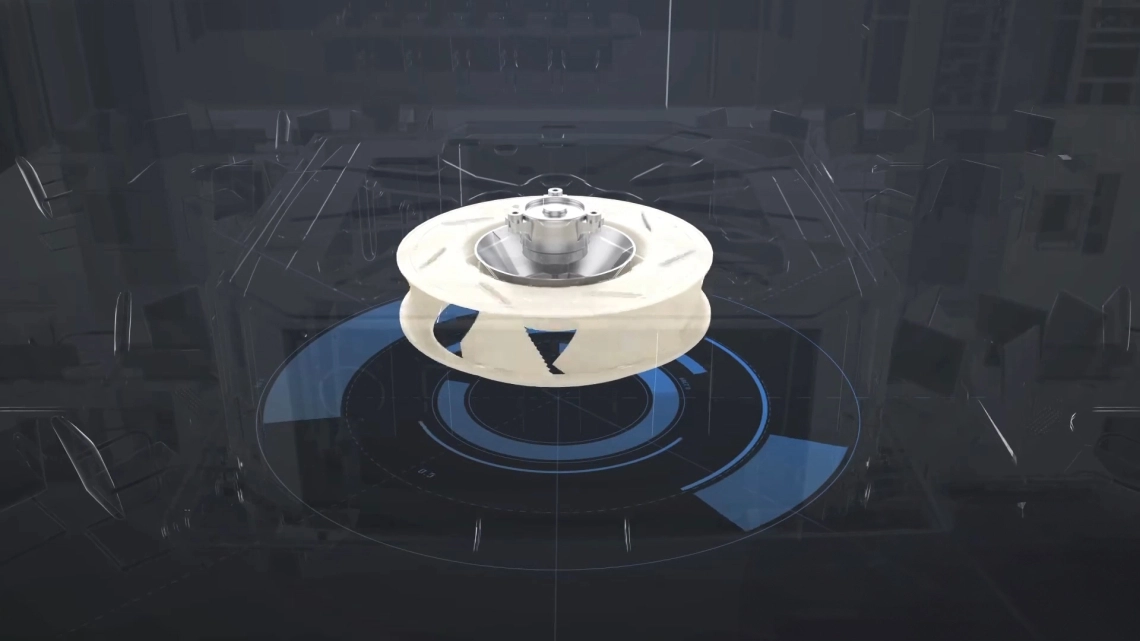

DC motor powered fan

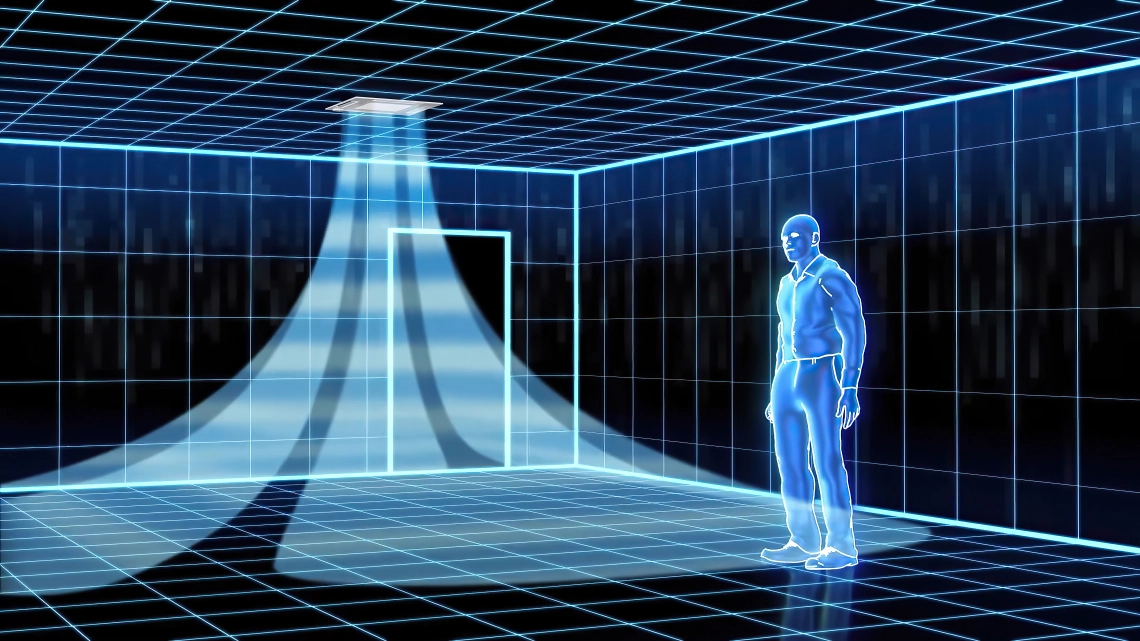

4-way airflow
The conditioned air is discharged in all directions from the unit, providing uniform cooling or heating throughout the room.
| Specifications | Units | MIBC-05X1EV1AD | MIBC-07X1EV1AD | MIBC-09X1EV1AD | MIBC-12X1EV1AD | MIBC-16X1EV1AD |
| Capacity | ||||||
| Cooling | kW | 1,50 | 2,20 | 2,80 | 3,60 | 4,50 |
| Heating | kW | 1,70 | 2,50 | 3,20 | 4,00 | 5,00 |
| Electrical Parameters | ||||||
| Power supply | Ph/V/Hz | 1/220~230/50/60 | ||||
| Ventilation | ||||||
| Air flow (H/M/L) | m3/h | 650/540/430 | 700/590/480 | |||
| Sound pressure (H/M/L) |
dB(A) | 32/30/29 | 32/30/29 | 32/30/29 | 33/30/29 | 33/30/29 |
| Sound power (H/M/L) |
dB(A) | 46/44/43 | 46/44/43 | 46/44/43 | 47/44/43 | 47/44/43 |
| Installation – Dimensions | ||||||
| Net dimensions (WxDxH) |
mm | 570x570x260 | ||||
| Packaged unit dimensions (WxDxH) |
mm | 718x680x380 | ||||
| Net/gross weight |
Kg | 16,0/19,0 | 16,0/19,0 | 16,0/19,0 | 19,0/22,0 | 19,0/22,0 |
| Ø Liquid pipe | mm (inch) | 6,35 (1/4) | 6,35 (1/4) | 6,35 (1/4) | 6,35 (1/4) | 6,35 (1/4) |
| Ø Gas pipe | mm (inch) | 9,52 (3/8) | 9,52 (3/8) | 9,52 (3/8) | 12,70 (1/2) | 12,70 (1/2) |
| Раnel | ||||||
| Model | MB-620KB | MB-620KB | MB-620KB | MB-620KB | MB-620KB | |
| Panel Net dimensions (WxDxH) |
mm | 620x620x60 | 620x620x60 | 620x620x60 | 620x620x60 | 620x620x60 |
| Panel Packaging dimensions (WxDxH) |
mm | 660x660x115 | 660x660x115 | 660x660x115 | 660x660x115 | 660x660x115 |
| Panel Net/gross weight |
Kg | 3.1/4.8 | 3.1/4.8 | 3.1/4.8 | 3.1/4.8 | 3.1/4.8 |

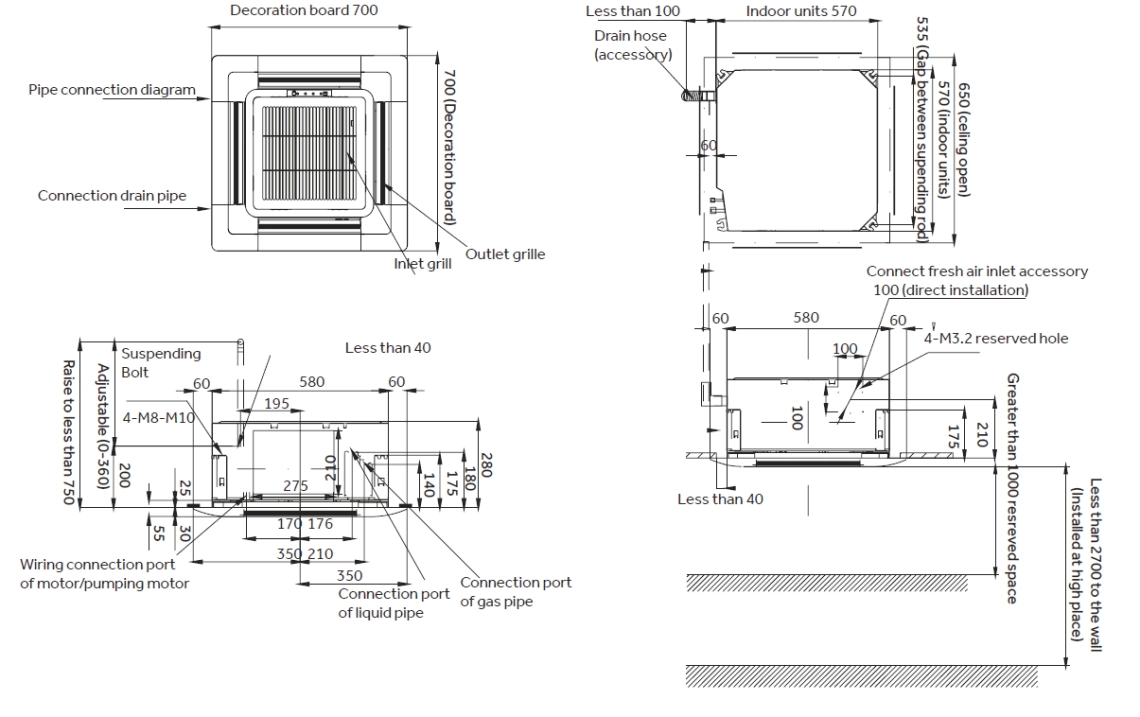

Dimensions
MIBC-05X1EV2AD MIBC-07X1EV2AD MIBC-09X1EV2AD MIBC-12X1EV2AD MIBC-16X1EV2AD MIBC-18X1EV2AD
