MyVent
Ventilation
1.70 ... 5.50 kW
Heating сapacity:1.50 ... 5.50 kW
Cooling сapacity:Key features:
- Double air delivery, upper and lower
- In heating mode: both outputs are enabled, to spread hot air at floor level preventing the “cold feet” effect typical of only higher deliveries
- By acting on the on-board selector it is possible to inhibit the lower output in heating mode
- In cooling mode: The unit works only with the top delivery, the lower output automatically closes
- Compact and elegant design
- Silent operation
- 5 fan speeds only selectable with wired controller MWI-R17A
- Static pressure 0 Pa
- Filter as standard
- Reliable ergonomic body
- Fan with DC motor
- Variable air supply (vertical, horizontal)

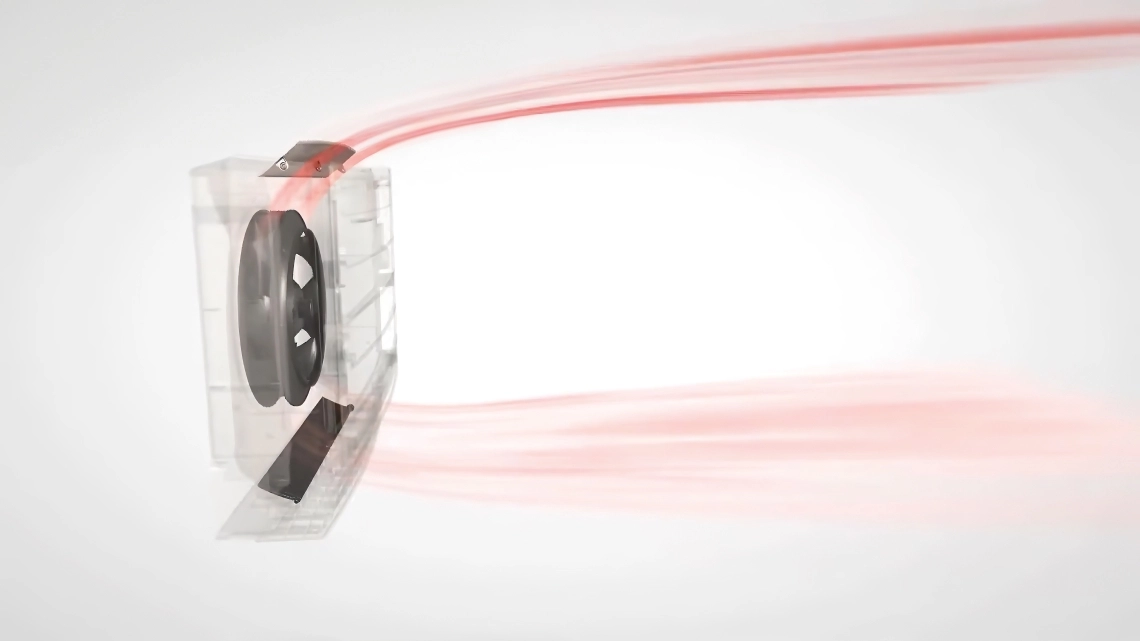

Smart heating
The vane adjusts upwards to direct the air flow towards the ceiling during the cooling operation. When heating, the vane directs the warm air downwards to balance
the room temperature, especially for floor.
Compact unit, space saving
The console indoor unit is very slim and will be harmonious with any room. It can be placed at the corner, and is very space saving.

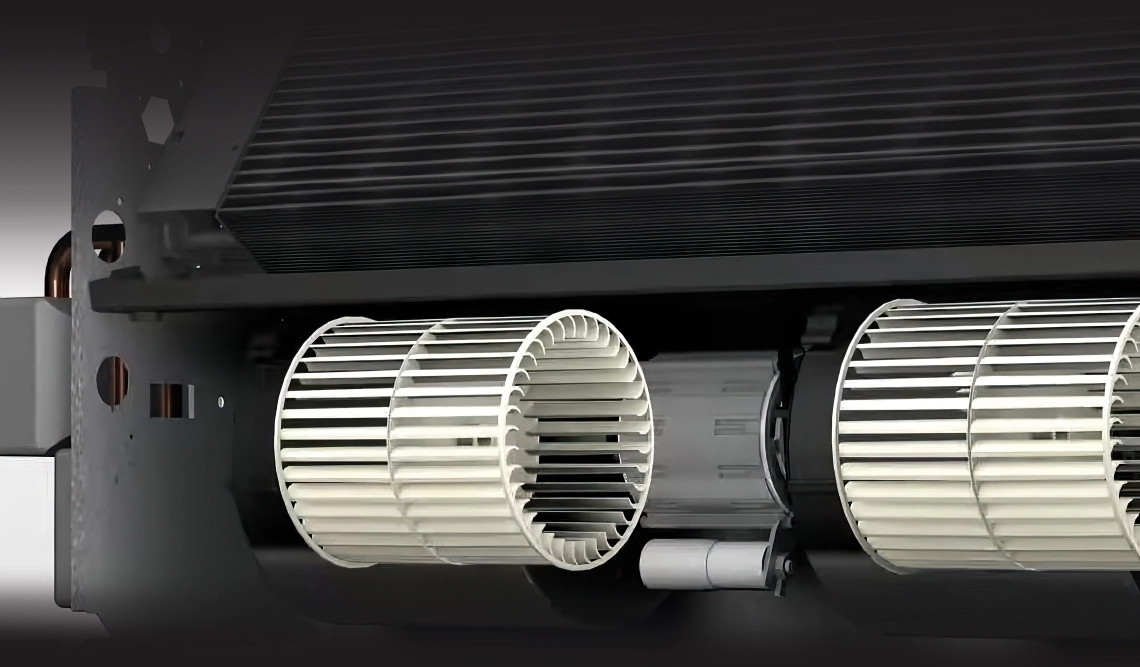

Powerful motors

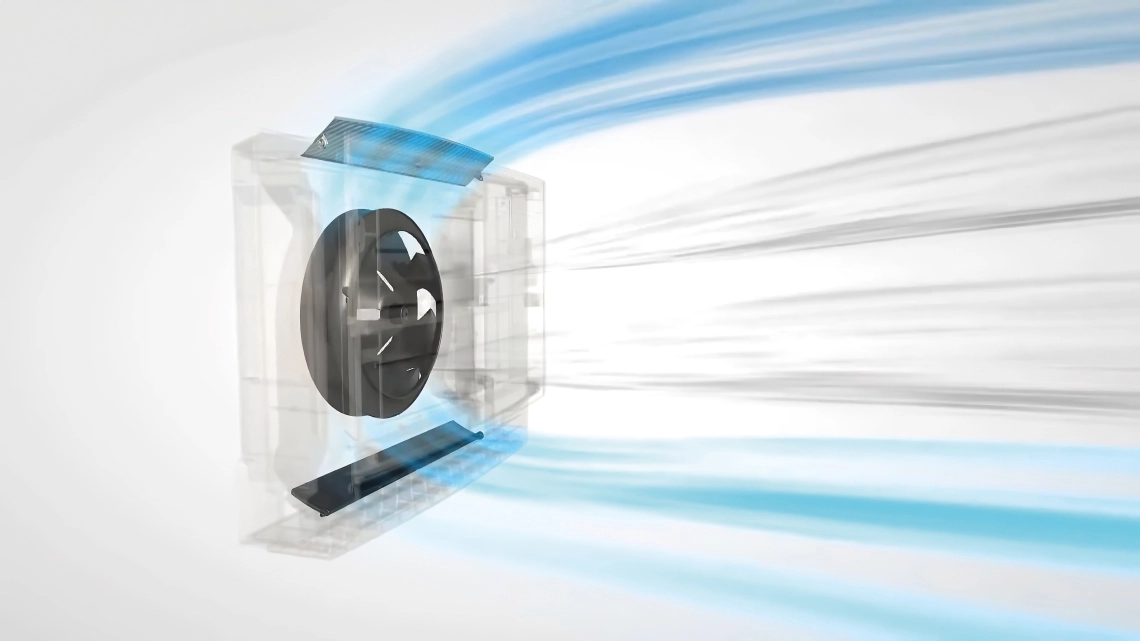

Five speed airflow and two-way airflow mode that automatically adjusts for extra comfort and flexibility.
| Specifications | Units | MIFB-05X1EV1AD | MIFB-07X1EV1AD | MIFB-09X1EV1AD | MIFB-12X1EV1AD | MIFB-16X1EV1AD | MIFB-18X1EV1AD |
| Capacity | |||||||
| Cooling | kW | 1,50 | 2,20 | 2,80 | 3,60 | 4,50 | 5,00 |
| Heating | kW | 1,70 | 2,50 | 3,20 | 4,00 | 5,00 | 5,50 |
| Electrical Parameters | |||||||
| Power supply | Ph/V/Hz | 1/220~230/50/60 | |||||
| Ventilation | |||||||
| Air flow (H/M/L) | m3/h | 540/460/390/310/270 | 580/500/420/350/270 | 620/540/460/390/270 | |||
| Sound pressure (H/M/L) |
dB(A) | 45/42/38/33/30 | 45/42/38/33/30 | 45/42/38/33/30 | 47/44/40/36/30 | 48/45/42/38/30 | 48/45/42/38/30 |
| Sound power (H/M/L) |
dB(A) | 58/55/52/48/45 | 58/55/52/48/45 | 58/55/52/48/45 | 60/57/54/51/47 | 61/58/55/42/48 | 61/58/55/42/48 |
| Installation – Dimensions | |||||||
| Net dimensions (WxDxH) |
mm | 700x210x600 | |||||
| Packaged unit dimensions (WxDxH) |
mm | 783x303x695 | |||||
| Net/gross weight |
Kg | 15,2/18,7 | 15,2/18,7 | 15,2/18,7 | 15,2/18,7 | 15,2/18,7 | 15,2/18,7 |
| Ø Liquid pipe | mm (inch) |
6,35 (1/4) | 6,35 (1/4) | 6,35 (1/4) | 6,35 (1/4) | 6,35 (1/4) | 6,35 (1/4) |
| Ø Gas pipe | mm (inch) |
12,70 (1/2) | 12,70 (1/2) | 12,70 (1/2) | 12,70 (1/2) | 12,70 (1/2) | 12,70 (1/2) |

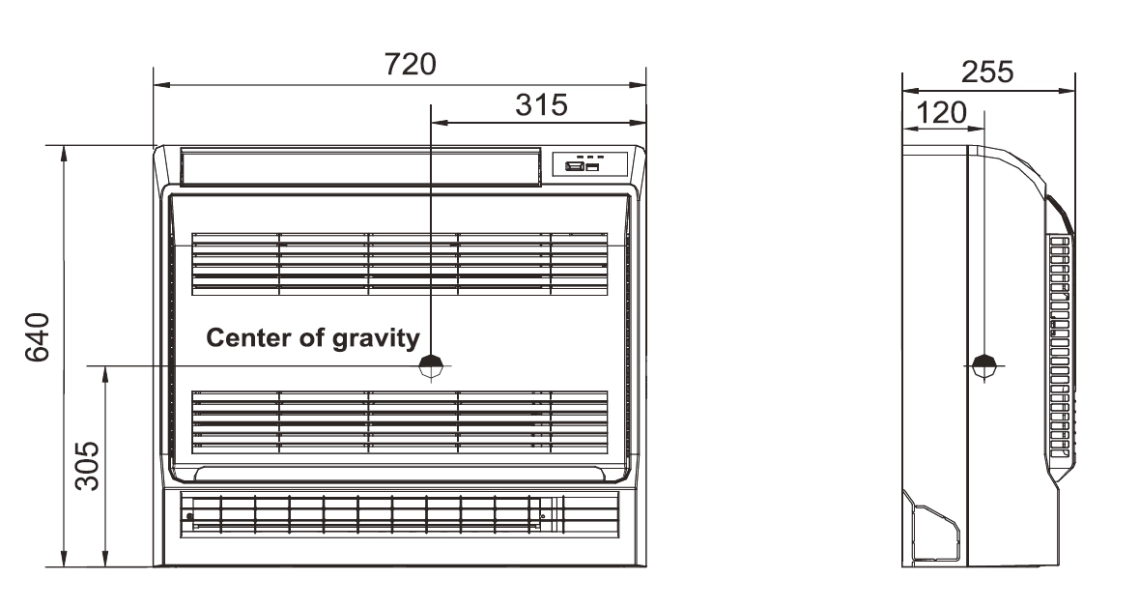

Dimensions
MIFB-05X1EV1AD MIFB-07X1EV1AD MIFB-09X1EV1AD MIFB-12X1EV1AD MIFB-16X1EV1AD MIFB-18X1EV1AD
