MyVent
Ventilation
3.20 ... 16.00 kW
Heating сapacity:2.80 ... 14.00 kW
Cooling сapacity:Key features:
- New design, subtle and harmonious
- DC inverter fan motor
- 5 fan speeds selectable with wired controller MWI-R201ABK
- 3D airflow with independent right and left wing group
- Outstanding installation height - the 14kW model can be installed up to 4.2 m high still ensuring adequate air distribution in the environment

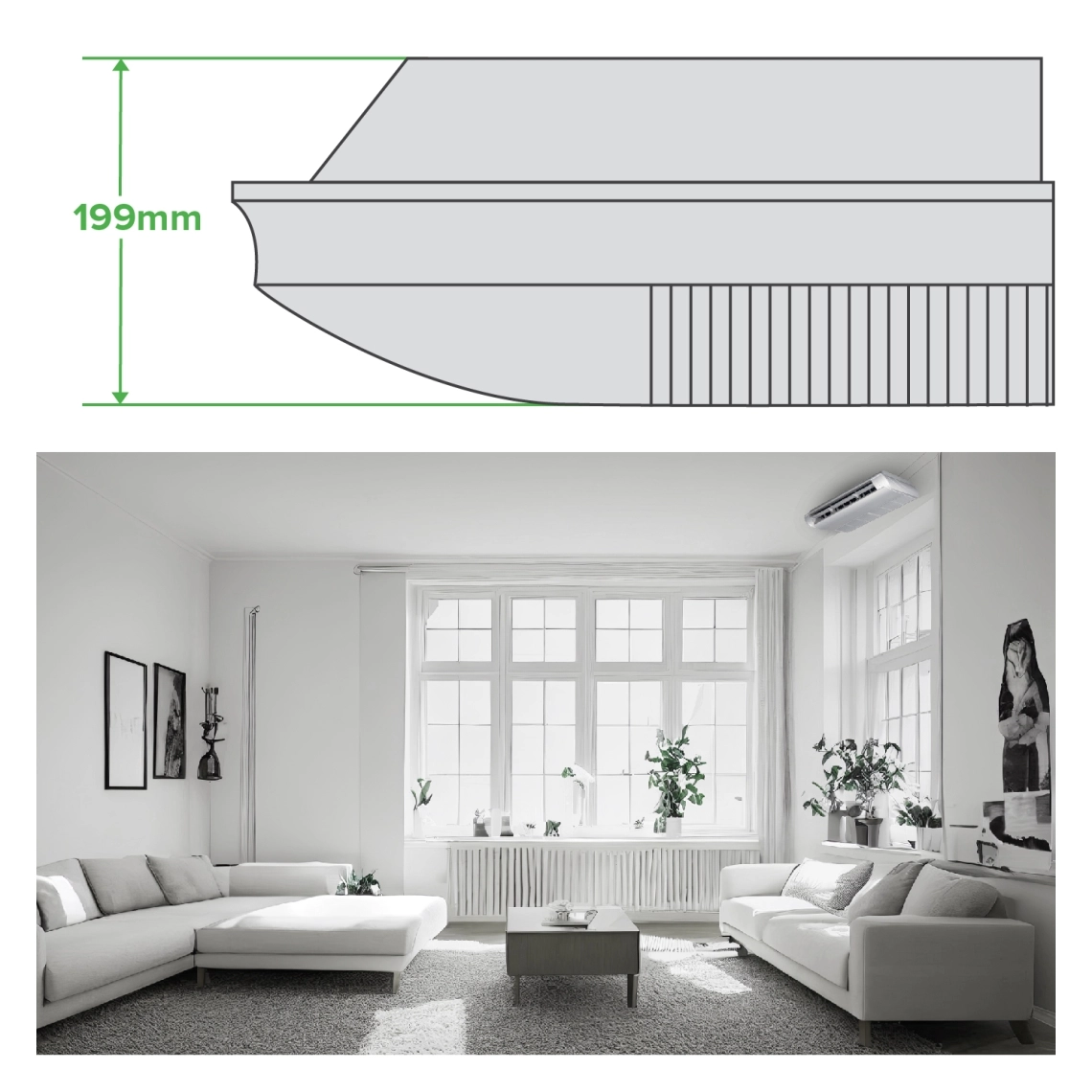

Thinner body design, good value option
Thin fuselage thickness is only 199mm (2HP), streamlined design, beautiful and generous, commercial home decoration value choice.

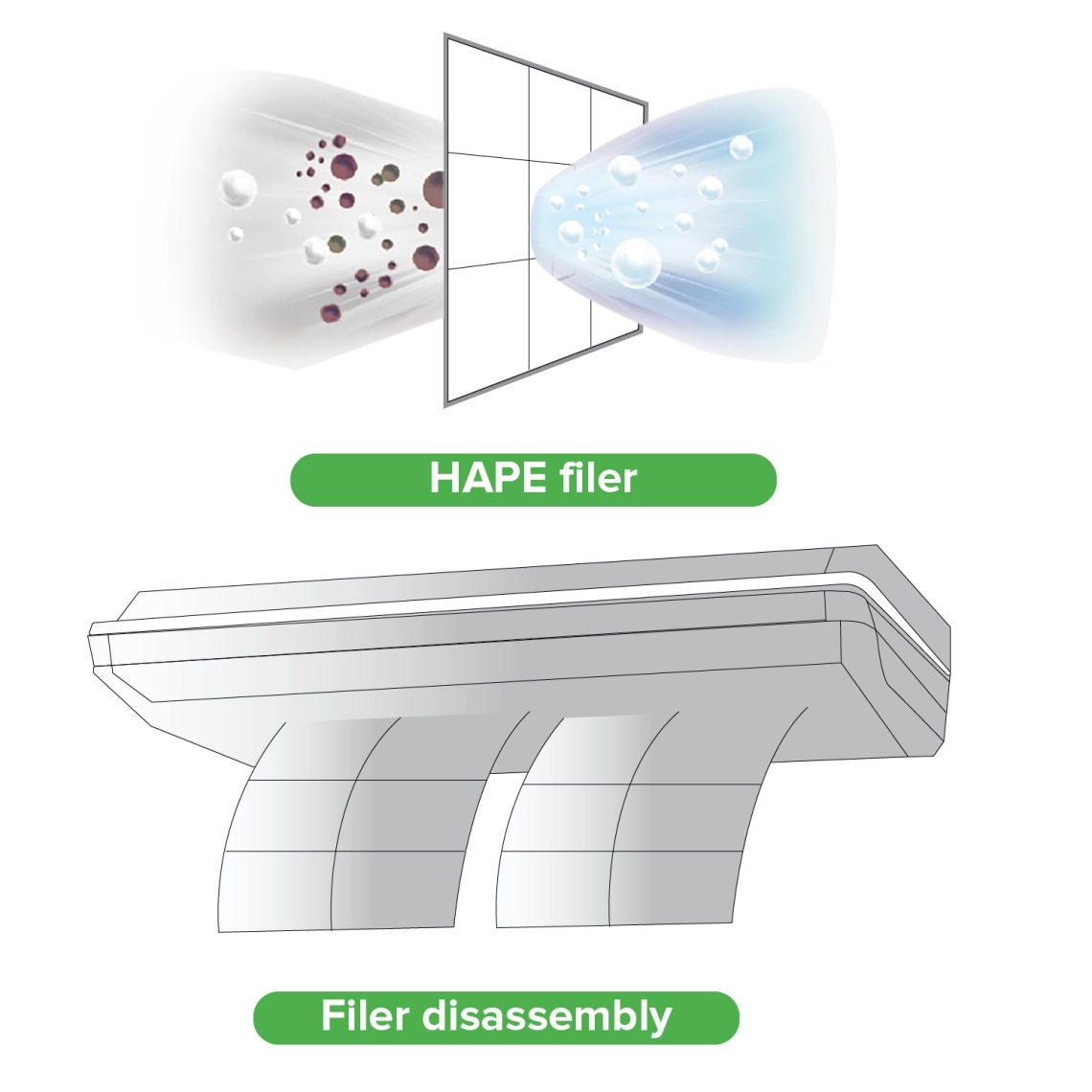

Standard with filter, easy installation
With high efficiency filter, fully filter dust, smoke and other fine particles in the air, improve indoor air guality. Filter netease disassembly, easy cleaning, reduce cleaning and maintenance operations, so that you enjoy fresh air.

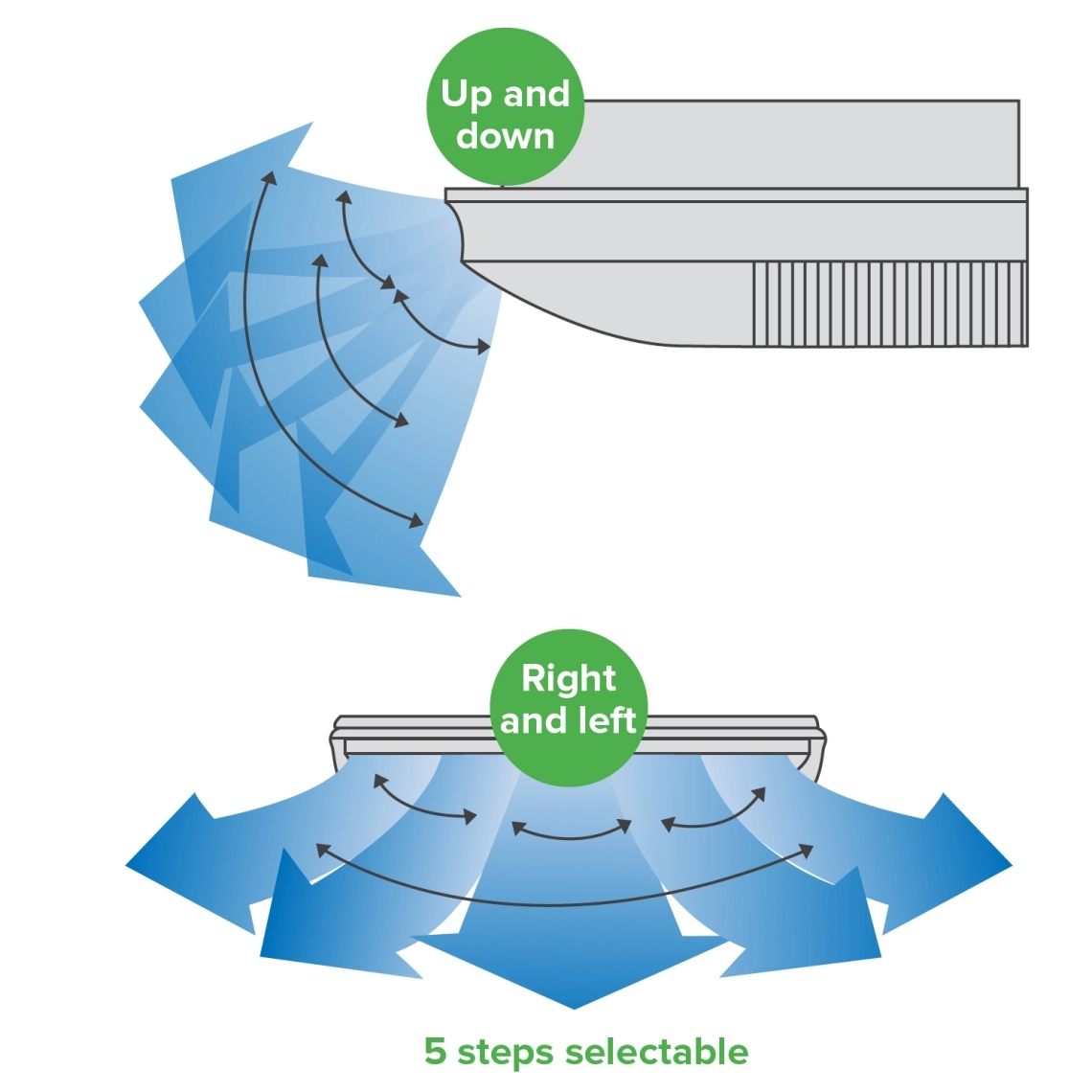

Air supply in 5 angles, more comfortable
Double swing air motor design, while up and down swing air supply, left and right swing air can also adjust the Angle of air supply, realize the full wind level three-dimensional air supply, at the same time provide four speed adjustable, improve user comfort.
Multiple installation m odes flexible optional
Users can choose ceiling installation, also can choose ground installation, convenient for users to choose freely.
Fan blade design
This design helps to distribute the load more evenly across the blade span, improving overall efficiency and reducing noise.

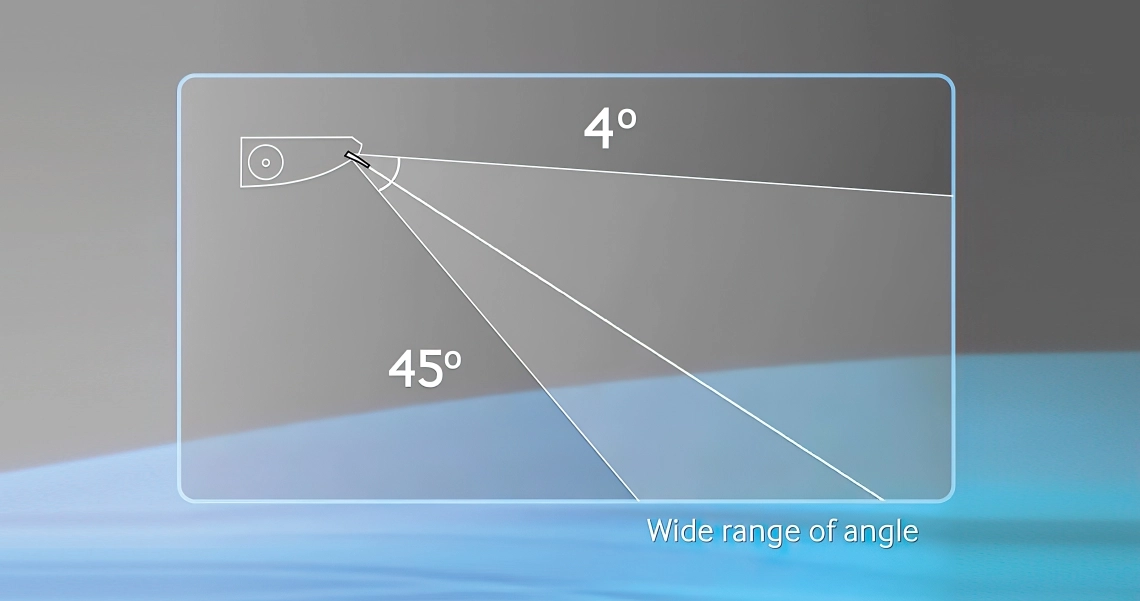

Left/right can swing separately and every angle can be fixed.

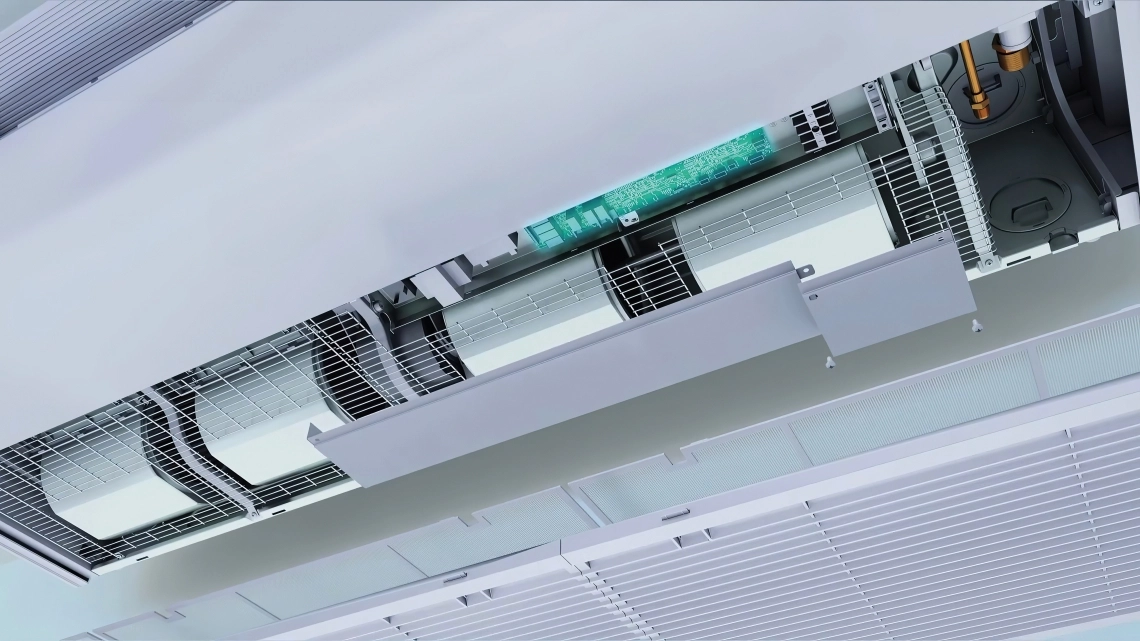

Installation convenience
You only need to the grille to maintain and install PCB without dissembling unit.

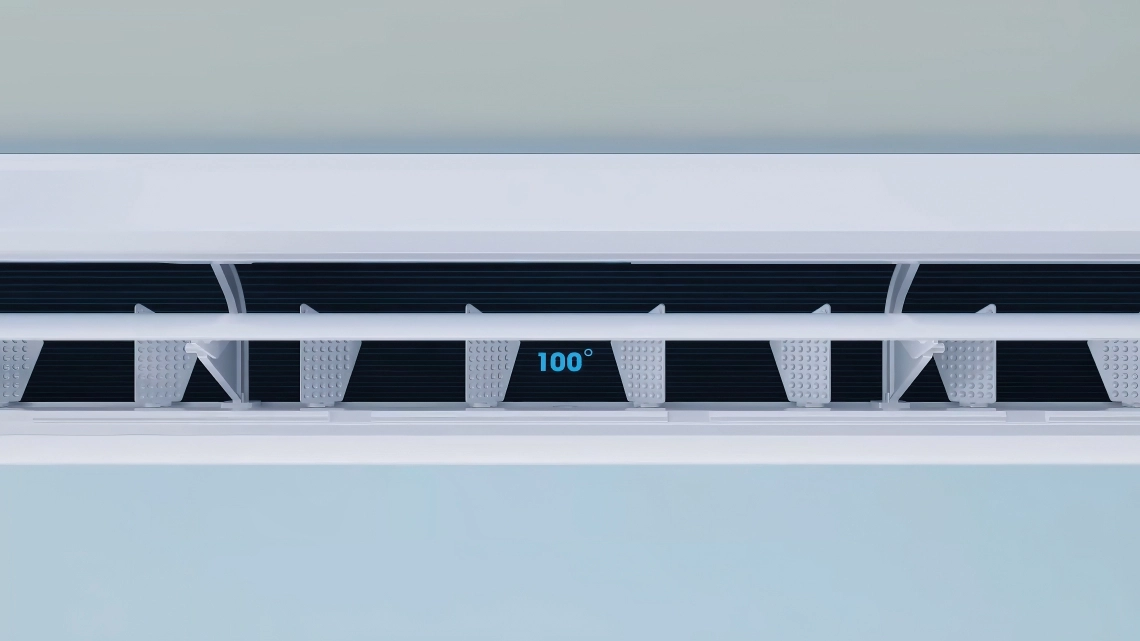

Horizontal louver adjustment
Horizontal louvers can move horizontally, providing the ability to direct the flow to the left or right. This allows you to direct the flow to a specific area of the room.
| Specifications | Units | MICD- 09X1EV1AD |
MICD- 12X1EV1AD |
MICD- 16X1EV1AD |
MICD- 18X1EV1AD |
MICD- 24X1EV1AD |
MICD- 28X1EV1AD |
MICD- 30X1EV1AD |
MICD- 38X1EV1AD |
MICD- 48X1EV1AD |
| Capacity | ||||||||||
| Cooling | kW | 2,80 | 3,60 | 4,50 | 5,60 | 7,10 | 8,00 | 9,00 | 11,20 | 14,00 |
| Heating | kW | 3,20 | 4,00 | 5,00 | 6,30 | 8,00 | 9,00 | 10,00 | 12,50 | 16,00 |
| Electrical Parameters | ||||||||||
| Power supply | Ph/V/Hz | 1/220~230/50/60 | ||||||||
| Ventilation | ||||||||||
| Air flow (H/M/L) | m3/h | 820/750/690 | 820/750/690 | 950/820/690 | 950/820/690 | 1420/1270/1240 | 1570/1420/1240 | 1570/1420/1240 | 2110/1990/1750 | 2110/1990/1750 |
| Sound pressure (H/M/L) |
dB(A) | 38/36/34 | 38/36/34 | 42/38/35 | 42/38/35 | 46/44/41 | 47/44/41 | 47/44/41 | 50/46/43 | 50/46/43 |
| Sound power (H/M/L) |
dB(A) | 52/50/47 | 52/50/47 | 55/51/48 | 55/51/48 | 60/58/54 | 61/58/54 | 61/58/54 | 63/60/57 | 63/60/57 |
| Installation – Dimensions | ||||||||||
| Net dimensions (WxDxH) |
mm | 1000x230x680 | 1325x230x680 | 1650x230x680 | ||||||
| Packaged unit dimensions (WxDxH) |
mm | 1100x305x779 | 1425x305x779 | 1750x305x779 | ||||||
| Net/gross weight |
Kg | 27.9/33,6 | 27.9/33,6 | 27.9/33,6 | 27.9/33,6 | 35.8/42.1 | 35.8/42.1 | 35.8/42.1 | 43.5/50.5 | 43.5/50.5 |
| Ø Liquid pipe | mm (inch) |
6,35 (1/4) | 6,35 (1/4) | 6,35 (1/4) | 6,35 (1/4) | 9,52 (3/8) | 9,52 (3/8) | 9,52 (3/8) | 9,52 (3/8) | 9,52 (3/8) |
| Ø Gas pipe | mm (inch) |
9,52 (3/8) | 12,70 (1/2) | 12,70 (1/2) | 12,70 (1/2) | 12,70 (1/2) | 15,88 (5/8) | 15,88 (5/8) | 15,88 (5/8) | 15,88 (5/8) |

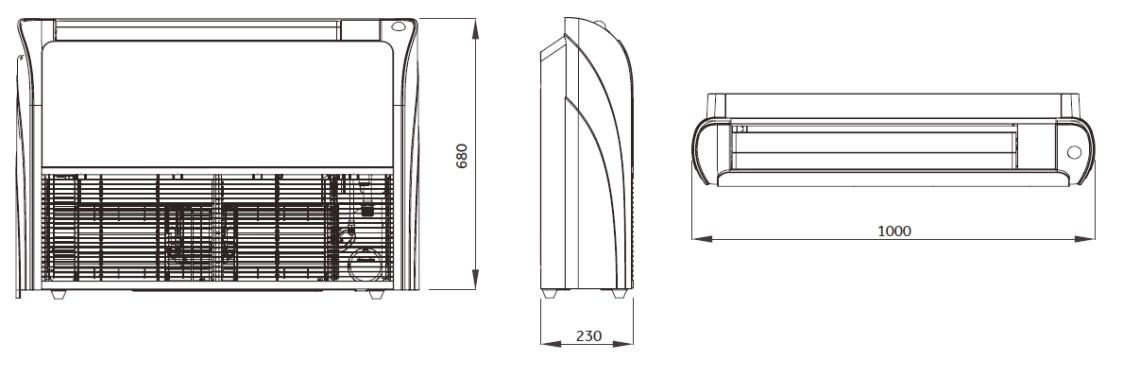

Dimensions
MICD-09X1EV1AD MICD-12X1EV1AD MICD-16X1EV1AD MICD-18X1EV1AD

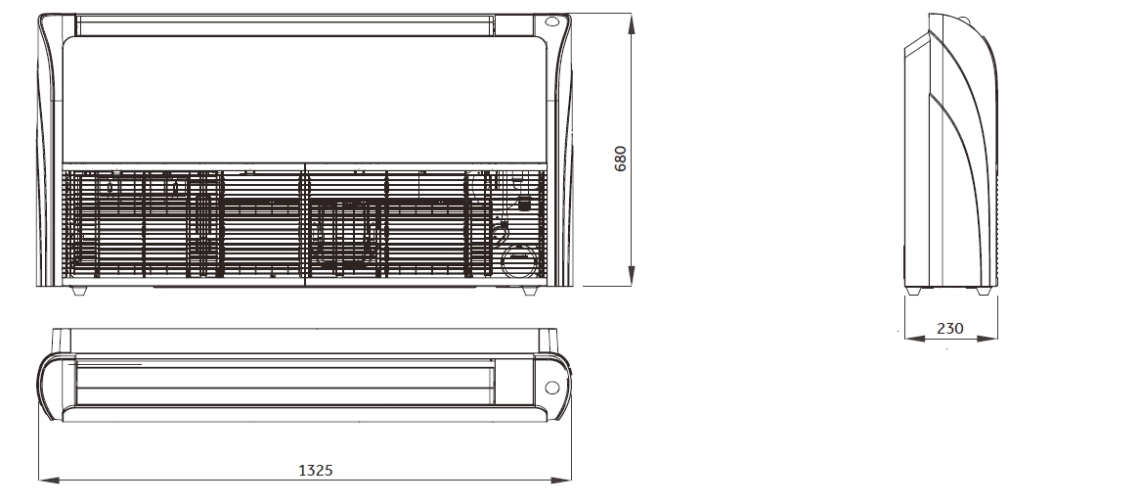

Dimensions
MICD-24X1EV1AD MICD-28X1EV1AD MICD-30X1EV1AD

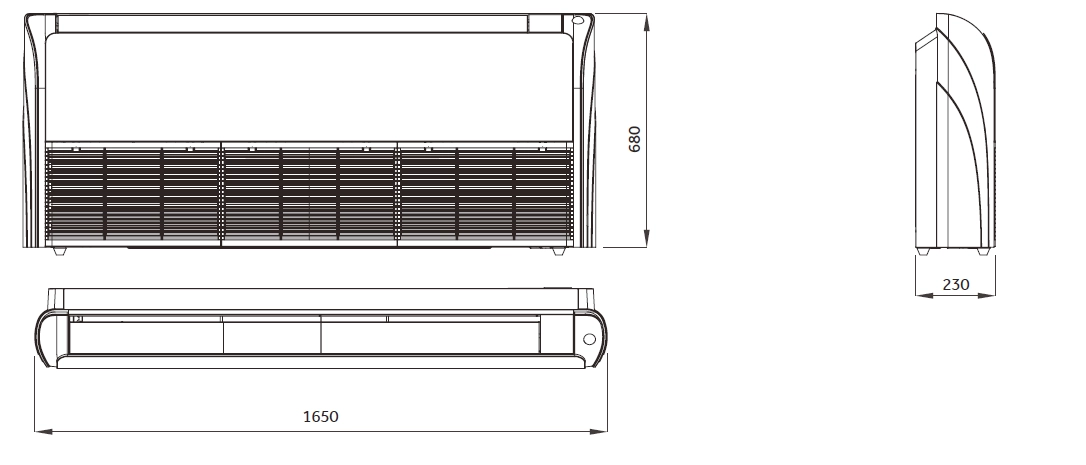

Dimensions
MICD-38X1EV1AD MICD-48X1EV1AD
