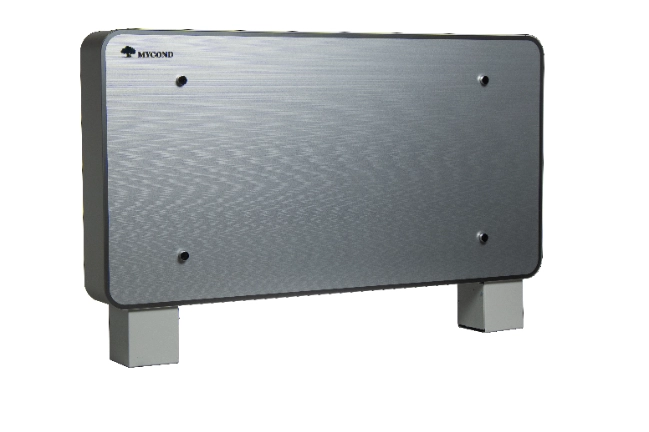

Designer floor-standing fan coil units, Silver Glass series
The fan coil unit is ultra-thin in design. For comparison, its casing together with the glass is only 122 mm thick, saving more space for installation. In addition, its simple and neat appearance will easily fit into the style of your room.
The fan coil units will effectively complement a heating system employing a heat pump. The equipment does not require high water temperature to heat the house, thus saving your costs.
Key advantages:

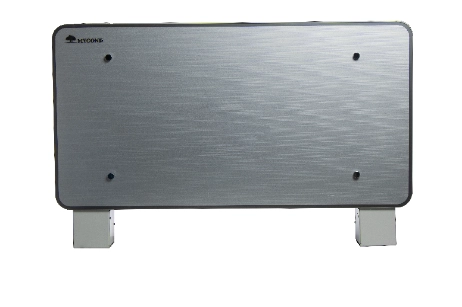

- Glass front panel
- Ultra- thin body
- The unit frame is made of 0,8-1 mm gauge metal sheet
- Low noise level
- Integrated housing for the thermostat
- DC motor
- Class G1 air filters designed for easy removal for trouble-free cleaning and maintenance purposes
- The heat exchanger coil consists of copper tubes and brass manifolds: the tubes are equipped with corrugated aluminum fins
- Equipped with a removable drain pan
- Aluminum grille with magnetic fastening
- Optional: rear glass panel (open-space installation)

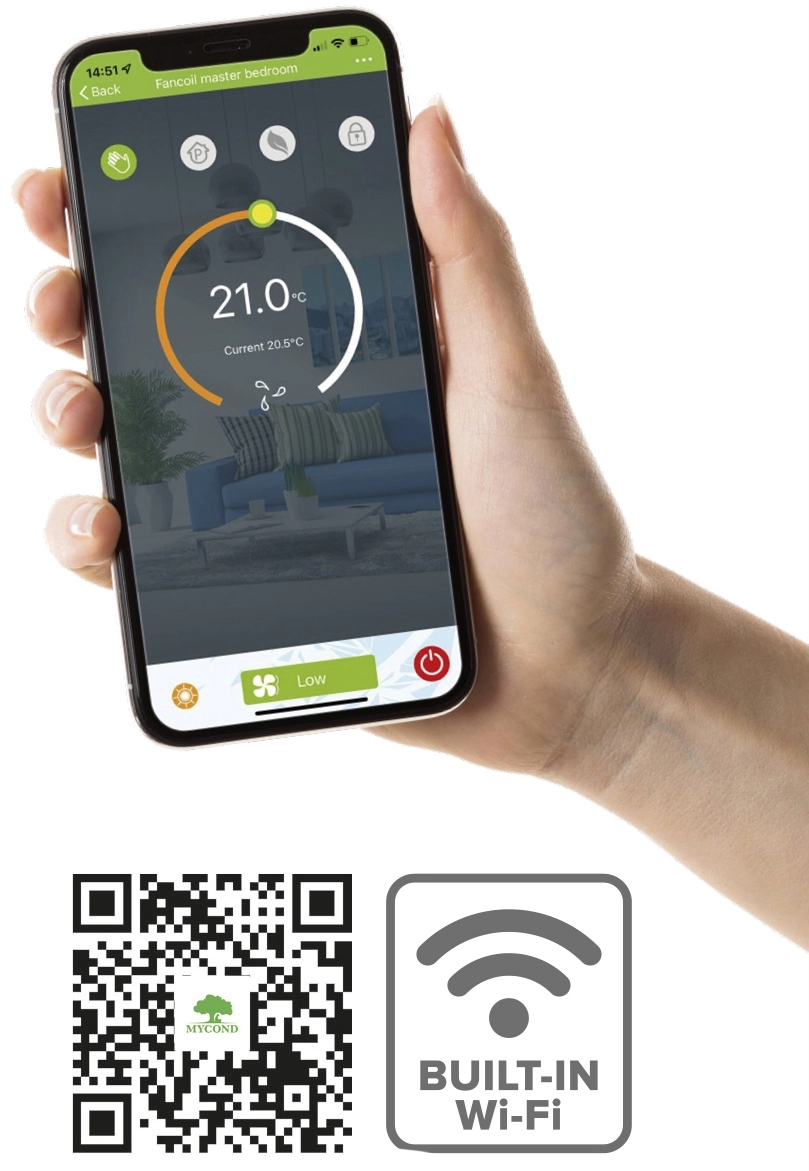

- Thermostat (optional)
Discover a new dimension of elegance with Mycond!

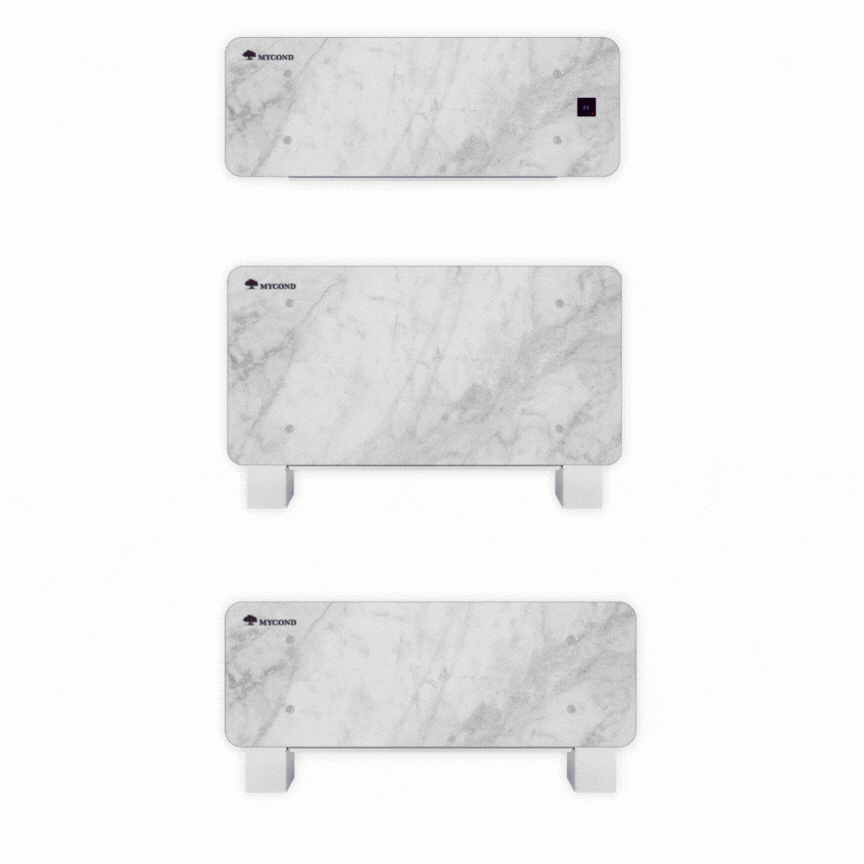

- Modern design: elegant printed glass panels fit perfectly into any interior, adding a touch of style and modernity.

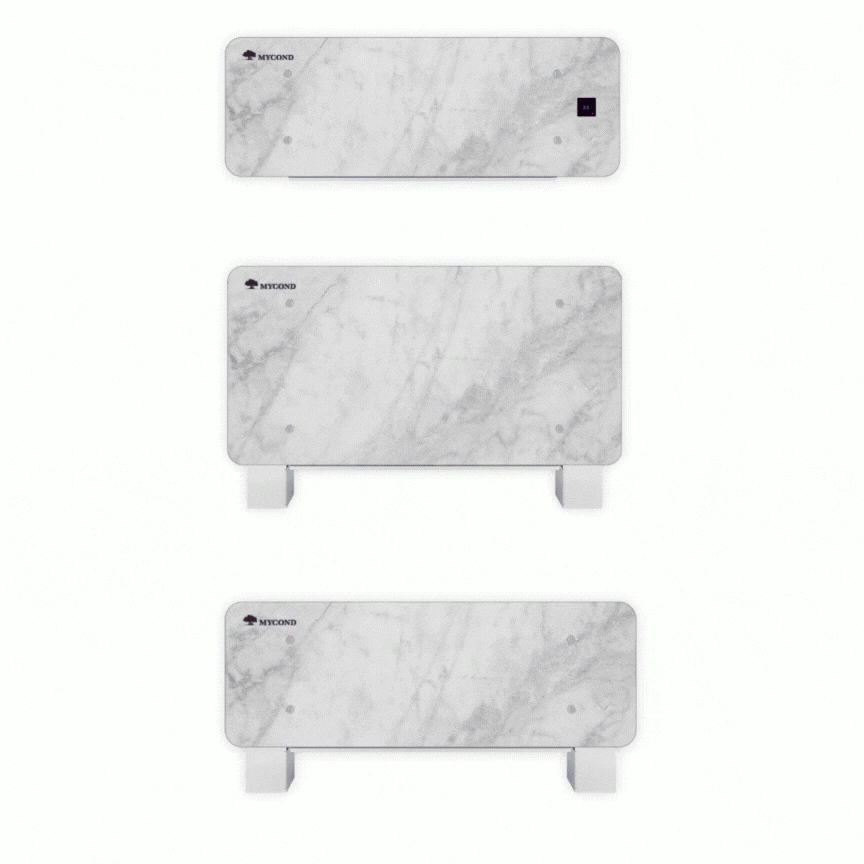

- You can choose your own image or design on the panel, which we will adapt to your interior.
Main components

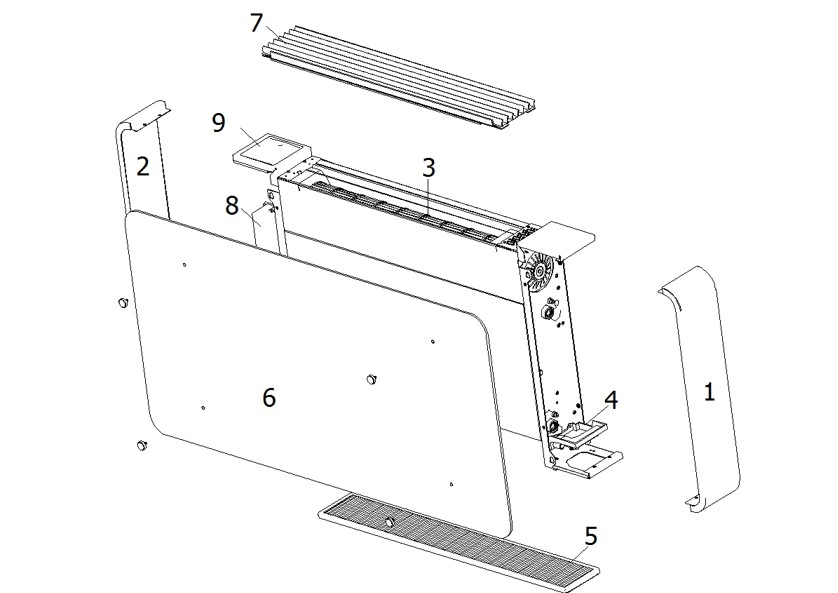

External parts
- Left-side panel
- Right-side panel
- Fandeck
- Auxiliary drain
- Filter
- Front panel
- Aluminum grille
- Electric box
- Control panel (option)

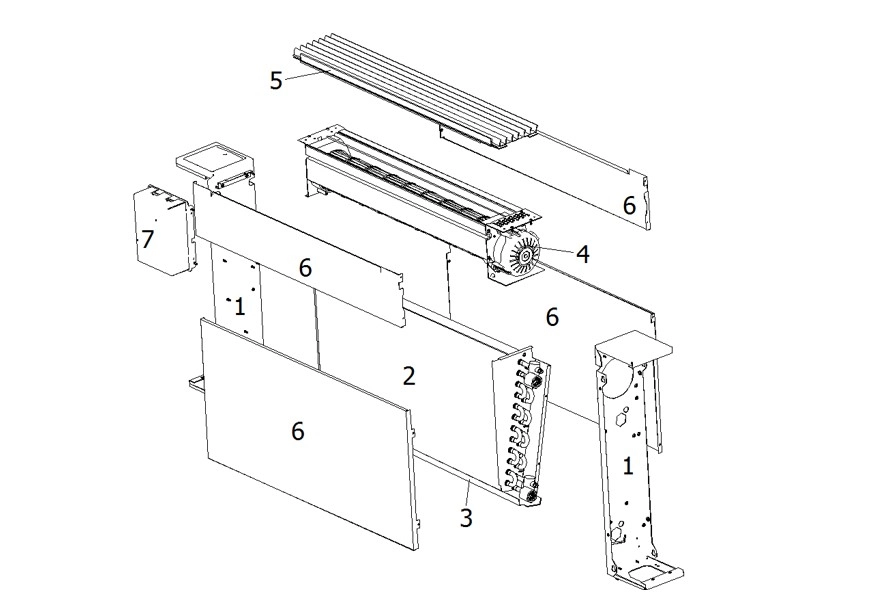

Internal parts
Vertical units
- Inner side panel
- Main heat-exchanger
- Condensate tray
- Fandeck
- Aluminum grille
- Inner front and rear panels
- Electric box

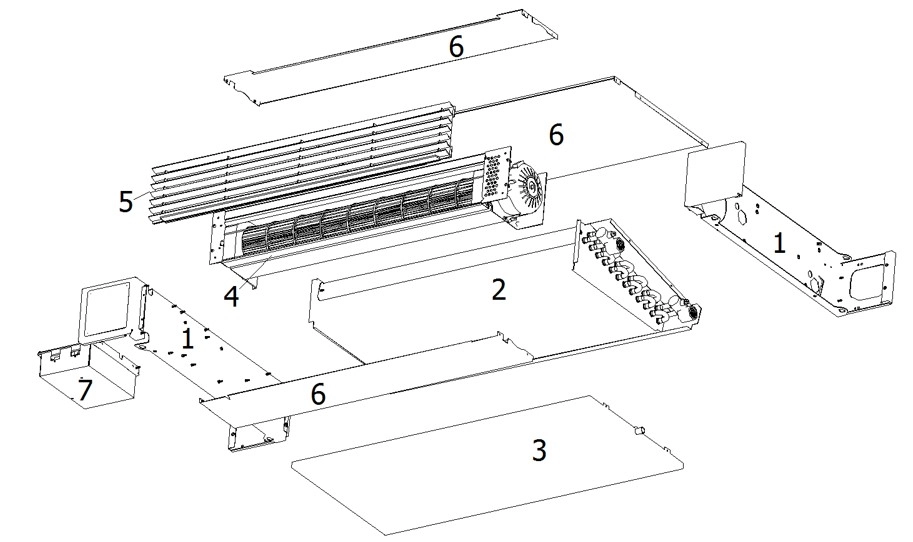

Internal parts
Horizontal unit
- Inner side panel
- Main heat-exchanger
- Condensate tray
- Fandeck
- Aluminum grille
- Inner front and rear panels
- Electric box
Technical data
2 pipe system
| Specifications | Units | Speed | MC-SG-200T2 | MC-SG-400T2 | MC-SG-600T2 | MC-SG-800T2 |
| Air flow rate | Supermax | 250 | 390 | 510 | 620 | |
| Max (*) | 180 | 315 | 450 | 540 | ||
| m3/h | Med (*) | 120 | 230 | 350 | 450 | |
| Min (*) | 80 | 155 | 240 | 310 | ||
| Static | 10 | 18 | 25 | 32 | ||
| Total cooling capacity | Supermax | 1.19 | 2.12 | 2.90 | 3.73 | |
| Max | 0.88 | 1.81 | 2.70 | 3.38 | ||
| kW | Med | 0.79 | 1.45 | 2.20 | 2.75 | |
| Min | 0.45 | 0.98 | 1.70 | 2.13 | ||
| Sensible capacity | Supermax | 0.87 | 1.56 | 2.16 | 2.97 | |
| Max | 0.69 | 1.35 | 2.00 | 2.70 | ||
| kW | Med | 0.60 | 1.10 | 1.68 | 2.30 | |
| Min | 0.30 | 0.70 | 1.25 | 1.70 | ||
| Heating capacity | Supermax | 1.55 | 2.71 | 3.71 | 4.71 | |
| Max | 1.10 | 2.40 | 3.20 | 4.23 | ||
| kW | Med | 0.90 | 1.50 | 2.40 | 3.40 | |
| Min | 0.61 | 1.16 | 1.75 | 2.41 | ||
| V/H/Ph | 230 V – 50 Hz - 1Ph | |||||
| Motor input | Supermax | 20 | 22 | 24 | 27 | |
| Max | 12 | 13 | 14 | 17 | ||
| W | Med | 5 | 6 | 7 | 10 | |
| Min | 3 | 4 | 5 | 8 | ||
| Water flow rate | Supermax | 204 | 364 | 498 | 639 | |
| Max | 151 | 311 | 463 | 580 | ||
| l/h | Med | 136 | 249 | 377 | 472 | |
| Min | 77 | 168 | 292 | 365 | ||
| Pressure drop | Supermax | 15.1 | 10.2 | 20.9 | 19.9 | |
| Max | 13.1 | 8.2 | 19.0 | 18.7 | ||
| kPa | Med | 7.2 | 6.0 | 16.5 | 13.2 | |
| Min | 4.1 | 4.1 | 13.0 | 10.0 | ||
| Coil connection | 1/2” GF | 1/2” GF | 1/2” GF | 1/2” GF | ||
| Water content | L | 0,33 | 0,59 | 0,85 | 1,11 | |
| Sound power | Supermax | 55.0 | 56.0 | 57.1 | 58.3 | |
| Max | 51.3 | 52.2 | 52.4 | 53.3 | ||
| dB(A) | Med | 44.6 | 45.5 | 46.6 | 48.6 | |
| Min | 37.5 | 38.6 | 40.5 | 38.7 | ||
| Sound pressare | Supermax | 38.0 | 39.0 | 40.1 | 41.3 | |
| Max | 34.3 | 35.2 | 35.4 | 36.3 | ||
| dB(A) | Med | 27.6 | 28.5 | 29.6 | 31.6 | |
| Min | 20.5 | 21.6 | 23.5 | 21.7 | ||
COOLING MODE
Room:27° C – 47% R.H. Water temp. (in/out):7/12°C
HEATING MODE
Room:20° C. Water temp. in:50.
(*) Declared values are relative to standard settings at 1500, 900 and 600 RPM. It is always possible to change the air flow, changing dip switch setting in the PCB.

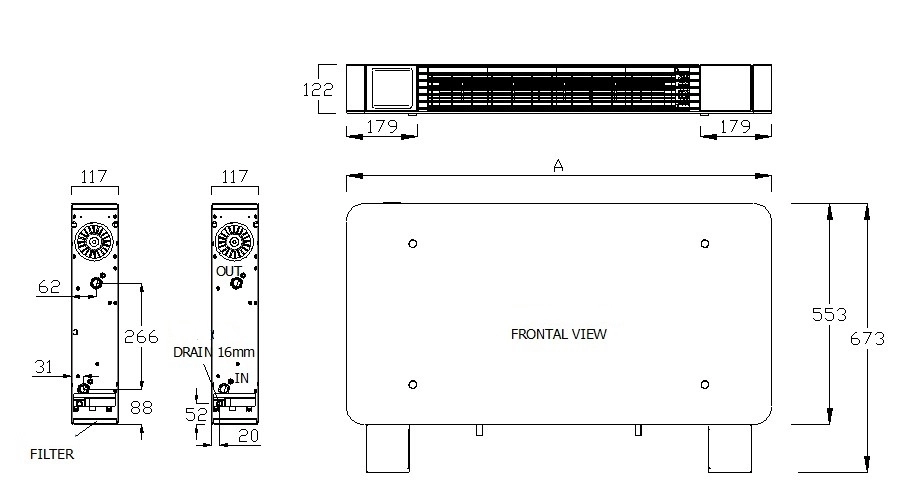

Dimensions
vertical mounting
| Specifications | Units | MC-SG-200T2 | MC-SG-400T2 | MC-SG-600T2 | MC-SG-800T2 |
| A | mm | 681 | 873 | 1065 | 1257 |
| Net weight | kg | 14 | 18 | 21 | 25 |
| Gross weight | kg | 18 | 21 | 25 | 29 |

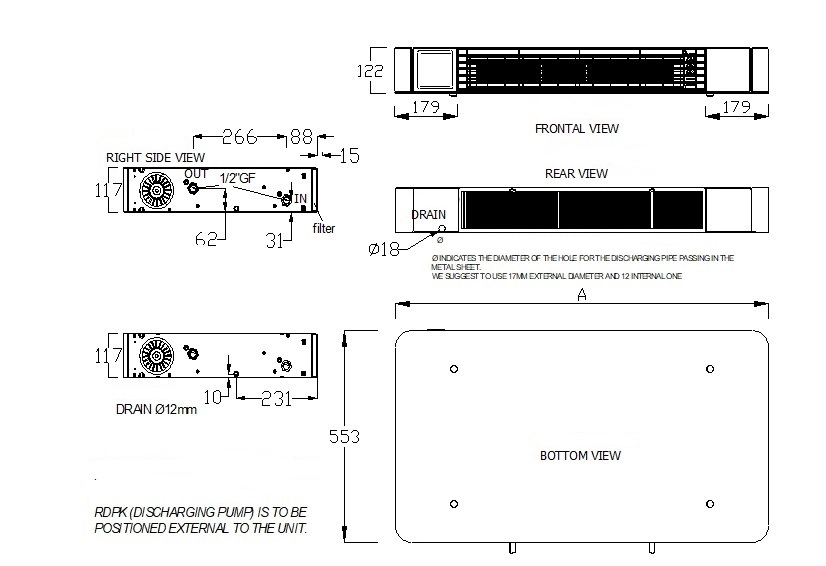

Dimensions
Horizontal mounting
| Specifications | Units | MC-SG-200T2 | MC-SG-400T2 | MC-SG-600T2 | MC-SG-800T2 |
| A | mm | 681 | 873 | 1065 | 1257 |
| Net weight | kg | 14 | 18 | 21 | 25 |
| Gross weight | kg | 18 | 21 | 25 | 29 |
