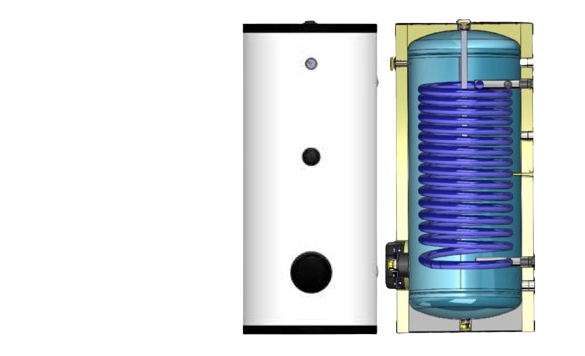

Domestic hot water (DHW) storage tank MHWT 200 HP & MHWT 300 HP

Key benefits

Heat pump DHW storage tanks with 200L and 300L capacity for private households.

  • Special design for heat pump
  • The most popular sizes for private households – 200 L and 300 L
  • Heating surface area 2.9m2 for 200 L and 3.99 m2 for 300 L
  • Heating surface area is 20% larger compared to the other manufacturers
  • Effective thermal insulation (thickness 50 mm) and external PVC casing
  • Inner thread 1 ½’  for immersion heater
  • Corrosion protection anode
  • Inspection flange


Dimensions

Parameters Unit  MHWT 200 HP MHWT 300 HP



Volume



L



200



300

Height mm 1320 1815
Diameter mm 590 590
Weight kg 89 114
Heating surface m2 2.9 3.99
Hot/cold water connection inch ¾” 1”
Heat exchanger connection inch 1” 1”
Circulation connection inch 1” 1”
Immersion heater inch 1 ½” (option)  1 ½” (option)
