Ducted unit with 100% fresh air

High static pressure duct unit series with a fresh air intake represents an ideal air-conditioning for halls, workshops and larger rooms

Cooling capacity: 14.00 ... 28.00 kW

Heating capacity: 8.90 ... 17.80 kW

Want to buy or have questions?

Mycond

Key features:

Static pressure selection
Can be installed together with other indoor units
Please notice that the nominal potential in heating is always lower than that of cooling
Optional drain pump
100Pa static pressure
Operating ambient temperature –5~43°C
Wired control standard, wireless control not optional

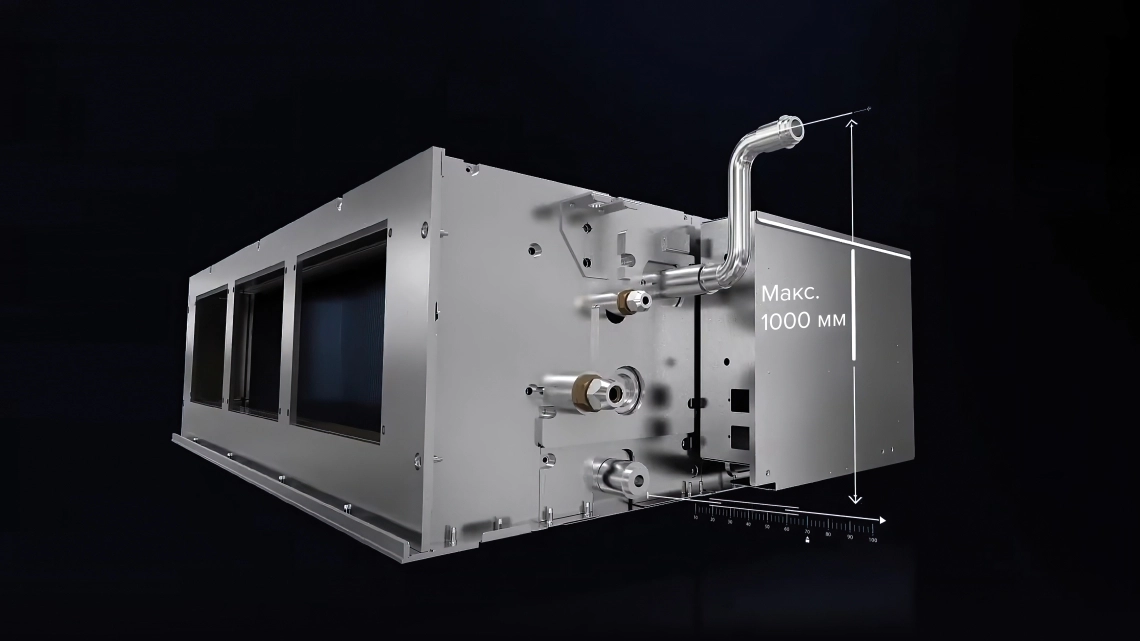

MyCond Fresh air duct drainage pump lift up to 1000 mm

MyCond Fresh air duct heat exchanger

The optimized heat exchanger is designed to maximize performance, heat transfer, and overall efficiency

The filter can be easily removed and cleaned.

MyCond Fresh air duct double fan and removable filter

MyCond Fresh air duct easy access to the printed circuit board

PCB Box cover at a 45 Degree angle easy for wiring and maintenance.

Specifications	Units	MIDT-48X1EV2AD(F)	MIDT-72X1EV2AD(F)	MIDT-96X1EV2AD(F)
Capacity
Cooling	kW	14,00	22,60	28,00
Heating	kW	8,90	15,20	17,80
Electrical Parameters
Power supply	Ph/V/Hz	1/220~230/50/60
Ventilation
Air flow (H/M/L)	m³/h	1600/1460/1070	4000/3500/3000	4500/4000/3600
Sound pressure (H/M/L)	dB(A)	48/47/42	50/47/44	51/48/45
Sound power (H/M/L)	dB(A)	61/60/56	68/65/60	68/66/62
Installation – Dimensions
Net dimensions (WxDxH)	mm	1500x700x248	1512x856x502	11512x856x502
Packaged unit dimensions (WxDxH)	mm	1718x848x345	1558x896x612	1558x896x612
Net/gross weight	Kg	43,6/50,4	102,0/116,0	102,0/116,0
Ø Liquid pipe	mm (inch)	9,52 (3/8)	12,70 (1/2)	12,70 (1/2)
Ø Gas pipe	mm (inch)	15,88 (5/8)	22,22 (7/8)	22,22 (7/8)
Static pressure (Standard/Max.)	Pa	100/200	100/350	100/350

MIDT-48X1EV2AD(F)

MyCond Fresh air duct overall dimensions
