Ducted unit with high static pressure

High static pressure duct unit series with a fresh air intake represents an ideal air-conditioning for halls, workshops and larger rooms

Cooling capacity: 14.00 ... 28.00 kW

Heating capacity: 8.90 ... 31.50 kW

Want to buy or have questions?

Mycond

Ducted Air Conditioning Units

Key features:

Static pressure selection (16 speeds for MIDT-72/96X1EV2AD(F))
Can be installed together with other indoor units
Please notice that the nominal potential in heating is always lower than that of cooling
Optional drain pump
300Pa static pressure
Operating ambient temperature –5~43°C
Wired control standard, wireless control not optional

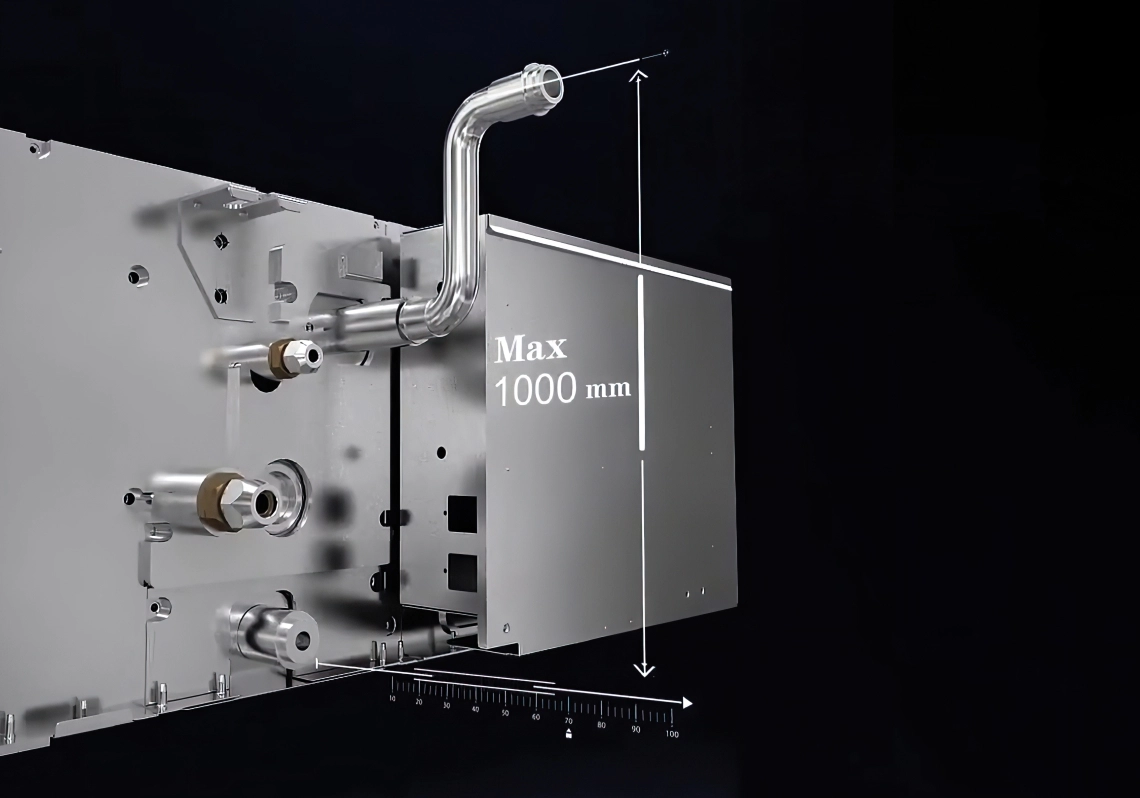

Built-in condensate pump with a maximum lifting height of up to 1,000 mm

MyCond Ducted unit with high static pressure drainage pump lift up to 1000 mm

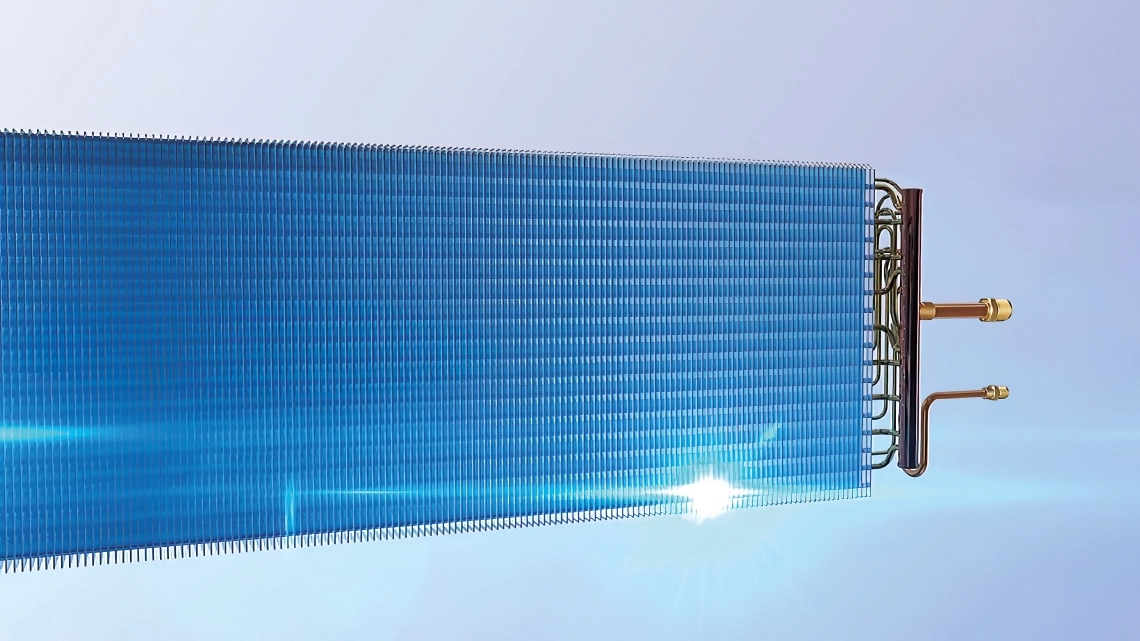

MyCond Ducted unit with high static pressure heat exchanger

Optimized heat exchanger

The optimized heat exchanger is designed to maximize performance, heat transfer, and overall efficiency

Easy cleaning

The filter can be easily removed and cleaned.

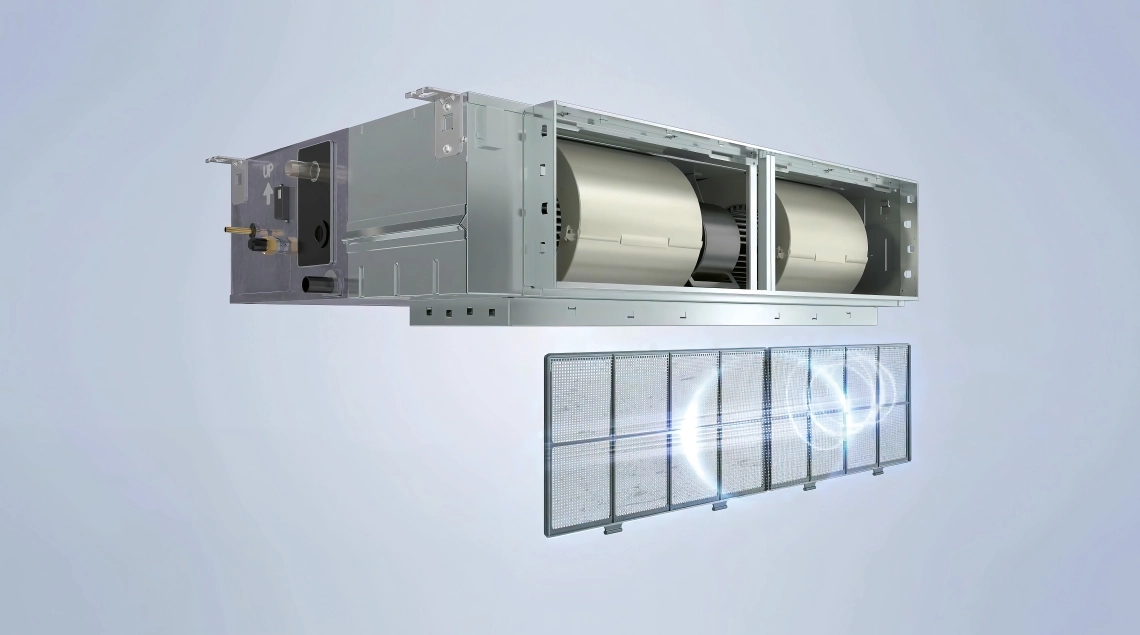

MyCond Ducted unit with high static pressure double fan and removable filter

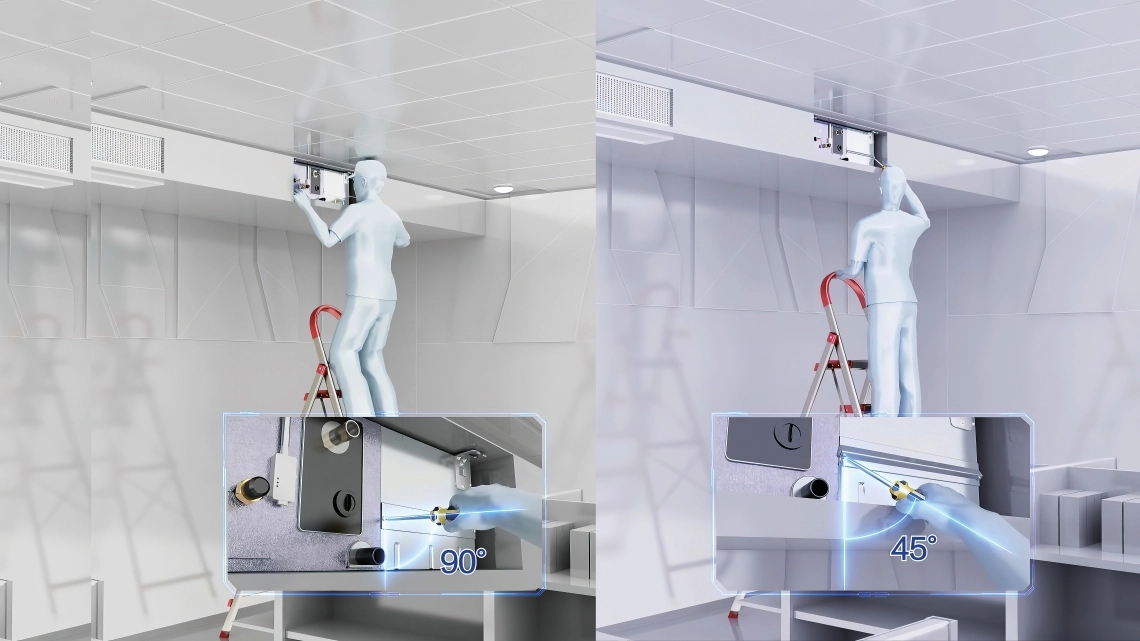

MyCond Ducted unit with high static pressure easy access to the printed circuit board

Convenient access to the PCB board

PCB Box cover at a 45 Degree angle easy for wiring and maintenance.

Specifications	Units	MIDT-72X1EV2AD(F)	MIDT-96X1EV2AD(F)
Capacity
Cooling	kW	22.60	28.00
Heating	kW	25.2	31.5
Electrical Parameters
Power supply	Ph/V/Hz	1/220-230/50(60)	1/220-230/50(60)
Ventilation
Air flow (H/M/L)	m³/h	4000/3600/3200/2700	4500/4100/3700/3300
Sound pressure (H/M/L)	dB(A)	53/50/48/46	54/501/49/47
Sound power (H/M/L)	dB(A)	67/64/62/60	68/65/63/61
Installation – Dimensions
Net dimensions (WxDxH)	mm	1333x748x495	1333x748x495
Packaged unit dimensions (WxDxH)	mm	1558x896x668	1558x896x668
Net/gross weight	Kg	88/100	88/110
Ø Liquid pipe	mm (inch)	12.70 (1/2)	12.70 (1/2)
Ø Gas pipe	mm (inch)	22.22 (7/8)	22.22 (7/8)
Static pressure (Standard/Max.)	Pa	300	300

The data contained in this catalog is indicative and subject to change. Please verify the accuracy of the data with the supplier before purchasing the product.
