Energy recovery ventilation units MVC***-A series

Mycond presents a brand new supply-and-exhaust unit of MVC-A series designed to reliably maintain a comfortable environment in an office, storage or utility room. The advanced multi-functional MVC-A installation has a simplified design that increases its reliability. The product range offers units with a capacity from 500 to 2000 m3/h.


New Mycond MVC-A series supply-and-exhaust unit for maintaining a comfortable indoor climate.

Overall perfomance :

  • Fresh air supply (360 to 2000 m3/h)
  • Heat recovery: up to 71 %
  • Moisture recovery: up to 67 %
  • Air filtering and purification
  • Quiet and reliable operation

The units have a standart feature set :

  • Cross-flow air entalpy recuperator
  • G4 filters
  • Two-speed AC fans
  • Standard fan speed controller
  • Remote fan speed control**
  • Weekly timer**

**with a dedicated controller available as an option

* Available as an option

Key features

The key features of this compact unit include arrangement of supply and exhaust air flows, advanced G4 filters, as well as heat or cold recovery. Perfect indoor climate is the top priority, because the quality of air we breathe affects our health, well-being, as well as the quality of sleep.


Energy recovery ventilation unit MVC-A series by Mycond for efficient air circulation and climate control.

Perfect indoor climate

The unit ensures all the necessary conditions of perfect indoor climate even when operating in the offline mode. The cellulose recuperator allows recovering not only heat and cold, but also moisture, thus improving the unit efficiency and saving the user’s costs on heating, cooling, and maintenance of the required humidity level. The unit is easy to maintain thanks to the simple design, while the access door opening downwards facilitates installation in confined spaces. The recuperator and the filters can also be easily removed for maintenance or replacement.

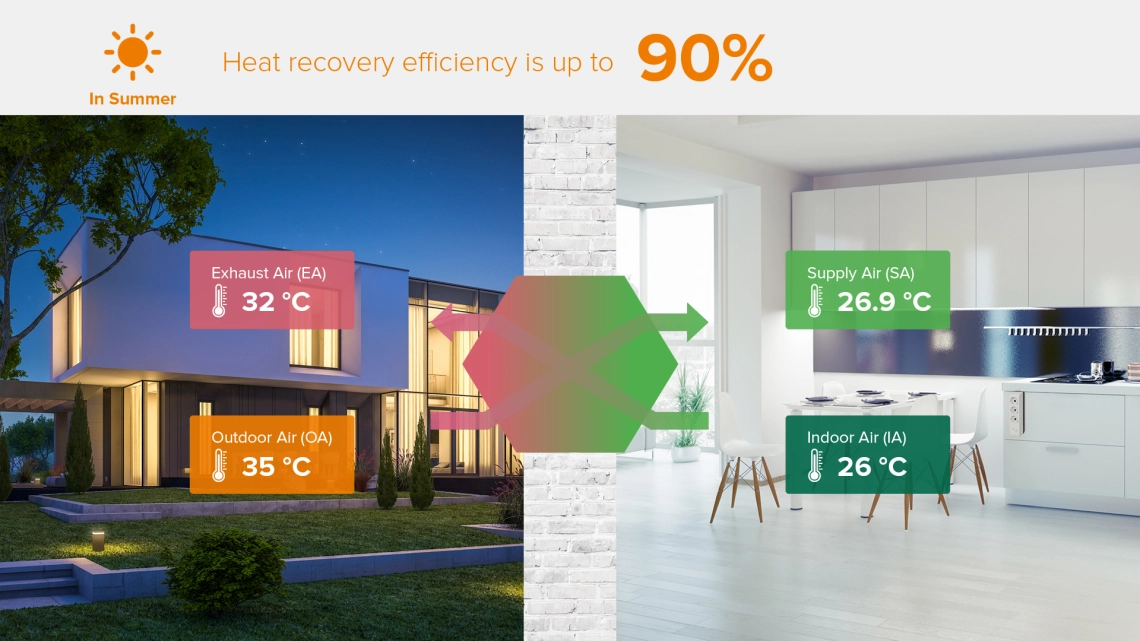

In summer, the heat recovery system saves electric power on air conditioning by returning part of the outdoor heat back outside.

Mycond MVC-A series ventilation unit for efficient indoor climate control.

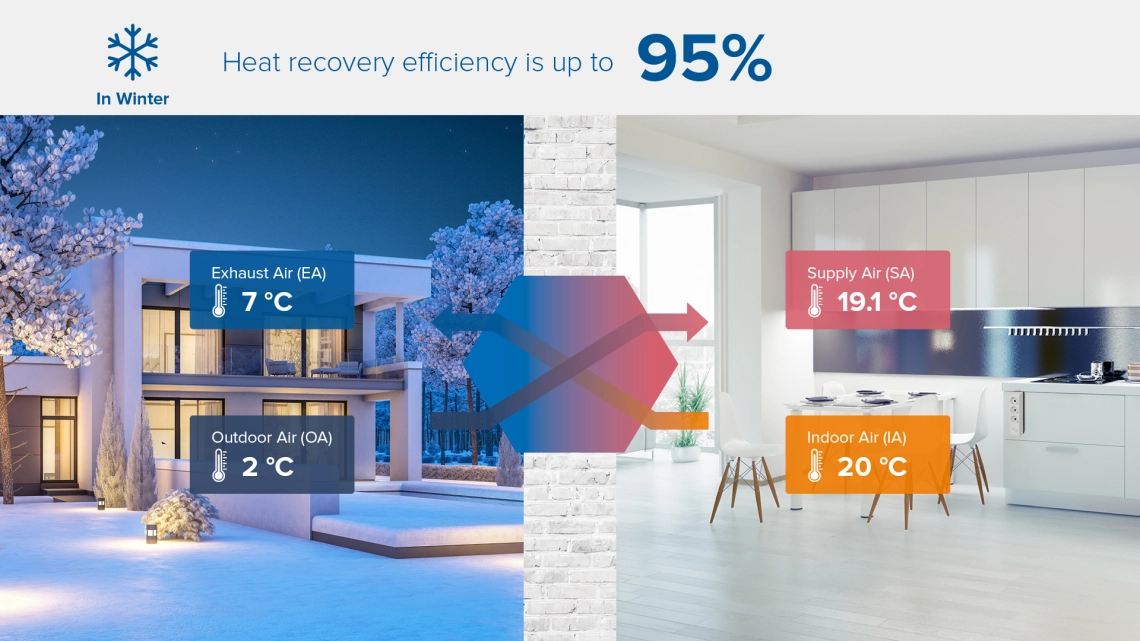

In winter, part of the indoor heat is returned into the room, providing considerable savings on space and air heating.

Mycond MVC-A unit demonstrating efficient heat recovery during winter.

The data are given for reference. Much depends on the indoor air humidity, outdoor humidity, heat insulation of the room, heat insulation and length of the air ducts, etc.

Specifications Units MVC500-A MVC700-A MVC1000-A MVC1500-A MVC2000-A
Air flow rate m3/h 500/360 750/550 1000/800 1500/1200 2000
External pressure (high/low) Pa 290/260 290/260 485/365 485/470 490
Enthalpy efficiency, cooling % 58 55 56 54 54
Enthalpy efficiency, heating % 67 65 66 64 65
Heat transfer efficiency, cooling % 60 56 59 55 58
Heat transfer efficiency, heating % 71 69 71 68 69
Noise level dB 40 48 48 50 55
Voltage V 220 V, 50 Hz, 1 phase 220 V, 50 Hz, 1 phase 220 V, 50 Hz, 1 phase 220 V, 50 Hz, 1 phase 220 V, 50 Hz, 1 phase
380 V, 50 Hz, 3 phases
Input power (high/low) W 180/150 200/160 600/500 1100/900 1400
Filters pcs. 2 2 4 4 4
Recuperator pcs. 1 1 2 2 2
Power cable mm2 4х1.5 4х1.5 4х1.5 4х1.5 4х1.5
Fan speeds   2 speeds 2 speeds 2 speeds 2 speeds 2 speeds
Duct connection mm 195 195 195 195 225*234

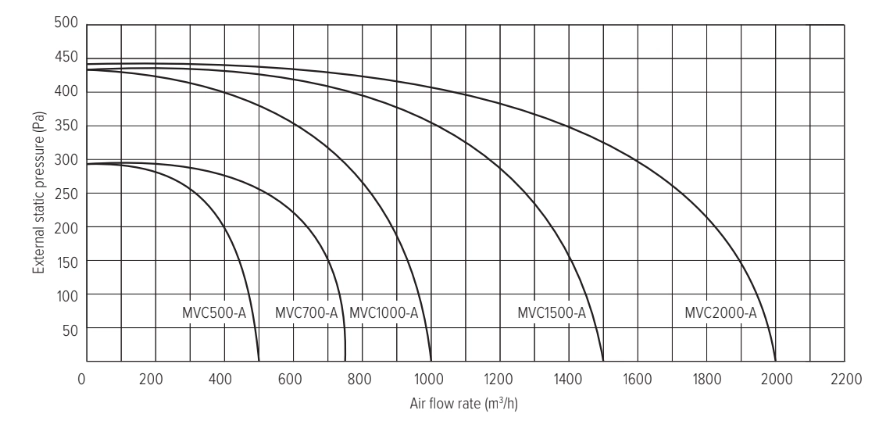

Performance parameters

Ventilation units, MVC***-A series


The performance parameters of Mycond MVC-A series ventilation units indicating airflow and efficiency levels.

Dimensions

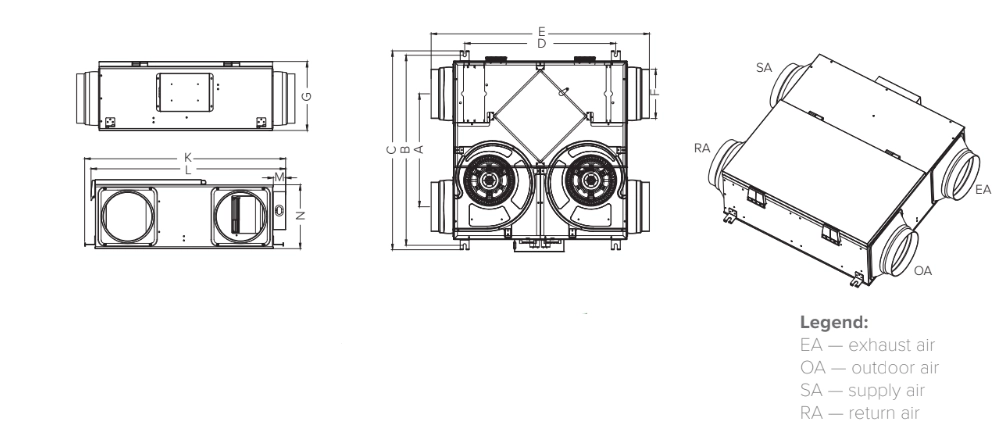

Ventilation units MVC500-A – MVC700-A

Model A B C D E F G L K M N
MVC500-A- MVC700-A 446 750 785 596 861 Ø194 272 768 793 49 252

All measurements are in millimetres.


Mycond MVC-A series unit for efficient indoor climate control with heat and moisture recovery.

Dimensions

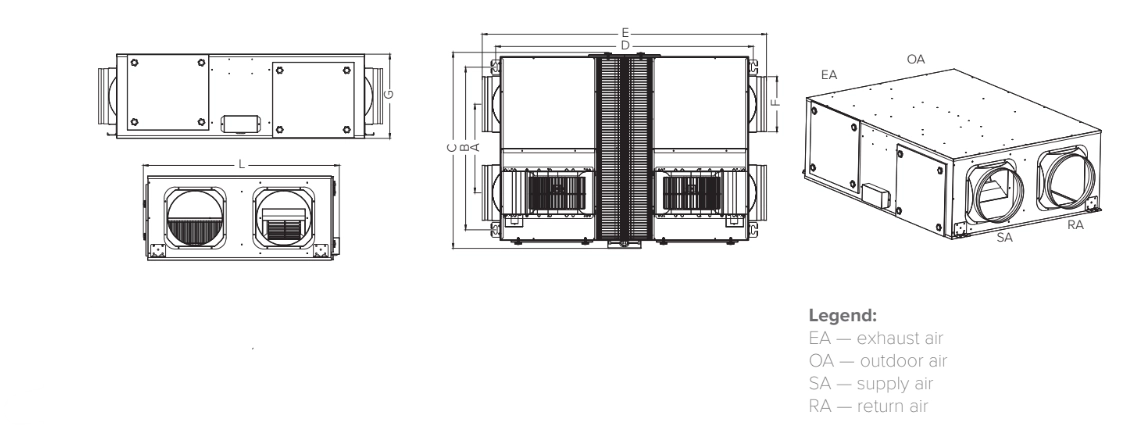

Ventilation units MVC1000-A

Model A B C D E F G L K
MVC1000-A 399 731 888 1168 1265 Ø198 366 888 36

All measurements are in millimetres.


Dimensions of Mycond MVC-A series ventilation units, showcasing measurements for models MVC500-A to MVC2000-A.

Dimensions

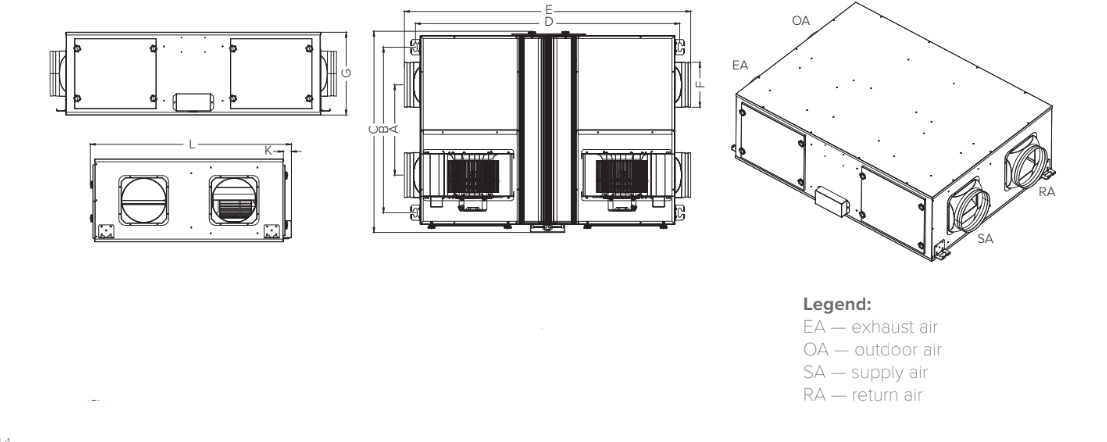

Ventilation units MVC1500-A

Model A B C D E F G L
MVC1500-A 402 737 888 1168 1289 Ø250 382 888

All measurements are in millimetres.


Dimensions of MVC-A series ventilation units for office and utility rooms.

Dimensions

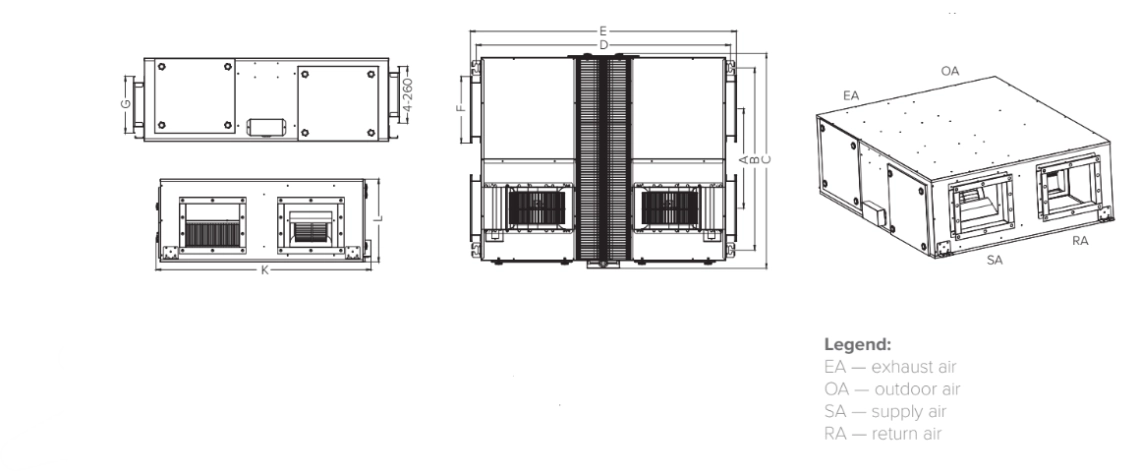

Ventilation units MVC2000-A

Model A B C D E F G L K
MVC2000-A 457 837 988 1168 1223 Ø306 260 382 988

All measurements are in millimetres.
