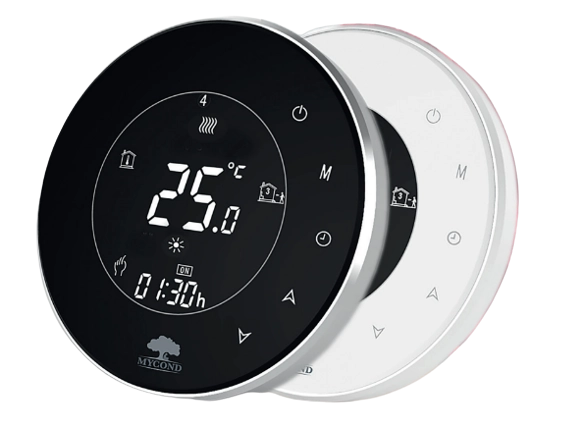

Fan coil thermostat Mycond ORB Fan

Advantages

• Touch control
• Large display with backlighting
• Large font
• Temperature  adjustment within +5 °C to +35 °C
• Programmable mode
• Lockable control buttons
• Fan control (3 speeds + Auto)
• Valve control*
• 3 operating modes (ventilation, cooling or heating)

Additional modifications :

• MODBUS for connection to a building management system or a smart home
• Wi-Fi, wireless control via Mycond SmartApp on the smartphone

* 1 or 2 valves for a 2- or 4-pipe system respectively

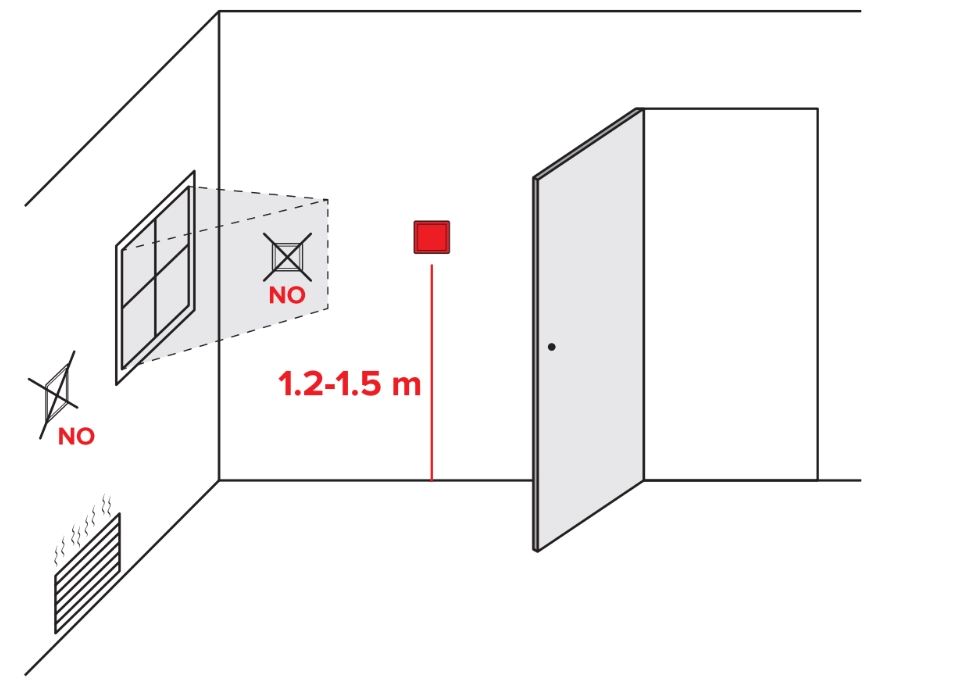

Installation tips

Install the thermostat at about 1.2-1.5 m above the floor in a well-ventilated
area with moderate ambient temperature.

 Do not install in locations where the thermostat can be affected by:

• Drafts or dead spots behind doors and in corners
• Hot or cold air from ducts
• Sunlight or radiant heat from appliances
• Concealed pipes or chimneys
• Unheated/uncooled areas such as an outside wall behind the thermostat
