Fresh air duct

High static pressure duct unit series with a fresh air intake represents an ideal air-conditioning for halls, workshops and larger rooms

Cooling capacity: 14.00 ... 28.00 kW

Heating capacity: 8.90 ... 17.80 kW

Want to buy or have questions?

Key features:

Static pressure selection
Can be installed together with other indoor units on the same refrigerating circuit, to pre-treat the outdoor air before sending it to indoor units or in the environment
Please notice that the nominal potential in heating is always lower than that of cooling
Integrated flow switch

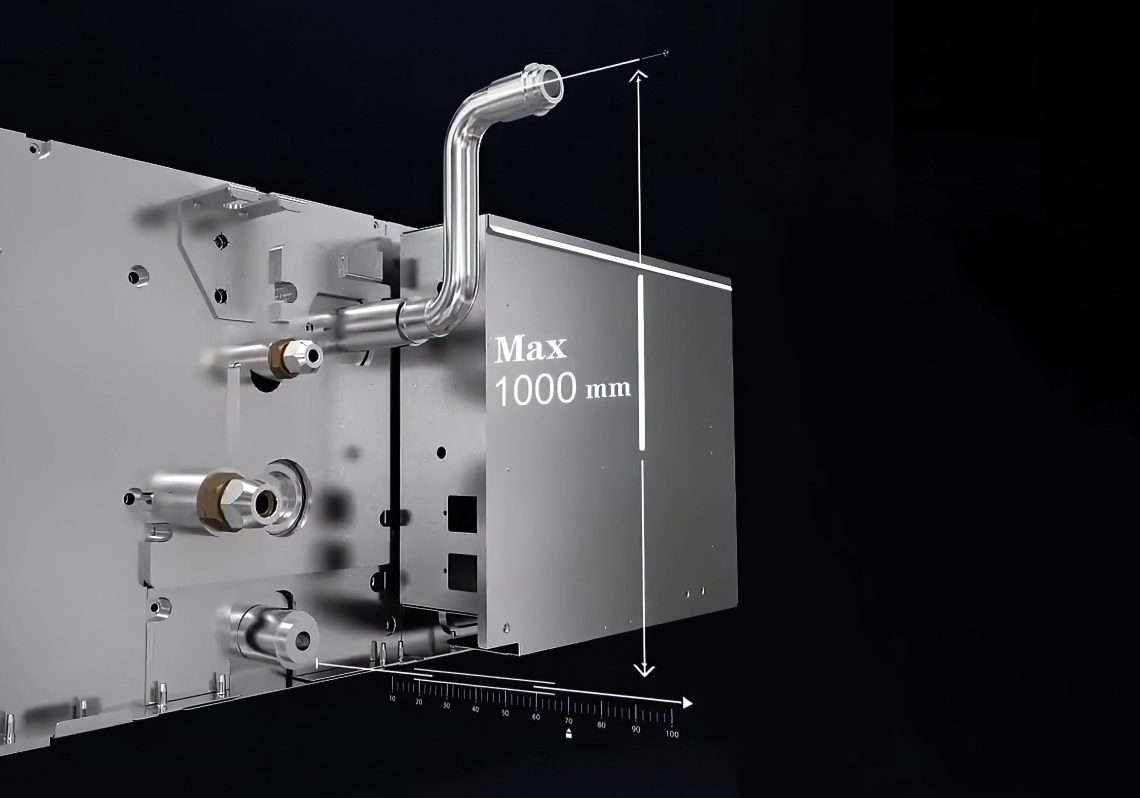

Optional drain pump
100Pa static pressure
Operating ambient temperature –5~43°C
Wired control standard, wireless control not optional

Insulated air duct system with thermal and acoustic features.

Cross-section of efficient fresh air ventilation system.

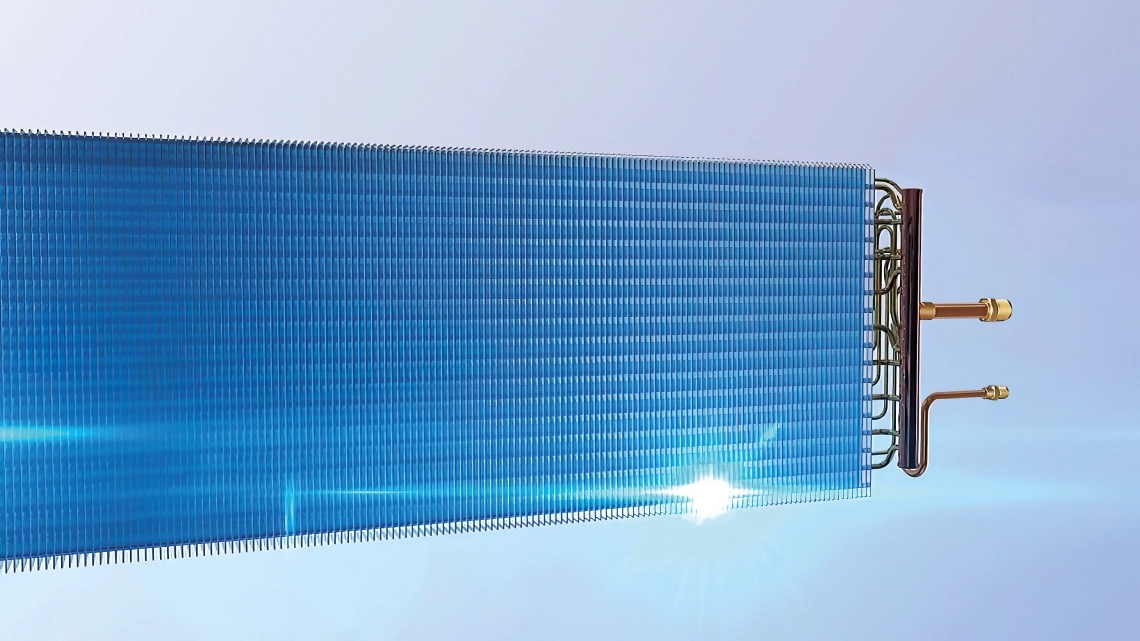

An optimized heat exchanger is designed and engineered to maximize efficiency, heat transfer, and overall performance.

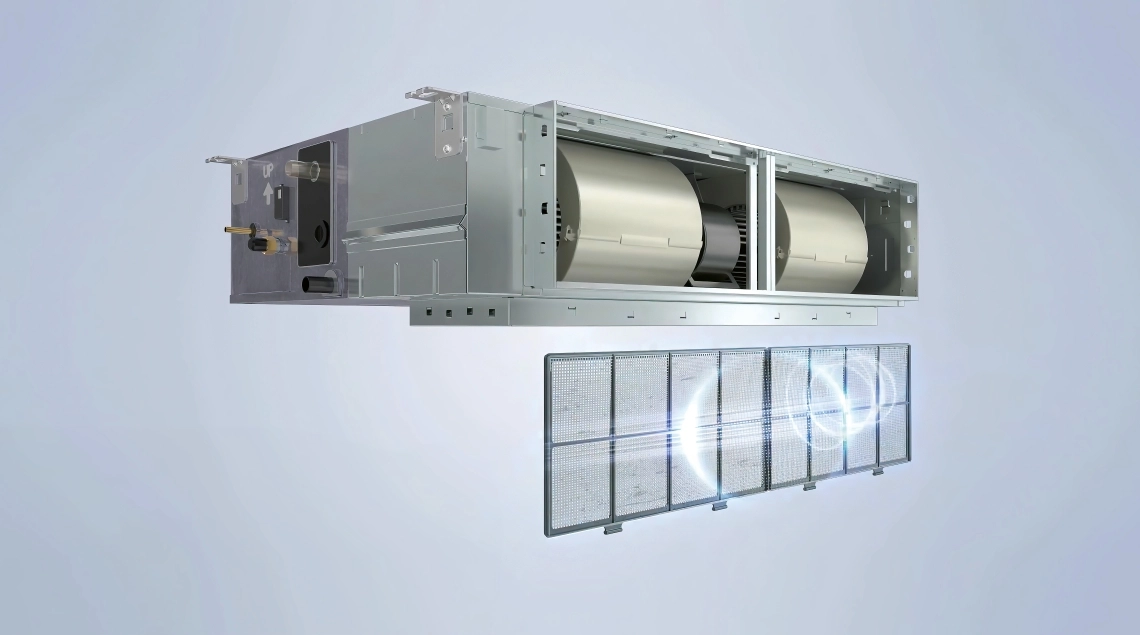

Easy to disassemble and clean.

Modern ventilation system enhancing indoor air quality.

Modern fresh air system installation in a home.

PCB Box cover at a 45 Degree angle easy for wiring and maintenance.

Specifications	Units	MIDT-48X1EV2AD(F)	MIDT-72X1EV2AD(F)	MIDT-96X1EV2AD(F)
Capacity
Cooling	kW	14,00	22,60	28,00
Heating	kW	8,90	15,20	17,80
Electrical Parameters
Power supply	Ph/V/Hz	1/220~230/50/60
Ventilation
Air flow (H/M/L)	m³/h	1600/1460/1070	4000/3500/3000	4500/4000/3600
Sound pressure (H/M/L)	dB(A)	48/47/42	50/47/44	51/48/45
Sound power (H/M/L)	dB(A)	61/60/56	68/65/60	68/66/62
Installation – Dimensions
Net dimensions (WxDxH)	mm	1500x700x248	1512x856x502	11512x856x502
Packaged unit dimensions (WxDxH)	mm	1718x848x345	1558x896x612	1558x896x612
Net/gross weight	Kg	43,6/50,4	102,0/116,0	102,0/116,0
Ø Liquid pipe	mm (inch)	9,52 (3/8)	12,70 (1/2)	12,70 (1/2)
Ø Gas pipe	mm (inch)	15,88 (5/8)	22,22 (7/8)	22,22 (7/8)
Static pressure (Standard/Max.)	Pa	100/200	100/350	100/350

MIDT-48X1EV2AD(F)

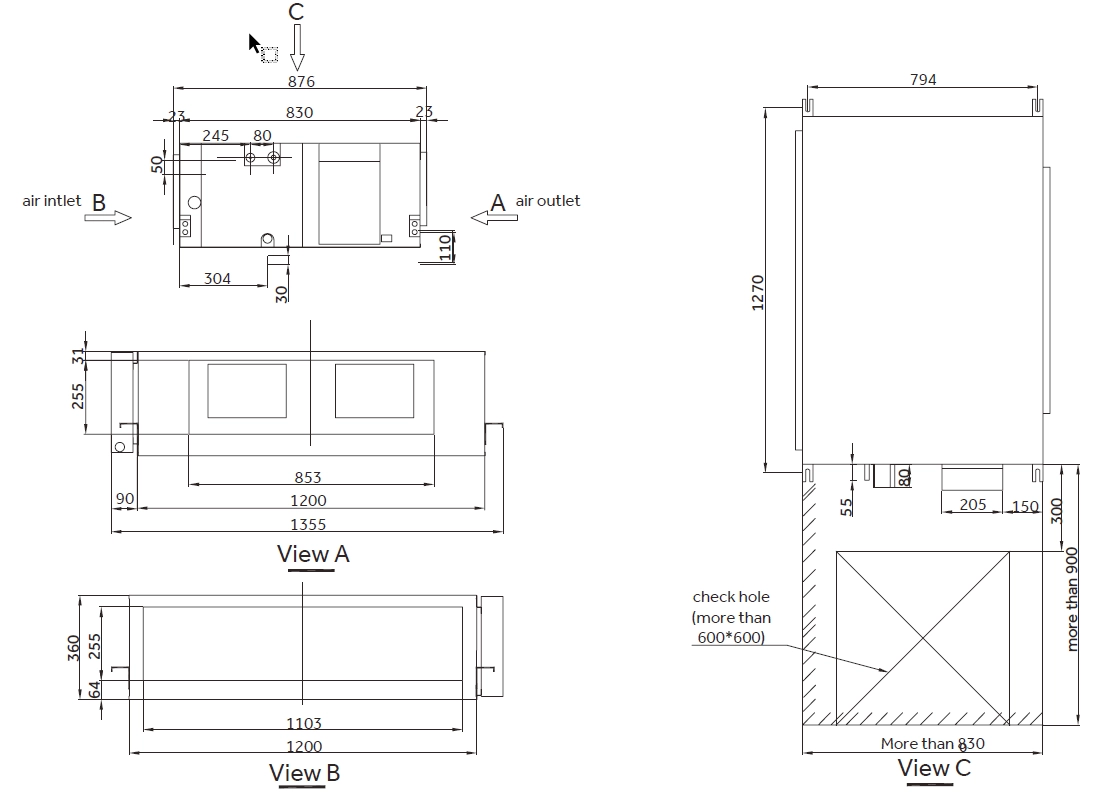

Diagram showing dimensions of a fresh air duct system.
