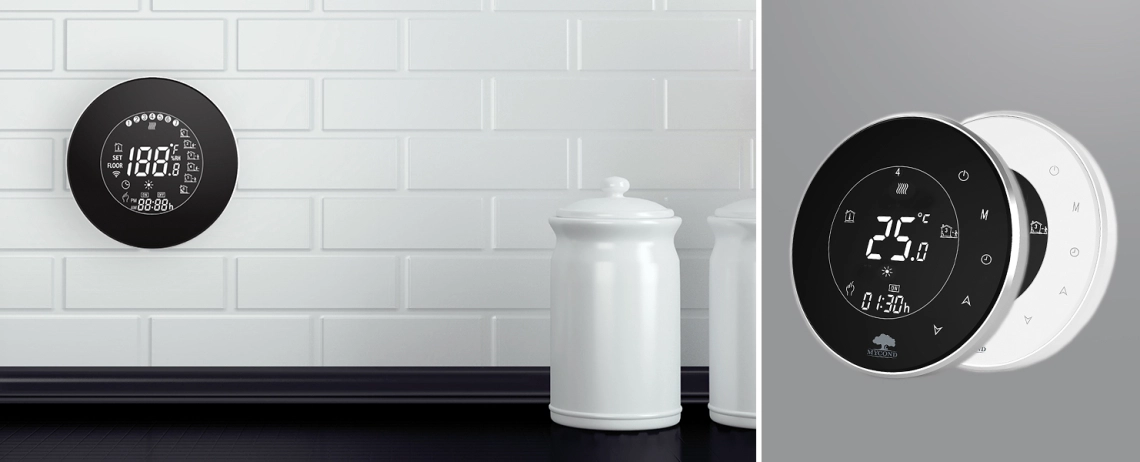

Heating floor thermostat Mycond ORB Heat

The round shape and technological filling of the ORB series thermostat will satisfy the most demanding users. And the lack of corners will be appreciated by Feng Shui fans. This thermostat, despite its small dimensions, is not inferior in functionality to its square counterparts and allows you to control the underfloor heating using full functionality. Available in black or white colours

Want to buy or have questions?
Heating floor thermostat Mycond ORB Heat

Smart thermostat with touch control and dark backlighting for floor heating.



The Mycond ORB Heat thermostat for energy-efficient underfloor heating.

Advantages

  • Touch control
  • Large dark display with backlighting
  • Temperature adjustment within +5 °C to +35 °C
  • Dual temperature control (air and floor temperature)
  • Programmable mode
  • Freeze and overheat protection
  • Floor temperature sensor included
  • Lockable control buttons

Additional modifications :

  • Wi-Fi, wireless control via Mycond SmartApp on smartphone



Specifications

  • Accuracy of measurement ± 1 °C
  • Adjustable temperature range: 5-35 °C
  • Power consumption: < 3 W
  • Error: 1%
  • Power supply: AC95~240V 50~60Hz
  • Load: up to 16A
  • Wi-Fi 802.11b
  • Dimensions: 86 x 86 x 13.3 mm
  • Installation box: 60 mm
  • Operating conditions: operating temperature range from 0 to 45 °C, relative air humidity from 5 to 90%

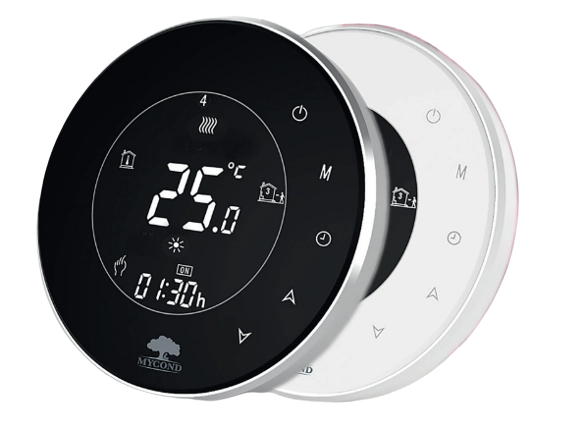

Mycond ORB Heat thermostat with dark display and touch control.



Modern heating floor thermostat installation instructions.

Installation tips

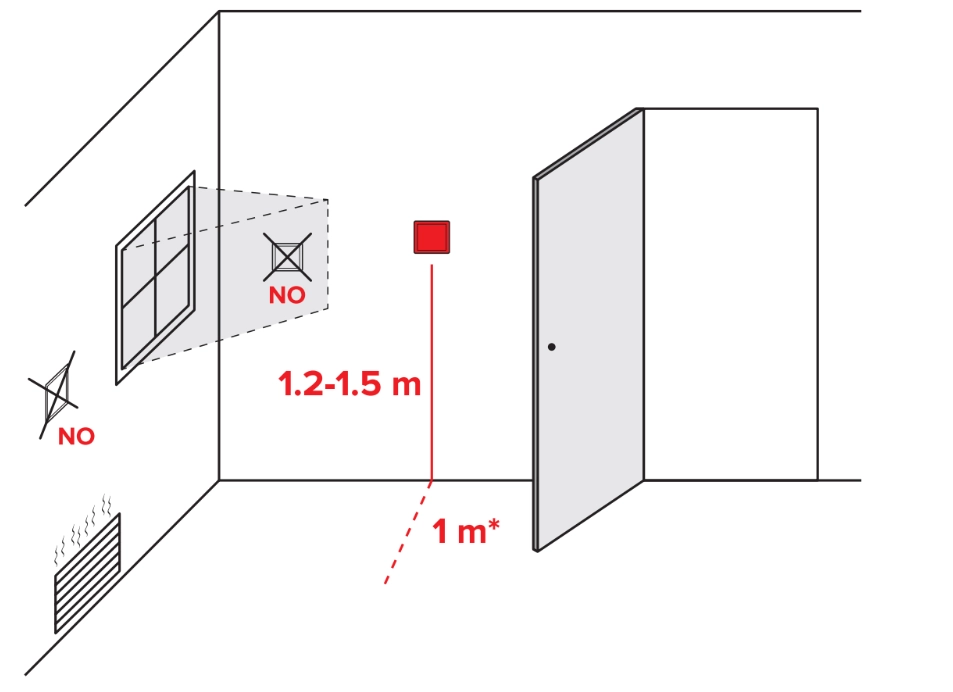

Install the thermostat at about 1.2-1.5 m above the floor in a well-ventilated
area with moderate ambient temperature.

 Do not install in locations where the thermostat can be affected by:

  • Drafts or dead spots behind doors and in corners
  • Hot or cold air from ducts
  • Sunlight or radiant heat from appliances
  • Concealed pipes or chimneys
  • Unheated/uncooled areas such as an outside wall behind the thermostat
