Hydro box

Mycond hydro unit makes it possible to use VRF systems to provide users with comfortable air conditioner, hot water heating and domestic hot water. This solution is suitable for both residential area and commercial area, such as residences, office buildings, hotels, hospitals, etc.
Cooling capacity: 7 ... 28 kW
Heating capacity: 9 ... 31 kW

Want to buy or have questions?
Hydro box

Key features:

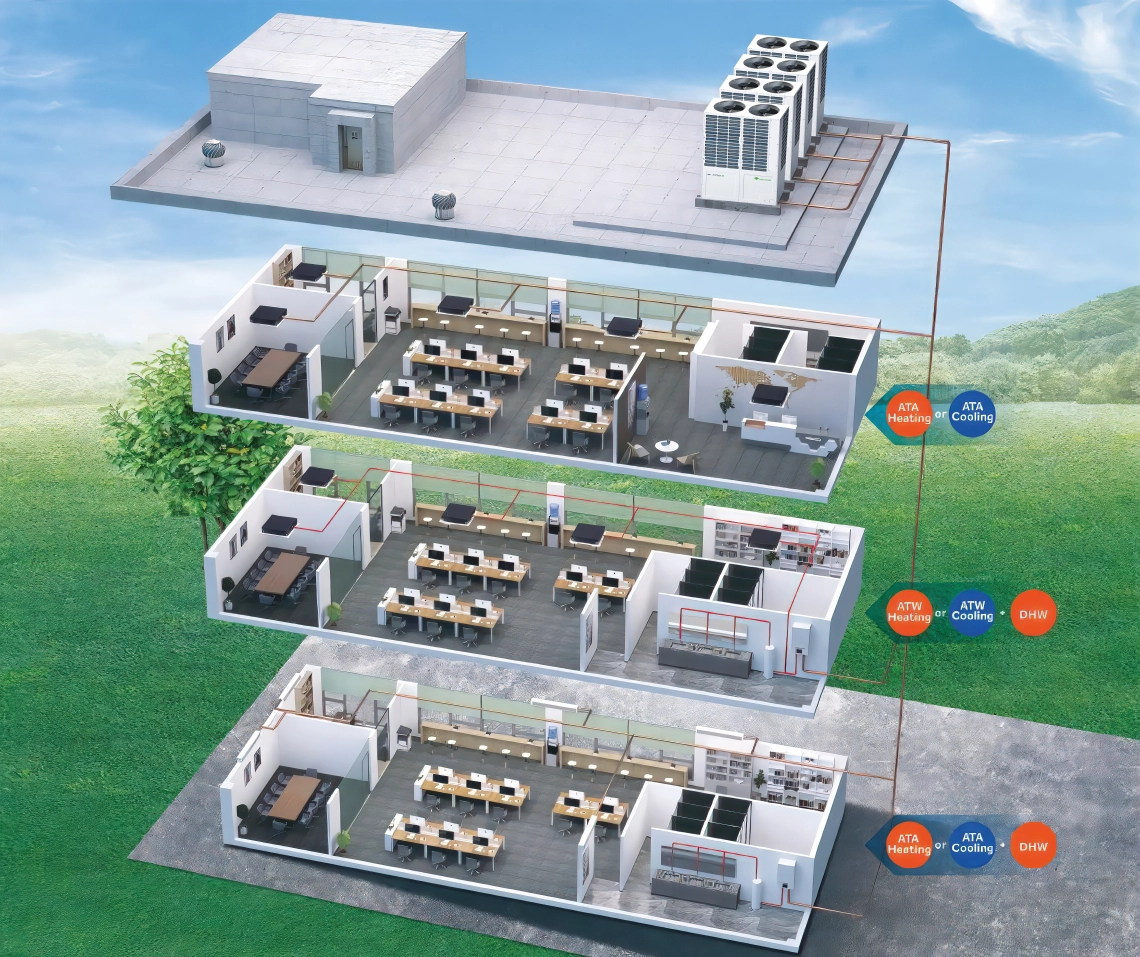

  • Integrated solutions (ATA, ATW, DHW) In one system
  • Stylish appearance
  • Water outlet temperature up to 50ºC.
  • Multiple modules combination for bigger capacity demand
  • Wall-Mounted type saving space
  • Connectable to  MRF S
  • Easy maintenance due to patented design



Hydro Box accessory for enhancing heat pump efficiency.

Easy control

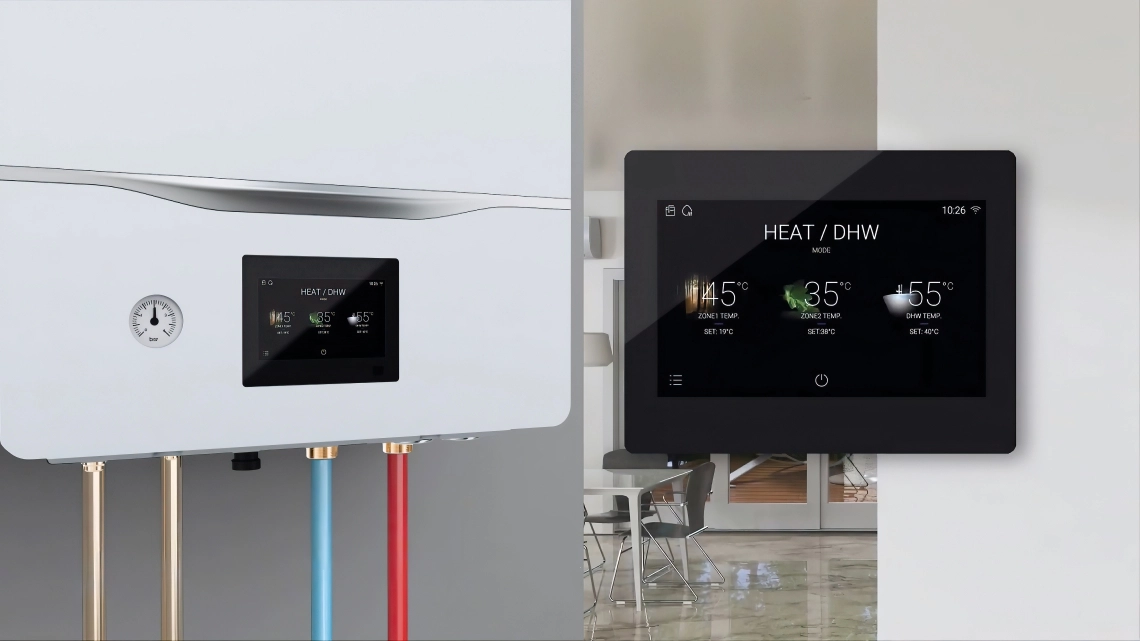

5-inch colorful controller with full touch screen.



Complete hydraulic components

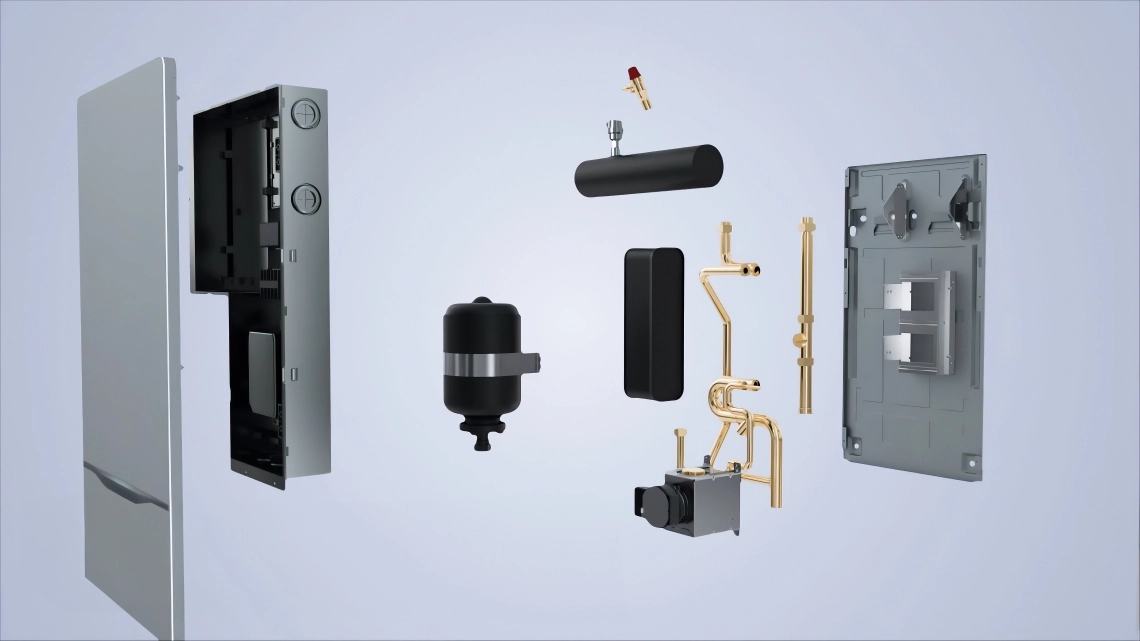

The indoor unit consists of the following main components: Pump (except 96 size), expansion tank (except 96 size), plate heat exchanger, safety group, differential pressure switch, water gauge, water filter.

A detailed view of the control functions for a heat pump system.



Hydro box system showcasing advanced heating technology.

Anti-freeze function

Protect hydraulic parts from damage.



Circulation for frost protection

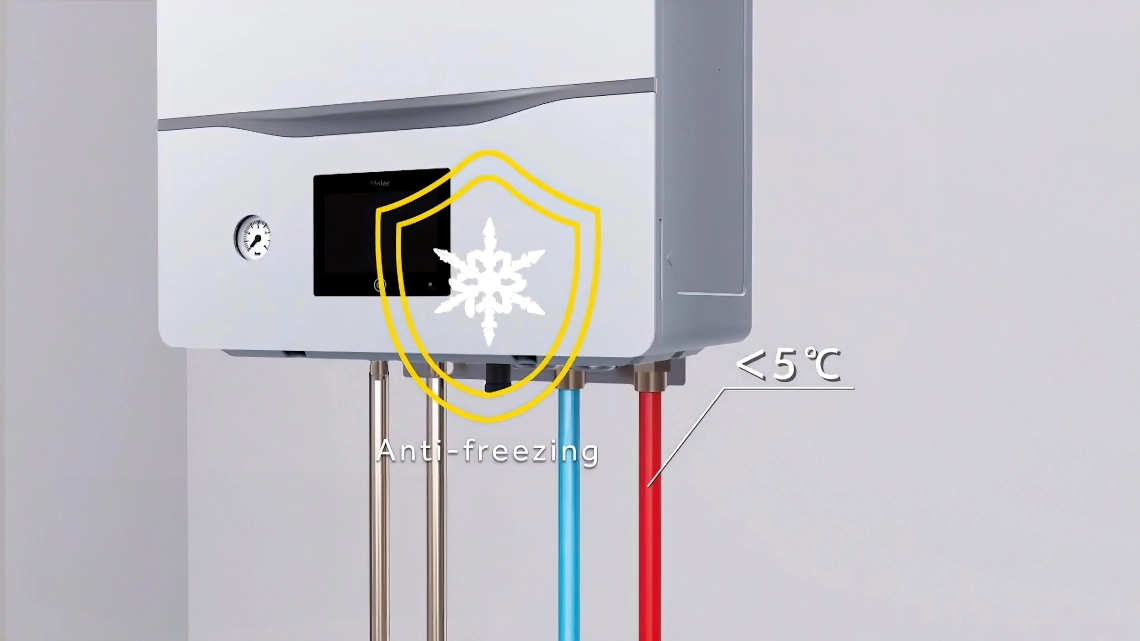

When the temperature drops to a certain level, indicating the potential for frost or ice formation, the anti-freeze function is activated.

Hydro box unit showcased for optimized heating performance.



Compact hydro box for energy-efficient climate control systems.

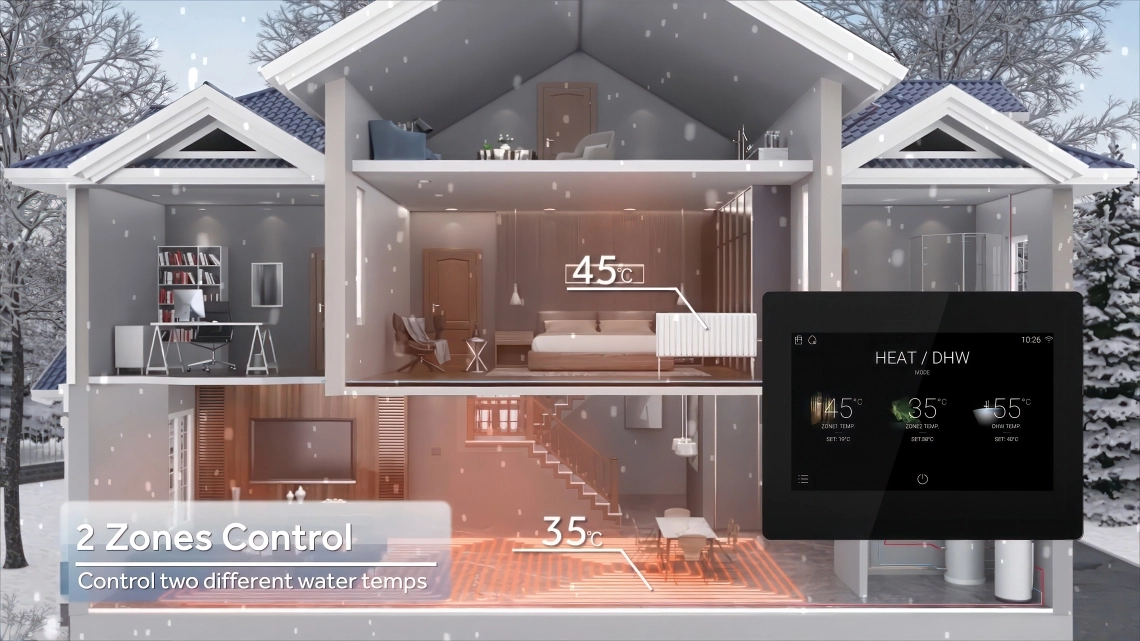

Control of two separate circuits for rooms with different requirements



Energy-efficient hydro box for temperature control in heating systems.



Model/Indoor unit   Units MHUW-24X1EV2AD MHUW-48X1EV2AD MHUW-96X1EV2AN
  Cooling (1) kW 7 14 28
Nominal Capacity Heating (2)   9 16 31
Dimensions Unit H /W / D   850/ 480 / 310 850/ 480 / 310 850/ 480 / 310
Weight Unit   kW 56 56 52
Installation Place Indoor/outdoor   Indoor Indoor Indoor
  Only hydro module % 80-100% 80-100% 80-100%
  Hydro box+IDUs % Total 50-130% (Hydro box 0-80%)
Cooling Ambient Min. - Max.   10~43 10~43 10~43
Cooling Water Side Min. - Max. °C 5~20 5~20 5~20
Heating Ambient Min. - Max. °C -20~24 -20~24 -20~24
Water Side Min. - Max. °C 20~50 20~50 20~50
Sound Pressure Level Cooling/Heating dB(A) 29/ 32 29/ 32 29/ 32
Sound Power Level   dB(A) 42 46 48
Water Flow Rate Min-Standard L/min 18/26 32/46 63/90
Water Circuit Piping Diameter Inlet inch,, 1 1 1-1/4
  Outlet inch,, 1 1 1-1/4
Refrigerant Type     R410A R410A R410A
Gas Side – Connection Type   mm 15.88 15.88 19.05
Liquid Side – Connection Type   mm 9.52 9.52 9.52
Power Supply   Ph / Hz/ V 1/ 50/ 220~240 1/ 50/ 220~240 1/ 50/ 220~240
Odu Compatibility      MRV S

(1) Temp 35°C - LWE 18°C (ST=5°C)
(2) ST/WT 7°C/6°C - TC35°C (STT=5°C)

Dimensions

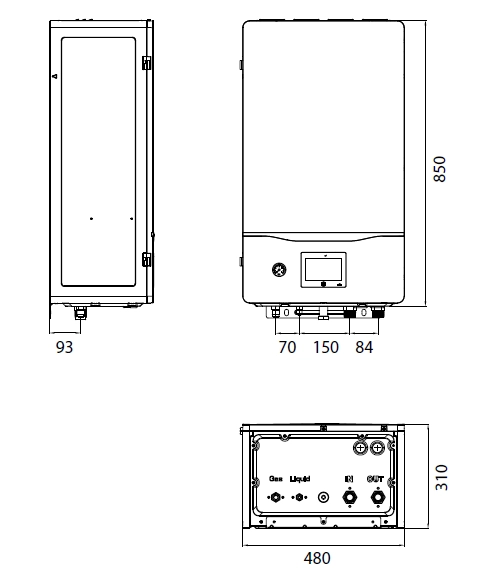

Diagram showing hydro box dimensions for installation.

Dimensions

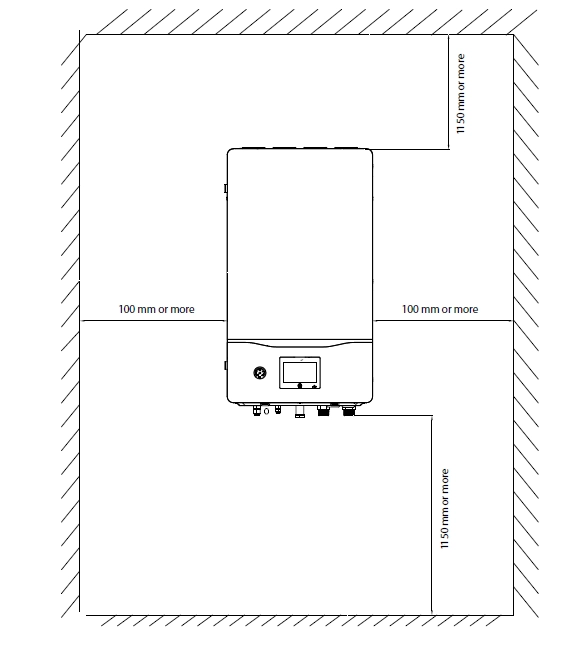

Diagram of compact hydro box showing installation efficiency.
