The inbuilt UV-C ray emitter module performs an effective and
efficient air sterilization both on the unit’s coil surface and the air
that passes through. This module’s performance has been certified
by the independent laboratory Texcell.
1.7 ... 18 kW
Heating сapacity:1.5 ... 16 kW
Cooling сapacity:Key features:
- The inbuilt UV-C ray emitter module performs an effective and efficient air sterilization both on the unit’s coil surface and the air that passes through.
- This module’s performance has been certified by the independent laboratory Texcell.

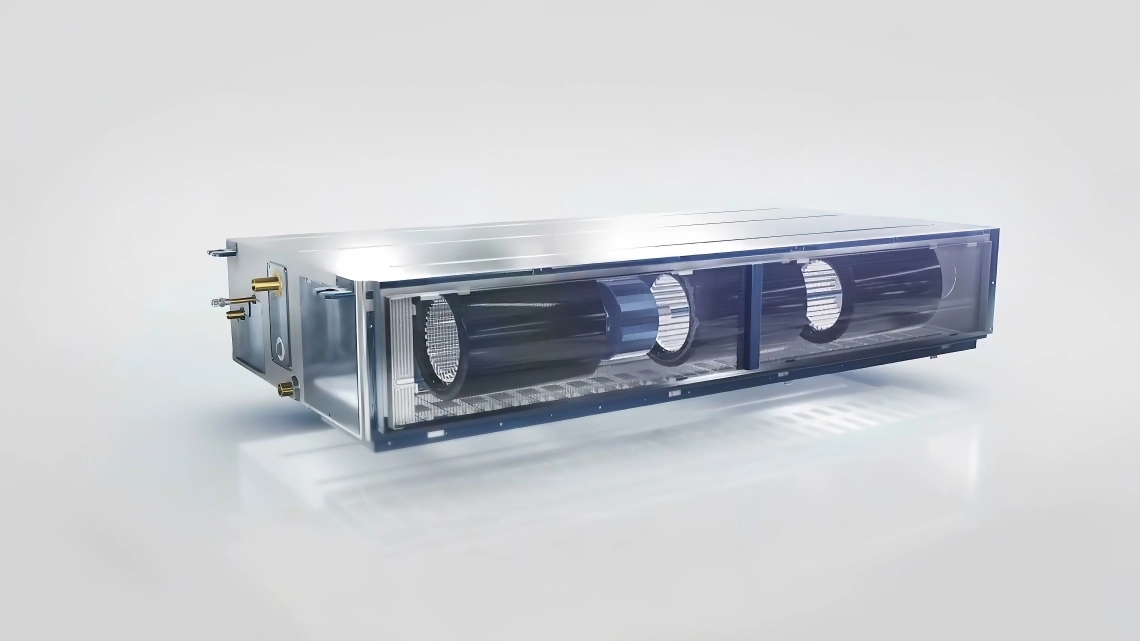

Static pressure optional, meet different needs

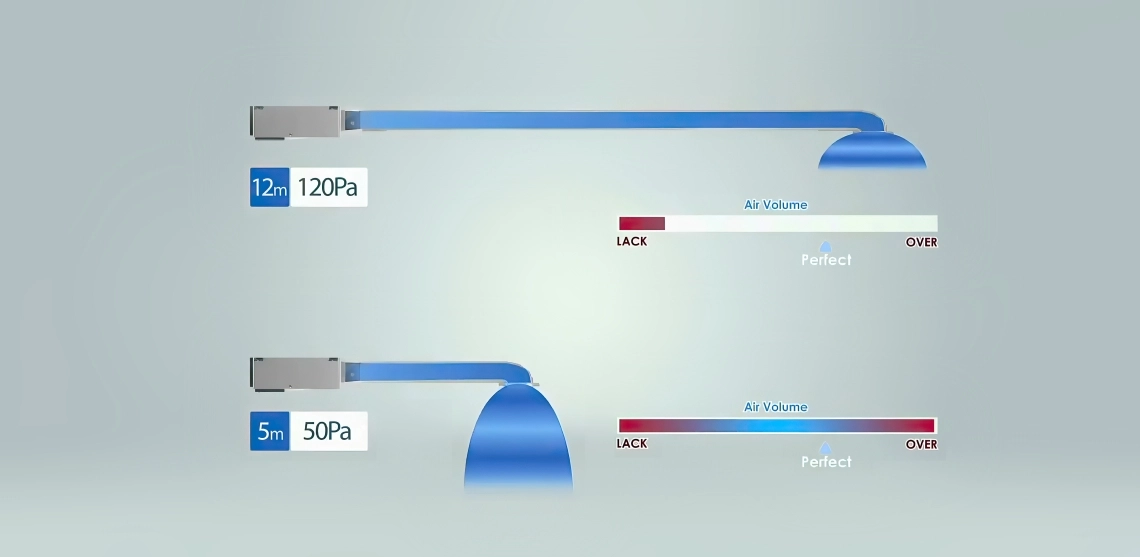

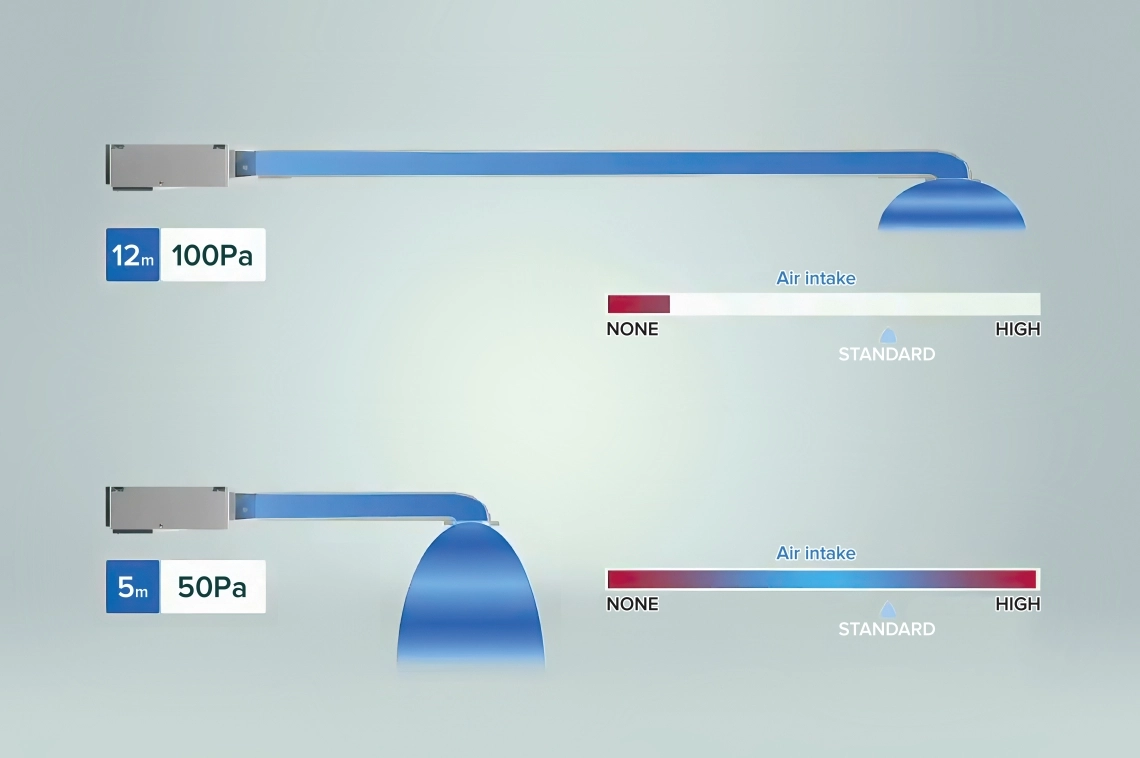

According to users requirements, the static pressure can be adjusted by wire controller instead of the traditional way of changing the red and white terminals. The maximum static pressure of the whole series can reach 100Pa.
Air duct connection more room to share

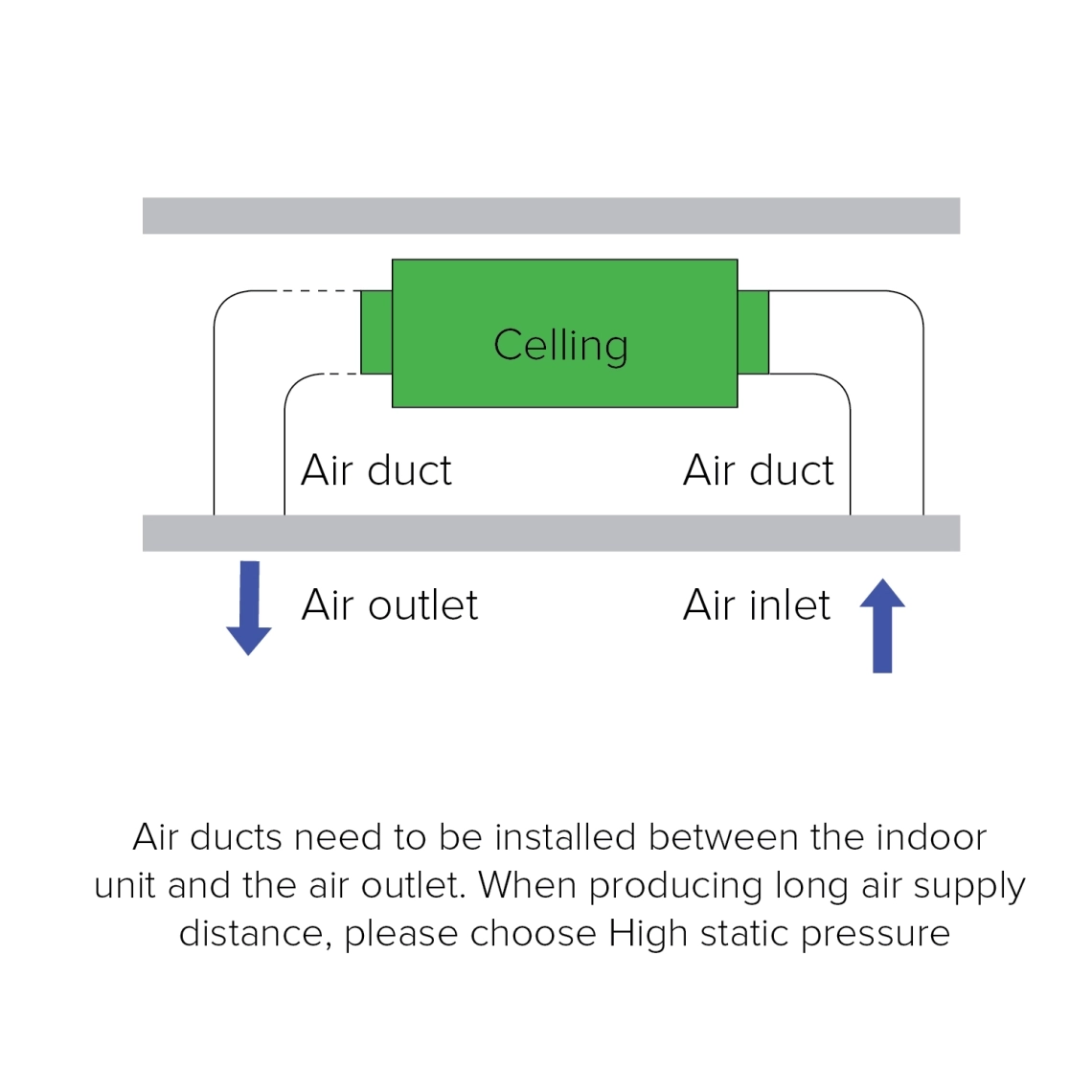

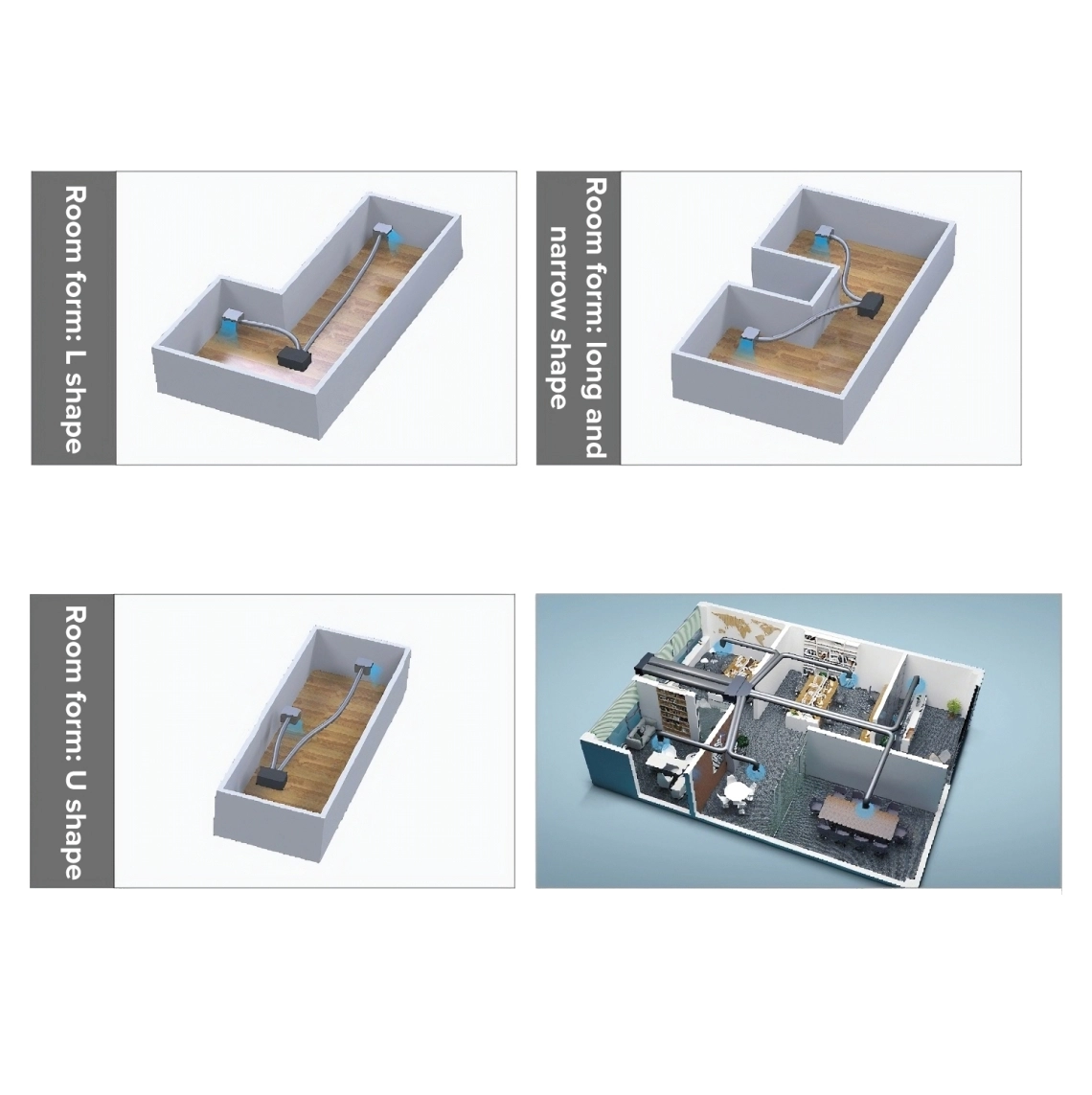

The unit can connect multiple rooms through air duct, and can be flexibly arranged according to different house types, one air conditioner, multi-room sharing.
High lift-up drain pump

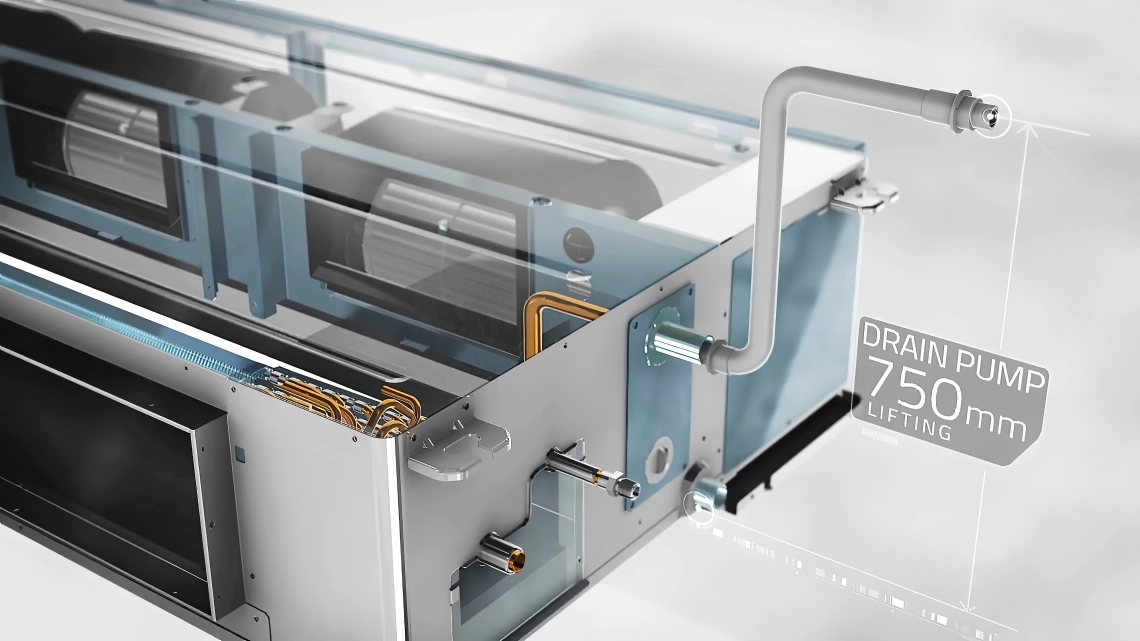

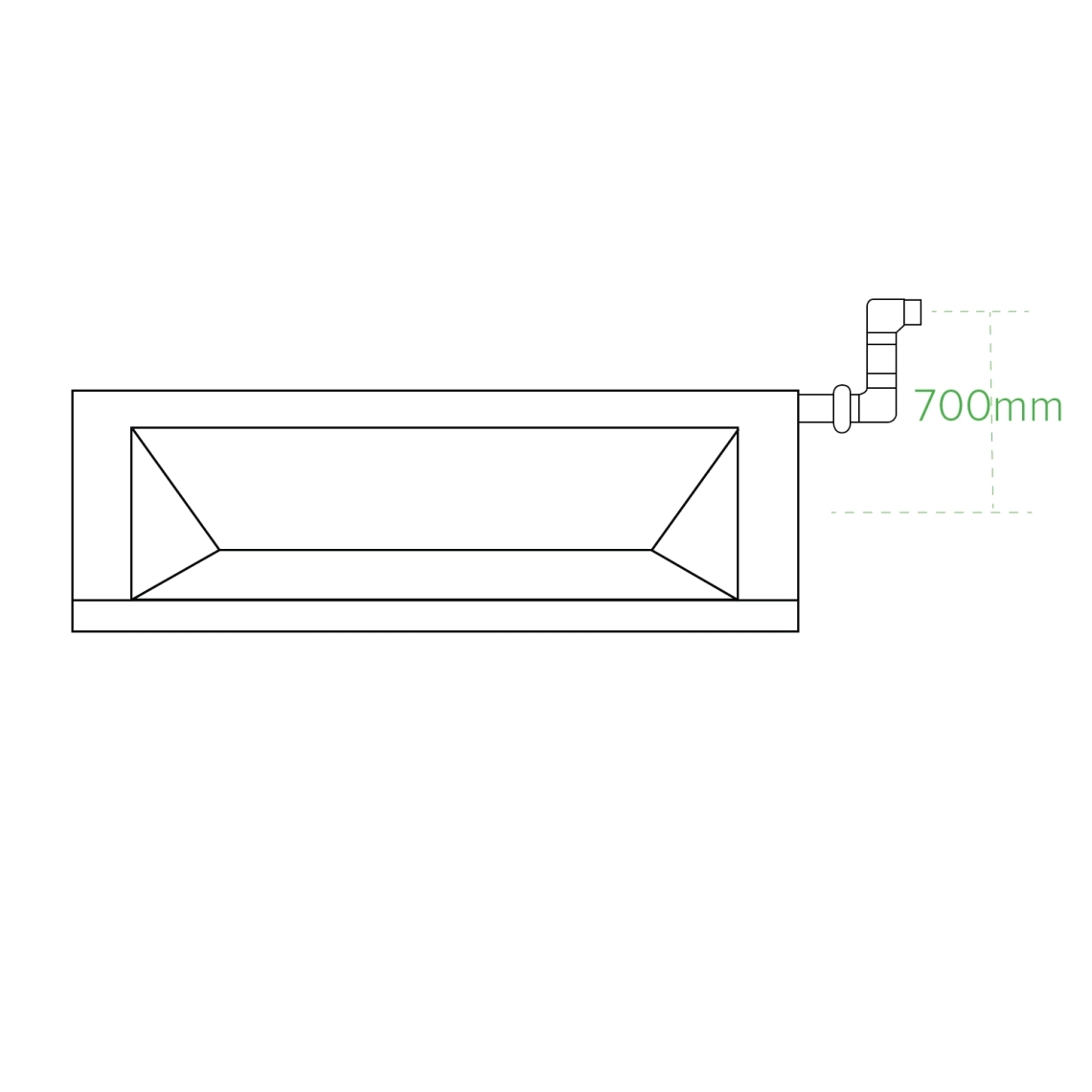

Standard condensate water lifting pump, standard head 700mm and built-in float switch, convenient to cooperate with the actual situation of the site, condensate water discharge air conditioning.
AC fan motor installed
In indoor units allows adjustment of the disposable compression by means of the user wired controller.
Built-in condensate pump
The devices have a built-in condensate pump with high lifting capacity - up to 450 mm.
More flexible

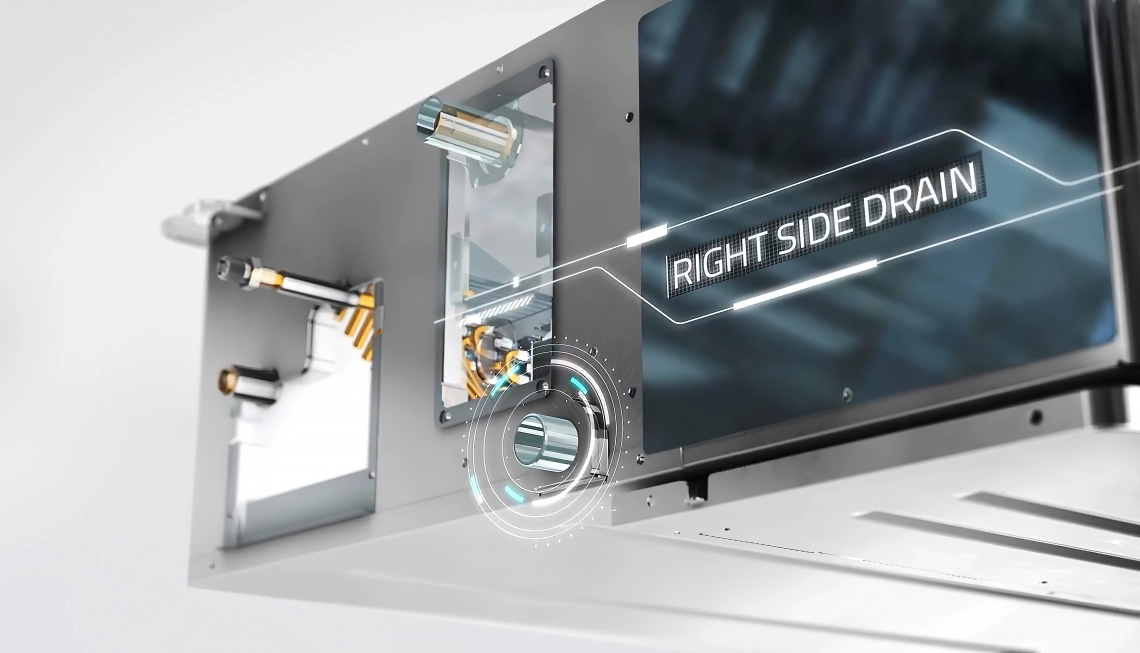

Three drain way.

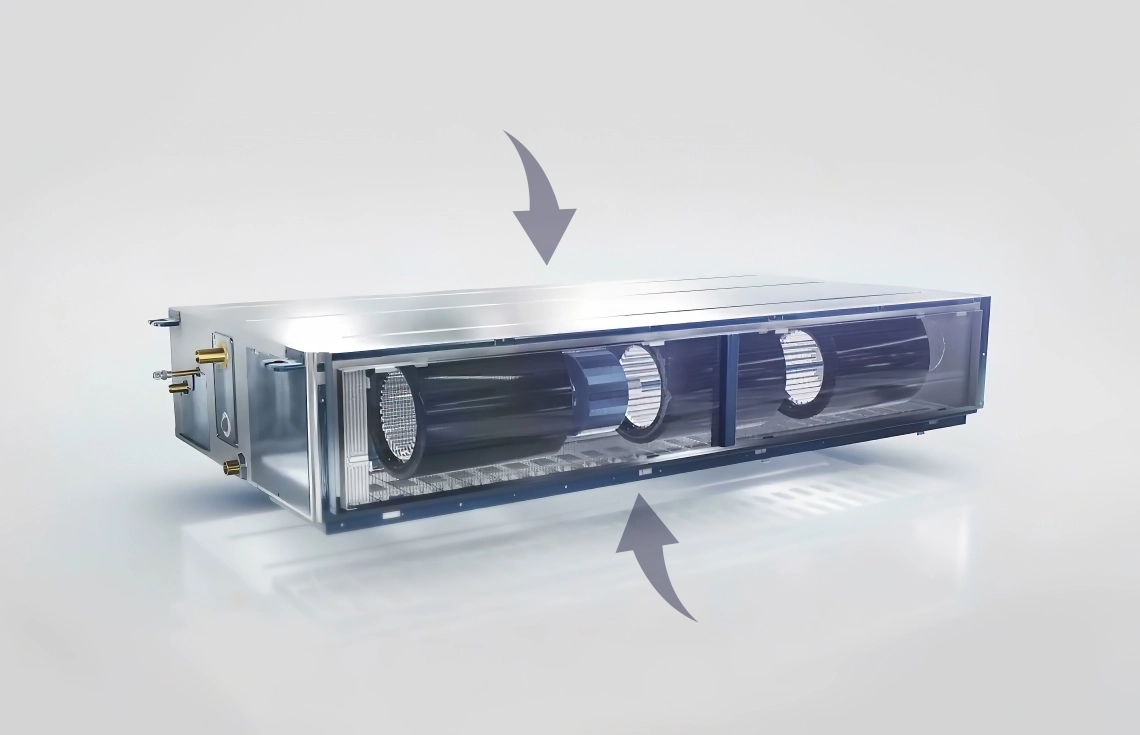

Air inlet configuration

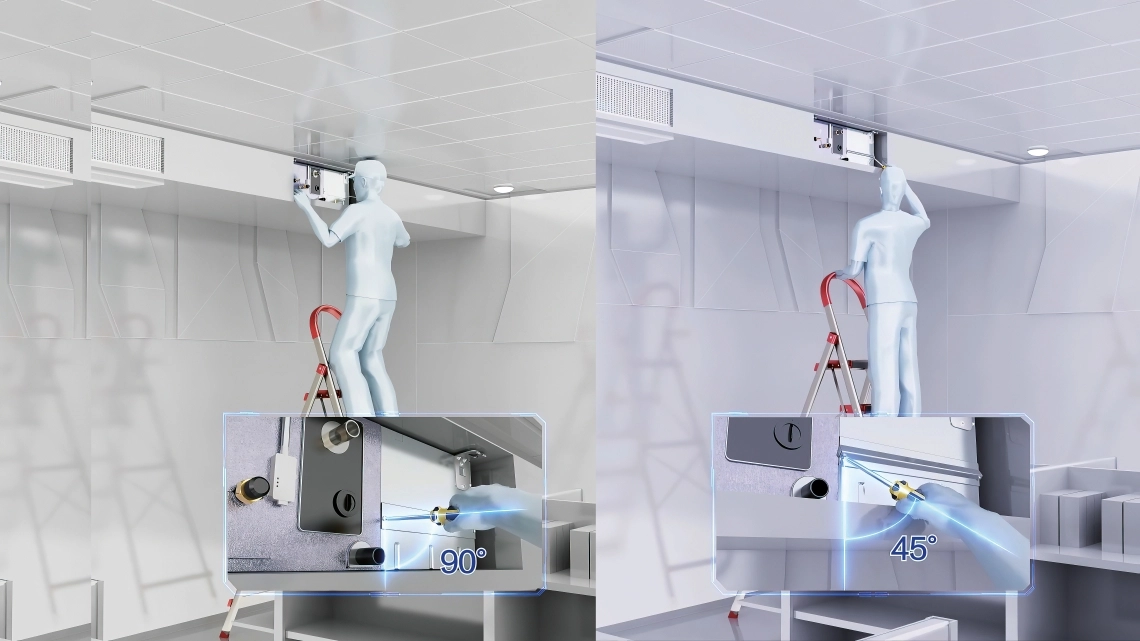

The module with electrical components is located directly under the grille which allows for easy maintenance operations.
| Specifications | Units | MIDJ- 05X1EV2AA |
MIDJ- 07X1EV2AA |
MIDJ- 09X1EV2AA |
MIDJ- 12X1EV2AA |
MIDJ- 16X1EV2AA |
MIDJ- 18X1EV2AA |
MIDJ- 24X1EV2AA |
MIDJ- 28X1EV2AA |
MIDJ- 30X1EV1AA |
MIDJ- 38X1EV1AA |
MIDJ- 48X1EV1AA |
MIDJ- 54X1EV1AA |
| Capacity | |||||||||||||
| Cooling | kW | 1,50 | 2,20 | 2,80 | 3,60 | 4,50 | 5,60 | 7,10 | 8,00 | 9,00 | 11,20 | 14,00 | 16,00 |
| Heating | kW | 1,70 | 2,50 | 3,20 | 4,00 | 5,00 | 6,30 | 8,00 | 9,00 | 10,00 | 13,00 | 16,30 | 18,00 |
| Electrical Parameters | |||||||||||||
| Power supply | Ph/V/Hz | 1/220~230/50/60 | |||||||||||
| Ventilation | |||||||||||||
| Air flow (H/M/L) | m3/h | 515/ 440/390 |
545/ 470/390 |
545/ 470/390 |
570/ 495/420 |
700/ 625/550 |
915/ 765/640 |
1275/ 1050/875 |
1275/ 1050/875 |
1450/ 1200/1000 |
2000/ 1700/1400 |
2150/ 1700/1400 |
2350/ 1950/1600 |
| Sound pressure (H/M/L) |
dB(A) | 29/27/25 | 30/28/25 | 30/28/25 | 31/29/27 | 32/30/28 | 33/31/29 | 34/31/29 | 35/33/30 | 36/33/30 | 38/35/32 | 40/36/32 | 42/38/34 |
| Sound power (H/M/L) |
dB(A) | 41/39/37 | 42/40/37 | 42/40/37 | 43/41/39 | 44/42/40 | 45/43/41 | 46/43/41 | 47/45/42 | 48/45/42 | 50/47/44 | 52/48/44 | 54/50/46 |
| Installation – Dimensions | |||||||||||||
| Net dimensions (WxDxH) |
mm | 700x700x248 | 1100x700x248 | 1500x700x248 | |||||||||
| Packaged unit dimensions (WxDxH) |
mm | 932x835x280 | 1332x835x280 | 1698x857x305 | |||||||||
| Net/gross weight |
Kg | 27,0/ 32,0 |
27,0/ 32,0 |
27,0/ 32,0 |
27,0/ 32,0 |
28,5/ 33,5 |
36,8/ 43,4 |
36,8/ 43,4 |
36,8/ 43,4 |
39,4/ 45,4 |
48,3/ 56,5 |
51,3/ 59,5 |
51,3/ 59,5 |
| Ø Liquid pipe | mm (inch) |
6,35 (1/4) |
6,35 (1/4) |
6,35 (1/4) |
6,35 (1/4) |
6,35 (1/4) |
6,35 (1/4) |
9,52 (3/8) |
9,52 (3/8) |
9,52 (3/8) |
9,52 (3/8) |
9,52 (3/8) |
9,52 (3/8) |
| Ø Gas pipe | mm (inch) |
9,52 (3/8) |
9,52 (3/8) |
9,52 (3/8) |
12,70 (1/2) | 12,70 (1/2) | 12,70 (1/2) | 15,88 (5/8) |
15,88 (5/8) |
15,88 (5/8) |
15,88 (5/8) |
15,88 (5/8) |
15,88 (5/8) |
| Static pressure (Standard/Max.) |
Pa | 20/200 | 20/200 | 20/200 | 20/200 | 20/200 | 20/200 | 20/200 | 20/200 | 20/180 | 20/180 | 20/180 | 20/180 |

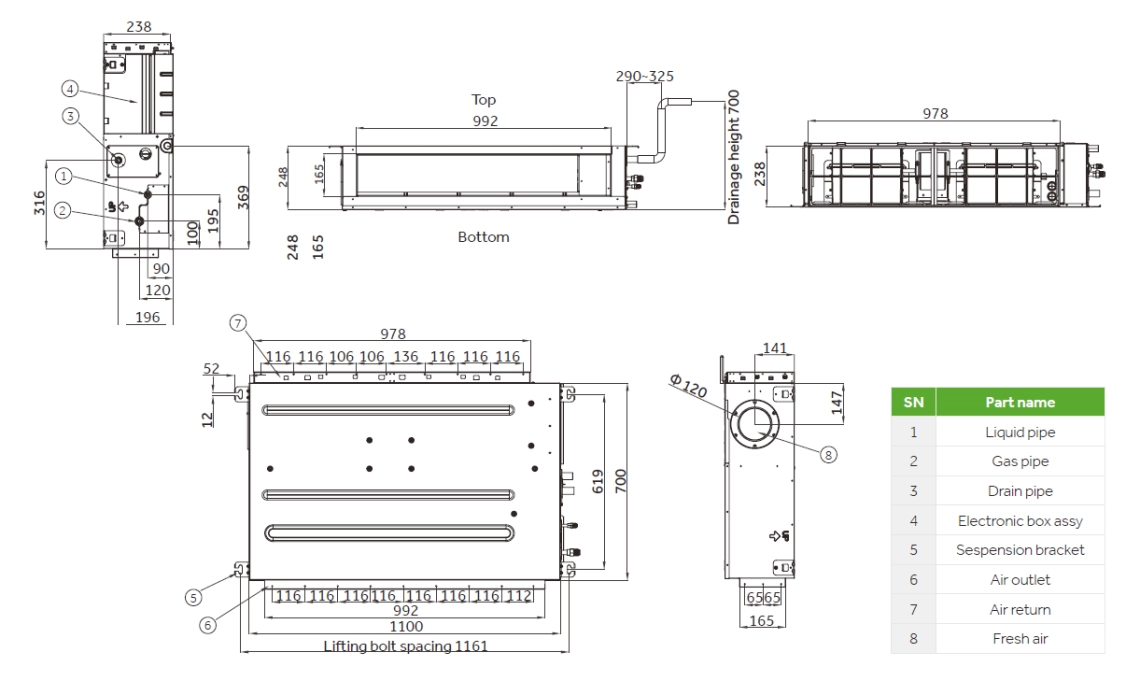

Dimensions
MIDG-38X1EV2AD(H) MIDG-48X1EV2AD(H) MIDG-54X1EV2AD(H)
MIDJ-38X1EV1AA MIDJ-48X1EV1AA MIDJ-54X1EV1AA
Dimensions

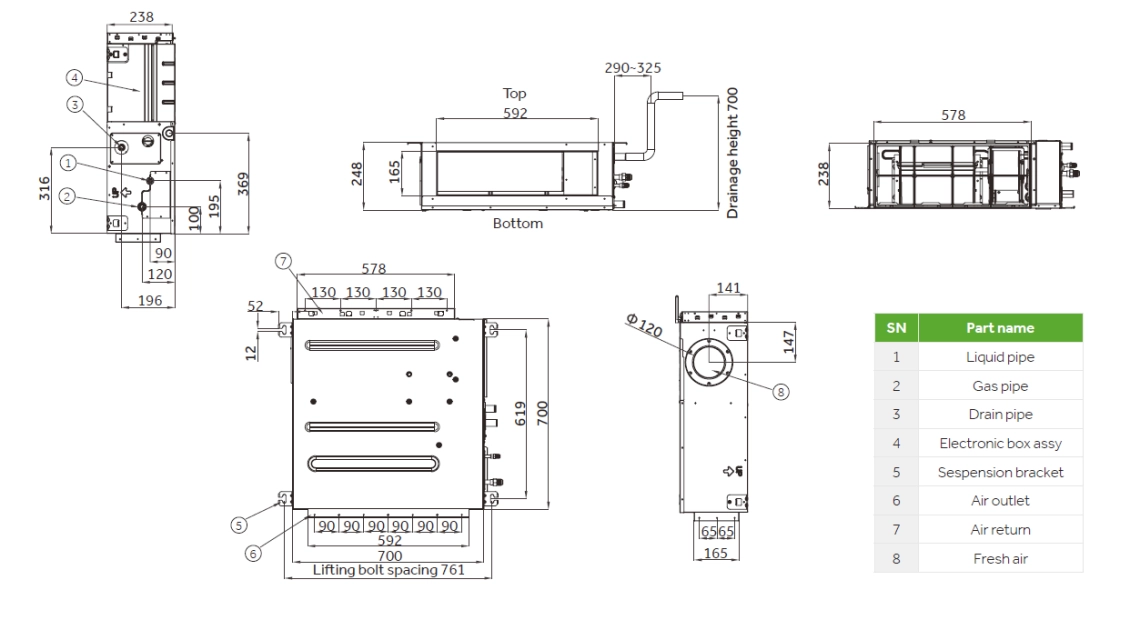

MIDJ-05X1EV2AA MIDJ-07X1EV2AA MIDJ-09X1EV2AA MIDJ-12X1EV2AA MIDJ-16X1EV2AA
Dimensions

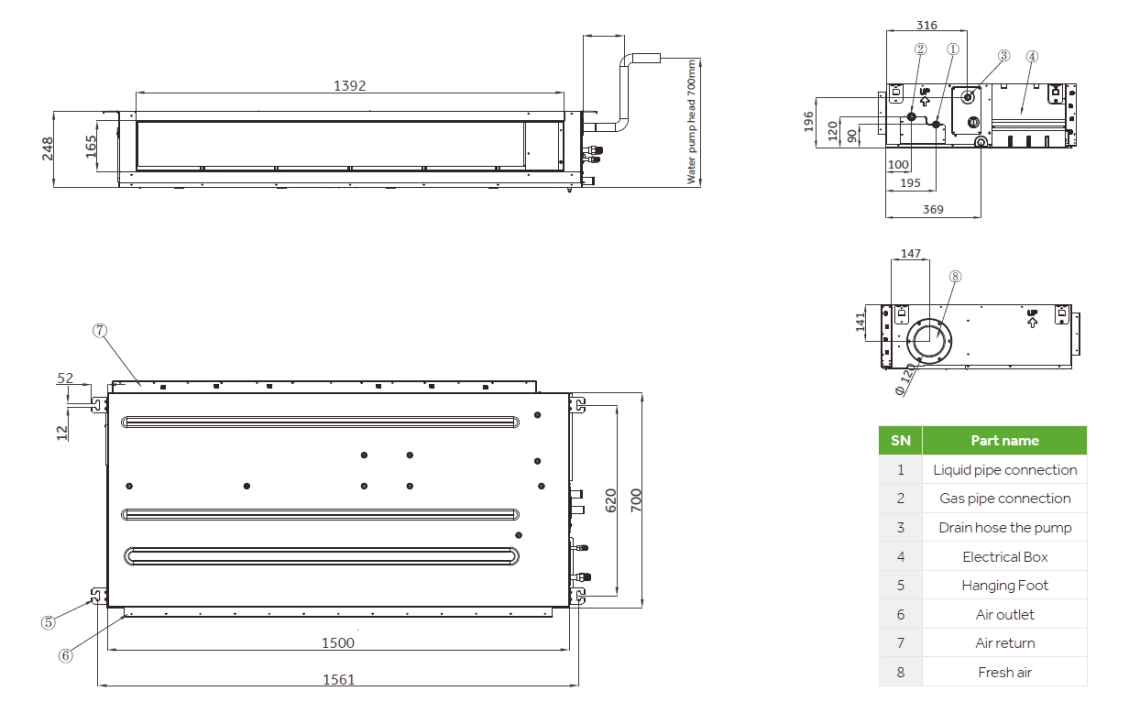

MIDJ-18X1EV2AA MIDJ-24X1EV2AA MIDJ-28X1EV2AA MIDJ-30X1EV1AA
