Modular air-cooled chiller, R32 MCU-OHDD series

The R32 series is a new generation of modular chillers that combines energy efficiency, environmental friendliness and comfort. Intelligent control with the ability to operate in cooling, heating and domestic hot water modes, quiet operation and flexible modular structure make them a universal choice for any facility - from residential complexes to large commercial buildings.

Cooling capacity: 76-153 kW

Heating capacity: 81-161 kW

Want to buy or have questions?

Modular air-cooled chiller, R32 MCU-OHDD series

Mycond

Air Conditioning

MULTIFUNCTIONALITY

Integrated heating, cooling and hot water in one system, easy to adapt to many applications.

MyCond MCU-OHDD – efficient cooling for commercial buildings

MyCond MCU-OHDD vertical section of the structure

HIGH-PERFORMANCE COMPONENTS PROVIDE EXCELLENT PERFORMANCE

Fully Inverter DC Scroll Compressor with EVI Technology

The latest DC Inverter Compressor with EVI Technology provides high "power" of the device. The unique design with higher compression ratio and larger pressure difference allows the device to operate reliably even in the most difficult environmental conditions. This design allows for stepless adjustment of the compressor capacity for precise temperature control.

EVI technology

The heat pump can operate stably at ambient temperatures below -30ºC thanks to EVI technology, while the heat pump's performance has been significantly improved.

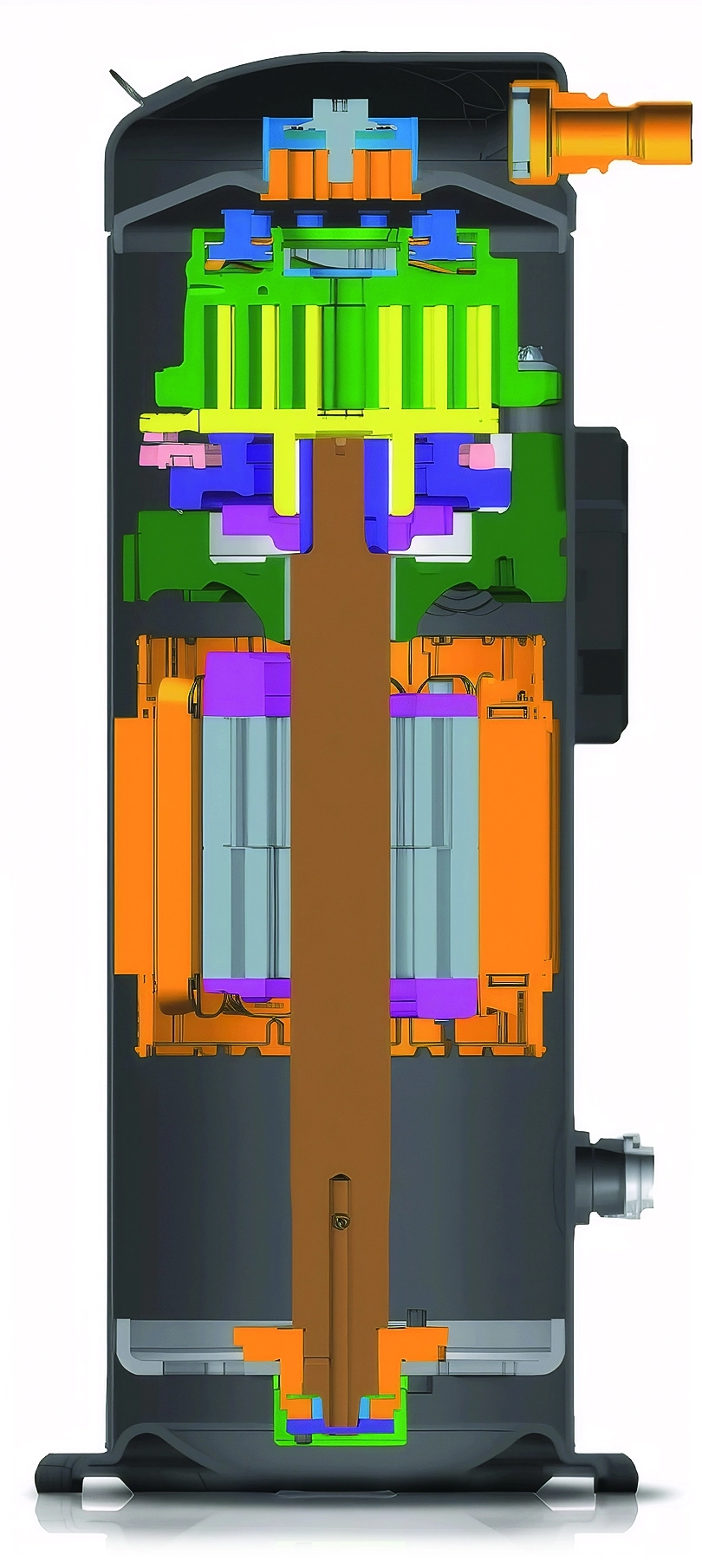

MyCond MCU-OHDD heat pump cross section

MyCond MCU-OHDD Rotary compressor

Optimized design of scroll and VCR technology

Optimized scroll and VCR to better adapt to part load conditions and operating requirements to improve seasonal efficiency. *VCR: Variable Compression Ratio

BPM engine

Equipped with a special optimized BPM (Brushless Permanent Magnet) motor for increased performance and reduced noise levels.

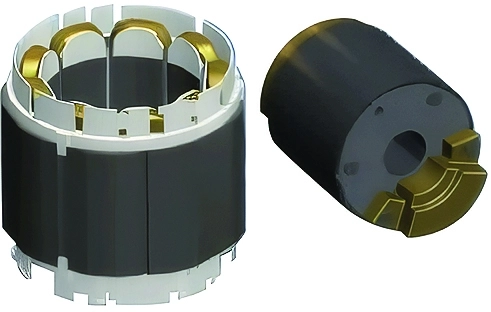

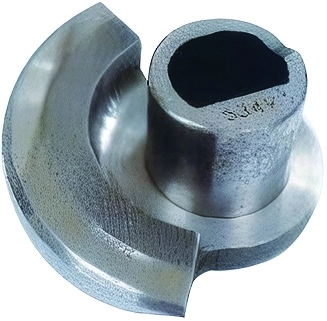

MyCond MCU-OHDD Rotor and stator of a high-efficiency electric motor for a compressor

MyCond MCU-OHDD Axial and radial bearing – reliability and stability of compressor operation

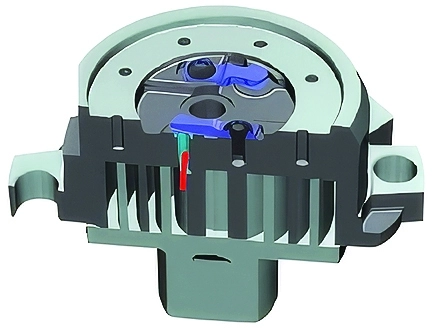

Dual compatibility design

Protects the compressor from dirt or liquid entering the scroll unit. The moving scroll contacts the stationary scroll with appropriate force to avoid wear and leakage.

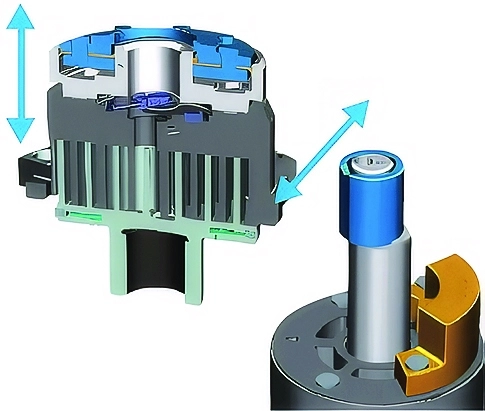

Swing Link design

Controlling the force between the moving and stationary scrolls as the compressor speed increases.

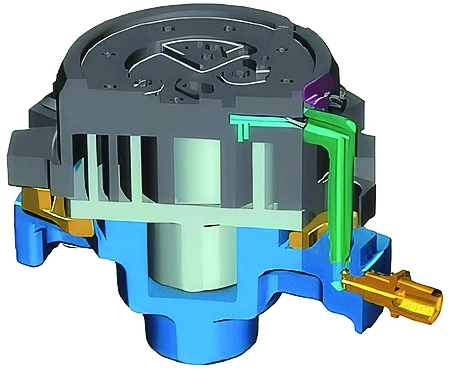

MyCond MCU-OHDD part for efficient operation of the air conditioning system

Oil pump

Equipped with a positive displacement oil pump for lubrication of the bearing system under flow conditions.

MyCond MCU-OHDD operates at temperatures from -20°C to +53°C

UNRIVALED FLEXIBILITY

Wide operating range

The device can operate stably in various conditions, which is an ideal solution for various requirements.

In cooling mode:

supply temperature from -5°C to 20°C*, outdoor temperature from -20°C to 53°C.

In heating and DHW mode:

supply temperature from +20°C to +60°C*, OUTDOOR TEMPERATURE FROM -20°C TO 50°C.

MyCond MCU-OHDD space heating with coolant supply up to +60 °C

OVERALL DIMENSIONS

External dimensions of MCU080OHDD

MyCond MCU-OHDD overall dimensions - 1

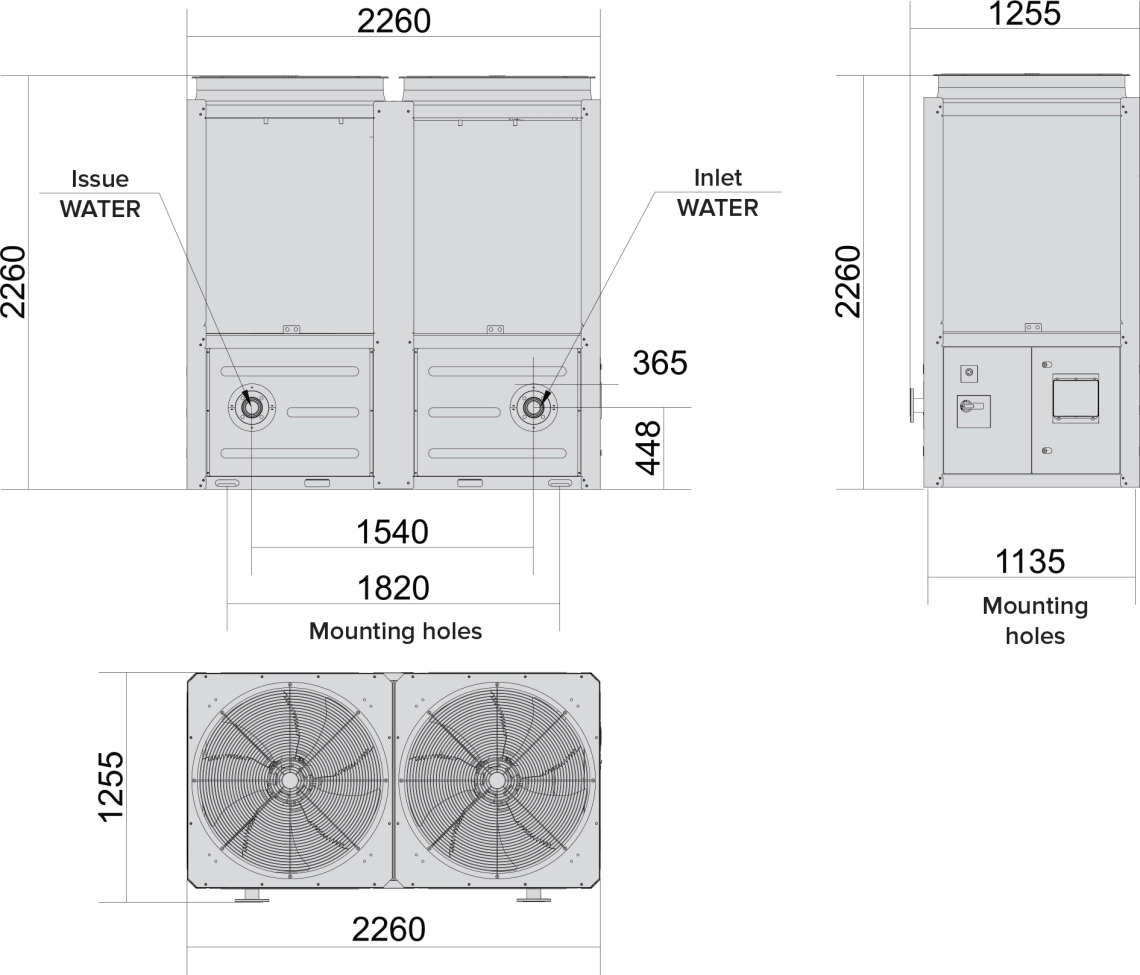

External dimensions MCU0130OHDD, MCU0150OHDD

MyCond MCU-OHDD overall dimensions - 2

TECHNICAL SPECIFICATIONS

Technical specifications		Unit of measurement	MCU080OHDD	MCU0130OHDD	MCU0150OHDD
Cooling (Leaving water temperature 7°C/ Outside air temperature 35°C)	Capacity (max) Power input (max) EER (max) Capacity (nom) Power input (nom) EER (nom)	kW kW kW/kW kW kW kW/kW	76.0 29.01 2.62 65.0 22.03 2.95	137.0 46.92 2.92 100.0 28.60 3.50	153.0 56.56 2.70 130.0 42.88 3.03
Heating (Leaving water temperature 45°C/ Outside air temperature 7°C)	Capacity (max) Input power (max) COP (max) Capacity (nom) Input power (nom) COP (nom)	kW kW kW/kW kW kW kW/kW	81.0 24.40 3.32 71.0 18.93 3.75	151.0 41.95 3.60 100.0 24.20 4.13	161.0 47.08 3.42 142.0 36.90 3.85
Seasonal energy efficiency	SEER ηs,c SCOP (35°C) ηs,c SCOP (55°C) ηs,c	W/W % W/W % W/W %	4.60 181 4.51 178 3.65 143	4.88 192 4.85 191 3.85 151	4.82 190 4.60 181 3.80 149
Operating temperature range	Cooling Heating	°C °C	-20~53°C -30~50°C
Outlet water temperature range	Cooling Heating	°C °C	-5~20°C 20~60°C
Power supply		F/V/Hz	3N~/380~415V/50Hz
Acoustic power level		dB	88	88	91
Water heat exchanger type			Shell and tube heat exchanger
Air heat exchanger type			Copper pipe and aluminum fins
Refrigerant throttle type			Electronic expansion valve
Compressor	Type Quantity		Scroll compressor with inverter
Compressor	Type Quantity		1	2	2
Refrigerant	Type		R32
Fan	Type Airflow Quantity	m3/h	Axial
			25400	20500	25400
			1	2	2
Water system	Water resistance Water flow rate Water pipe size (inlet/outlet)	kPa m3/h	53	40	60
			12.20	17.2	1 24.4
			DN50/DN50	DN65/DN65	DN65/DN65
External dimensions	W×D×H	mm	1260×1210×2260	2260×1255×2260	226012552260
Weight	Net weight	kg	500	910	910

Notes:

1. Technical data may be changed by the manufacturer without notice for product improvement.

2. Performance complies with EN14511 and EN14825 standards.

3. Max.: 100% of compressor frequency.

4. Nom.: Nominal data 80% of maximum frequency.

5. For further information, please contact Mycond staff.
