Mycond WindMe modular air handling and air conditioning units are versatile devices that can be customized to meet individual customer requirements and expectations thanks to their configurable design.
Air flow rate: 1100 ... 10000 m3/h

Want to buy or have questions?
Modular control panel WindMe series

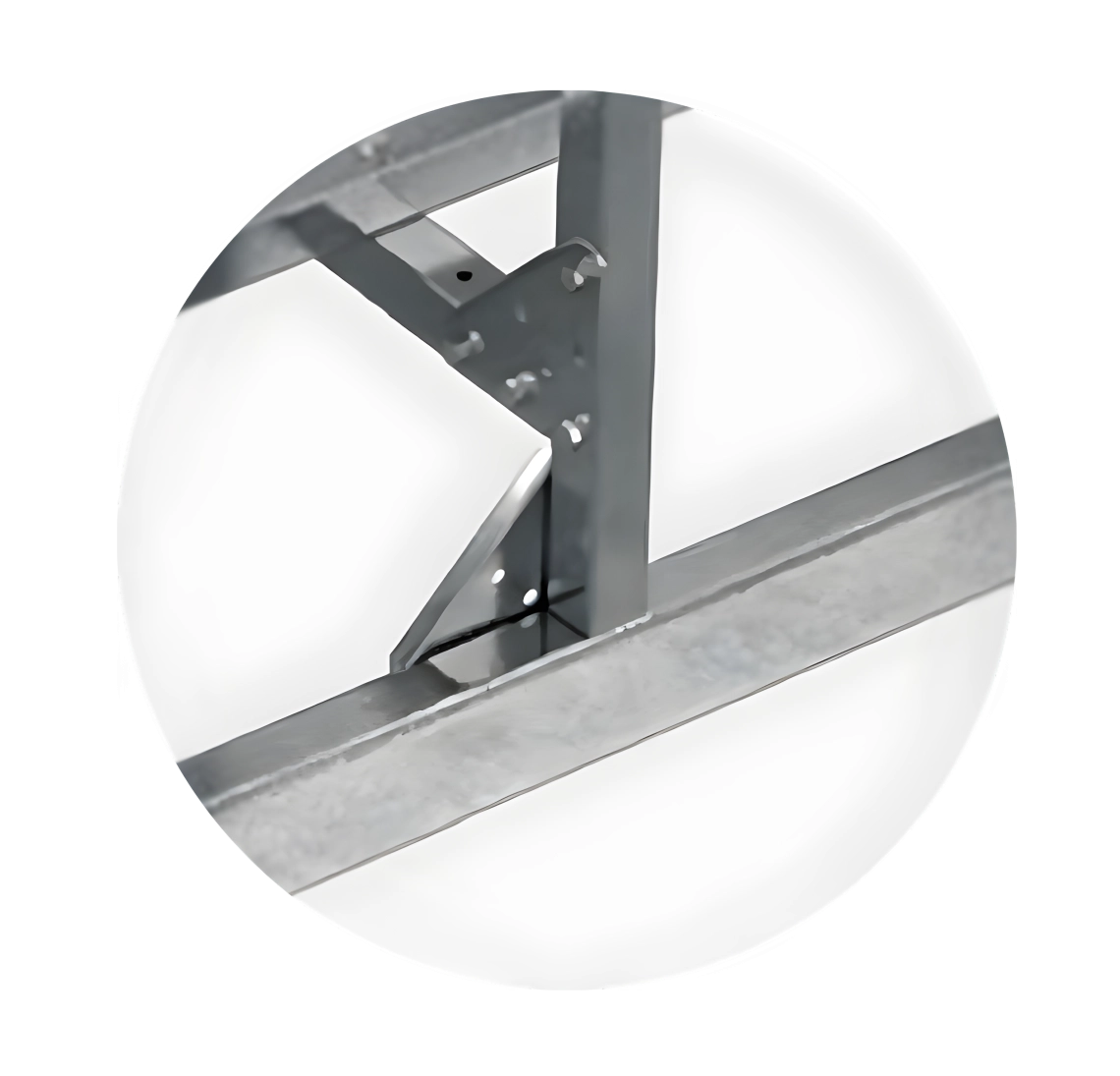

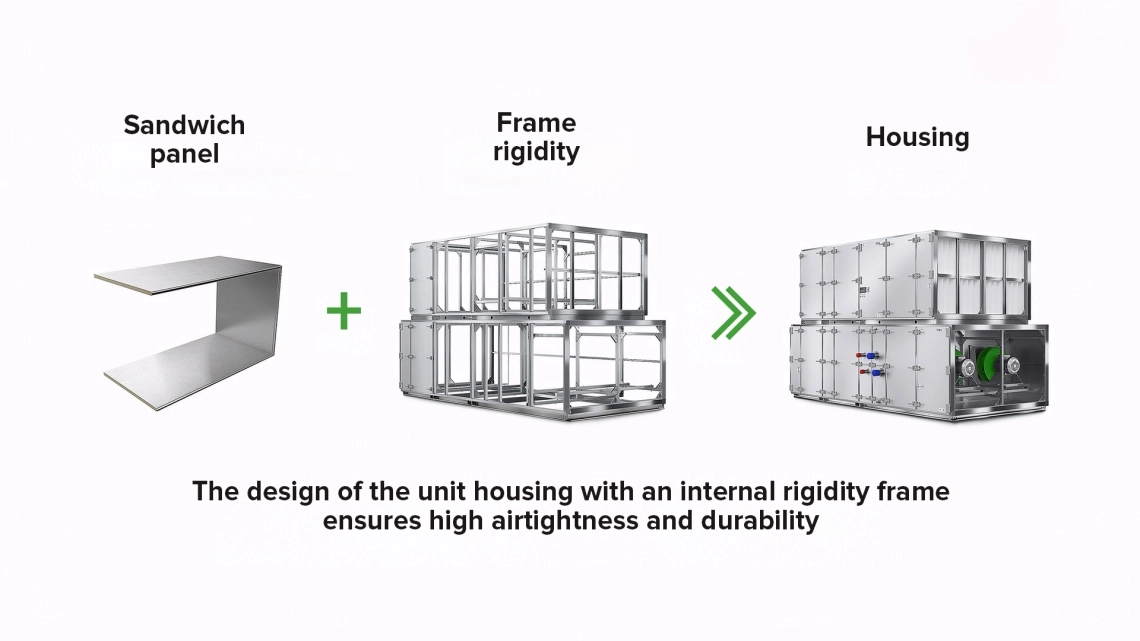

MyCond WindMe ventilation unit housing sandwich panel stiffening frame

Robust housing with internal rigidity frame

The ventilation unit housing is built on the basis of a reinforced internal rigid frame and sandwich panels with a heat and sound insulation layer. This design forms a strong, hermetic and resistant to external influences unit shell.
In addition, the housing is coated with AluZinc (AZ275), which is characterized by increased resistance to corrosion and atmospheric influences. This ensures a long service life of the equipment even in conditions of high humidity, temperature fluctuations and aggressive external environments.
The combination of such design features extends the operating range to the extreme limits of operation, ensuring stable operation of the system in the temperature range from −40°C to +70°C. This allows the equipment to be used in both cold and hot climates without risk to reliability or performance.



Housing cladding

  • Rigid, durable housing construction.
  • Low heat and UV radiation absorption.
  • High resistance to weather conditions.

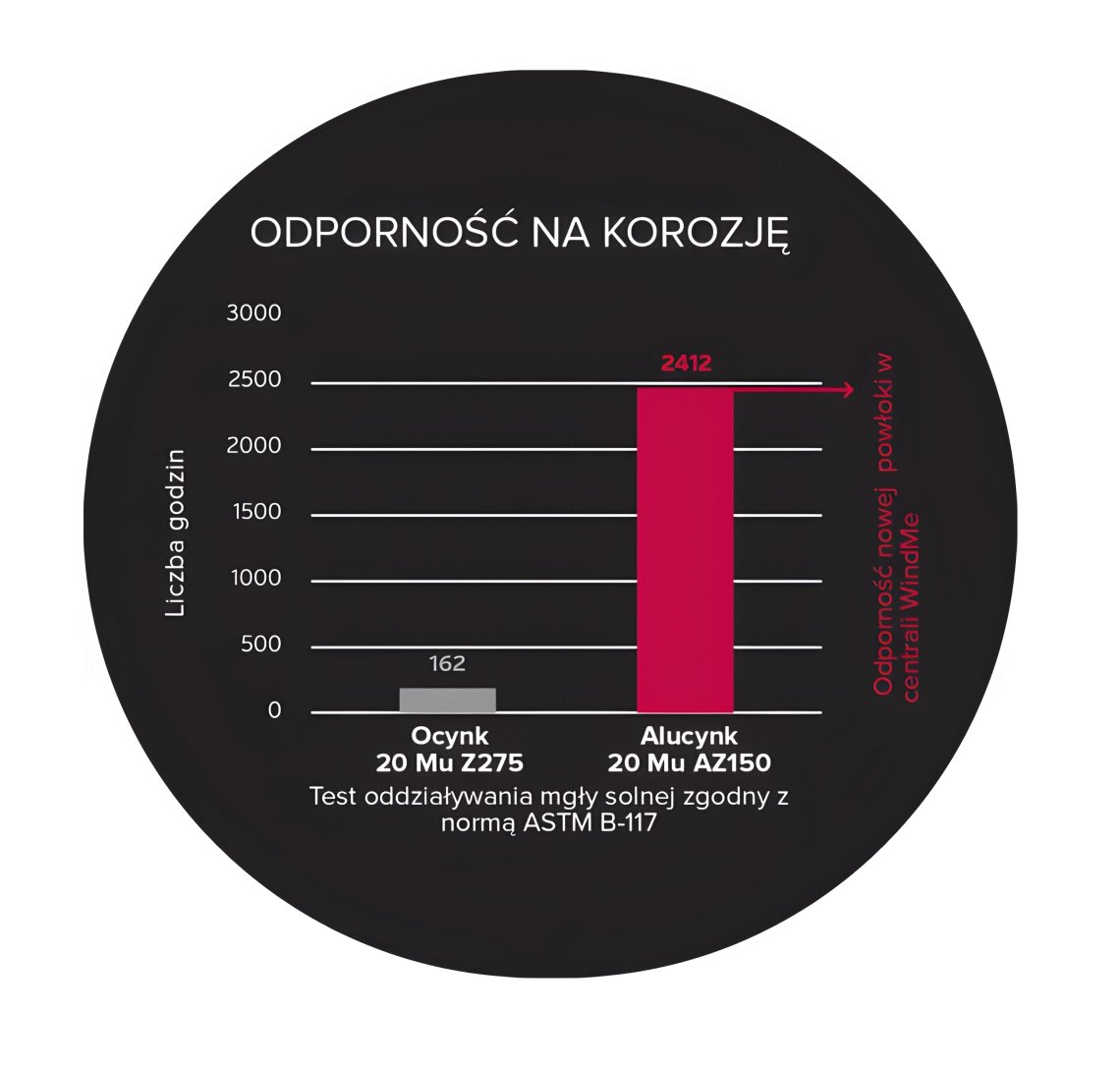

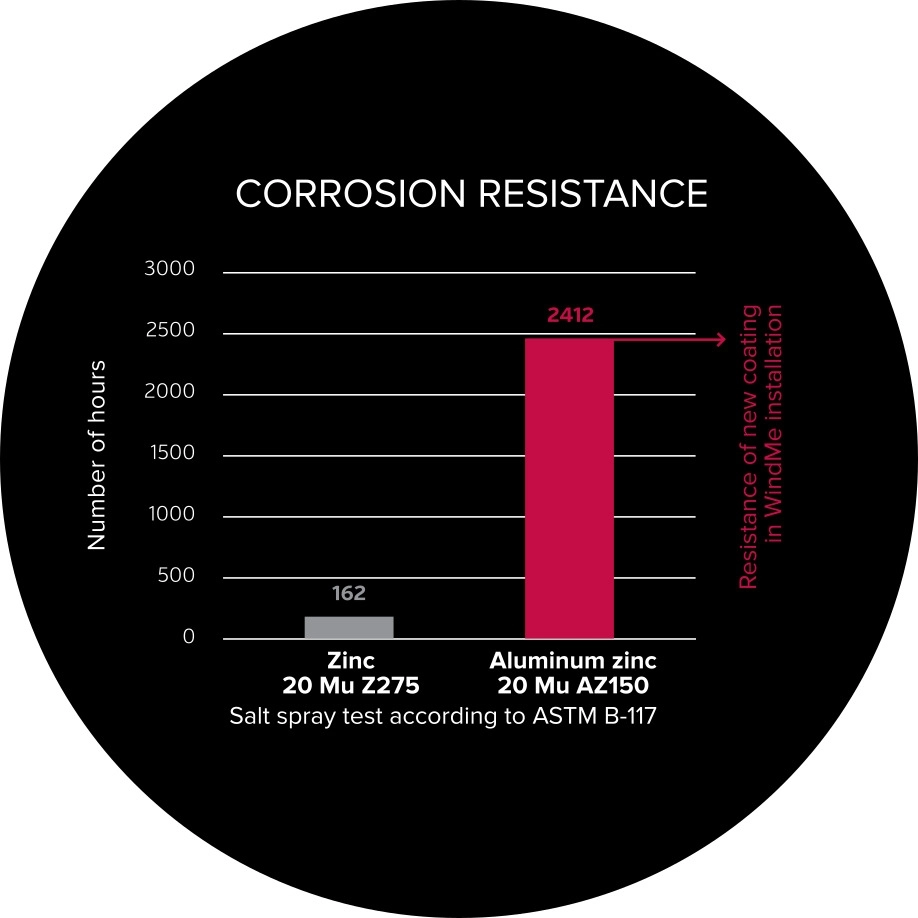

Corrosion resistance of the housing MyCond WindMe coating test

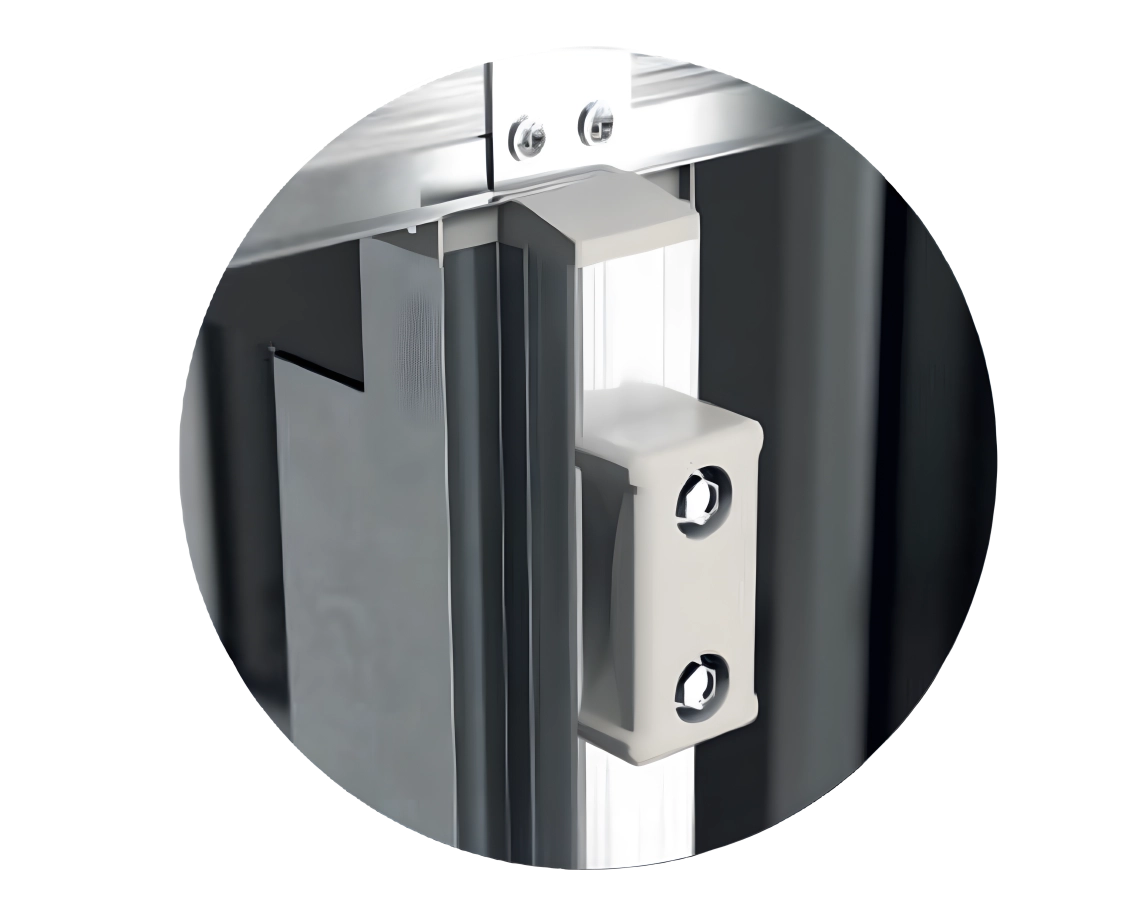

Rigid connection of the MyCond WindMe housing panels ensures structural reliability

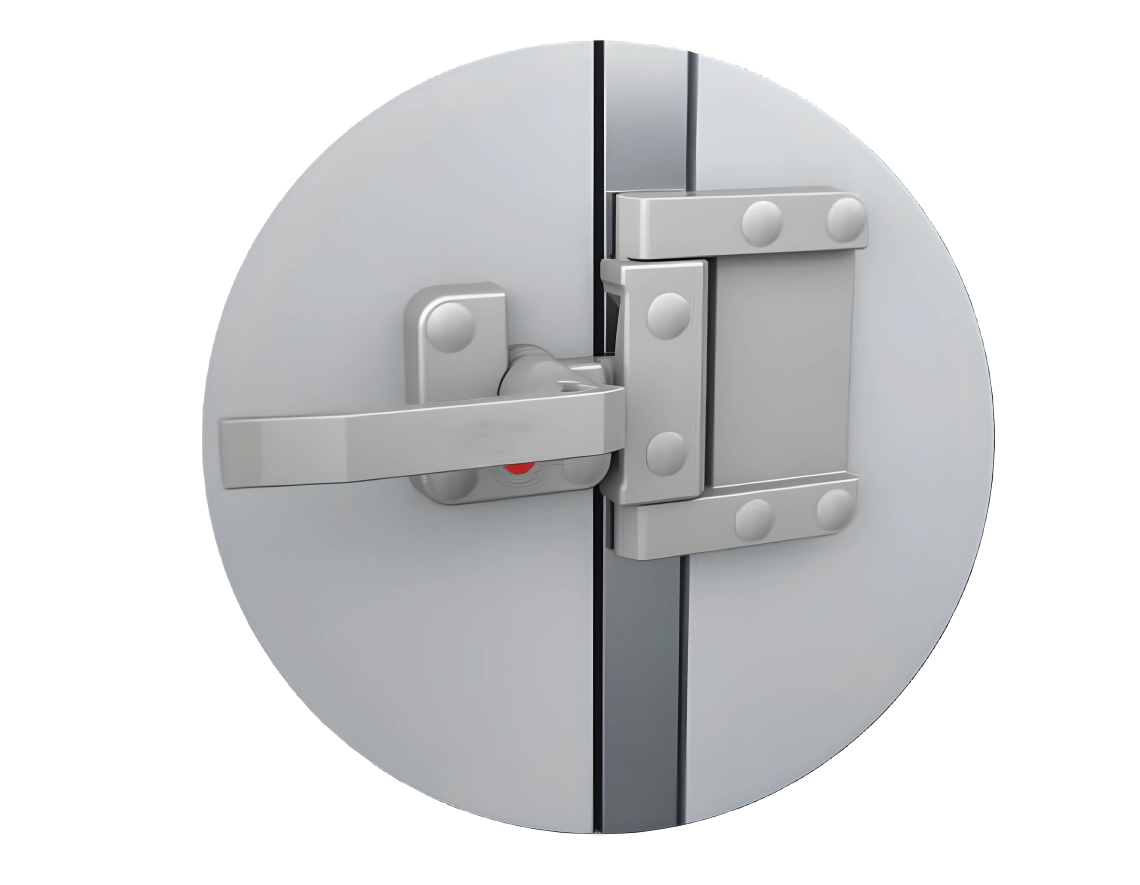

Structural posts

ALUMINUM POSTS WITH SPECIAL DESIGN FOR ALL TYPES OF CENTERS

  • Thermal bridge break as standard.
  • High resistance to weather conditions and UV rays.

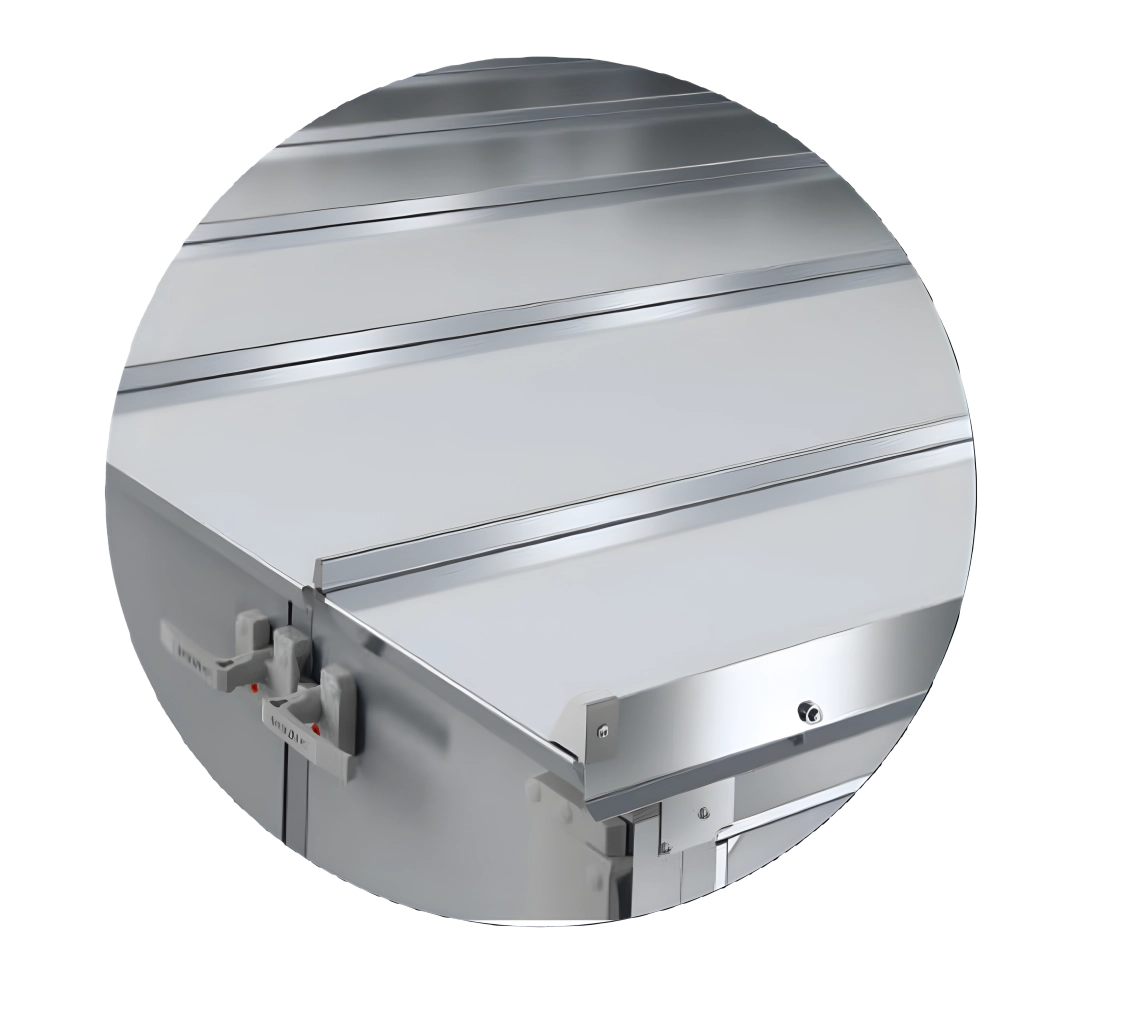

Roof

  • The roof is made of 0.5 mm thick sheet metal, coated on both sides with 185 um thick zinc (DX51D AZ185).

  • The roof is assembled from modular elements equipped with snap-in grooves ensuring complete tightness of the joints. The modular design of the roof makes its assembly ergonomic and safe.

The sealed roof of the MyCond WindMe installation provides reliable protection against external influences

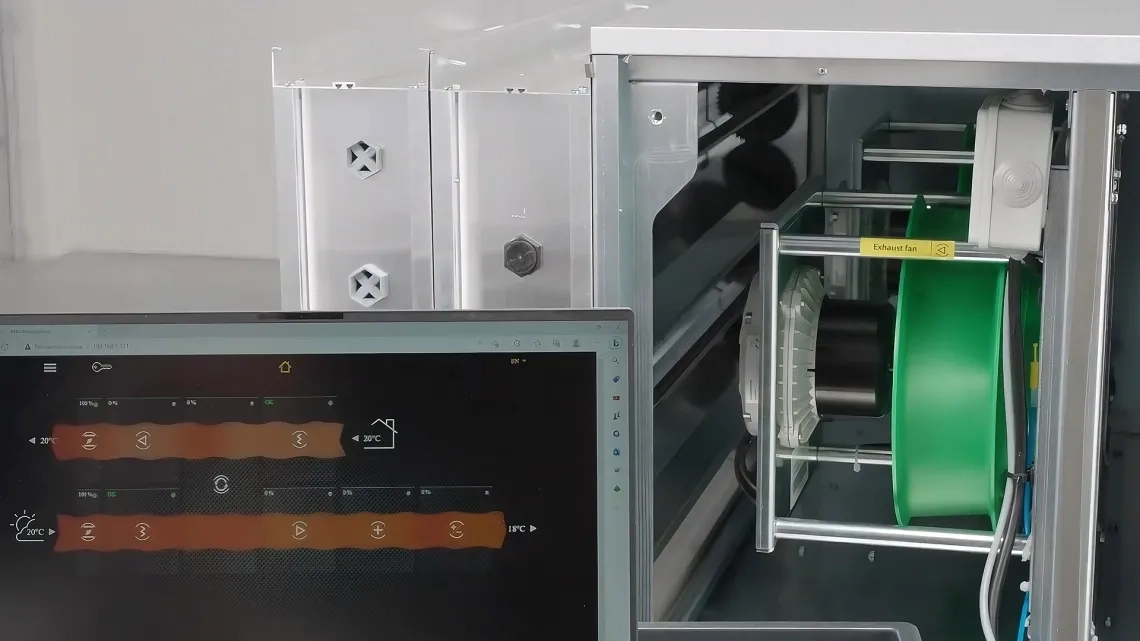

Automated control of the ventilation unit MyCond WindMe accuracy and real-time control

Automatics

Mycond WindMe units are equipped with modern automation that provides comprehensive control of all key processes of the ventilation and air conditioning system. It precisely coordinates the operation of all nodes, dynamically adjusts operating parameters and implements energy-efficient scenarios based on data on the state of the air environment.
Thanks to flexible control logic, the system automatically adapts to changes in the environment, optimizing energy consumption without compromising comfort.
In the basic version, the units are equipped with a convenient visualization interface or a touch controller, which opens up the possibility of full remote control, operational monitoring and precise adjustment of the equipment from any location.

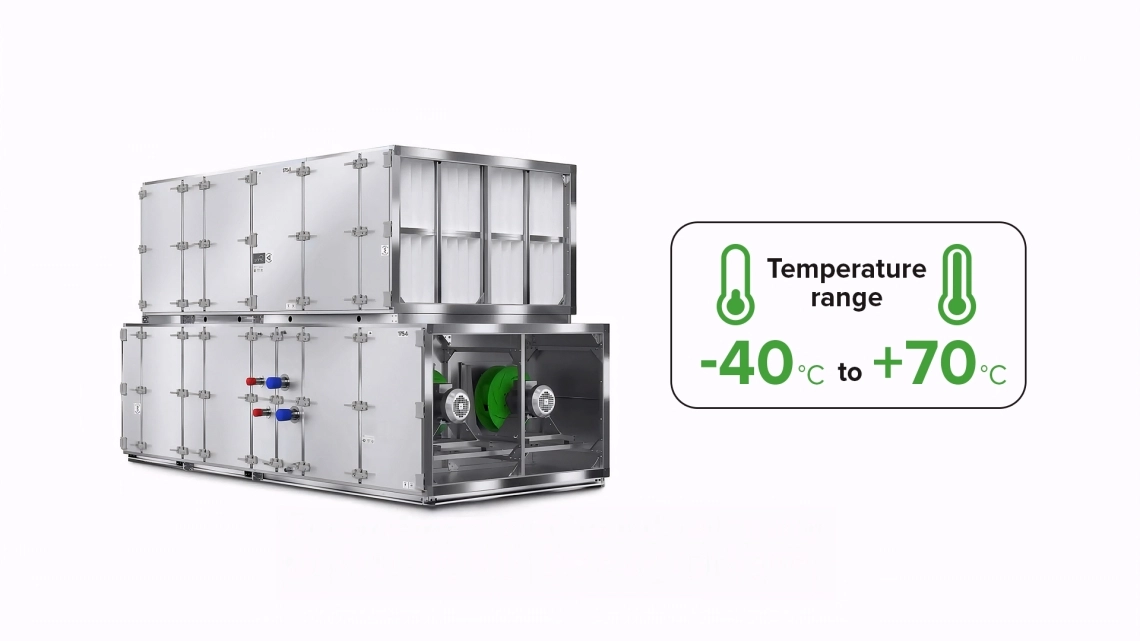

MyCond WindMe ventilation unit stable operation at critical temperatures



Dimensions

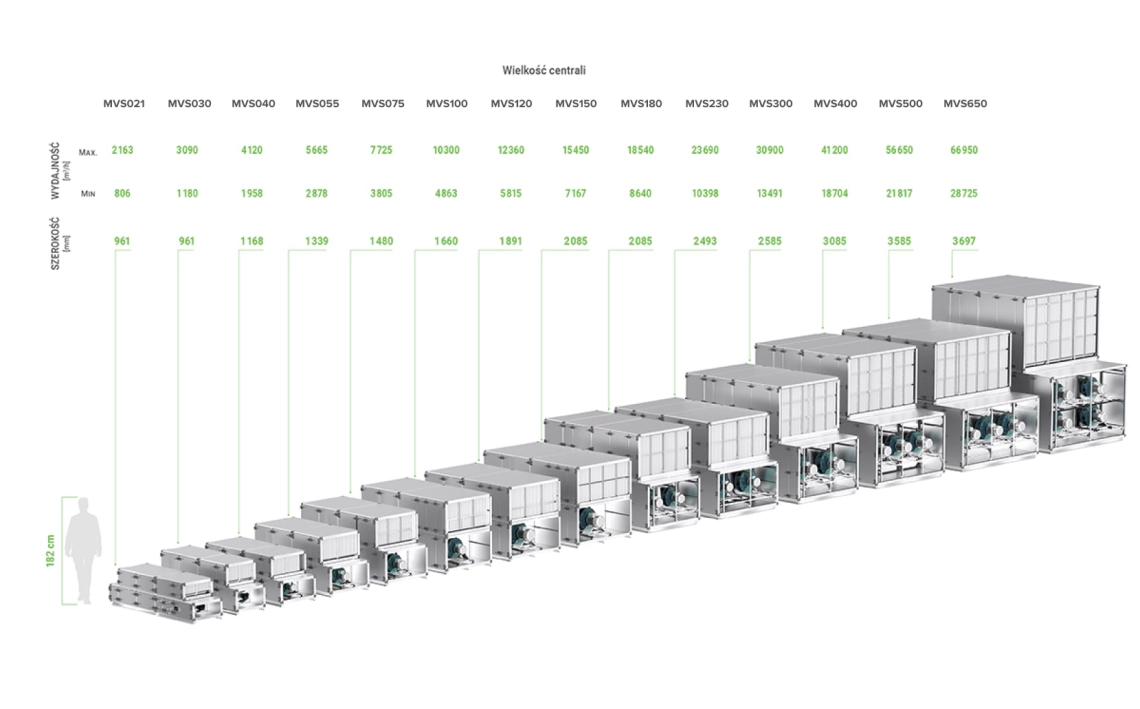

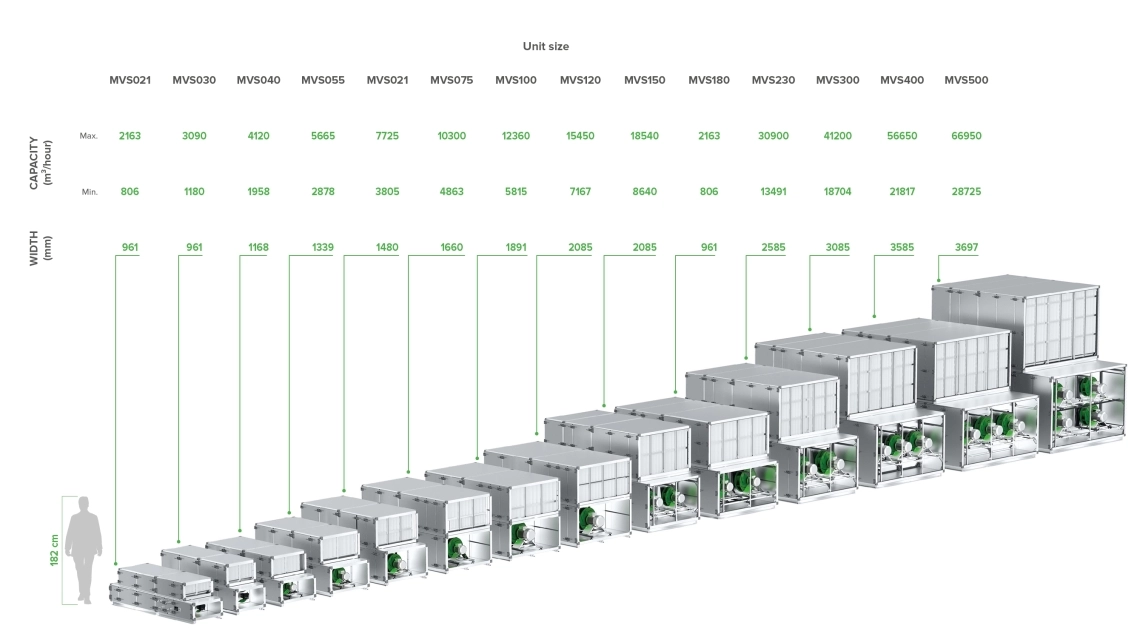

Model range of MyCond WindMe ventilation units



MVS 021-120 - RECUPERATOR (HEX & PREMIUM PLUS)

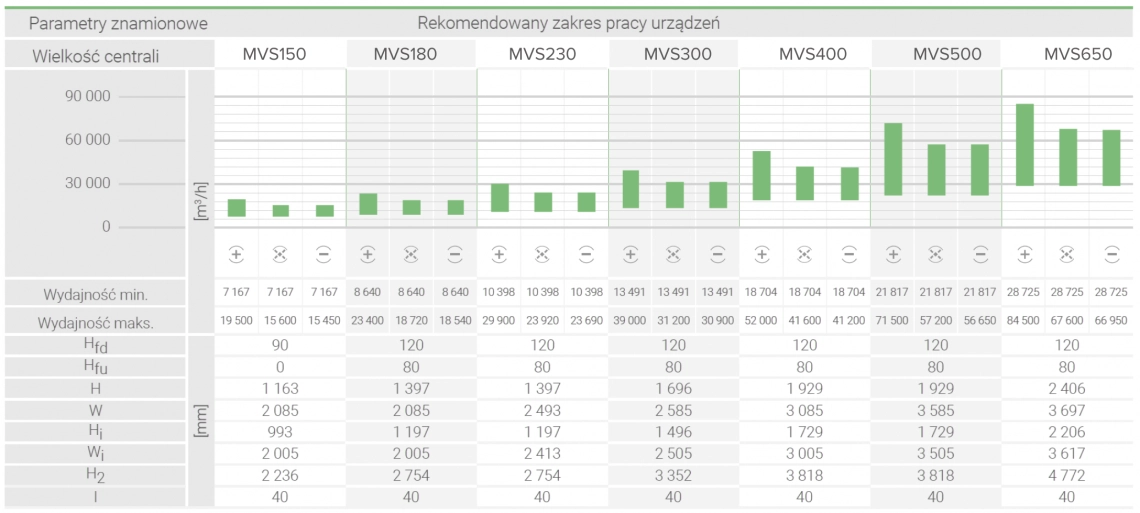

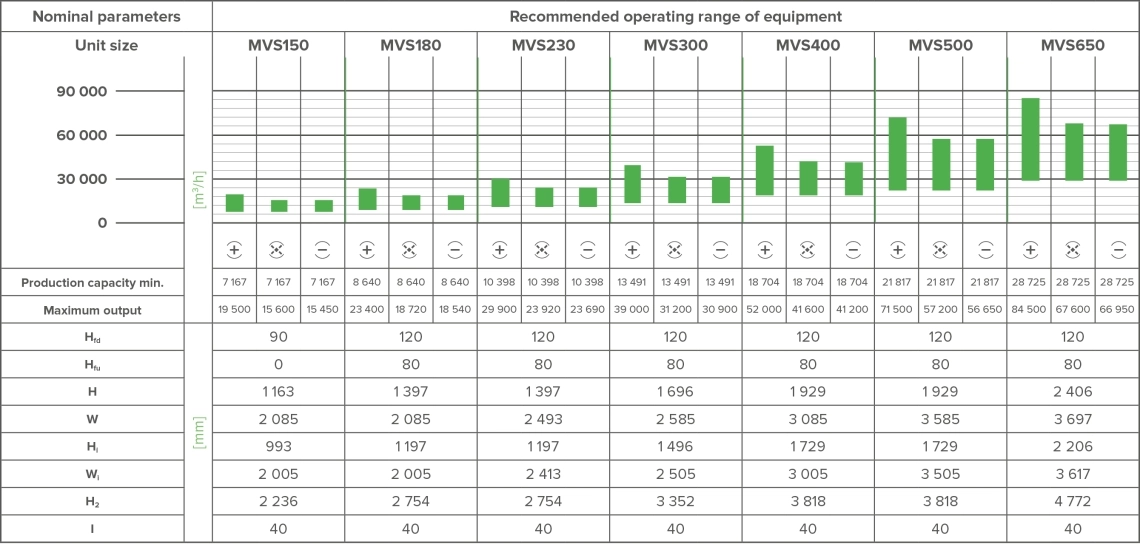

MyCond WindMe technical parameters and recommended operating range
