Monoblock heat pumps BeeThermic series

Reliability, high SCOP and refined design - an ideal choice for a private house
Cooling capacity: up to 20,4 kW
Heating capacity: up to 24,0 kW

Want to buy or have questions?
Monoblock heat pumps BeeThermic series

The BeeThermic series has modern technical characteristics and excellent design. The universal heat pump provides maximum efficiency and comfort.

Modern BeeThermic heat pump showcasing its efficient inverter technology.



This is exactly what the owner of a private house needs. A compact outdoor unit with an exquisite design will become another element of the decor of your cozy yard. A reliable inverter compressor with a wide range of power regulation in combination with weather-dependent operation mode minimizes heating costs.
Built-in components of the hydraulic circuit simplify the installation and start-up of the heat pump.

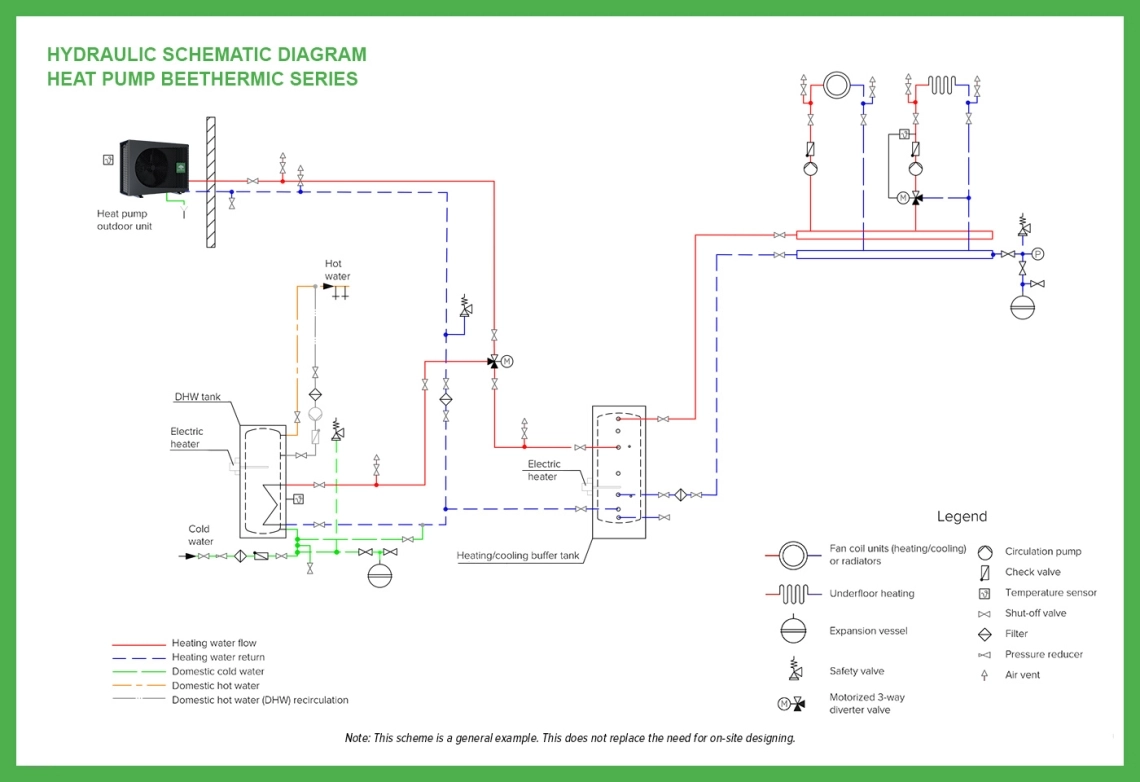

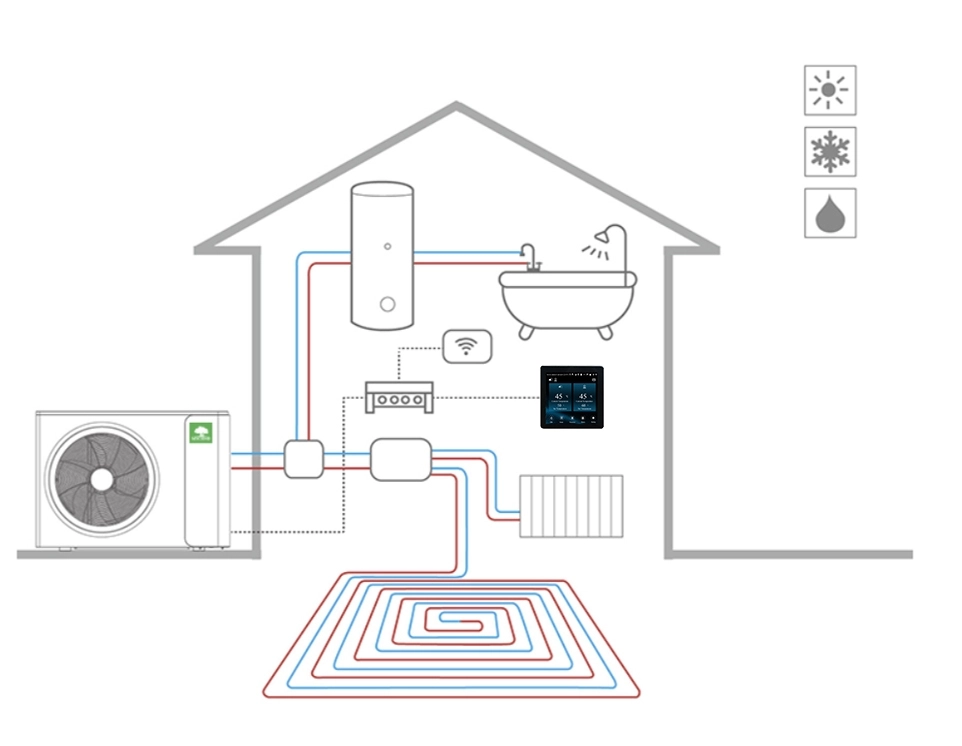

Monoblock heat pump installation options illustration.

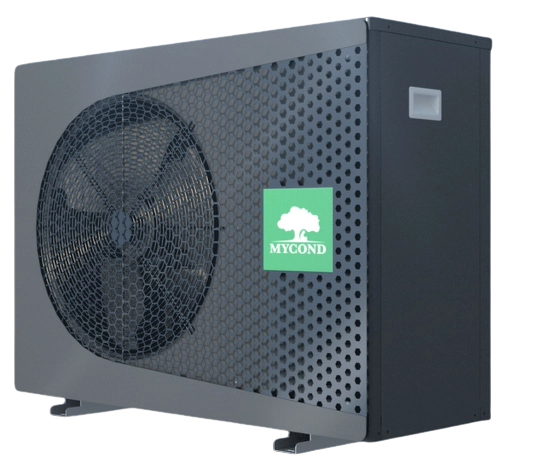

Monoblock heat pump from BeeThermic series in an outdoor setting.

High SCOP values are achieved due to the combination of reliable components and inverter control of all system elements:

  • compressor with EVI technology;
  • fan;
  • circulation pump.

A heating system with a monobloc heat pump does not require a large boiler room, which allows you to use BeeThermic not only for new buildings, but also for reconstruction projects.

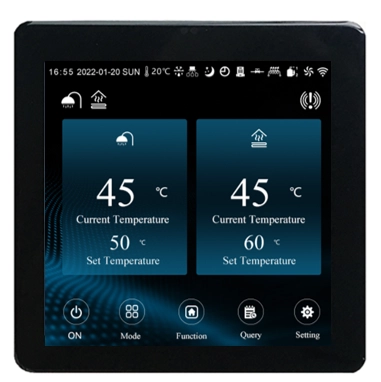

Touch control panel

A simple and clear user interface is combined with extensive technical settings for service engineers.

Controller capabilities:

  • Operating modes "Heating" / "Underfloor heating" / "DHW" / "Cooling"
  • Weather compensation mode
  • Management of additional heat sources for heating and DHW
  • Control of additional circulation pumps and valves
  • "Quiet mode"
  • Possibility of cascade regulation by several heat pumps
  • Modbus

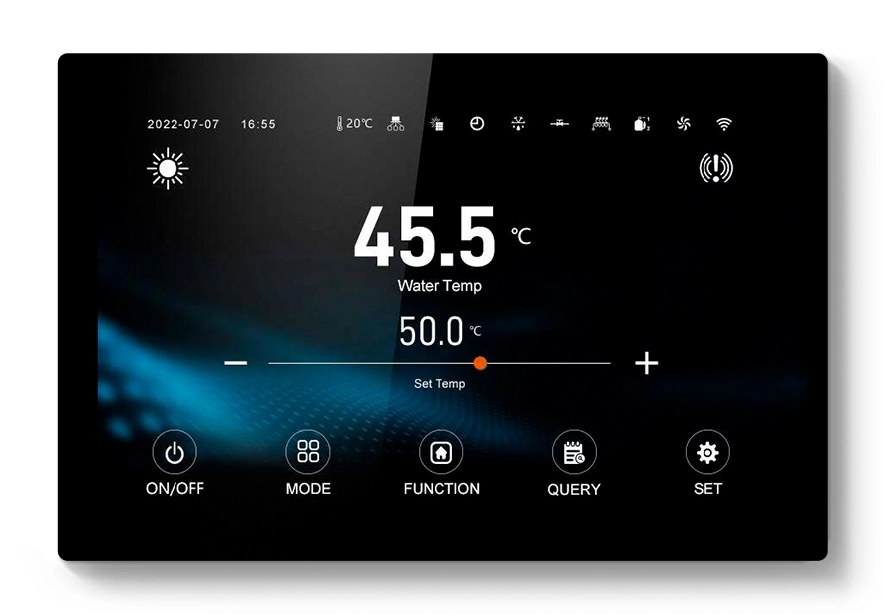

Control panel for BeeThermic series monoblock heat pumps.



Monoblock heat pump from BeeThermic series for efficient home heating.

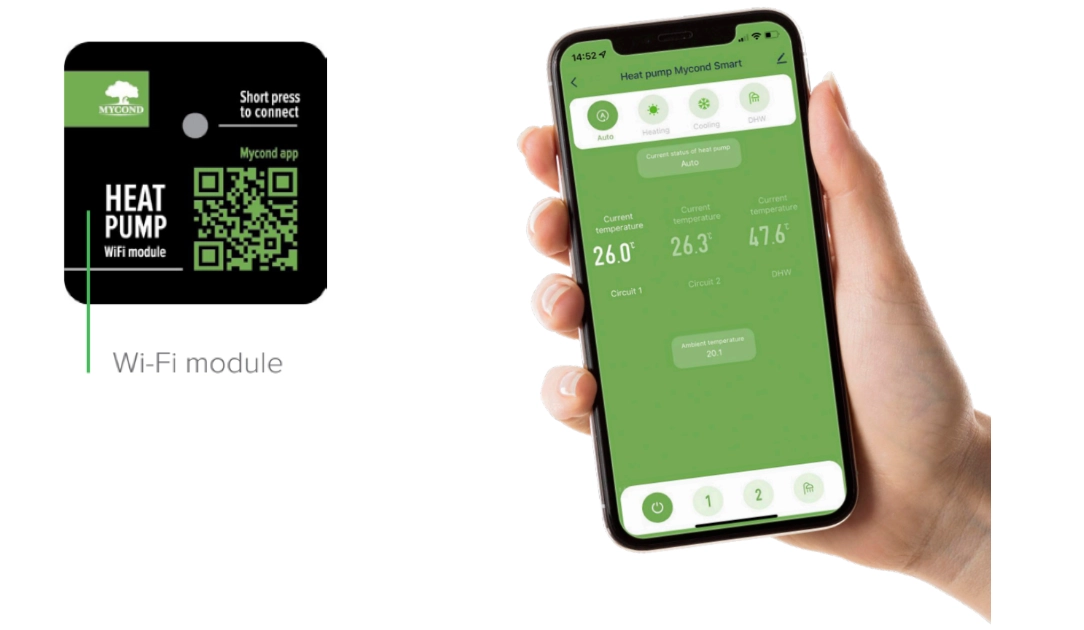

Remote control

The Mycond application makes it very easy to control the heat pump and the entire system from a smartphone:

  • Switching modes
  • Setting temperature
  • error monitoring

You can connect many other devices or functions to the Mycond App and get a "smart home" in your smartphone:

  • fan coil management
  • room temperature control
  • motion sensors, cameras, switches



Monoblock heat pump from the BeeThermic series.

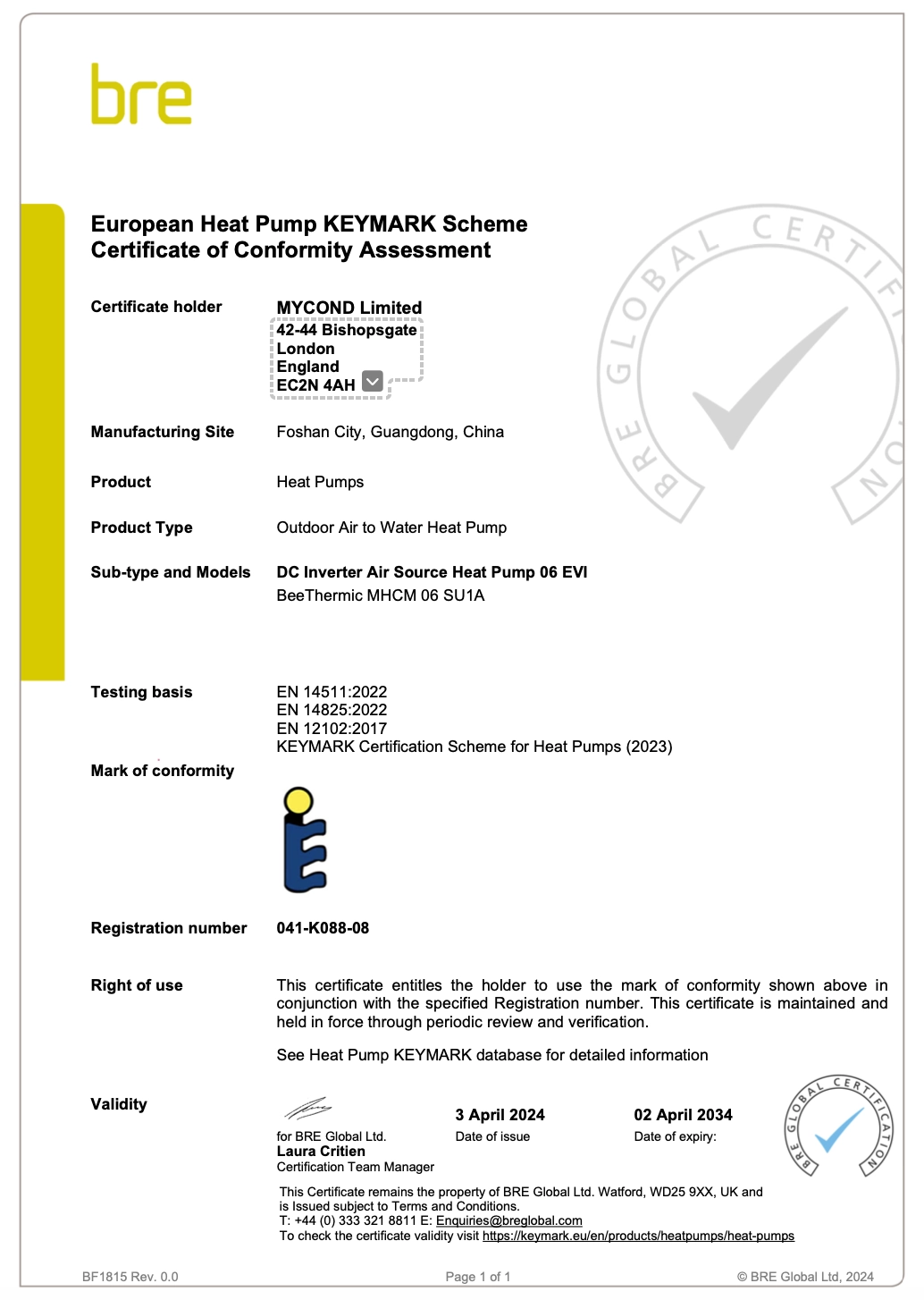

MYCOND CERTIFIED ACCORDING TO THE HEAT PUMP KEYMARK STANDARD


The Heat Pump Keymark certification is an internationally recognized quality mark that certifies that Mycond heat pumps meet the highest European and international standards for efficiency, reliability and environmental friendliness. This certification is based on independent tests and inspections that ensure that heat pumps with this quality mark meet the declared technical characteristics and are efficient in use.

The Heat Pump Keymark was developed by the heat pump industry in 2015 but is owned by the CEN. The scheme is open to all certification bodies in Europe.

Keymark certification for BeeThermic monoblock heat pumps.

Specifications Unit MHCM 06 SU1A MHCM 10 SU1A MHCM 14 SU3A MHCM 18 SU3A MHCM 24 SU3A
Heating capacity (A7/W35)     kW 6,5 10,6 14,8 18,8 24,0
Coefficient of performance COP (A7/W35)   4,9 4,6 4,6 4,5 4,3
Heating capacity min/max (A7/W35) kW 2,5-8,3 4,2-12,2 5,3-16,6 6,2-20,5 6,0-26,0
Maximum heating capacity (A-7/W35) kW 5,2 8,5 11,8 15,2 19,3
Coefficient of performance COP (A-7/W35)   3,7 3,5 3,4 3,4 3,2
Cooling capacity (A35/W7) kW 5,5 8,5 12,9 15,9 20,4
Energy efficiency ratio EER (A35/W7)           3,0 3,0 2,9 2,9 2,9
Operating ambient temperature (heating) -25…+45
Operating ambient temperature (cooling) +16…+45
Maximum flow temperature +60
Refrigerant type   R32
Power supply V/Hz 230 / 50 400 / 50 400 / 50
Sound power level dB(A) 50 52 55 56 58
Energy Efficiency Class
-    Low temperature application (W35)   A+++
-    Medium temperature application (W55)   A++

Dimensions

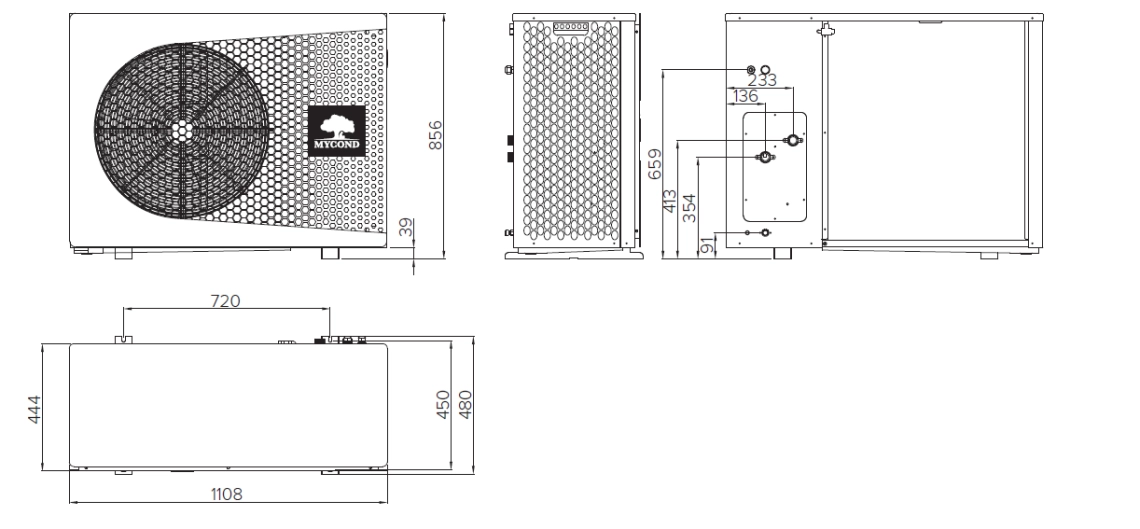

Appearance and dimensions of the MHCM 06 SU1A / MHCM 10 SU1A outdoor units

Dimensions diagram of the BeeThermic series monoblock heat pumps.

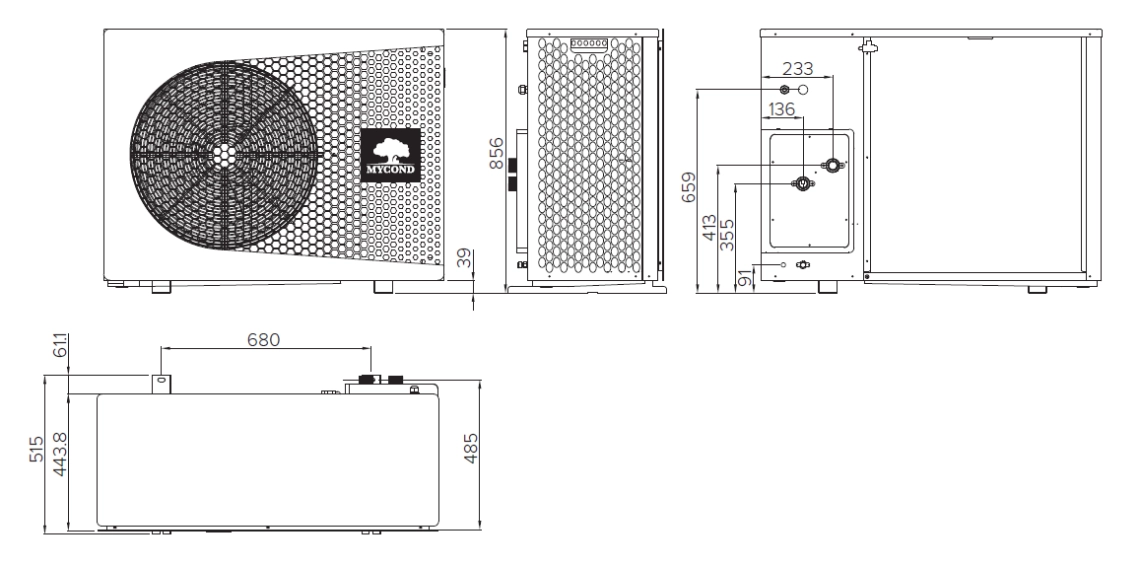

Appearance and dimensions of the MHCM 14 SU3A

Diagram showcasing dimensions of the compact BeeThermic monoblock heat pump.

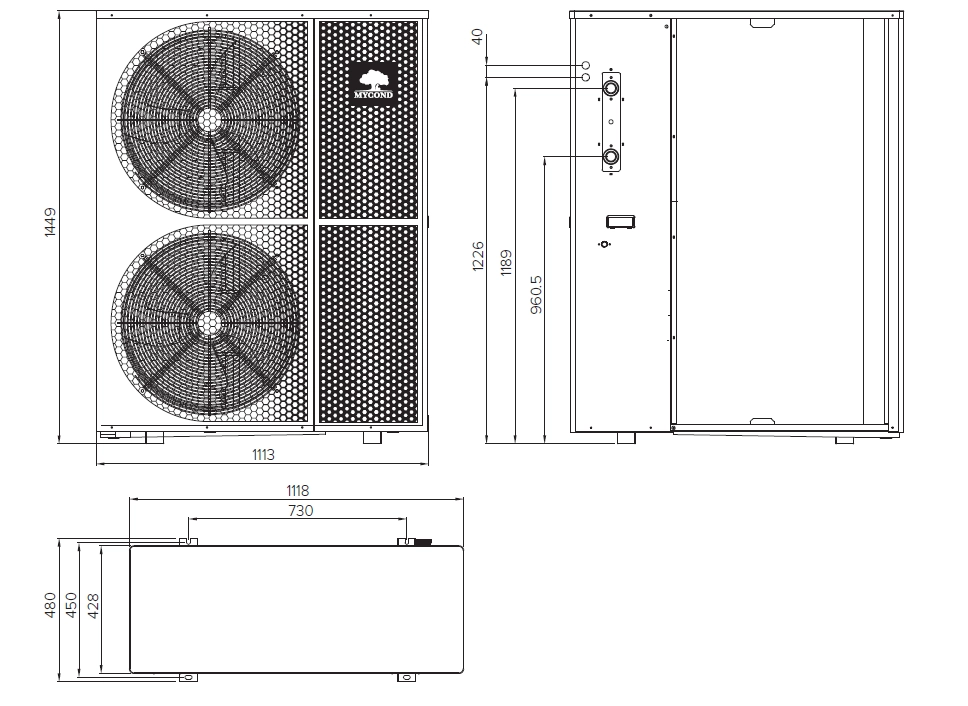

Appearance and dimensions of the MHCM 18 SU3A / MHCM 24 SU3A

Dimensions and specifications of BeeThermic outdoor unit.



Monoblock heat pump for mild to cold climates.
