Pool area dehumidifiers MDDS / MDCS series

The dehumidifiers of MDDS and MDCS series offer fully independent humidity control, where the control unit detects the ambient humidity and starts the dehumidification as necessary. They are extremely easy to install
Dehumidification capacity: 46 ... 290 l/day

Want to buy or have questions?
Pool area dehumidifiers MDDS / MDCS series

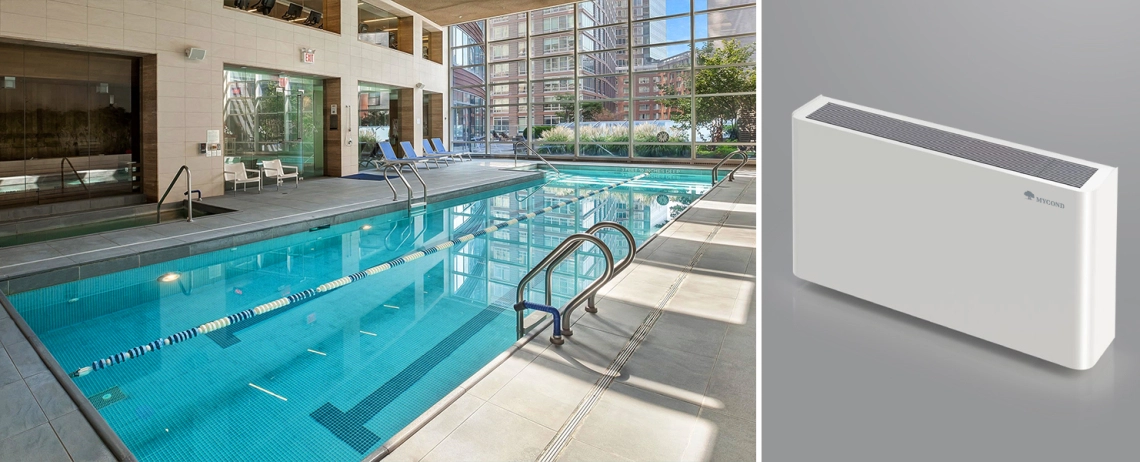

MDDS / MDCS models are thought to be installed directly in the room to be dehumidified and the pleasant design is suitable also for other ambiences, such as museum, archives, libraries, churches, cellars and basements. The sober but elegant look eases the installation in public and private ambiences, generally characterized by a sophisticated design.

Commercial and residential pool dehumidifiers for enhanced air quality.



Dehumidifiers designed for efficient moisture removal in pool areas.

The dehumidifiers  are designed for installation on the wall, floor (MDDS) or in utility rooms (MDCS)  adjacent to the one being dehumidified. The series is comprised of 10 models with their dehumidification capacity ranging from 46 to 290 l/day. With their practical design, they are also suitable for other applications, such as museums, archives, churches, cellars and basements. The attractive design of the dehumidifiers will suit both public and private rooms.



Options:

  • Hot water coil with a 3-way valve
  • Coils with epoxy coating
  • Electrical heaters
  • Modulating EC fans
  • Hot gas defrost
  • Silent version
  • Remote display kit
  • RS485 serial board
  • Floor-mounting foot kit

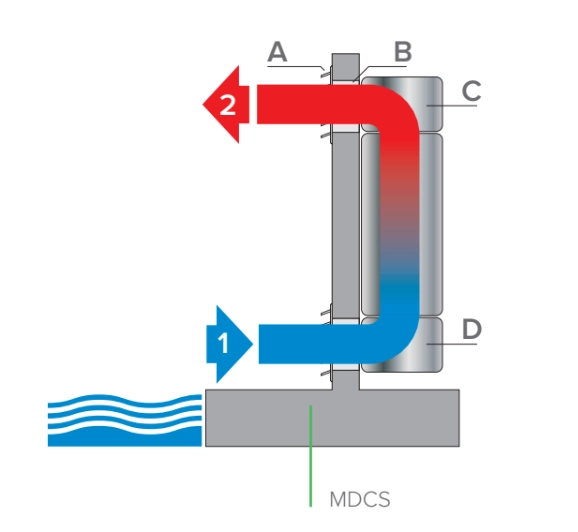

Legend:
А – Grilles
B – Wall duct plenum
C – Air supply plenum
D – Return plenum

Installation of MDCS units in utility rooms.



Dehumidifier with advanced control system for pool areas.

MDDS / MDCS dehumidifiers with advanced control* are completely autonomous in managing humidity: the control on board reads the ambient humidity and activates the dehumidification process when necessary. Finally, the installation of these units is particularly simple.

  • Small swimming pools
  • Book shops
  • Libraries
  • Greenhouses
  • Museums
  • Churches
  • Crypts
  • Cellar
  • Archives
  • Ironing rooms
  • Warehouses (paper, cardboard box, ... )
  • Rooms for food preservation and treatment (fish, meat, ... )

*sold separately

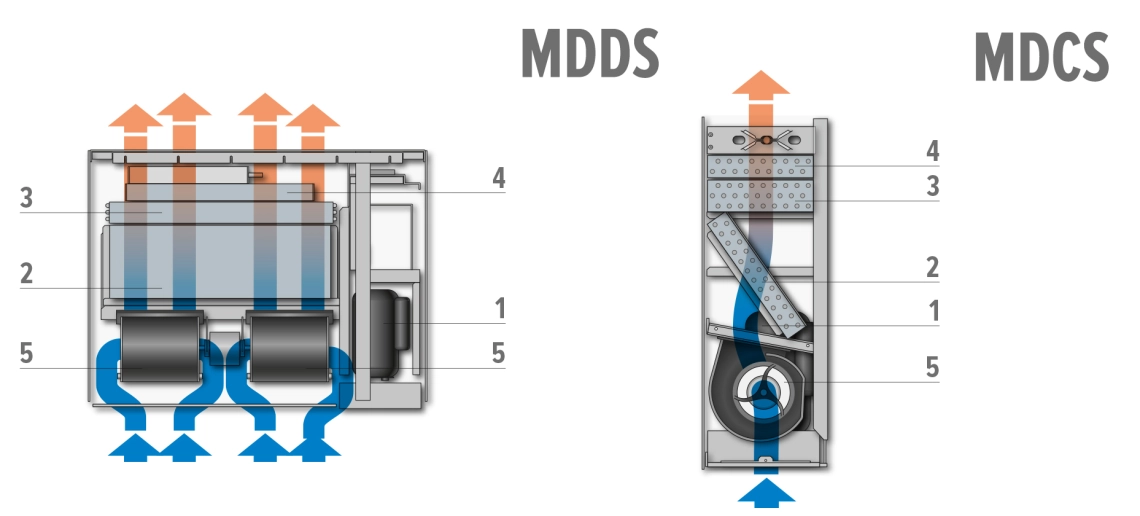

Inner construction

Internal design of MDDS/MDCS series pool area dehumidifiers.

  1. Compressor, R410A refrigerant
  2. Evaporator
  3. Condenser
  4. Post - heating water coil with 3 ways motorized valve
  5. Fan: Centrifugal models MDDS – MDCS.

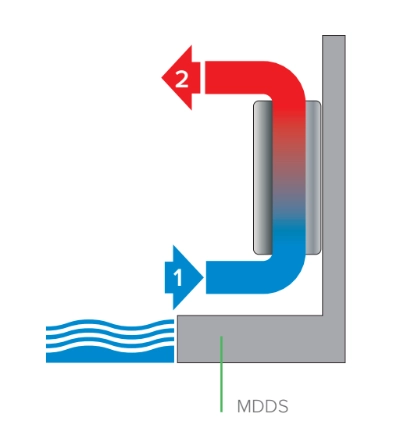

Installation

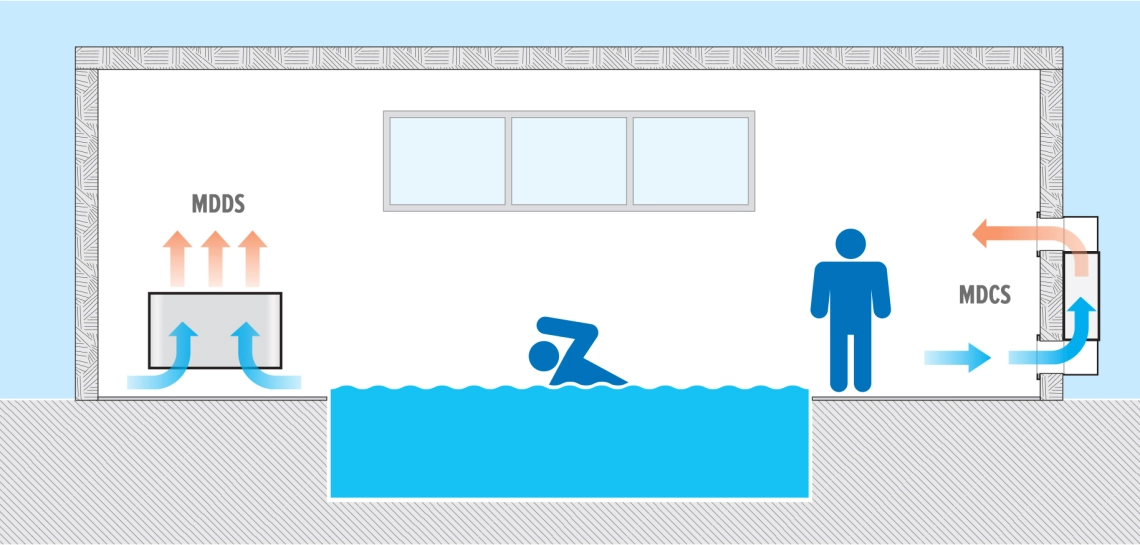

Diagram of pool area dehumidifier installation.



Advanced control

Unit allows to control relative humidity through probes on the display.
Unit could function in three modes:

  • Ventilation: air treatments off, only fans operate
  • Dehumidification: compressor on, air dehumidified
  • Heating: compressor on, air dehumidified and heated (hot water coil and/or electrical heaters)

Ventilation has three speeds and it is automatically managed depending on active request. It is present a clock card with time bands: 7 daily programs, 24 time bands per day, settable parameters: unit on / off, humidity and temperature. User terminal could be remote, unit will install an on board temperature and humidity probe, a cable for installation of remote user terminal is supplied (optional).

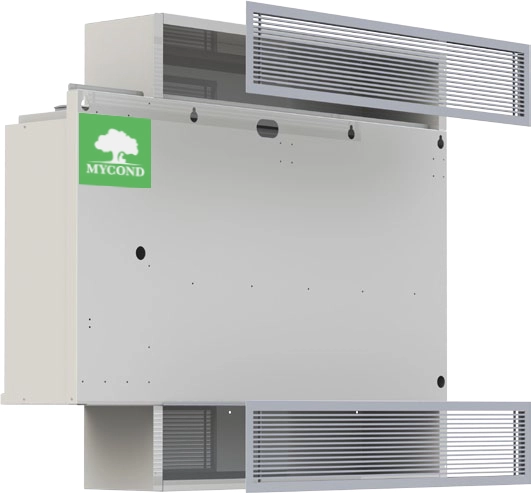

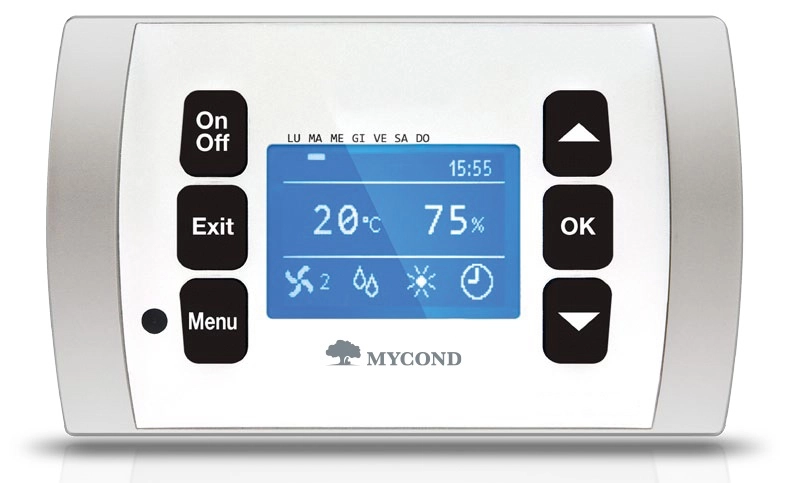

Advanced control unit for pool area dehumidifiers MDDS and MDCS.

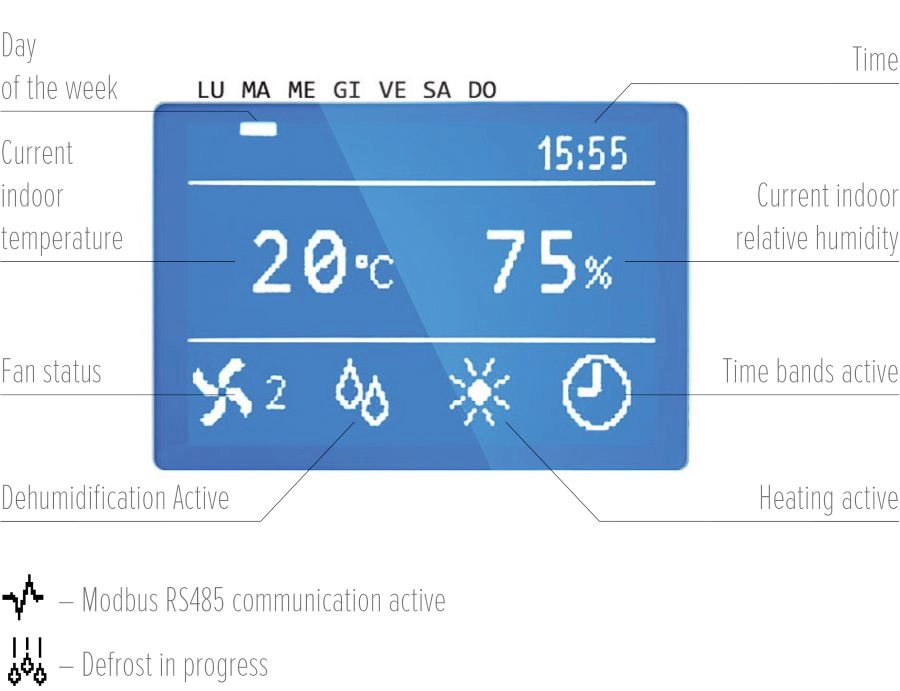

Advanced control panel displaying customizable program settings for dehumidifiers.



Diagram showing design options for swimming pool dehumidification systems.

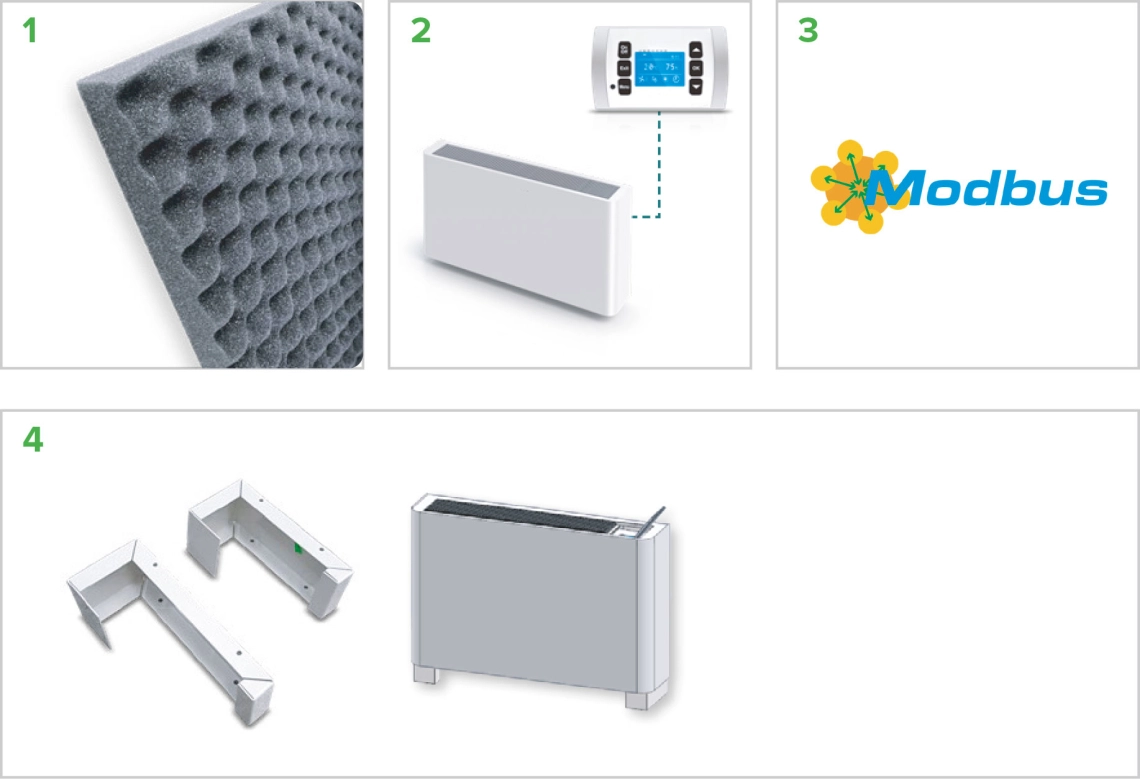

Options MDDS

  • Hot water coils with 3 ways valve
  • Coils with epoxy coating
  • Electrical heaters
  • EC electronic fan with inverter
  • Hot gas defrost
  • Silent version (1)
  • Kit for display at distance (10 o 20 m) (2)
  • Serial board RS485: Modbus (3)
  • Feet kit for floor installation (4)



Options MDCS

  • Hot water coils with 3 ways valve
  • Coils with epoxy coating
  • Electrical heaters
  • EC electronic fan with inverter
  • Hot gas defrost
  • Silent version (1)
  • Kit for display at distance (10 o 20 m) (2)
  • Serial board RS485: Modbus (3)

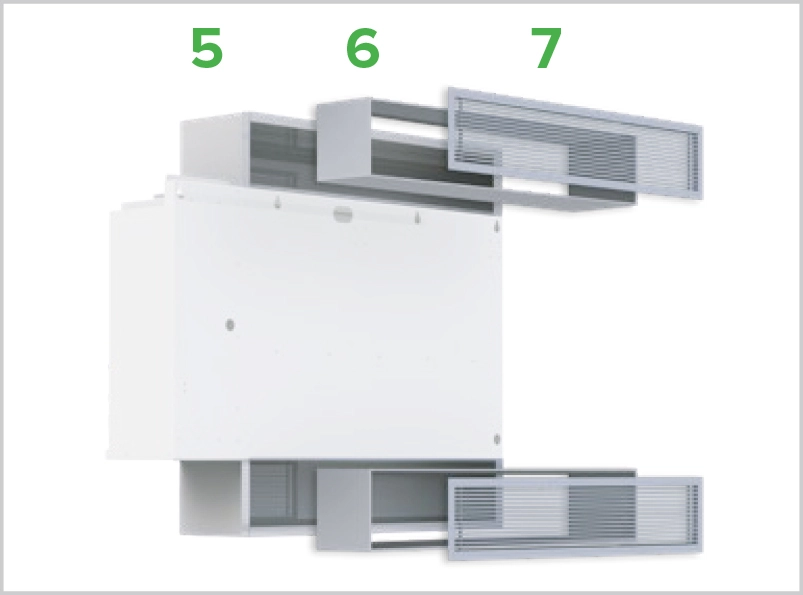

  • Supply and return air plenum (5)
  • In wall ducted plenum (6)
  • Supply and return air grilles (7)

Diagram of MDCS series ventilation options for pool areas.

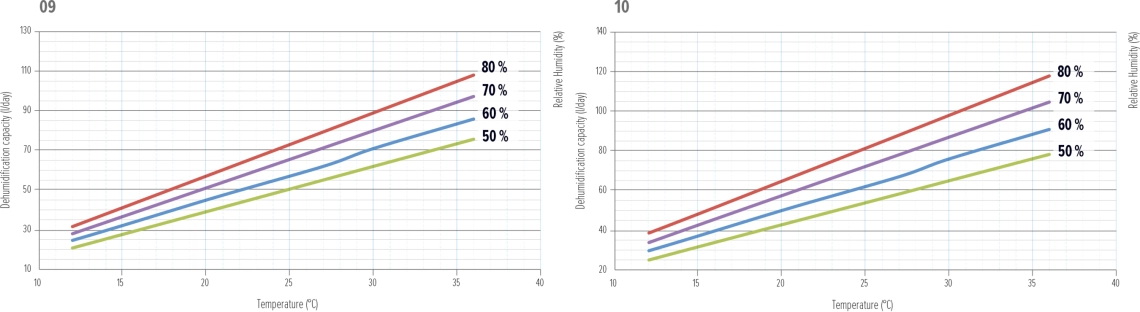

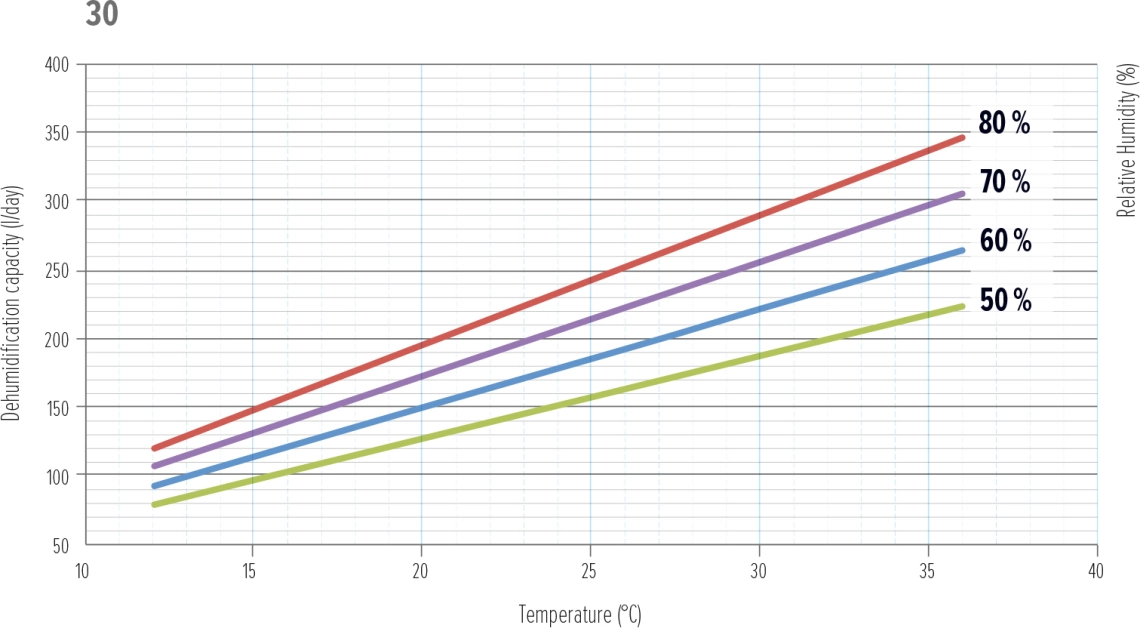

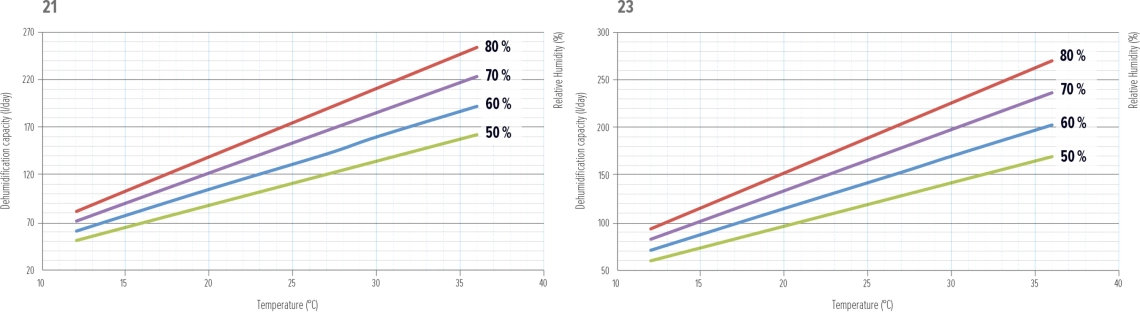

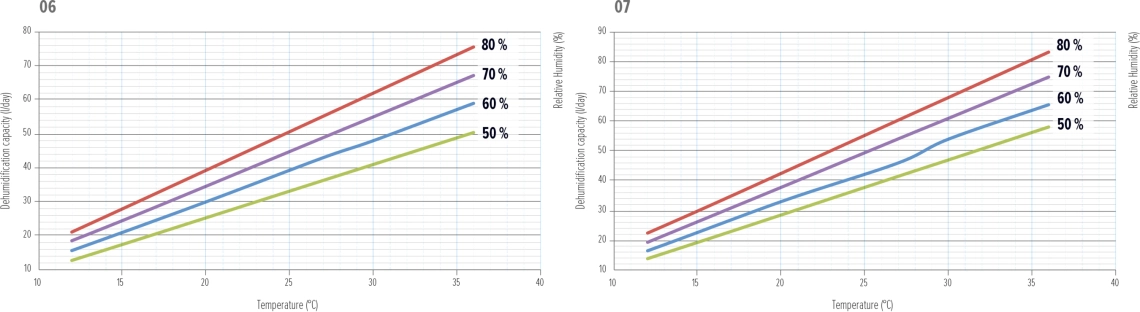

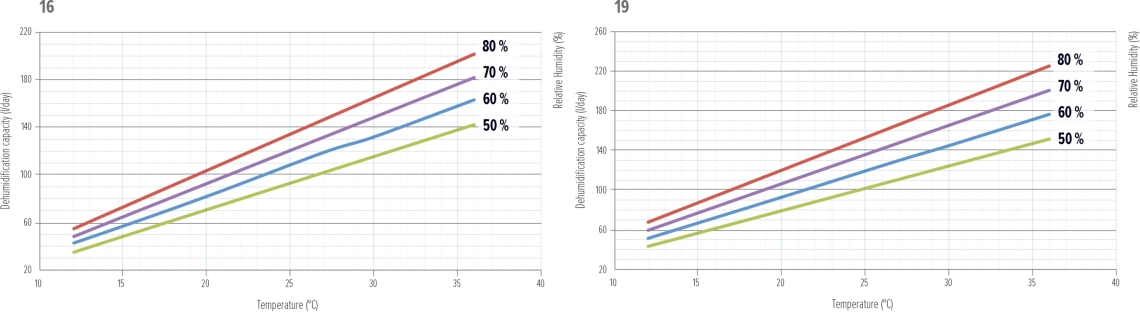

Performance curves

Graph illustrating the efficiency curves of the MDDS and MDCS series pool dehumidifiers.

Performance curves for MDDS and MDCS series dehumidifiers.




Performance curves for MDDS and MDCS series dehumidifiers.

Graph illustrating energy efficiency and dehumidification performance.

Performance curves of MDDS and MDCS pool area dehumidifiers.

Graph showing performance curves for MDDS and MDCS series dehumidifiers.

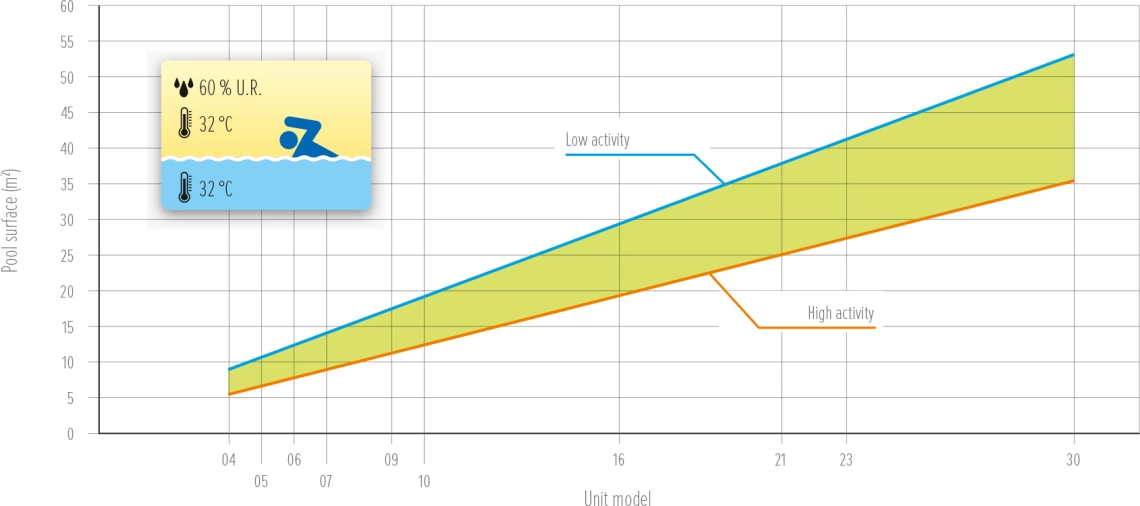

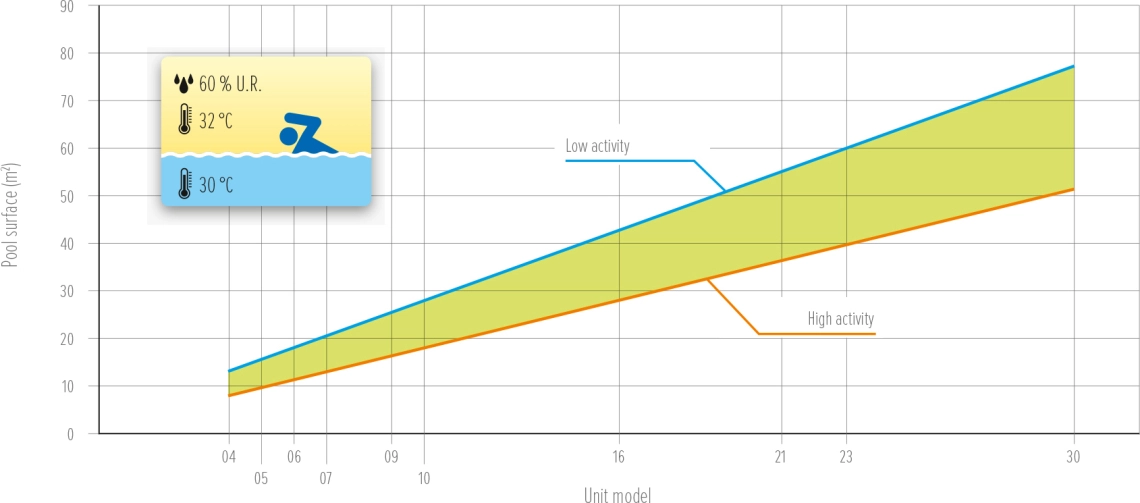

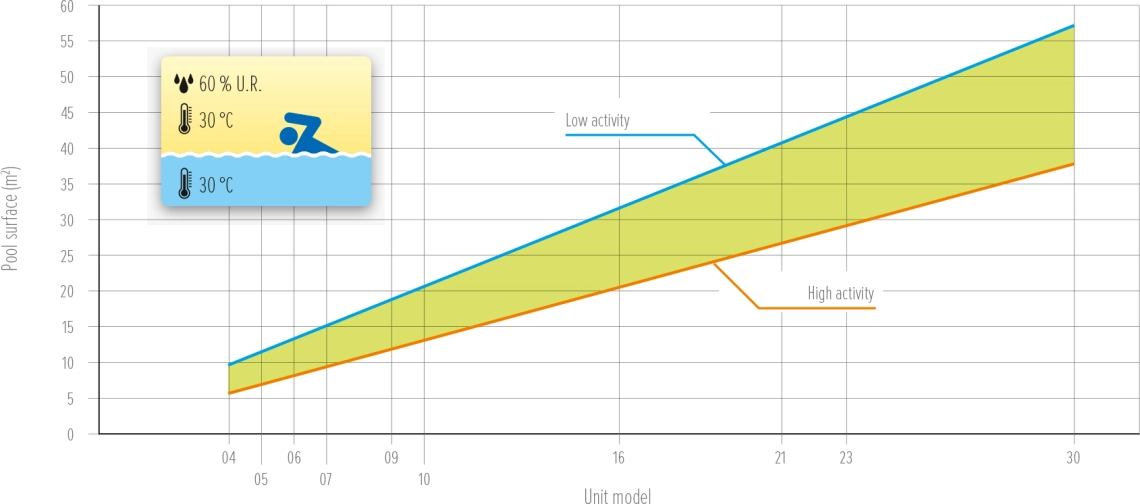

Choice graphs

Graph showing the performance curves and efficiency of MDDS/MDCS dehumidifiers.

Efficiency graphs of MDDS and MDCS series pool area dehumidifiers.

Diagram illustrating airflow efficiency for the MDDS/MDCS series dehumidifiers.

Mycond informs that quick choice graphs are only exemplificative.

Dimensions

Specifications Units MDDS -
MDCS 04
MDDS -
MDCS 05
MDDS -
MDCS 06
MDDS -
MDCS 07
MDDS -
MDCS 09
MDDS -
MDCS 10
MDDS -
MDCS 16
MDDS -
MDCS 19
MDDS -
MDCS 21
MDDS -
MDCS 23
MDDS -
MDCS 30
Dehumidifying capacity L/Day 46 52 62 68 89 98 165 186 211 226 290
Refrigerant Type R410A R410A R410A R410A R410A R410A R410A R410A R410A R410A R410A
Air flow m3/h 350 450 500 600 700 800 1000 1200 1500 1500 2000
Available static pressure Pa 40 40 40 40 40 40 40 40 40 40 40
Hot water coil capacity* kW 3,7 4,5 4,8 6,1 6,8 7,5 10,1 11,5 14,5 14,5 17
Electrical heaters capacity* kW 1 1 1,5 2 3,2 3,2 4 4 7,2 7,2 7,2
Power supply V/ph/Hz 230 / 1+N / 50 400 / 3+N / 50
Sound level dB(A) 43 45 46 47 48 49 51 53 54 55 57
Dimensions LxPxH mm 850x280x780 1050x280x780 1350x330x850 1550x330x850
Weight kg 46 46 46 55 55 55 88 88 100 100 102

*optionally available

All the values refer to the following conditions: inlet air: 30°C - 80% RH; inlet/outlet water: 80/70°C
