Pool area dehumidifiers
MSHA(C) series

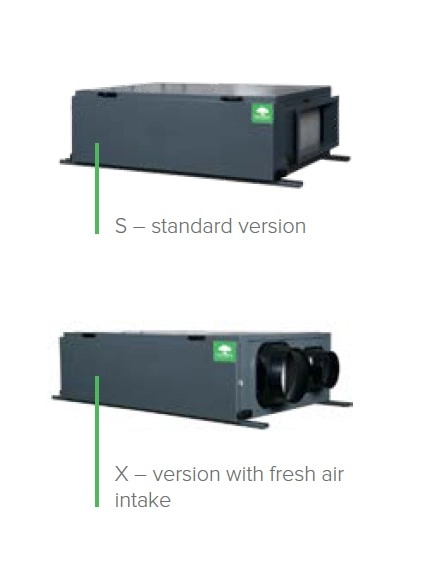

The dehumidifiers of MSHA(C) series are equipped with three* air filtering stages. They are notable for their low maintenance cost and power saving capabilities. These dehumidifiers are fully automated and convenient to operate. Ducted design of this dehumidifiers allows concealed installation
Pool area dehumidifiers<br/>MSHA(C) series

Mycond MSHA(C) is comprehensive solution for indoor swimming pool environment control. Monitoring and regulating humidity and air temperature, is suitable for private or bigger pools, wellnesses and hot tubs. Operating on the condensation principle, it provides constant, reliable and highly effective dehumidifying with the highest efficiency. Its low sound emisions and exclusive design makes Mycond MSHA(C) top innovative solution for indoor pools.

28 ... 1000 l/day
Dehumidification capacity:

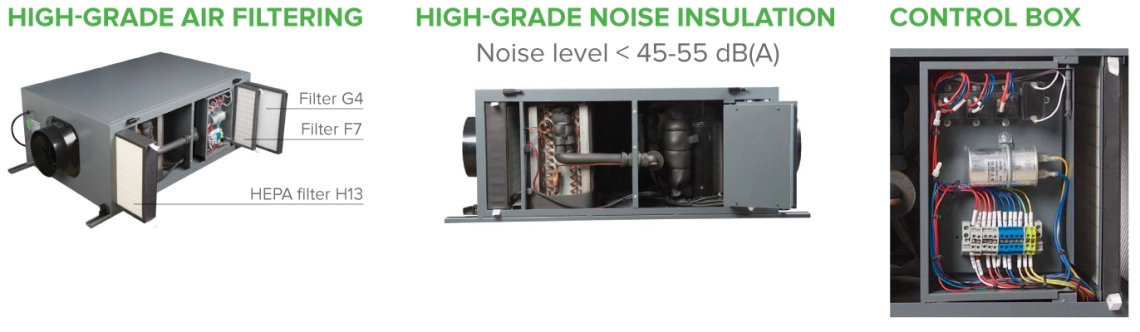

The dehumidifiers of MSHA(C) series are equipped with three air filtering stages. Having passed the first two filtering stages, the purified air passes through the evaporator, where the moisture condenses and drains away, so that the air is dehumidified. After that, the dry air goes through the condenser, where it heats up, and then passes through the final filtering stage (HEPA filter)* to remove the remaining germs and bacteria.

Key advantages:

Download the free app for control

Key advantages:
  • The body is made of epoxy-coated cold-rolled steel sheet
  • Hydrophile-coating evaporator and condenser for enhanced reliability
  • Three filtering stages*
  • Low maintenance cost
  • Power saving
  • Fully automated equipment
  • Water or electric heaters can be installed as an option
Wide range for indoor dryness

MSHA(С) is a product line of swimming pool dehumidifiers by Mycond designed to cover full requirements of domestic pool or spa sizes. As innovative and visually attractive solution for highly effective humidity extraction, they are well known for their best-in-class efficiency that ultimately results in a reduction of unnecessary and preventable costs.

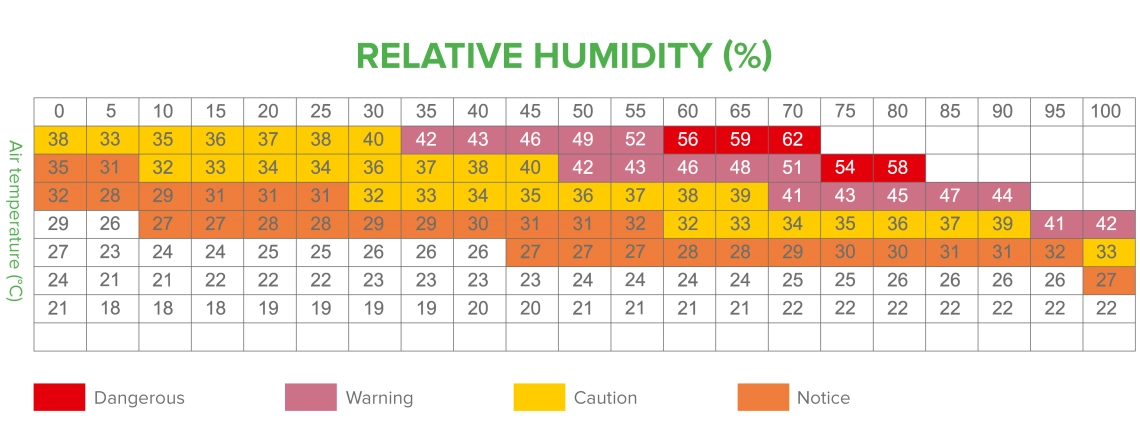

Ideal humidity
Ideal humidity

Humidity is not an enemy when is controlled but can cause serious troubles otherwise. Ideal humidity for pool or spa users is when they feel comfortable. This feeling is achieved by a relative humidity from 50% to 65%. Humidity above 70% is detected by condensation on windows and walls and continuously deteriorates the pool or spa environment. It is also a perfect environment for mould and bacteria to grow. Humidity lower than 45% actually causes a reversed problem to bathers in the form of dry feeling and possible harm to mucous tissue. The innovative series of Mycond dehumidifiers keep the humidity at ideal 50%-65%.

Fresh air supply
Fresh air supply

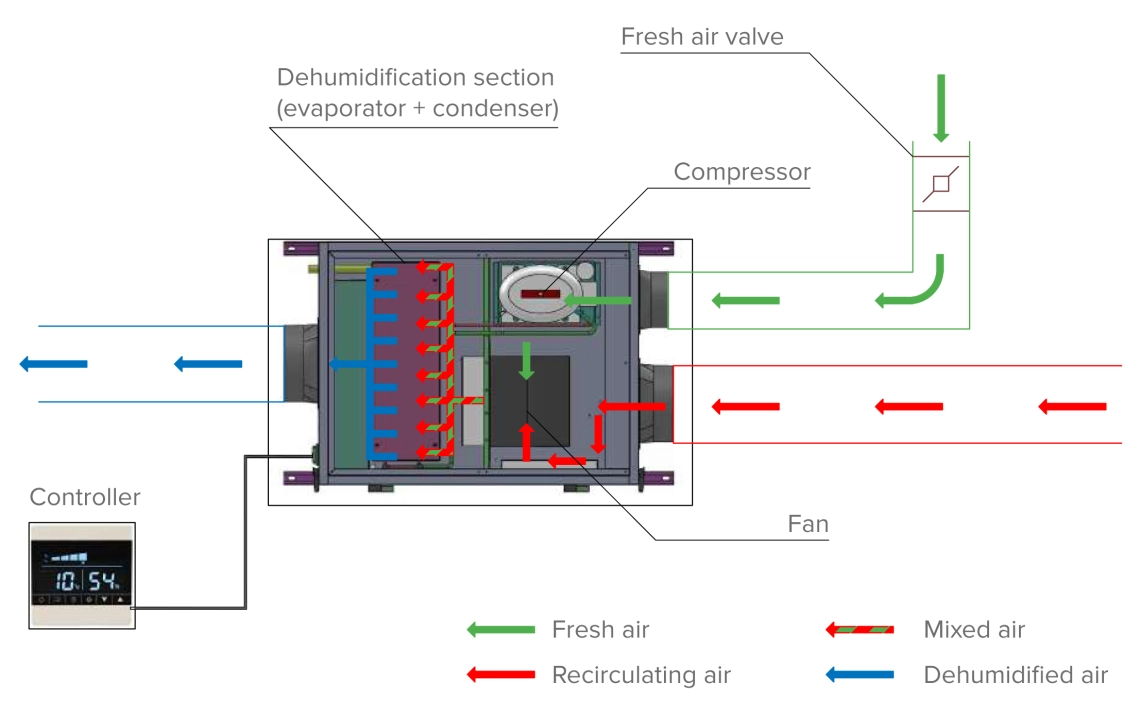

Mycond MSHA(С) dehumidifier has fresh air supply possibility. The air inlet is located a side of return air duct, that way the incoming fresh air is effectively preheated by the return air.

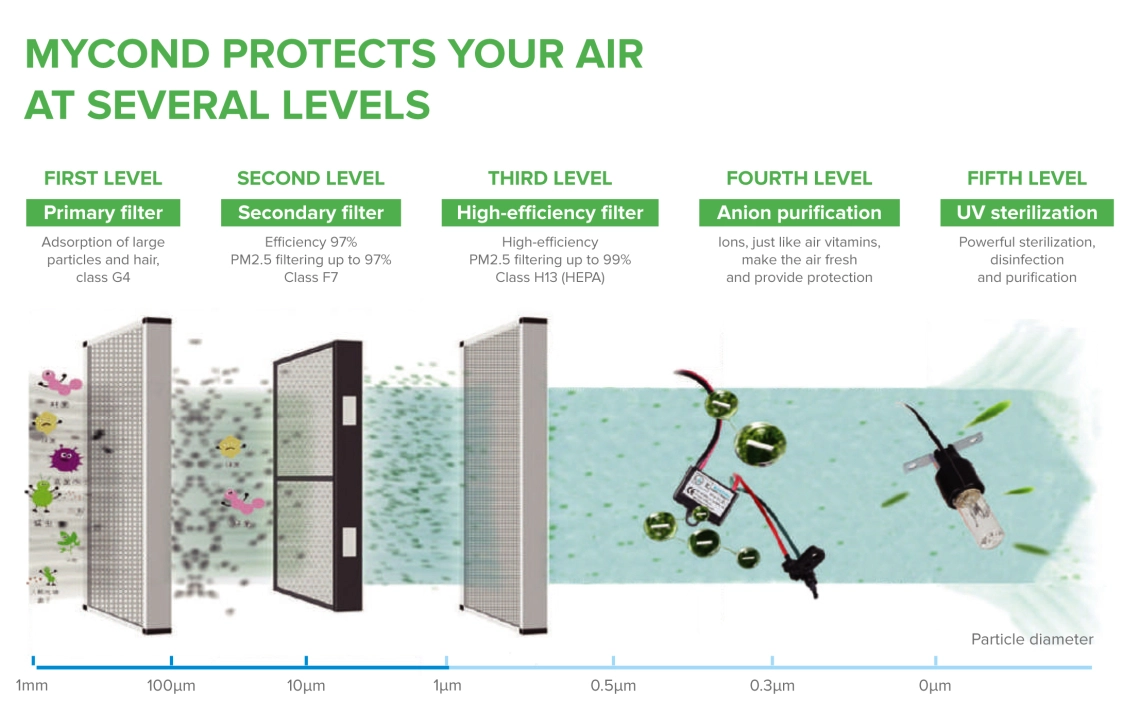

Operating principle



​​​​​​

















  1. Primary filter: lint, soot, large dust particles, insects, feather, large plant seeds.
  2. Secondary filter: medium and small dust particles, lint, insects, medium and small pollen grains, mushroom / mildew spores, bacteria.

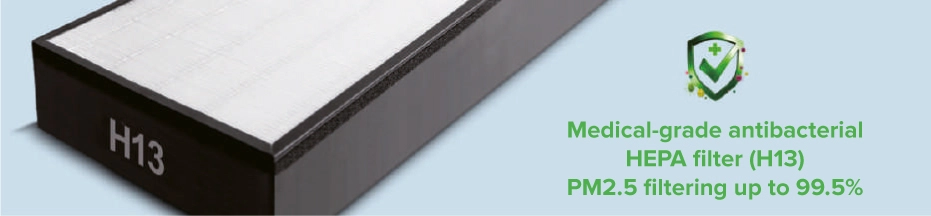

  3. High-efficiency filter: the smallest highly allergenic РМ2.5 dust particles, mushroom spores and pollen that may settle on the lungs, dangerous viruses and bacteria, smog particles.
  4. Ionizer: saturates the air with negatively charged particles.

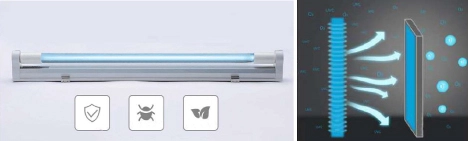

  5. UV lamp (without ionization).



The galvanized germicidal UV lamp can only sterilize the place that is exposed to the UV light. Therefore, it is installed at the air supply side, upstream the Н13 filter.

Ease of service

The service door is located on the left (as a standard). With its clever design, the door provides easy access to every part of the equipment.

Specifications Units MSHA(C)
28
MSHA(C)
40
MSHA(C)
60
MSHA(C)
100
MSHA(C)
140
MSHA(C)
180
MSHA(C)
250
MSHA(C)
380
MSHA(C)
500
MSHA(C)
750
MSHA(C)
1000
Dehumidification capacity l/day 28 40 60 100 140 180 250 380 500 750 1000
Air flow rate

m3/h

280-350 500-670 650-780 1000-
1200
1200-
1350
1800-
2200
2500-
2900
3500-
3850
4800-
5300
7500-
9000
9000-
11000
Fan speed

                                        variable speed                                                                                                             1 speed / variable speed (as an option)

External fan pressure Pa 100 100 100 100 100 200 200 200 200 400 400
Recirculation air flow rate

m3/h

140-175 350-460 470-550 680-800 750-850 1200-1450 1850-
2050
2600-
2850
3530-
3900
5500-
6500
6800-
8100
Fresh air flow rate

m3/h

140-175 150-210 180-230 320-400 400-500 600-750 650-850 900-1000 1250-1450 2000-
2500
2200-
2900
Power consumption W 420 670 740 1050 1300 3000 4200 6600 10 000 17 000 23 500
Current А 1,9 3 3,5 4,9 6,2 5,4 7,5 11,8 18 30 40
Power supply V/Hz 220/50 220/50 220/50 220/50 220/50 380/50 380/50 380/50 380/50 380/50 380/50
Controller   touch panel, LCD screen
Noise level dB <35 <45 <45 <45 <45 <55 <55 <55 <55 <55 <55
Refrigerant   R134A R134A R134A R410A R410A R410A R410A R410A R410A R410A R410A
Condenser   copper tubes with blue hydrophile-coated aluminium fins
Drainage tube   DN20 DN20 DN20 DN20 DN20 DN32 DN32 DN32 DN32 DN32 DN32
Filter   G4+F7+H13   1000G4+F7+H13 (available as option)
Fresh air duct mm Ø100 Ø100 Ø100 Ø150 Ø150 230*230 230*230 280*280 280*280 320*320 320*320
Recirculation air duct mm Ø100 Ø150 Ø150 Ø200 Ø200 500*400 500*400 750*450 750*450 1200*450 1200*450
Intake air duct mm Ø100 Ø150 Ø150 Ø200 Ø200 356*313 356*313 818*313 818*313 1058*348 1058*348
Dimensions mm 830×433×285 950×539×265 1030×639×375 1370×820×640 1370×1120×720 1700×1642×720
Weight kg 40 45 47 68 71 175 182 270 300 500 560

* HEPA filter available as an option
