Ventilation system BreezMe FT series

Mycond BreezMe FT ventilation units are energy-efficient and equipped with a hexagonal counterflow heat recovery unit, EC motors, Mini-Pleat or pocket filters and have built-in Plug&Play automation.
Air flow rate: 1250 ... 4000 m3/h
Ventilation system BreezMe FT series

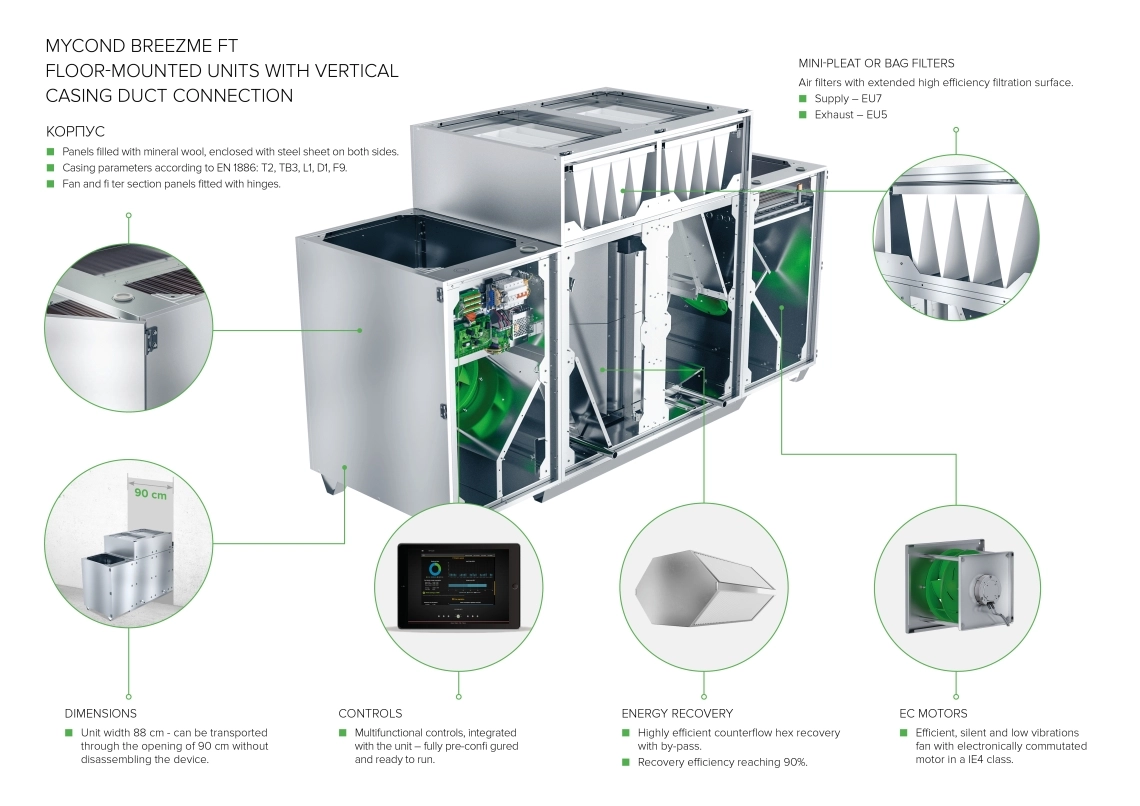

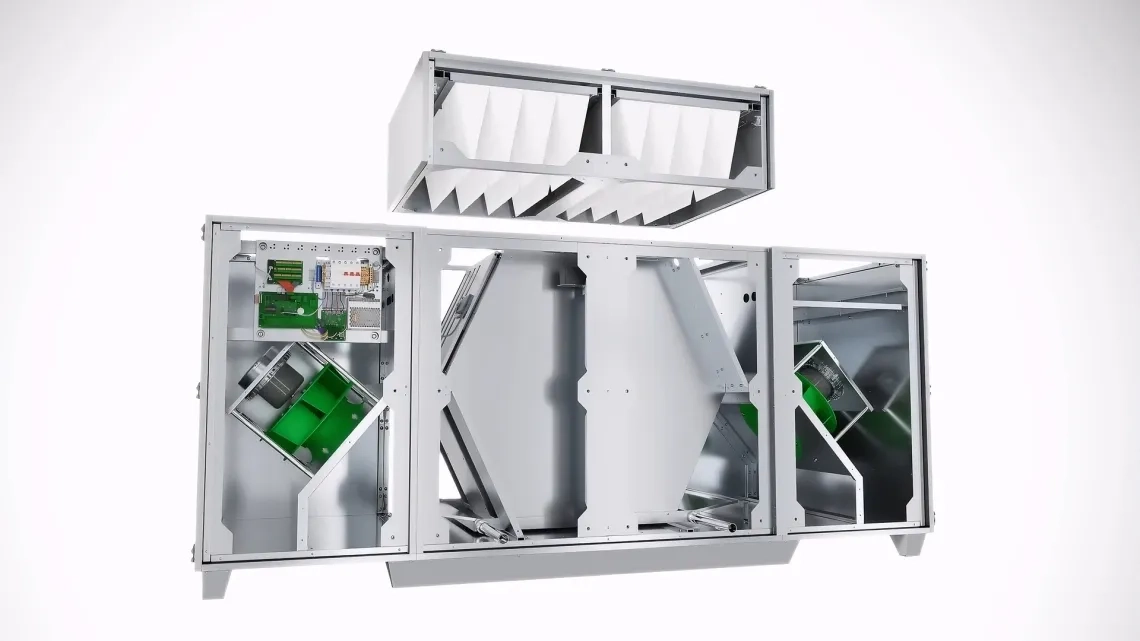

Mycond BreezMe FT are energy-efficient units with built-in hexagonal counterflow recuperator, EC motors, Mini-Pleat or pocket filters, and standard plug-and-play automation.




Mini-pleat or pocket filters

Highly absorbent filters with a large filtration area.
Supply - EU class 7
Exhaust - EU class 5

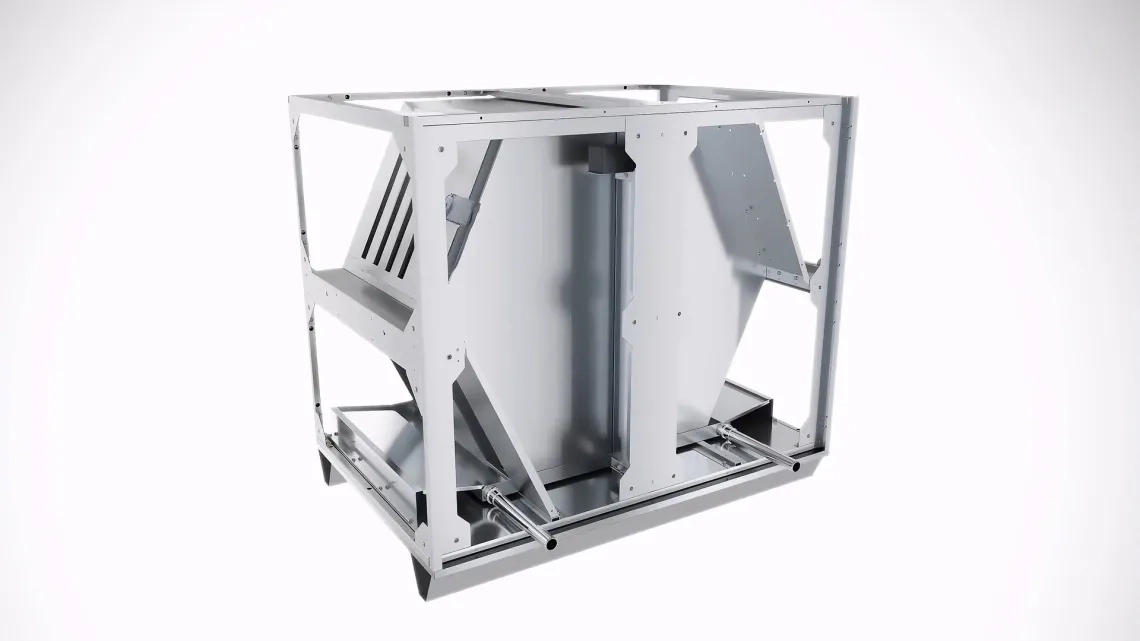

Casing

Panels filled with mineral wool, closed with sheet metal on both sides.
Casing parameters according to EN 1886: T2, TB3, L1, D1, F9.
Fan and filter section panels equipped with hinges.


Energy recovery

High-efficiency counter-current hexagonal heat exchanger with by-pass.
Recovery efficiency of up to 90%.


Automation

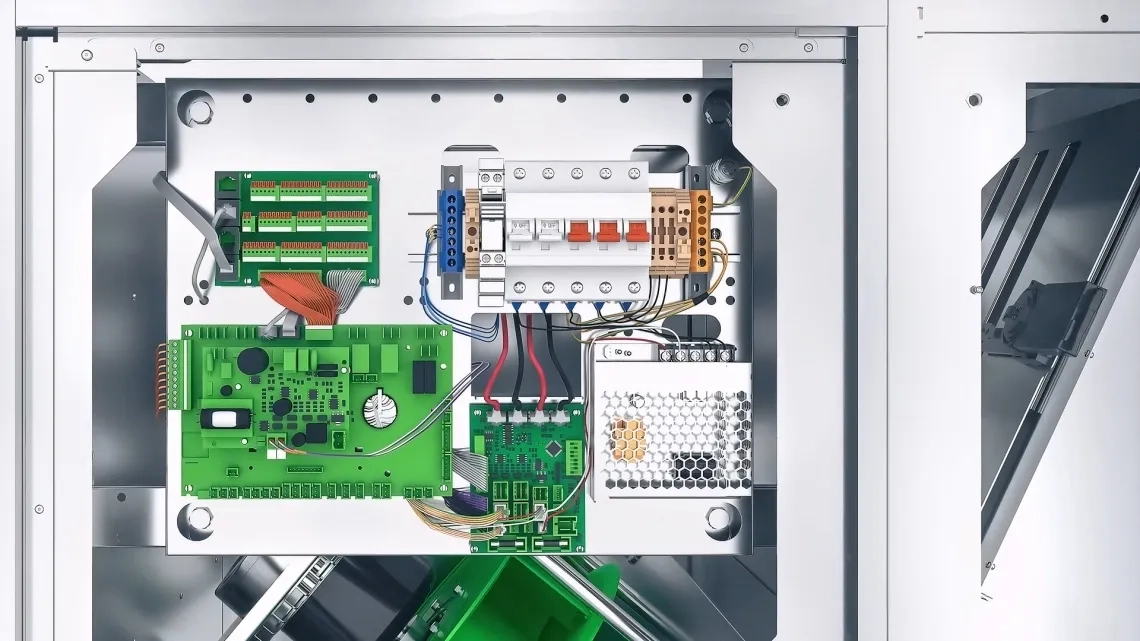

Multifunctional automation integrated into the air handling unit - configured and ready for operation.

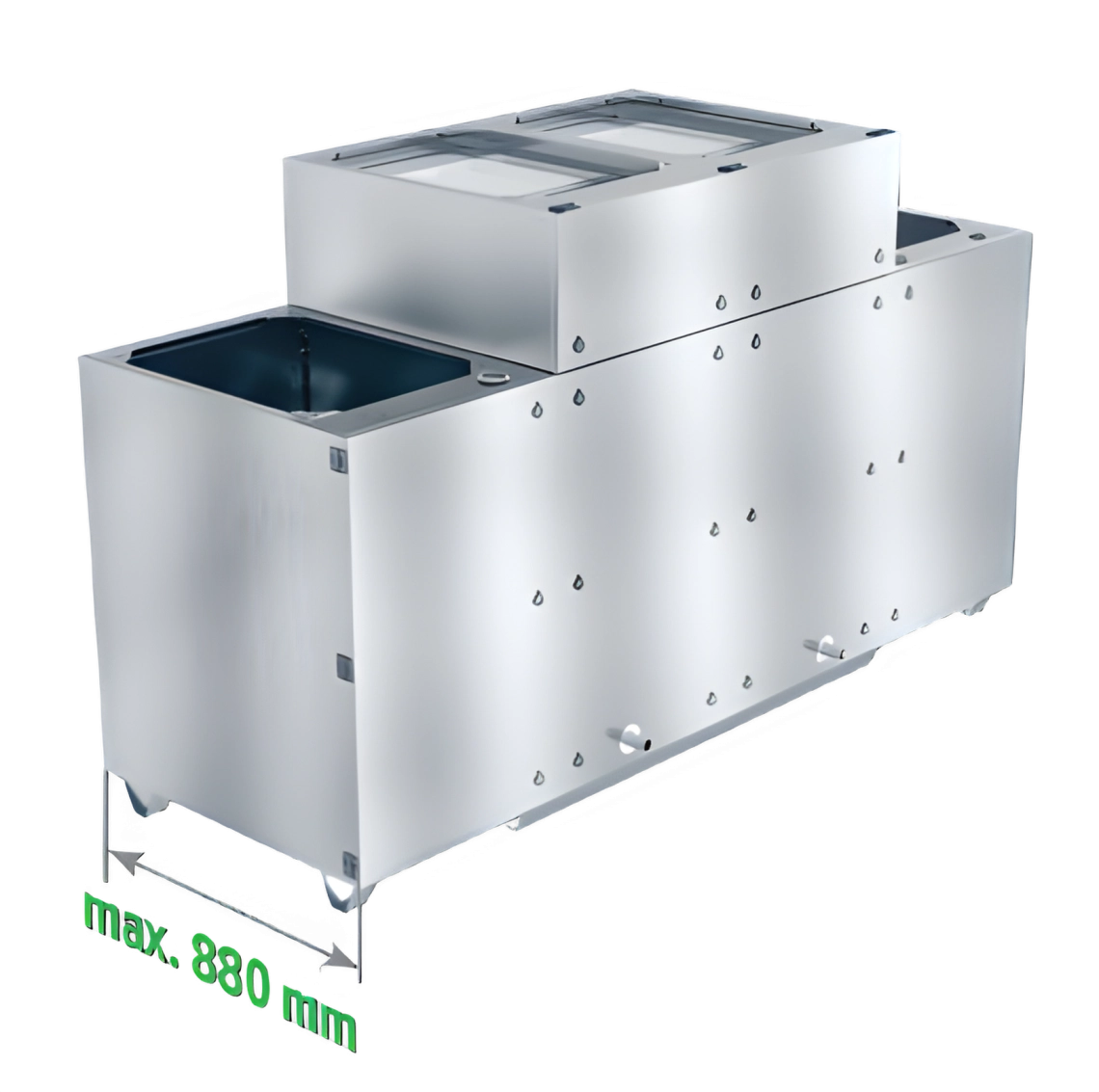

Dimensions

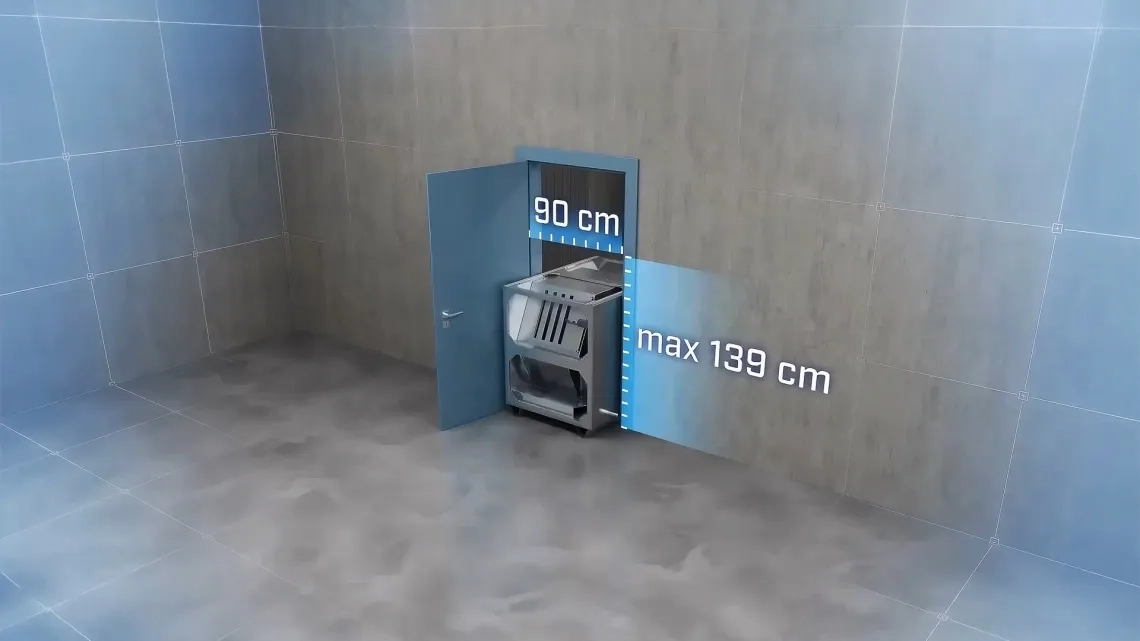

The width of the devices 88 cm - the possibility of transport through the opening of 90cm without disassembling the device.

Data of the base control panel

Size of the air handling unit Capacity
nominal
Range
capacity
Height Width Width
duct
Units m3/h m3/h mm mm mm
MVS0023c 2100 1250 - 2010 1176 880 700x445
MVS0033c 3000 1800 - 3000 1447 880 700х513
MVS0043c 4000 2400 - 4000 1737 880 700x613

Base panel lengths

Panel size
Units mm mm
MVS0023c 2100 2100
MVS0033c 2460 2460
MVS0043c 2860 2860
