Ventilation system BreezMe HP series

Mycond BreezMe HP with built-in heat pump is a factory-prepared device with a reversible heat pump system. The proper configuration of the rotary heat exchanger combined with the heat pump creates an optimized heat recovery system, ensuring optimal efficiency in both heating and cooling functions. The equipment also includes EC motors, Mini-Pleat or pocket filters, and an integrated Plug&Play automation system.
Air flow rate: 1200 ... 7500 m3/h

Want to buy or have questions?
Ventilation system BreezMe HP series


MyCond BreezMe HP underfloor ventilation unit with heat pump review

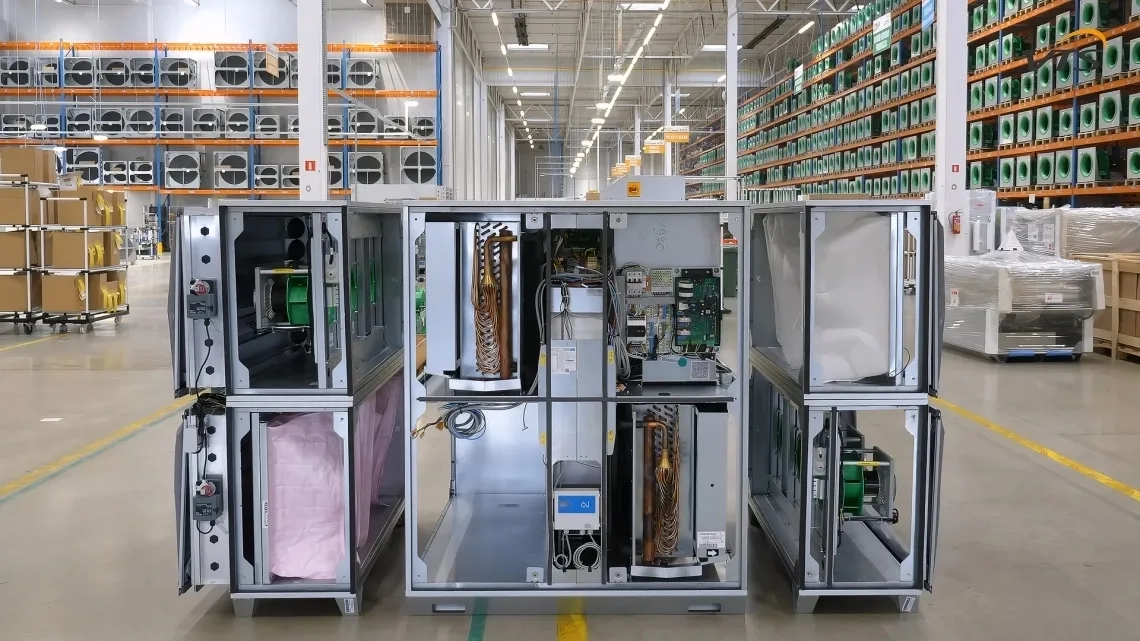

MyCond BreezMe HP internal structure heat pump unit production

Heat Pump Functions

Mycond BreezMe HP with heat pump is an innovative solution that combines a ventilation unit and a full-fledged heating and cooling system in one housing. Thanks to the integrated heat pump, there is no need for external compressor-condensing units or freon lines - everything necessary is already built into the unit. This approach allows for the most efficient use of space, simplifies installation and reduces the overall costs of designing and implementing the system.



Convenient Transport, Quick Installation

Unlike outdoor units, a heat pump integrated into a ventilation system uses the exhaust air from the premises as a heat source. Even after recovery, this air has a higher temperature and energy value than the cold outdoor air used in classic systems with an outdoor unit.
The result is a higher efficiency of the heat pump in both heating and cooling modes. In summer, the exhaust air is cooler and drier, which also contributes to better operating conditions for the cooling circuit.
The heat exchangers are located on both sides of the rotary heat exchanger, which allows these two components to work in harmony and achieve maximum performance in any mode.
This compact and well-engineered solution ensures stable, energy-efficient operation without the need for outdoor units and complex installation.

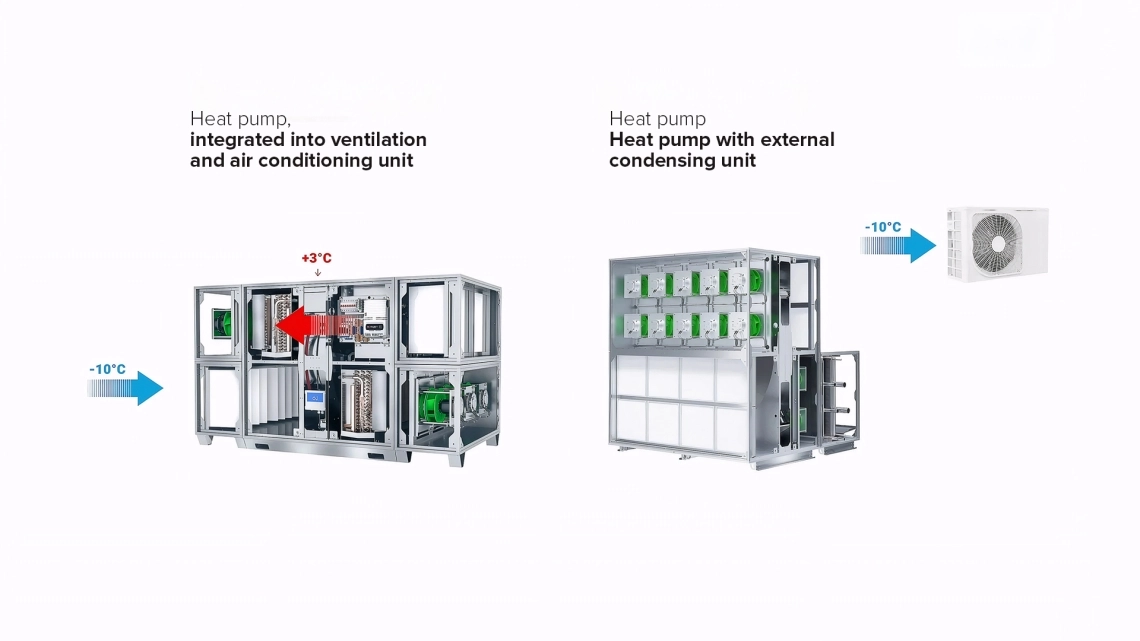

MyCond BreezMe HP built-in and external heat pump comparison

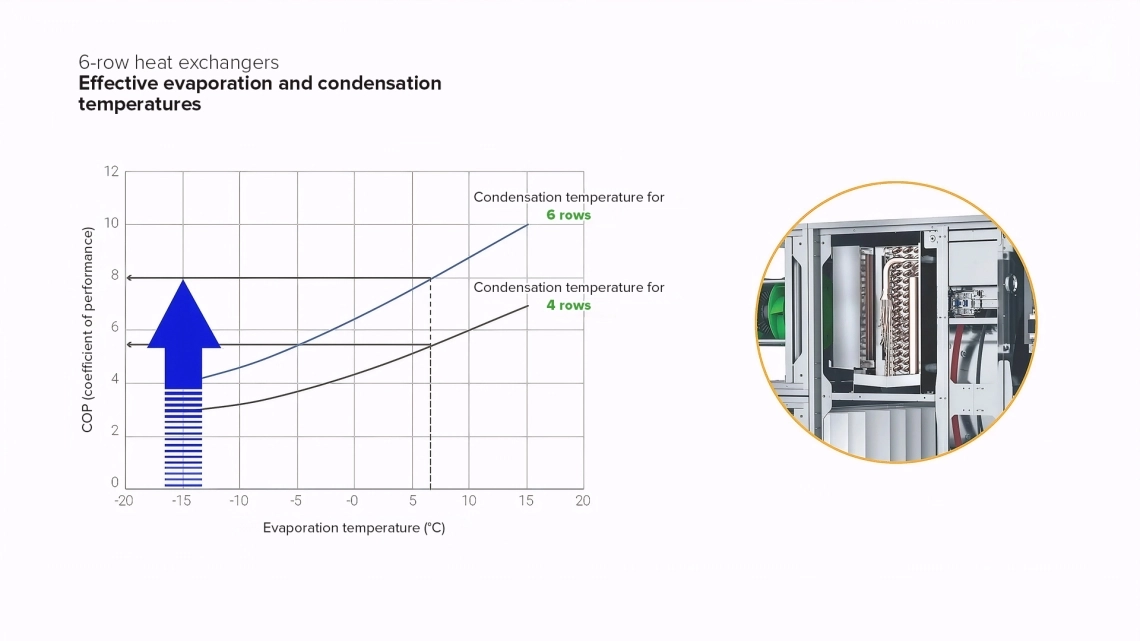

6-row MyCond BreezMe HP heat exchangers – increased COP and efficiency at low temperatures

High Energy Efficiency

The heat pump is equipped with a condenser and evaporator with a multi-row (6-row) design, which provides a large heat exchange area. This allows you to minimize the temperature difference between the air and the refrigerant, which directly increases the efficiency of the system (higher COP).
Additionally, the compressor is equipped with an inverter, which provides smooth and adaptive power control depending on the actual needs for heating or cooling. This approach allows you to achieve maximum energy efficiency in dynamic operating conditions

Installing multi-row condensers and evaporators on both sides of the regenerator ensures the most efficient operation of the heat pump



Easy Startup

Multifunctional automation integrated with the central unit – configured and ready to work

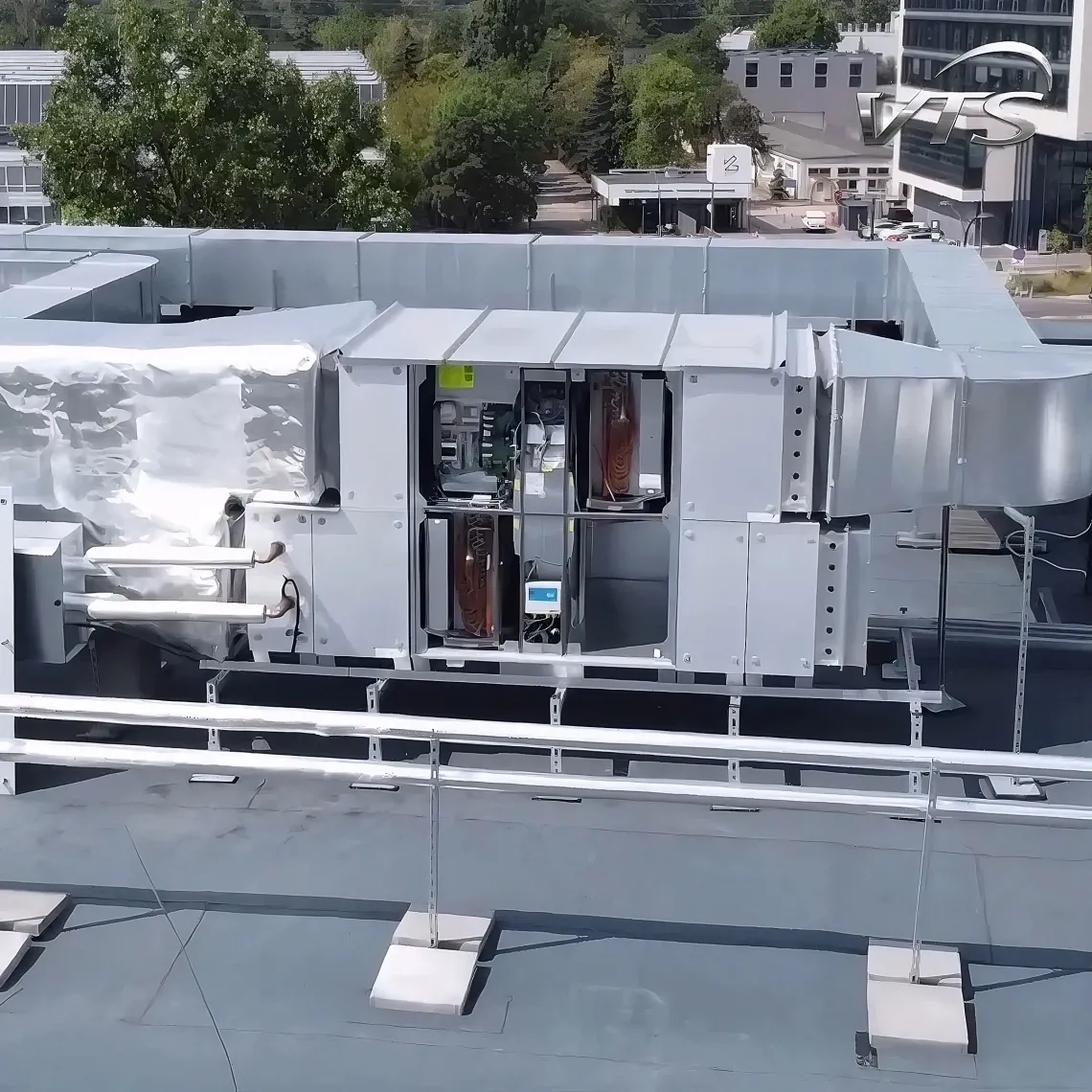

Installation of the MyCond BreezMe HP ventilation unit with a heat pump on the roof of the building



MyCond BreezMe HP Technical specification icon with gear

Optimal Matching

Factory matching of heat pump components and ventilation unit components

Manufacturer's warranty for the final product of the central unit and heat pump


Inverter heat pump MyCond BreezMe HP – layout diagram

Data from the central base

Size of the control panel Nominal efficiency Performance
range
Height Width Height
of channel
connection
Width
of connection
to channel
Units m3/h m3/h mm mm mm mm
MVS021c 2100 1200-2100 991 967 345 860
MVS030c 3000 1500-3000 1255 967 480 860
MVS040c 4000 2000-4000 1255 1174 480 1065
MVS055c 5000 2500-5500 1525 1345 615 1235
MVS075c 7500 3750-7500 1765 1486 735 1380

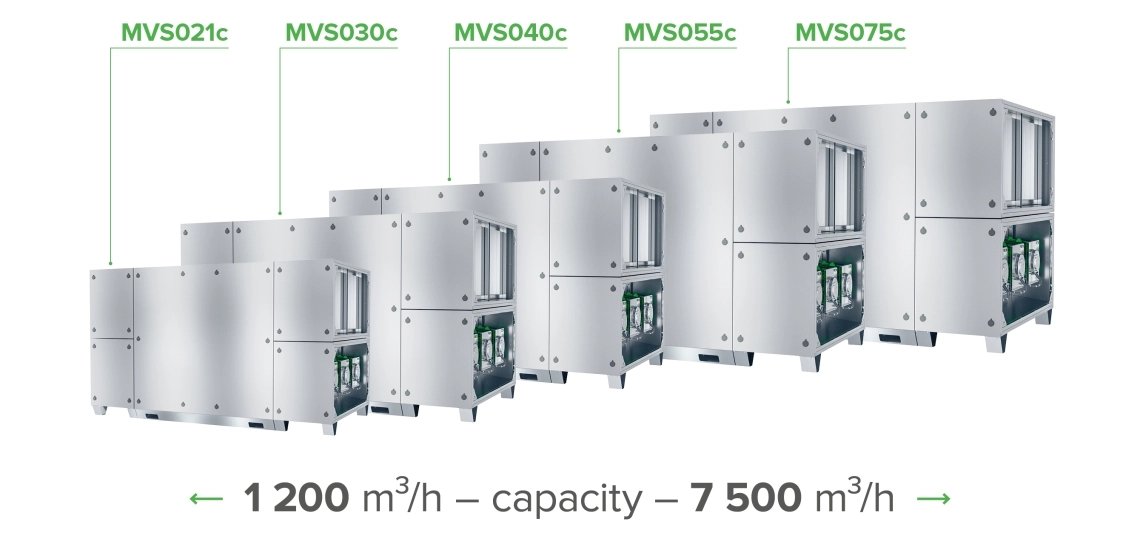

Model range of MyCond MVS ventilation units – performance from 1200 to 7500 m³/h

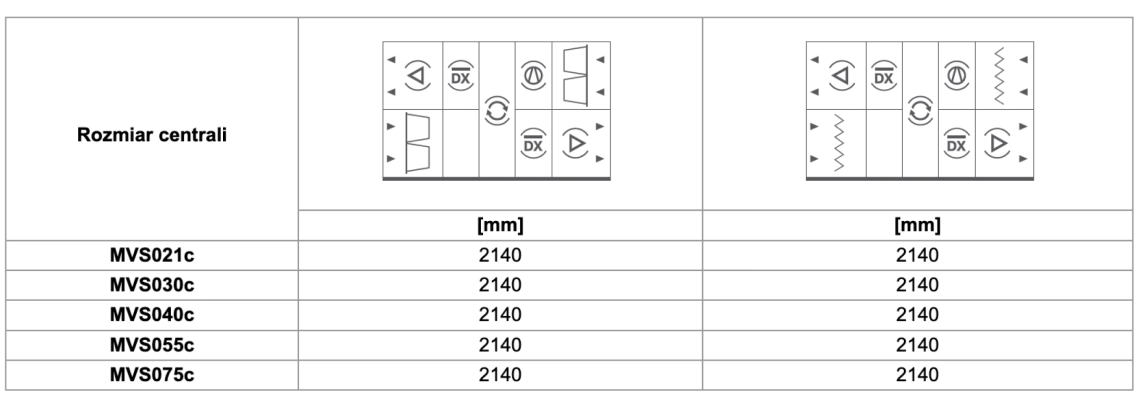

Base Unit Lengths

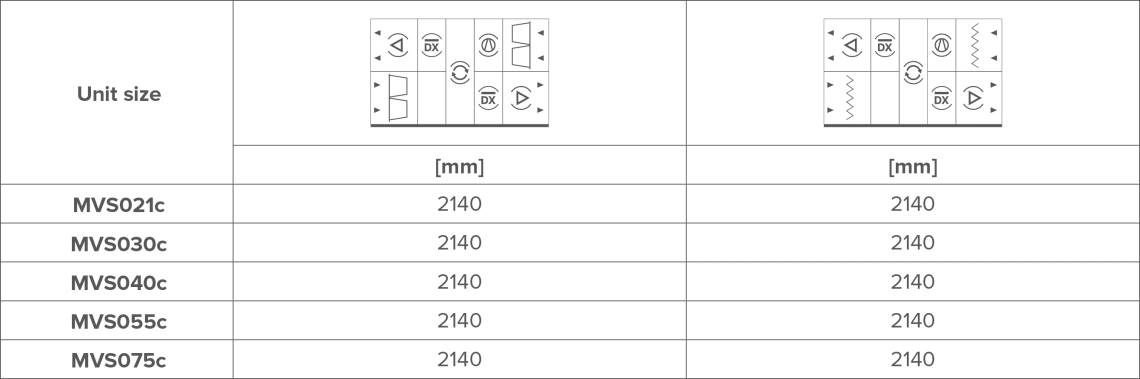

MyCond BreezMe HP Overall dimensions of ventilation units
