Wall mounted F-series
Built-in electronic expansion valve
Built-in electronic expansion valvel. DC fan motor, multi-wind speed, with multi-stage air supply angle to create comfortable airflow.
Key features:
- Compact, linear design with hidden display
- Silenced EEV modulation valve
- DC inverter fan motor
- 5 fan speeds selectable with wired controller MWI-R17A
Key advantages:
- Flexible wind control, quick cooling and heating. In heating and cooling condition, the unit can supply large volume air to quick warm and cold everywhere of indoor room.
- Energy saving: Ozone-safe Freon R410A:Ozone-safe and high-efficiency Freon R410A.
- Inverter control. More precise airflow control, energy saving and noise reduction by DC inverter control of the fan motor.
- Design features: anti-corrosion protection. The use of blue cobalt in the coating of outdoor unit heat exchanger protects against corrosion.
- Disappearing led display. When the split system is turned off, the LED display disappears, merging with the front panel.
- Practicality: weekly timer. Possibility to program the timer of the indoor units for a week.
- Autostart. Automatic resumption of the last mode of operation of the split system.
- Heat: dehumidification. Automatically in dehumidification mode, the split system maintains a relative humidity of 35-60%.
- Comfort: automatic mode selection. By automatically switching to the optimal mode, the split system itself regulates its operation in the off-season, maintaining a comfortable climate.
- Comfort sleep. According to a special algorithm, the system in this mode automatically adjusts the temperature and fan speed of the indoor unit to promote a deeper and healthier sleep.
- Intelligent air. In this mode, the air is conditioned more intensively by directing the airflow along the ceiling plane during cooling and almost vertically downwards during heating.

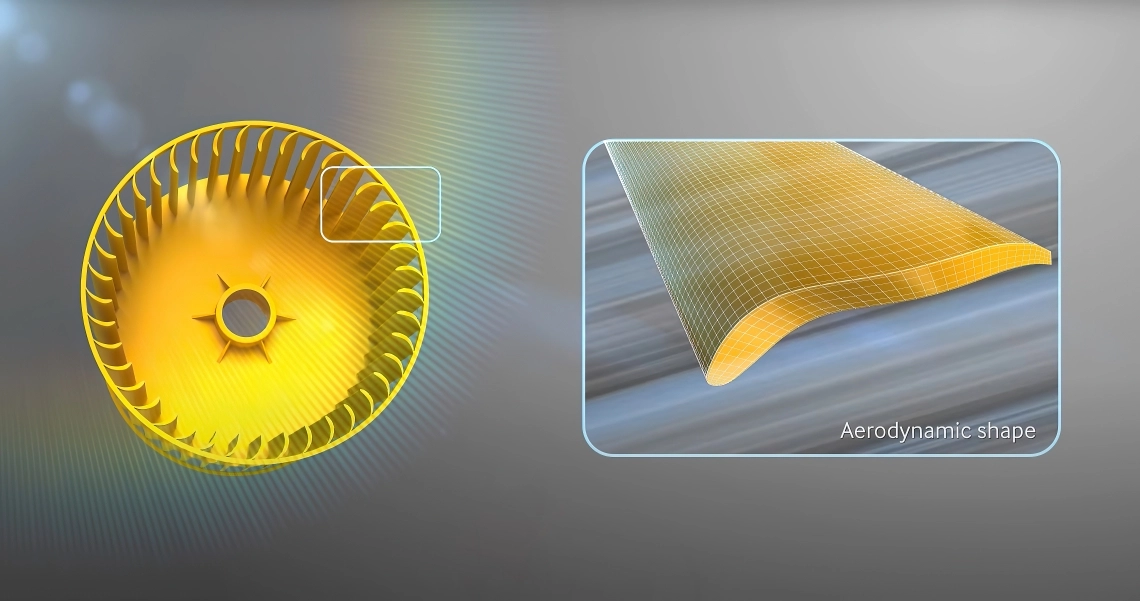

Aerodynamic shape
The new blades can be designed to ensure that the air conditioner runs more quietly, improving overall comfort.

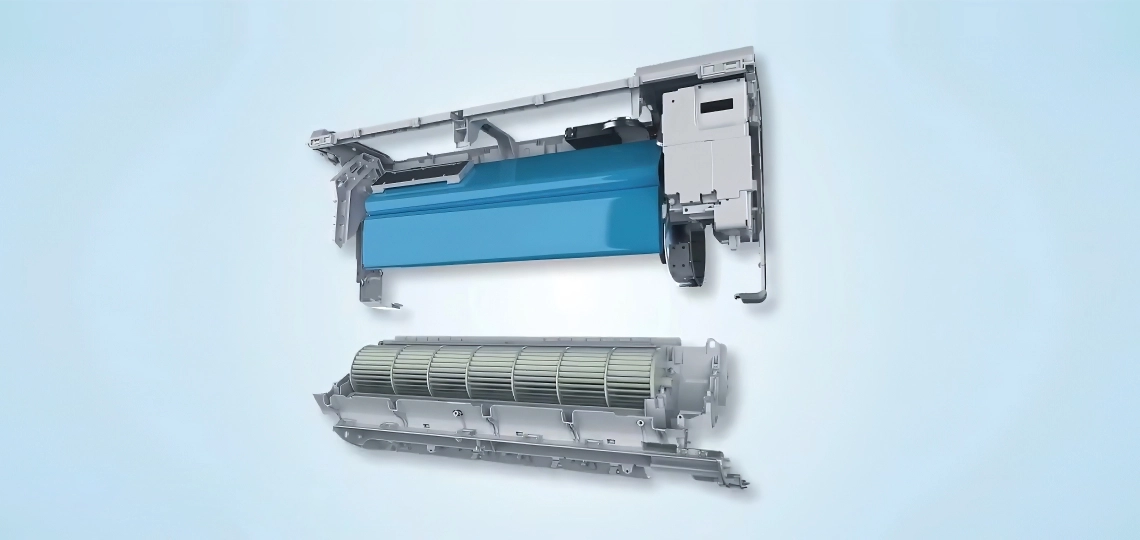

Ease of maintenance
Wall-mounted air conditioners have a front panel or cover that can be easily removed. This is usually done with buttons or latches. Opening this panel gives you access to the filters and other parts that may need cleaning.
| Specifications | Units |
MISF- 05X1EV2AD |
MISF- 07X1EV2AD |
MISF- 09X1EV2AD |
MISF- 12X1EV2AD |
MISF- 16X1EV2AD |
MISF- 18X1EV2AD |
MISF- 24X1EV2AD |
| Capacity | ||||||||
| Cooling | kW | 1,50 | 2,20 | 2,80 | 3,60 | 4,50 | 5,60 | 7,10 |
| Heating | kW | 1,70 | 2,50 | 3,20 | 4,00 | 5,00 | 6,30 | 8,00 |
| Electrical Parameters | ||||||||
| Power supply | Ph/V/Hz | 1/220-240/50/60 | ||||||
| Ventilation | ||||||||
| Air flow (H/M/L) | m3/h | 500/430/370 | 550/480/420 | 600/530/470 | 630/560/500 | 800/720/650 | 920/800/720 | 1010/920/800 |
| Sound pressure (H/M/L) |
dB(A) | 33/31/29 | 35/31/29 | 36/31/29 | 37/33/29 | 39/36/34 | 40/39/35 | 44/40/36 |
| Sound power (H/M/L) |
dB(A) | 49/46/41 | 50/47/42 | 52/48/44 | 54/51/50 | 56/53/51 | 57/54/52 | 58/56/54 |
| Installation – Dimensions | ||||||||
| Net dimensions (WxDxH) |
mm | 855x208x280 | 1115x243x336 | |||||
| Packaged unit dimensions (WxDxH) |
mm | 954x279x355 | 1206x342x418 | |||||
| Net/gross weight |
Kg | 9,9/12,0 | 9,9/12,0 | 9,9/12,0 | 9,9/12,0 | 15,8/18,9 | 15,8/18,9 | 15,8/18,9 |
| Ø Liquid pipe | mm (inch) |
6,35 (1/4) | 6,35 (1/4) | 6,35 (1/4) | 6,35 (1/4) | 6,35 (1/4) | 6,35 (1/4) | 9,52 (3/8) |
| Ø Gas pipe | mm (inch) |
9,52 (3/8) | 9,52 (3/8) | 9,52 (3/8) | 12,70 (1/2) | 12,70 (1/2) | 12,70 (1/2) | 15,88 (5/8) |

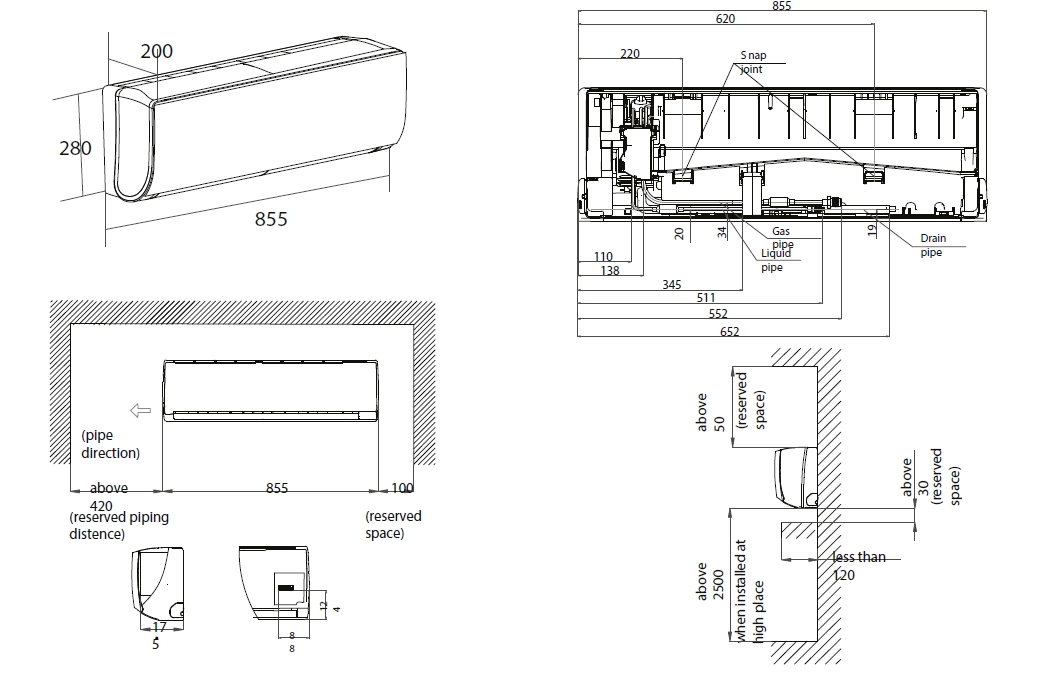

Dimensions
MISF-05X1EV2AD MISF-07X1EV2AD MISF-09X1EV2AD MISF-12X1EV2AD

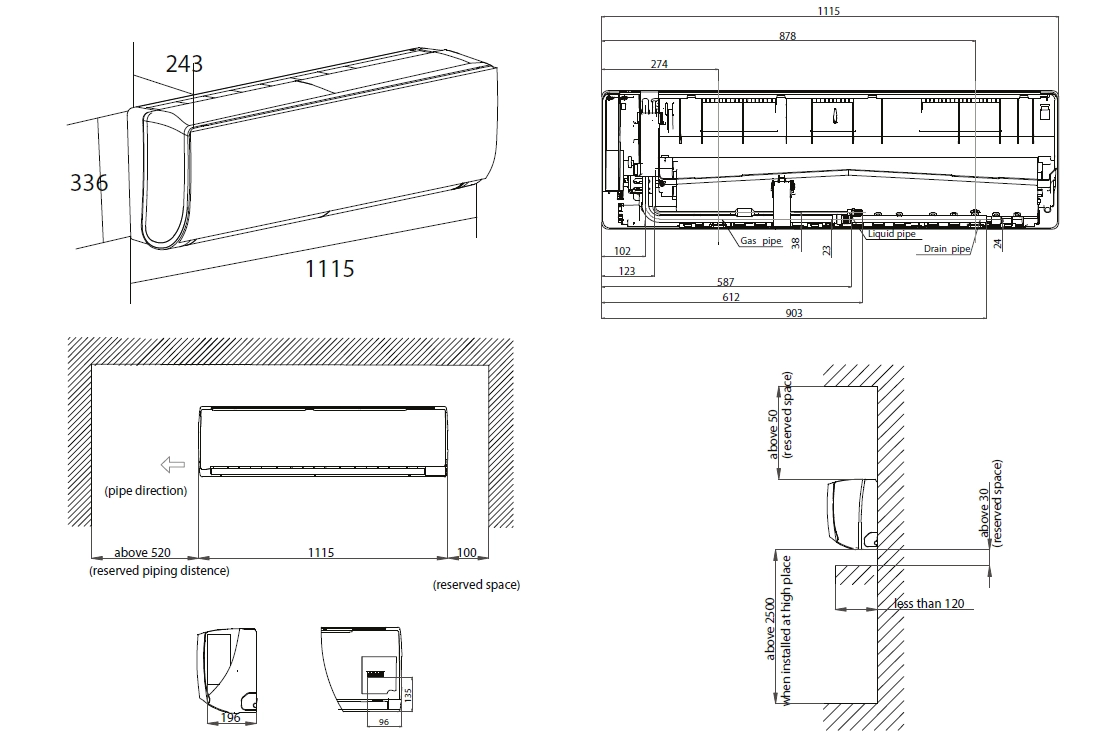

Dimensions
MISF-16X1EV2AD MISF-18X1EV2AD MISF-24X1EV2AD
