Wall-mounted fan coil units FHW series

The new Silver Glass Wall series of wall mounted fan coils is designed for exceptional interiors. Great for all types of living spaces and small office spaces. The models are designed in a modern style to fit into any interior or to be as discreet as possible
Cooling capacity: 1,23 ... 3,76 kW
Heating capacity: 1,34 ... 4,28 kW

Want to buy or have questions?
Wall-mounted fan coil units FHW series

FHW fan coil units can be connected to a Modbus network, this will allow you to connect to the Smart Home system and automate climate control in the house.

MyCond FHW Wall-mounted fan coil unit for efficient air control.



MyCond FHW Wall-mounted fan coil unit in modern interior setting.

Advantages of Mycond wall-mounted fan coil units:

  • Optional 2/3-way valve and condensate pump can be mounted into the casing.
  • Optional BLDC fan motor.
  • Optional electric heater.



Equipment configuration :

  • FWH-1 without control board (external thermostat required)

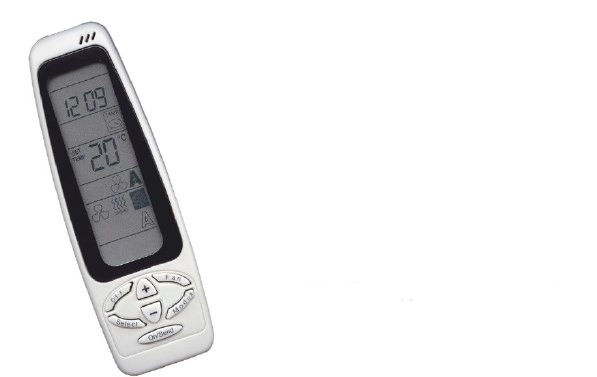

  • FWH-T1 with control board and IR-receiver (IR remote control included)
  • FHW-MB1 with control board and Modbus module (IR remote control as an option)

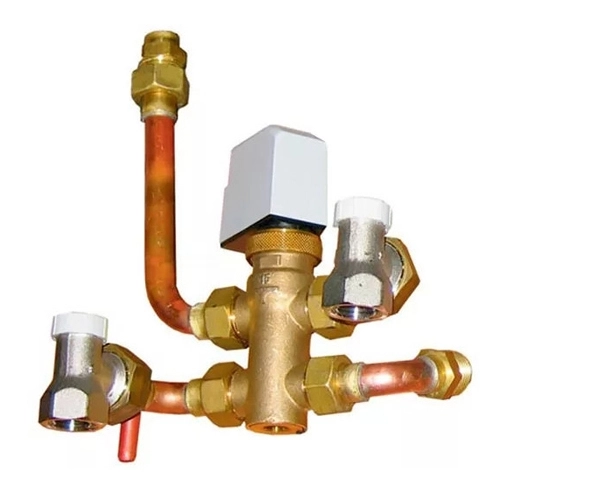

MyCond FHW Vertical installation kit for fan coil units.

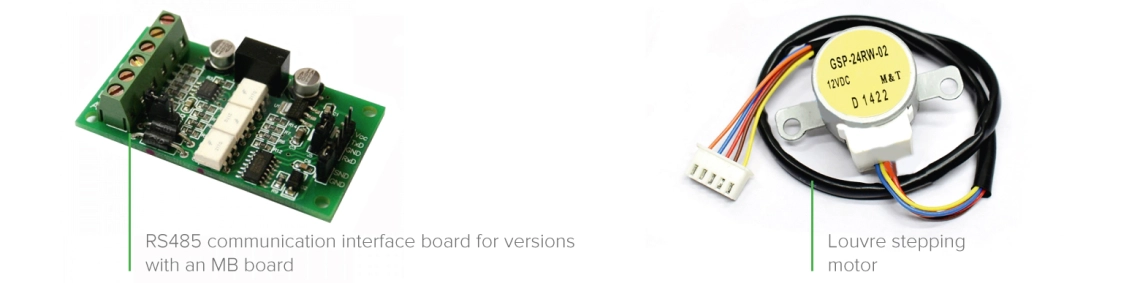

MyCond FHW Diagram of wall-mounted fan coil unit components.

MyCond FHW series wall-mounted fan coil units connected in a Modbus network.



Specifications Units FHW1 FHW2
Number of speeds   1 2 3 4 5 6 1 2 3 4 5 6
    min. average   max.     min.   average.   max.
Air flow rate m3/h 205 270 340 375 470 500 250 305 365 400 480 545
Total cooling capacity kW 1,23 1,49 1,74 1,85 2,13 2,20 1,42 1,62 1,82 1,93 2,16 2,32
Sensible cooling capacity kW 0,91 1,13 1,34 1,44 1,70 1,77 1,06 1,23 1,41 1,51 1,73 1,89
Heating capacity kW 1,34 1,68 2,02 2,18 2,58 2,71 1,58 1,85 2,13 2,29 2,62 2,88
Pressure loss (cooling) kPa 4,8 6,8 9,0 10,1 12,9 13,8 6,2 7,9 9,8 10,8 13,2 15,1
Pressure loss (heating) kPa 4,5 6,8 9,4 10,8 14,7 15,9 6,1 8,1 10,4 11,8 15,1 17,8
Power consumption W 12 14 17 18 24 30 12 14 18 20 24 32
Sound power level dB(A) 35 41 46 48 52 53 39 43 47 49 53 55
Sound pressure level (*) dB(A) 26 32 37 39 43 44 30 34 38 40 44 46



Specifications Units FHW3 FHW4
Number of speeds   1 2 3 4 5 6 1 2 3 4 5 6
    min. average   max.       min.   average   max.
Air flow rate m3/h 280 375 480 545 730 780 300 440 500 610 675 790
Total cooling capacity kW 1,87 2,30 2,75 3,00 3,59 3,73 1,97 2,60 2,83 26,7 3,43 3,76
Sensible cooling capacity kW 1,33 1,67 2,03 2,24 2,77 2,90 1,41 1,91 2,10 2,44 2,62 2,93
Heating capacity kW 1,89 2,37 2,93 3,23 4,04 4,24 2,00 2,73 3,02 3,53 3,80 4,28
Pressure loss (cooling) kPa 11,2 16,2 22,5 26,3 36,4 39,1 14,1 23,0 27,2 34,0 38,5 45,1
Pressure loss (heating) kPa 9,1 13,8 20,1 24,1 35,9 39,2 12,7 22,2 26,7 35,2 40,4 49,8
Power consumption W 16 21 26 29 38 46 17 23 27 32 35 48
Sound power level dB(A) 35 40 45 48 55 57 36 43 46 51 54 57
Sound pressure level (*) dB(A) 26 31 36 39 46 48 27 34 37 42 45 48

The specifications refer to the following operating parameters:
COOLING. Inlet air temperature: +27 °C (dry bulb) +19 °C (wet bulb) Inlet/outlet water temperature: +7/12 °C
HEATING. Inlet air temperature +20 °C. Inlet/outlet water temperature: +50/45 °C.
* The sound pressure level is 9 dB(A) lower than the sound power level and refers to a room with a volume of 100 m3 and sound reflection time of 0.5 s.

Installation method


MyCond Illustration of FHW fan coil units wall mounting method.

Dimensions

General arrangement

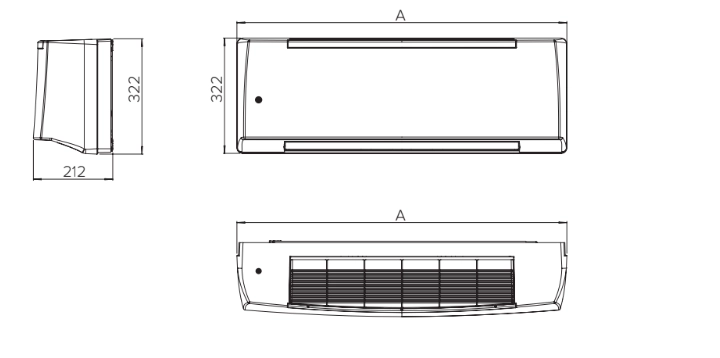

MyCond FHW Wall-mounted fan coil units with Modbus control for smart home automation.

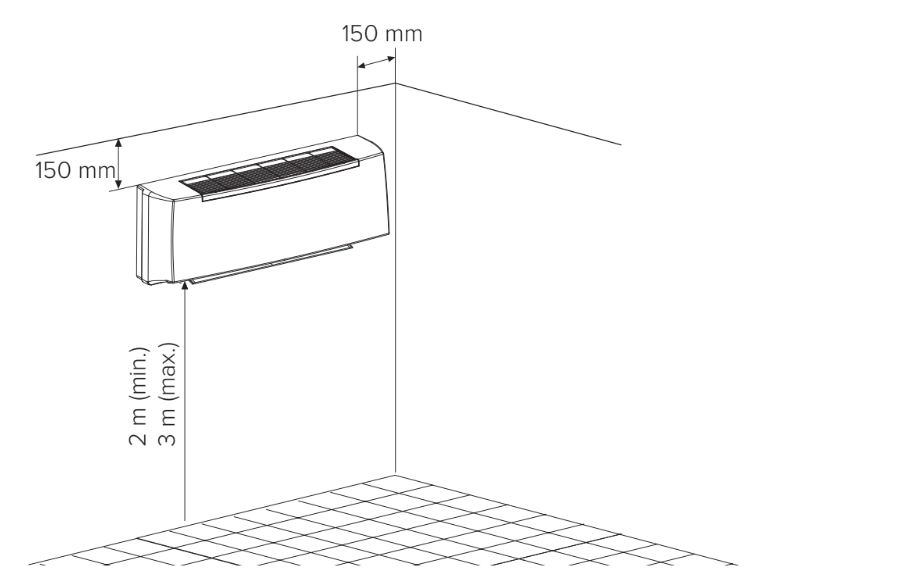

Installation distances


MyCond FHW Wall-mounted fan coil unit suitable for smart home integration.

Installation distances

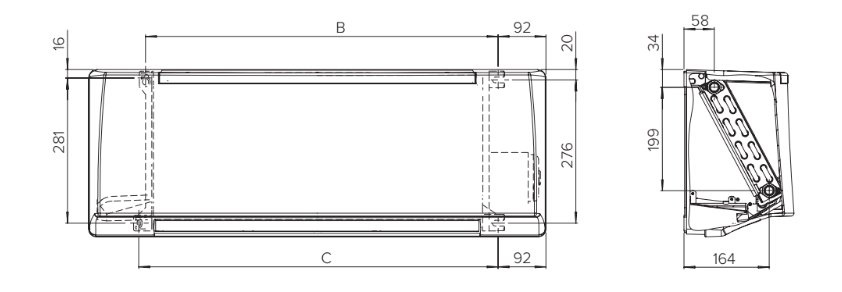

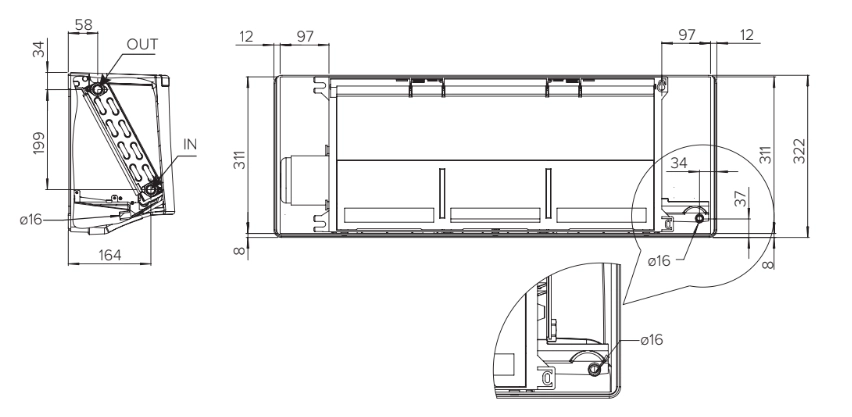

MyCond Dimensions of wall-mounted fan coil units from the FHW series.

Dimensions of FHW units

Model A B C
FHW1 880 678 691
FHW2 880 678 691
FHW3 1185 983 996
FHW4 1185 983 996

Weight of FHW units

Model Net weight (kg)
  FHW 1 FHW 2 FHW 3 FHW 4
Without a valve 12 12 16 16
With a valve 13 13 17 17
