Wall-mounted fan coil units MHW Q

Creates an ideal microclimate in your apartment, house, or office. The familiar wall-mounted unit design conceals a modern water system for connection to a heat pump. A wide louver rotation angle gently distributes air throughout the entire room — without drafts or temperature fluctuations. Soft cooling during hot weather and pleasant warmth in cold seasons. The perfect solution for those who value comfort in every detail.

Cooling capacity: 2,7 ... 5,24 kW

Heating capacity: 3,5 ... 8,1 kW

Want to buy or have questions?

Mycond

Wall-mounted Fan Coil Units

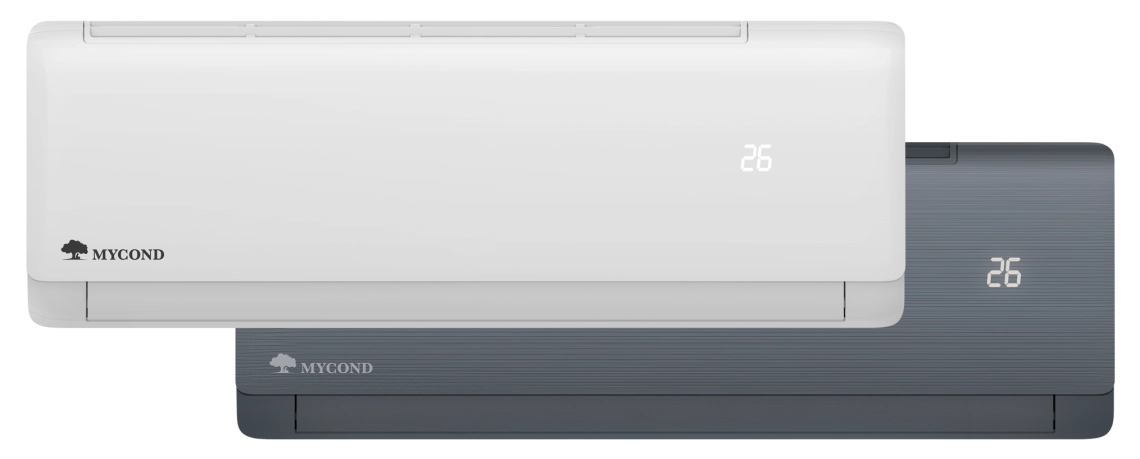

The neutral white color and minimalist design complement any interior style. Whisper-quiet operation allows the fan coil to be installed even in children’s rooms and bedrooms. A special night mode gradually lowers the temperature by 1°C every hour, while the bright LED display shows the current settings. A programmable timer and remote control provide full control and maximum comfort.

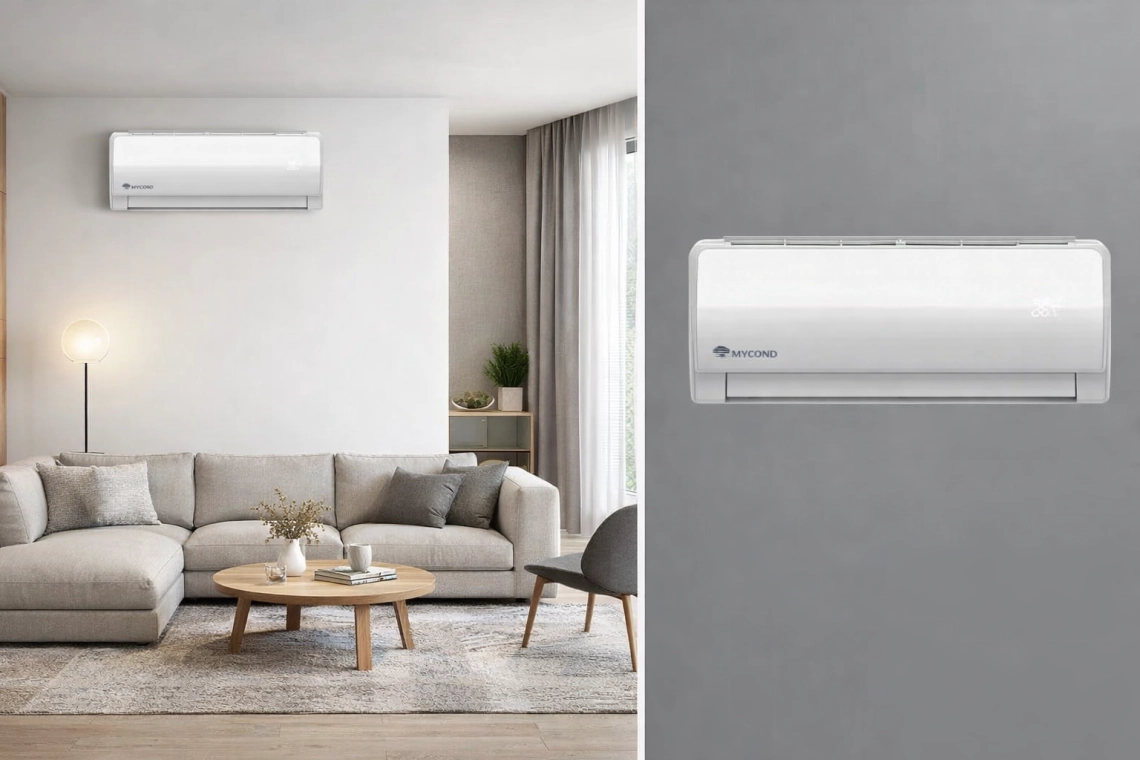

Mycond MHW Q series wall-mounted fan coils indoors

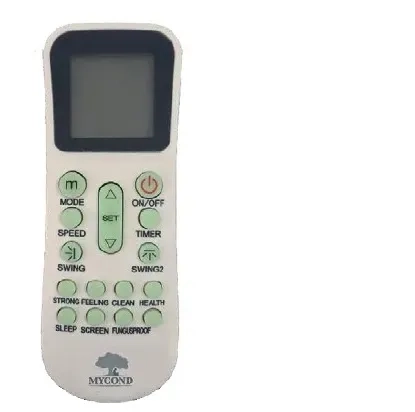

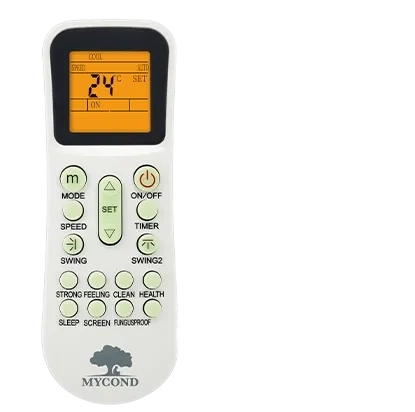

Mycond Wall-mounted fan coils MHW Q series remote control

Key Advantages:

Removable polypropylene filter easy-to-wash
Housing made of environmentally friendly material
Wireless IR remote control
7-speed fan motor
Low noise level
Built-in display
Built-in control board

- Control board
- LED display
- Vertical louvers
- Heat exchanger
- Air filter
- Casing
- Horizontal louvers
- Fan

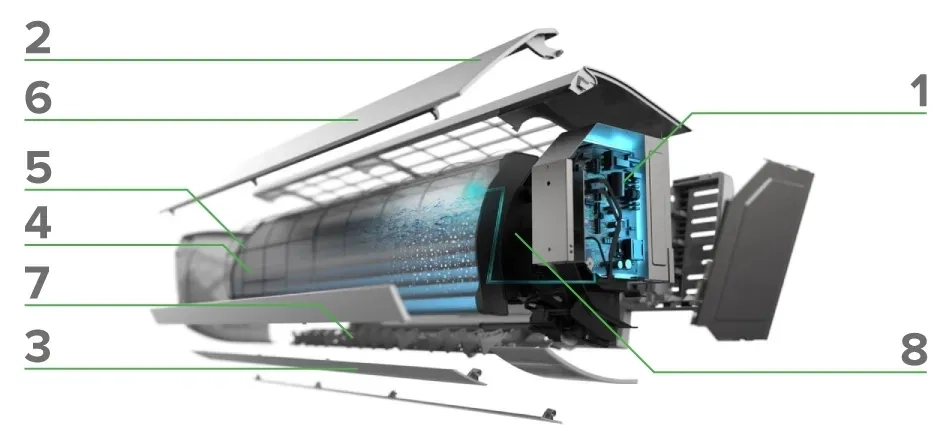

Mycond Wall-mounted fan coils MHW Q series internal structure

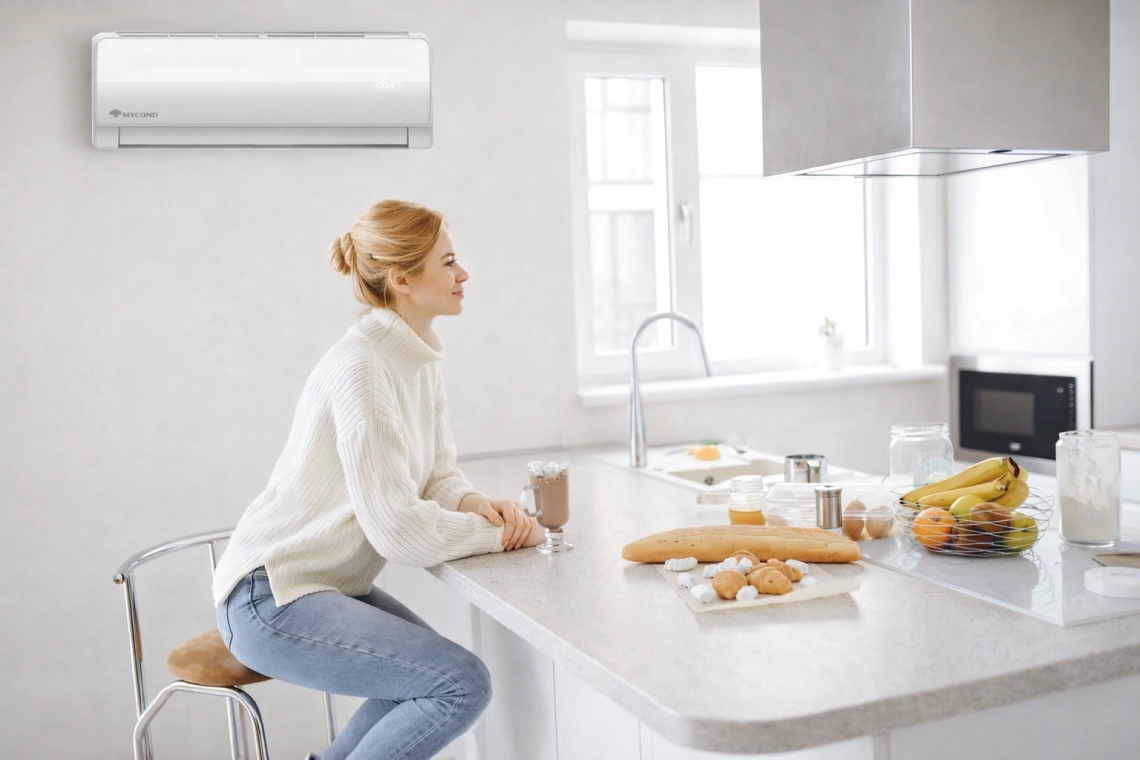

Mycond MHW Q series wall-mounted fan coils in the kitchen

Specifications		Units	MC-MHW-Q-27	MC-MHW-Q-30	MC-MHW-Q-36	MC-MHW-Q-45	MC-MHW-Q-54
Air Flow Volume	Max	m³/h	492	585	825	862	1020
	High	m³/h	404	404	673	653	832
	Medium	m³/h	358	358	526	570	710
	Low	m³/h	316	316	448	500	580
Cooling Capacity	Max	W	2700	2910	3810	4514	5406
	High	W	2312	2312	3617	4015	4940
	Medium	W	2015	2015	2991	3514	4320
	Low	W	1763	1763	2609	3045	3612
Heating Capacity	Max	W	3500	4070	5418	6767	8155
	High	W	3409	3409	5240	6125	7463
	Medium	W	3003	3003	4628	5269	6577
	Low	W	2761	2761	4014	4592	5542
Power		V/Ph/Hz	220-240/1/50
Whole Machine Power	Rated Power	W	16	22	44	35	48
Whole Machine Power	Max	W	18	24	48	39	53
Indoor Fan Motor	Model		D-310-30-80A AL			D-310-50-10A AL
	Quantity		1	1	1	1	1
	Output Power	W	30	30	30	50	50
Noise Level (sound pressure, high speed)	Max	dB(A)	32	32	44	38	44
	High	dB(A)	26	26	39	34	42
	Medium	dB(A)	24	24	33	31	36
Indoor Coil	Number Of Row		2	2	2	2	2
	Tube Pitch × Row Pitch	mm	20.5×12.7	20.5×12.7	20.5×12.7	20.5×12.7	20.5×12.7
	Fin Pitch	mm	1,4	1,4	1,4	1,4	1,4
	Fin Material		Hydrophilic aluminum fin
	Tube Outside Dia.	mm	ø7, Inner grooved
	Coil (L×H×W)	mm	570×327.5×25.4	570×327.5×25.4	570×327.5×25.4	700×366.8×25.4	700×366.8×25.4
Water Flow Volume		m³/h	0,50	0,57	0,77	0,84	0,97
Hydraulic Resistance		Kpa	31,61	37,20	56,75	41,20	50,70
Max.Working pressure		Mpa	1,6	1,6	1,6	1,6	1,6
Inlet/Outlet Water Pipe		mm	Rc3/4 (outlet grooved) DN15
Drain Pipe Outlet		mm	DN15	DN15	DN15	DN15	DN15
Dimensions	Net (W×D×H)	mm	965×325×230	965×325×230	965×325×230	1089×328×227	1089×328×227
Dimensions	Packing (W×D×H)	mm	1005×362×282	1005×362×282	1005×362×282	1155×397×312	1155×397×312
Weight	Net	kg	11,5	11,5	11,5	13,5	13,5
Weight	Gross	kg	14,5	14,5	14,5	16,5	16,5

Remark: The above designs and specifications are subject to change of product improvement without prior notice.

MHW Q block dimensions

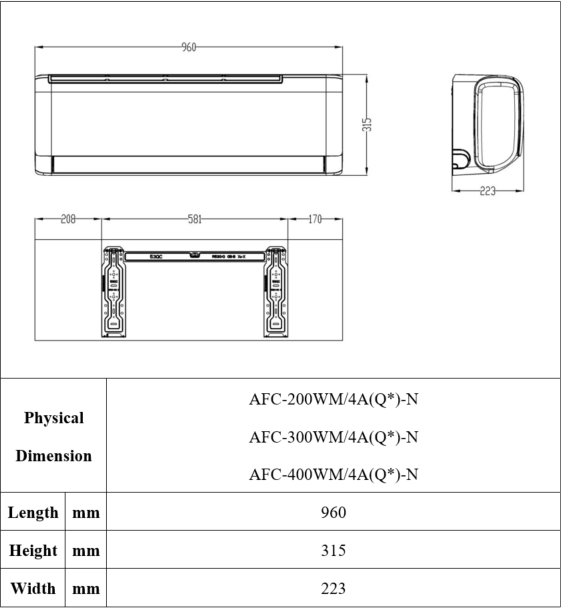

Wall-mounted fan coil units MHW Q Overall dimensions 1

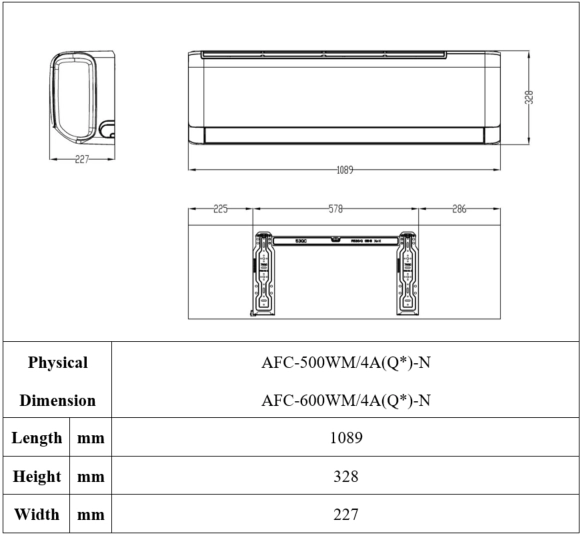

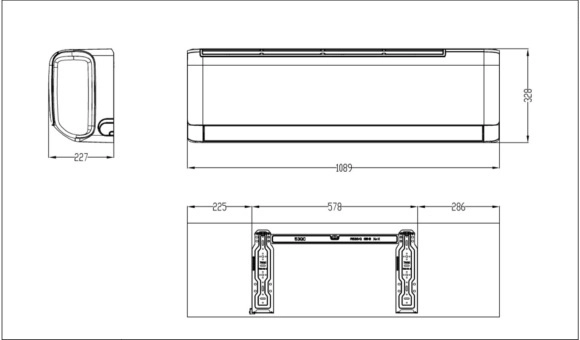

Wall-mounted fan coil units MHW Q Overall dimensions 2
