Wall-mounted
fan coil units
MHW series

The most common type of fan coil units in the residental segment. Suitable for all types of living rooms. Also great for small office spaces. It looks like a conventional wall-mounted split indoor unit but has a water heat exchanger that can be connected to a heat pump or chiller. Due to the wide opening angle of the louvers this type is suitable for both comfortable cooling and efficient heating
Wall-mounted <br/> fan coil units <br/>MHW series

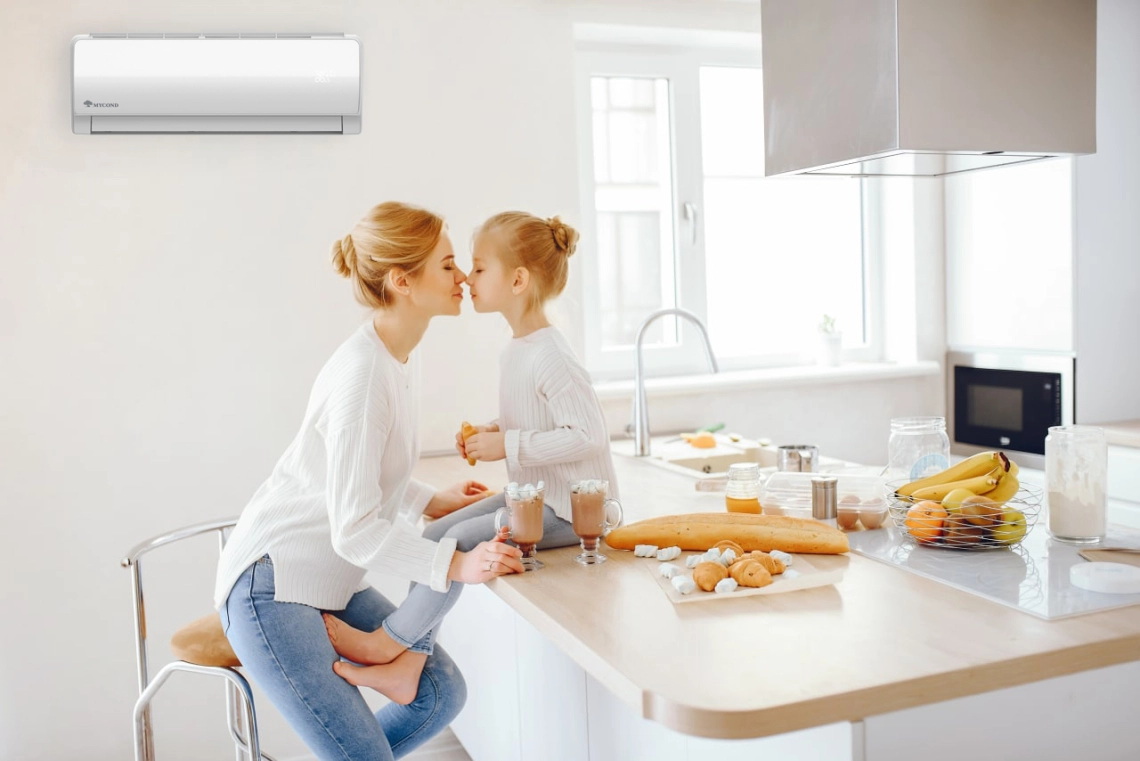

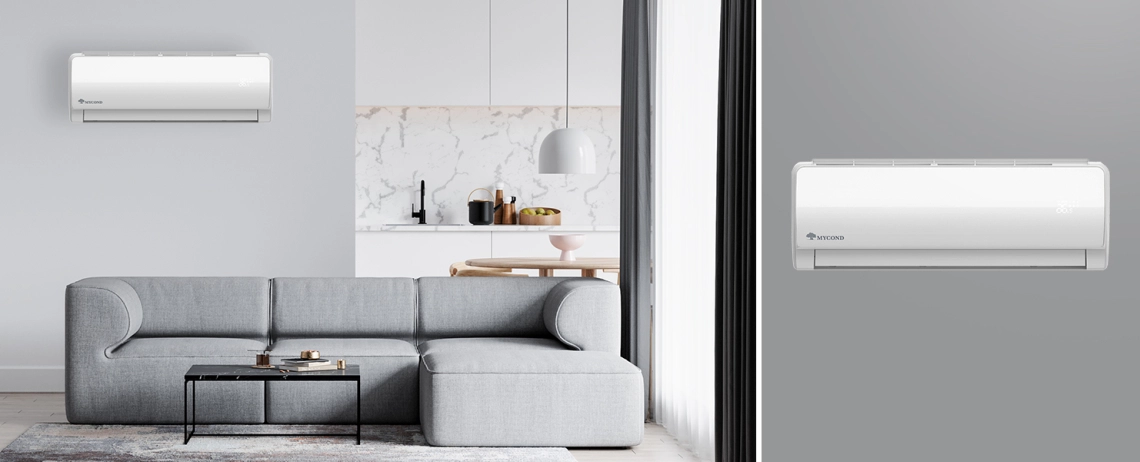

White color of and classic design will fit into any interior. The low noise level will allow to install this fan coil unit even in the child room. The presence of the sleep mode function (the temperature will decrease by 1°C every hour) and  LED display make it indispensable in the bedroom. Timer will be a great addition to the main functions that can be controlled by the IR remote control.

1,8 ... 7,2 kW
Cooling capacity :
2,6 ... 10,8 kW
Heating capacity :
Key features :

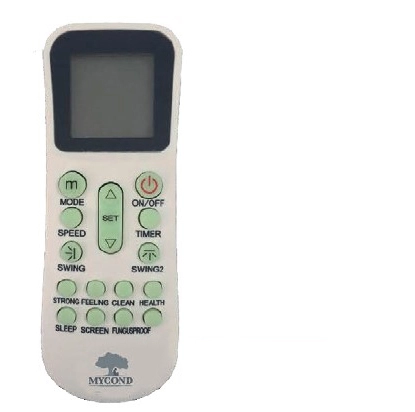

Wireless remote control

Key features :
  • Removable polypropylene filter easy-to-wash
  • Housing made of environmentally friendly material
  • Wireless IR remote control
  • 3-speed fan motor
  • Low noise level
  • Built-in display
  • Built-in control board

*This image is for reference purposes only. Final product may vary.

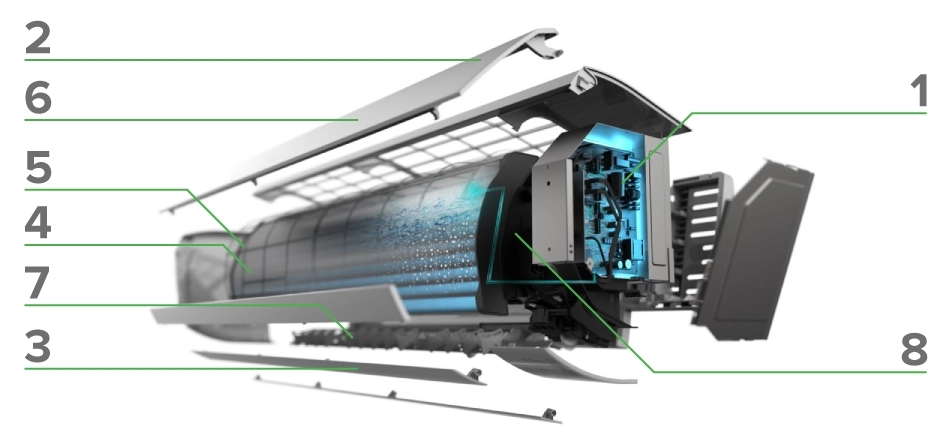

  1. -Сontrol board
  2. -LED display
  3. -Vertical louvers
  4. -Heat exchanger
  5. -Air filter
  6. -Body
  7. -Horizontal vanes
  8. -Fan





Specifications Speed Units MHW 27 MHW 35 MHW 45 MHW 54 МHW 72

Air flow rate





High





Medium





Low

CFM

m3/h



CFM

m3/h



CFM

m3/h

300

510



225

382.5



155

255

400

680



300

510



200

340

500

850



375

637.5



250

425

600

1020



450

765



300

510

800

1360



600

1020



400

680



Cooling capacity



High

Medium

Low



kW

kW

kW



2,7

2,3

1,8



3,6

3,1

2,4



4,5

3,8

2,9



5,4

4,6

3,5



7,2

6,1

4,7



Heating capacity



High

Medium

Low



kW

kW

kW



4,0

3,5

2,6



5,4

4,6

3,5



6,8

5,7

4,4



8,2

6,9

5,3



10,8

9,8

7,0

Water flow rate

m3/h

0,61

0,80 0,95 1,08 1,39
Supply voltage   V/Hz 220 VAC, 50 Hz
Power input   W 52 62 76 96 134
Max. operating pressure   MPa 1.6 1.6 1.6 1.6 1.6
Water connection diameters     G 1/2" G 1/2" G 1/2" G 1/2" G 1/2"
Drainage connection diameters     DN15 DN15 DN15 DN15 DN15
Noise level   dB(A) 42 43 47 47 49
Dimensions   mm 850х300х198 850х300х198 970х315х235 970х315х235 1100х330х235

Package dimensions

Net/Gross Weight



mm

kg

885х360х270

11/12.5

885х360х270

12.6/14.5

1010х380х300

15/17

1010х380х300

16/18

1140х390х300

20/23



Notes:
Cooling conditions: inlet air +27 °C (DB) / +19.5 °C (WB). Inlet water +7 °C, outlet water +12 °C.
Heating conditions: inlet air +21 °C (DB). Inlet water +60 °C.
The noise level has been measured at 1 m distance from the unit.
All the parameters refer to the maximum operation speed.

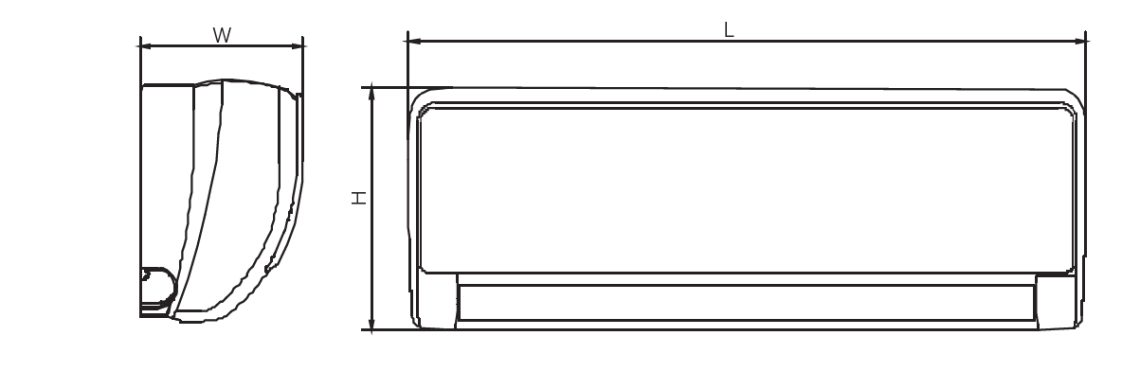

Dimensions
MHW units
Dimensions
Model L H W
MHW18 850 300 198
MHW27 850 300 198
MHW35 850 300 198
MHW45 970 315 235
MHW54 970 315 235
MHW72 1100 330 235
