Wall mounted N-series

Wall units often have a sleek and modern design, contributing to the aesthetic appeal of a room
Cooling capacity: 1.50 ... 9.00 kW
Heating capacity: 1.70 ... 10.00 kW

Want to buy or have questions?
Wall mounted N-series

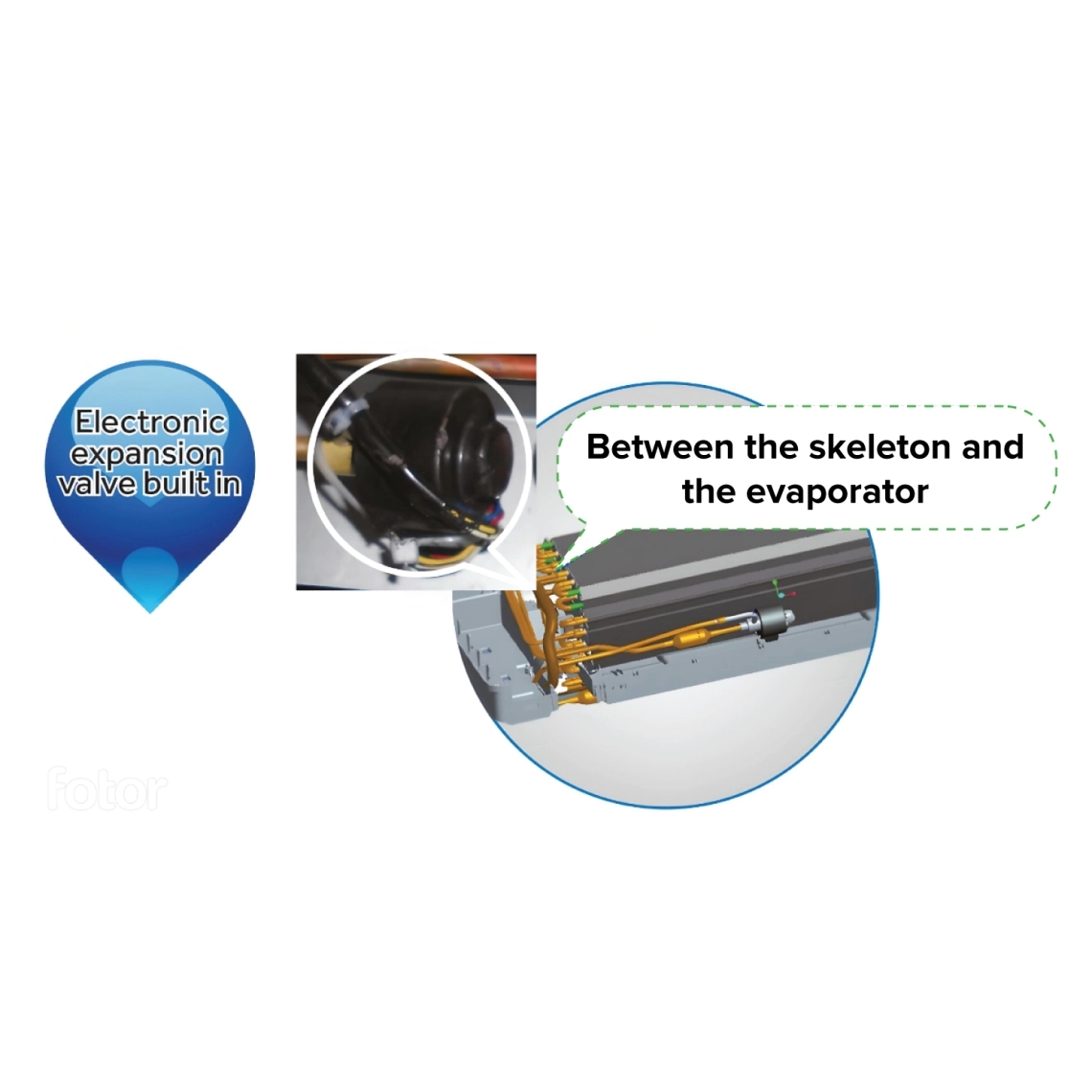

Built-in electronic expansion valve

Built-in electronic expansion valvel. DC fan motor, multi-wind speed, with multi-stage air supply angle to create comfortable airflow.



Energy-efficient wall-mounted air conditioner from N-series.

Key features:

  • Compact, linear design with dimmable information display
  • DC inverter fan motor
  • 5 fan speeds selectable with wired controller MWI-R17A

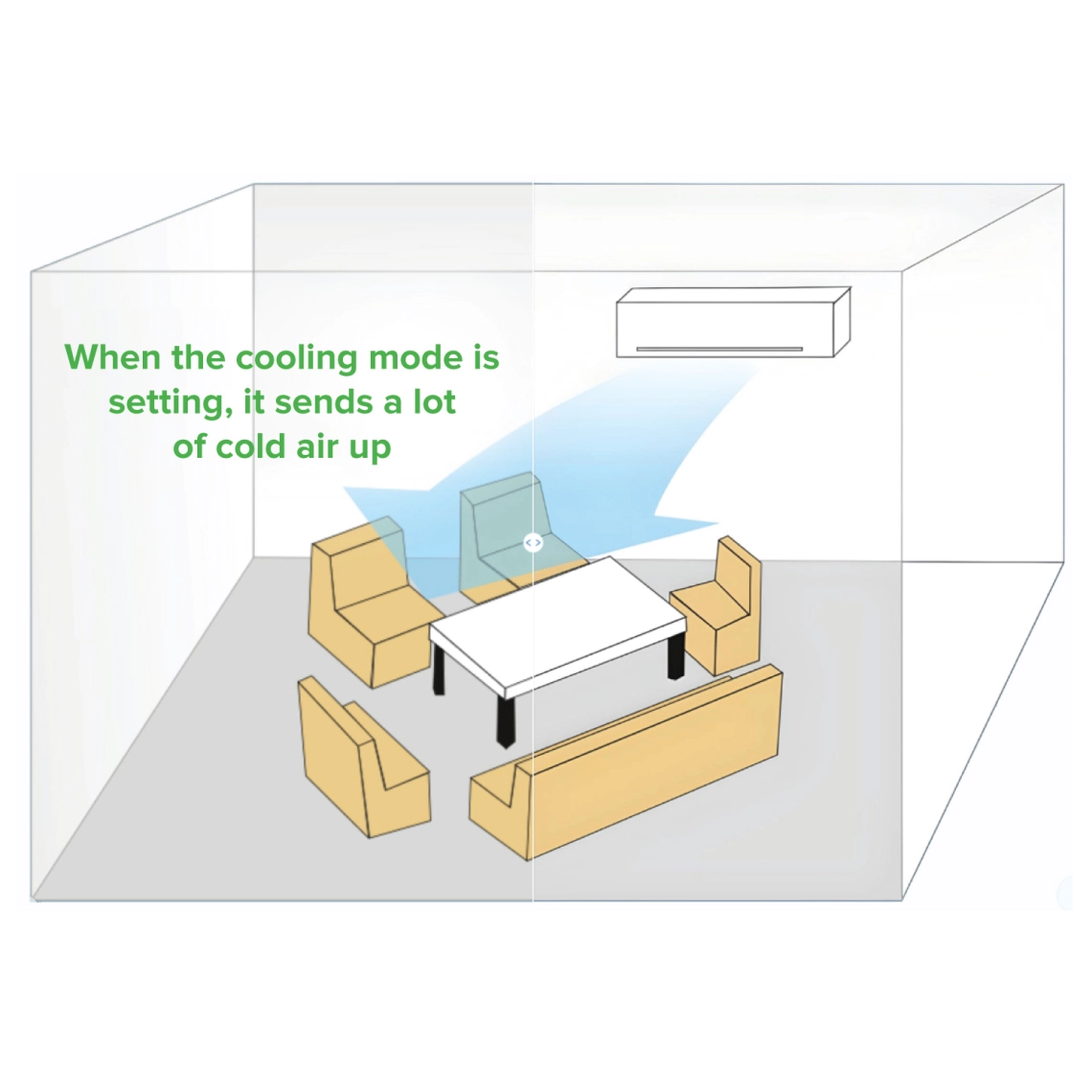

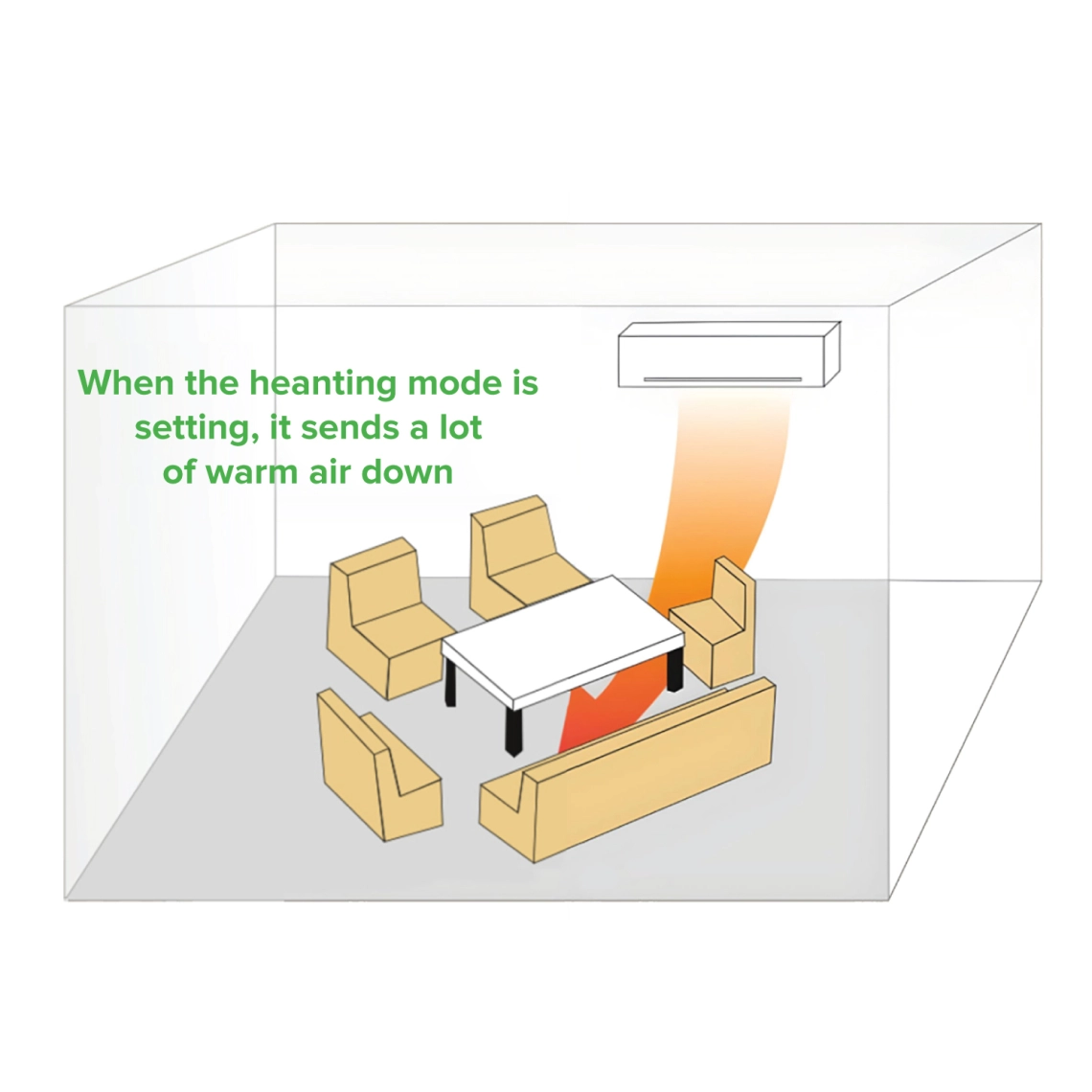

Flexible wind control, quick cooling and heating

In heating and cooling condition, the unit can supply large volume air to quick warm and cold everywhere of indoor room.

Air conditioning unit with flexible wind control feature.

Wall mounted N-series air conditioner with quick cooling technology.



Sleek wall-mounted air conditioning unit from the N-series.

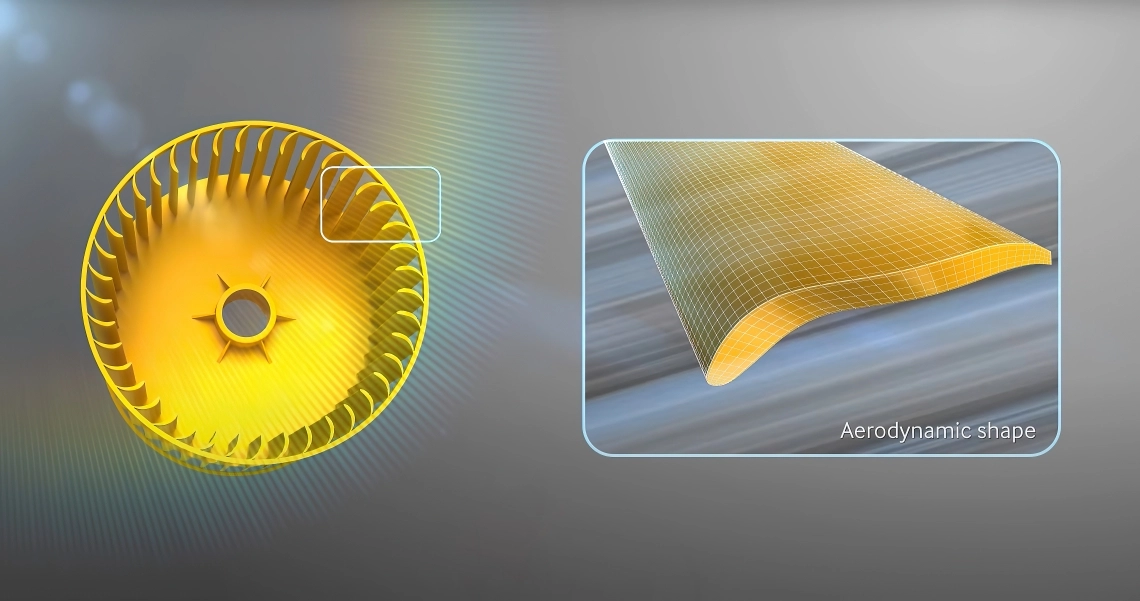

Aerodynamic shape

The new blades can be designed to ensure that the air conditioner runs more quietly, improving overall comfort.

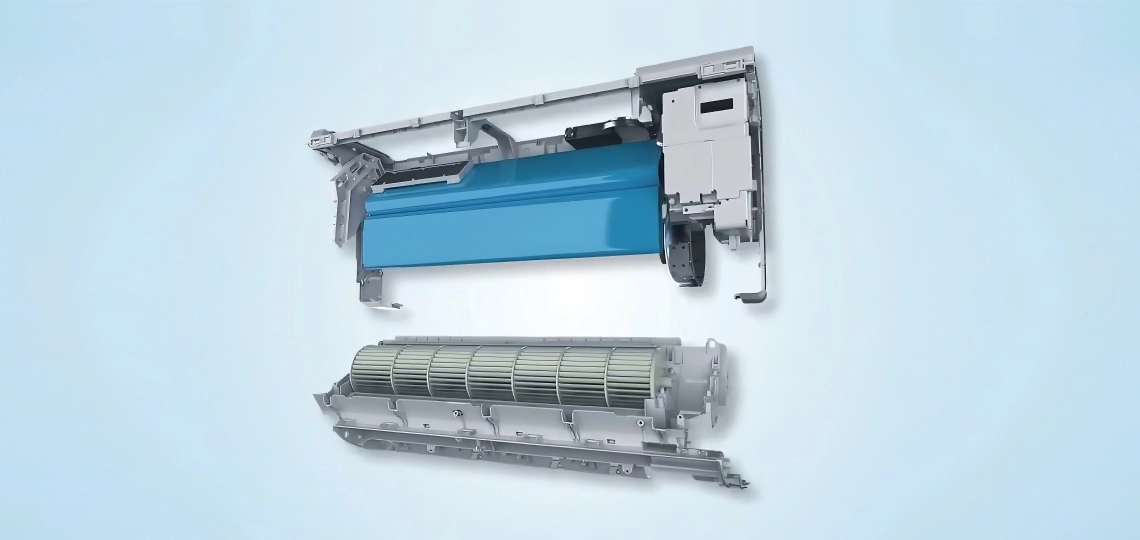

Ease of maintenance

Wall-mounted air conditioners have a front panel or cover that can be easily removed. This is usually done with buttons or latches. Opening this panel gives you access to the filters and other parts that may need cleaning.

Sleek wall-mounted air conditioner design.



Specifications Units

MISN-

05X1EV2AD

MISN-
07X1EV2AD
MISN-
09X1EV2AD
MISN-
12X1EV2AD
MISN-
16X1EV2AD
MISN-
18X1EV2AD
MISN-
24X1EV2AD
MISN-
28X1EV2AD
MISN-
30X1EV2AD
Capacity
Cooling kW 1,50 2,20 2,80 3,60 4,50 5,60 7,10 8,00 9,00
Heating kW 1,70 2,50 3,20 4,00 5,00 6,30 8,00 9,00 10,00
Electrical Parameters
Power supply Ph/V/Hz 1/220-240/50/60
Ventilation
Air flow (H/M/L) m3/h 500/430/370 550/480/420 600/530/470 630/560/500 800/720/650 920/800/720 1010/920/800 1500/1400/1300 1600/1500/1400
Sound pressure
(H/M/L)
dB(A) 33/31/29 35/31/29 36/31/29 37/33/29 39/36/34 40/39/35 44/40/36 48/43/40 49/44/41
Sound power
(H/M/L)
dB(A) 49/46/41 50/47/42 52/48/44 54/51/50 56/53/51 57/54/52 58/56/54 60/57/53 61/58/54
Installation – Dimensions
Net dimensions
(WxDxH)
mm 855x208x280 1115x243x336 1316x270x365
Packaged unit
dimensions
(WxDxH)
mm 954x279x355 1206x342x418 1403x384x463
Net/gross
weight
Kg 9,9/12,0 9,9/12,0 9,9/12,0 9,9/12,0 15,8/18,9 15,8/18,9 15,8/18,9 21,8/26,3 21,8/26,3
Ø Liquid pipe mm
(inch)
6,35 (1/4) 6,35 (1/4) 6,35 (1/4) 6,35 (1/4) 6,35 (1/4) 6,35 (1/4) 9,52 (3/8) 9,52 (3/8) 9,52 (3/8)
Ø Gas pipe mm
(inch)
9,52 (3/8) 9,52 (3/8) 9,52 (3/8) 12,70 (1/2) 12,70 (1/2) 12,70 (1/2) 15,88 (5/8) 15,88 (5/8) 15,88 (5/8)

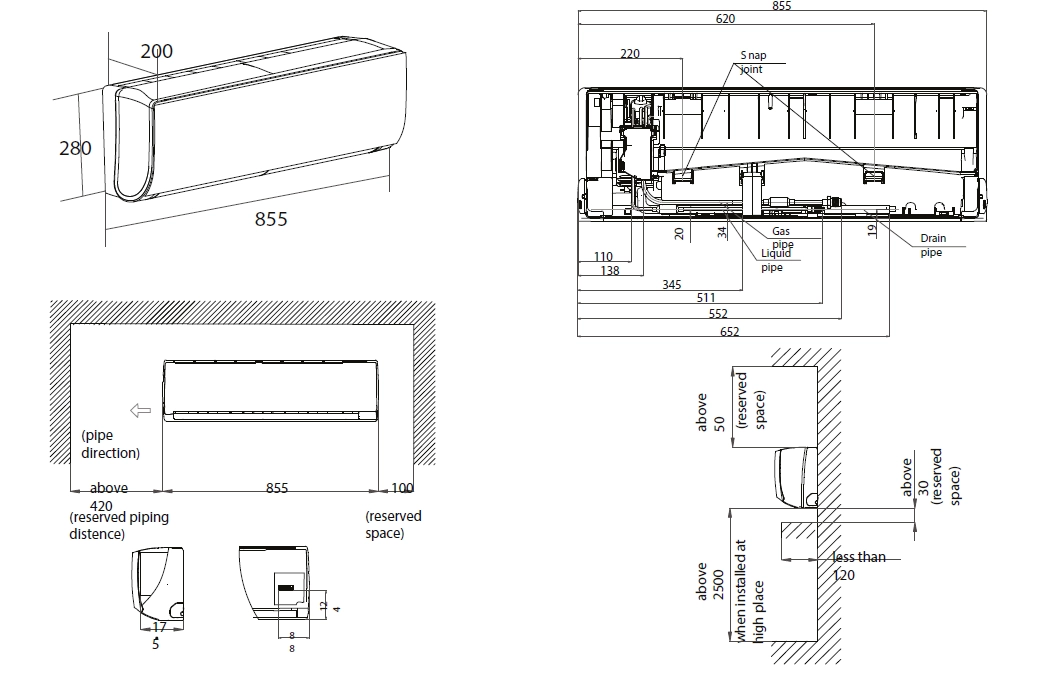

Dimensions

MISN-05X1EV2AD MISN-07X1EV1AA MISN-09X1EV2AD MISN-12X1EV2AD


Technical dimensions of the N-series wall-mounted unit.

Dimensions

MISN-16X1EV2AD MISN-18X1EV2AD MISN-24X1EV2AD


Dimensions and specifications of the wall-mounted N-series unit.

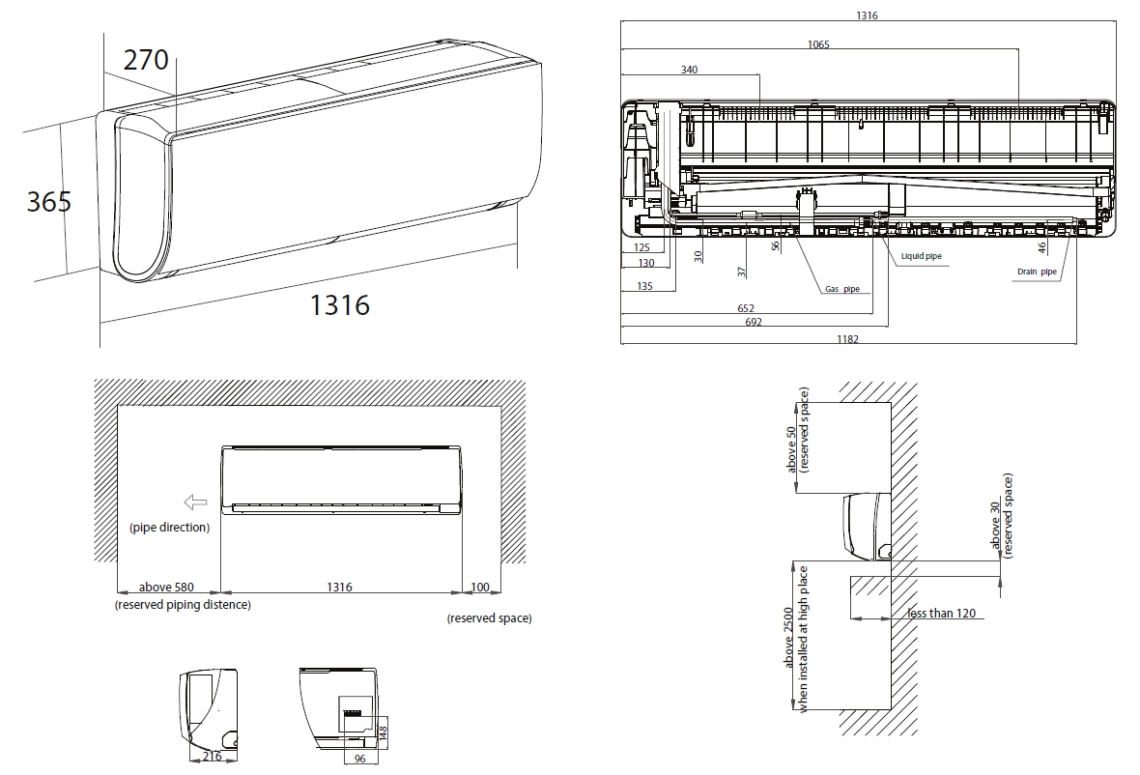

Dimensions

MISN-28X1EV2AD MISN-30X1EV2AD

Dimensions and features of the Wall mounted N-series unit.
