2.50 ... 16.0 kW
Heating сapacity:2.20 ... 14.0 kW
Cooling сapacity:Key features:
- Thin design, only 220 mm high
- Standard condensate drain pump
- Silent operation
Thin and light design for easy installation

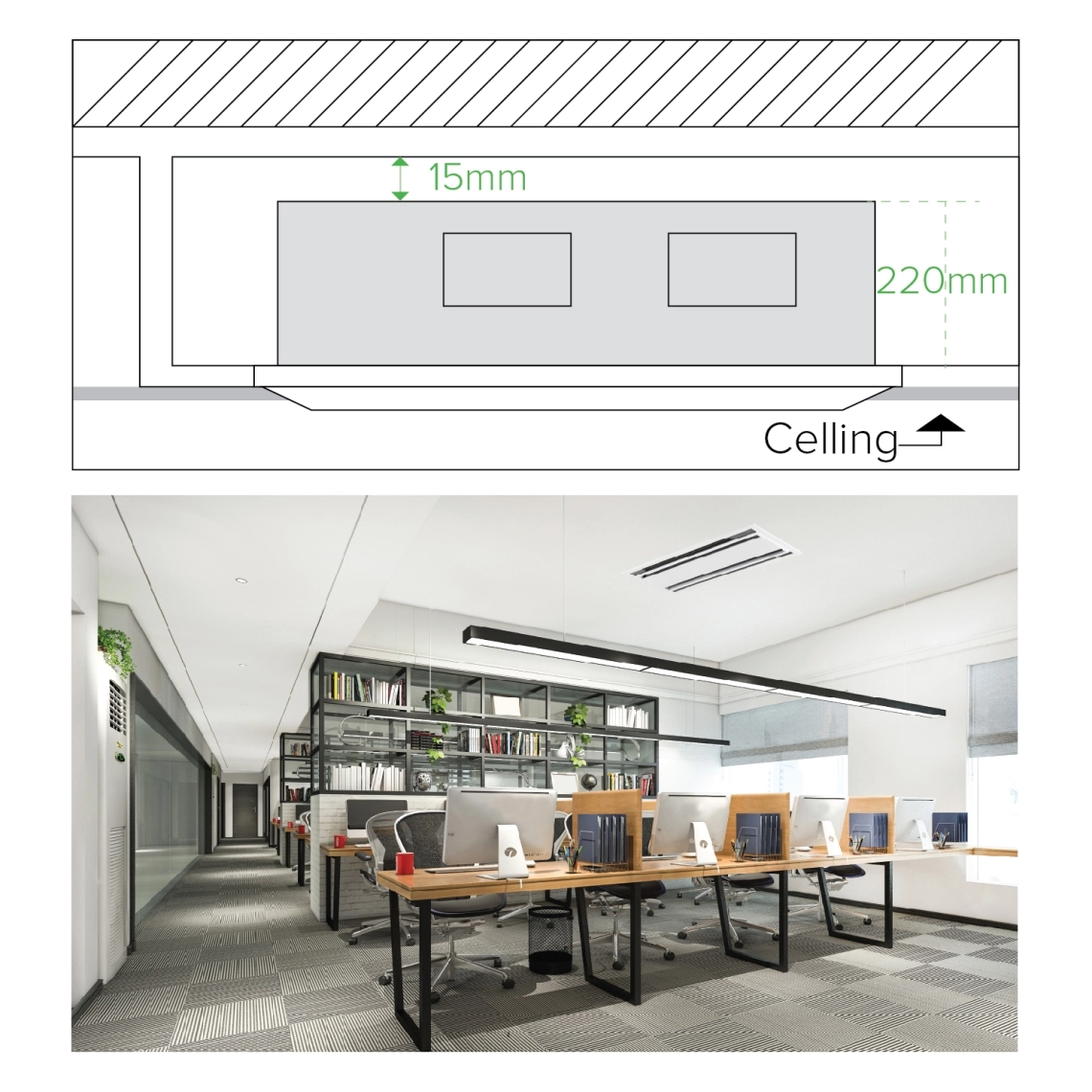

Height is only 220mm, reduce the limitations of installation space. Light weight design to improve installation convenience.

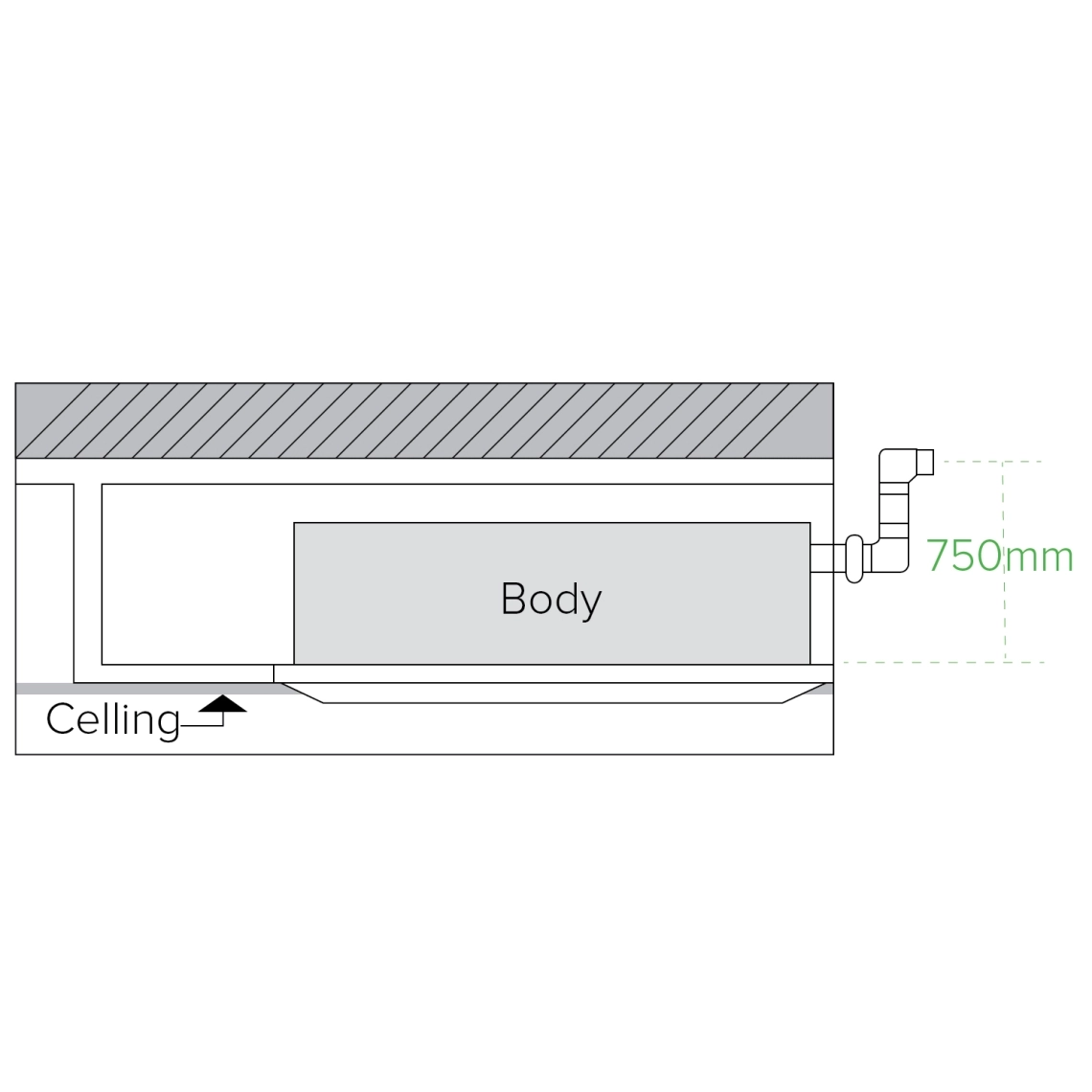

Lift up to 750mm
(from the ceiling level) due to drain pump with high head and large volume of condensate.
Prevention of dirt on the ceiling

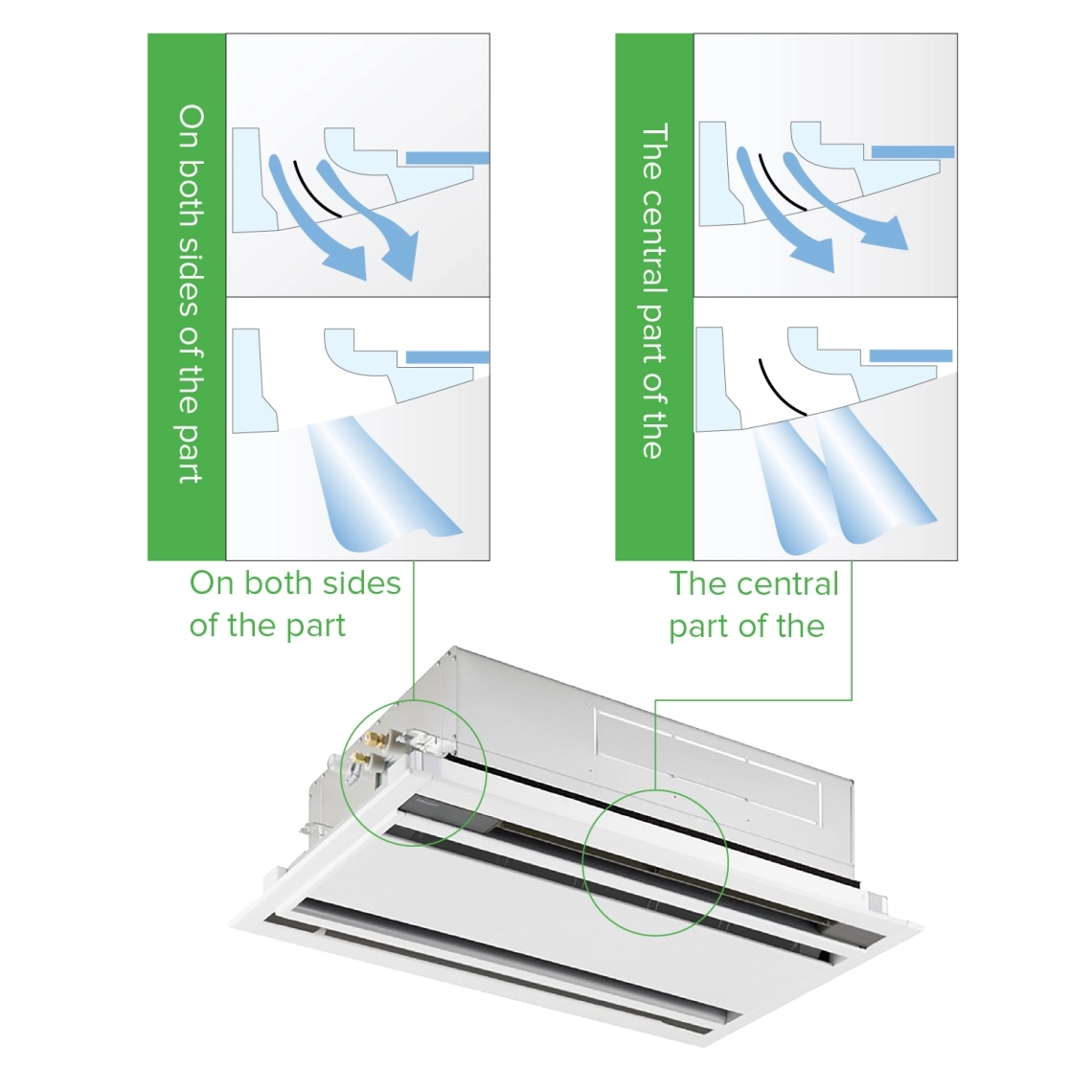

The air distribution louvers are specially designed so that the air flow is not directed to the ceiling and does not pollute it.

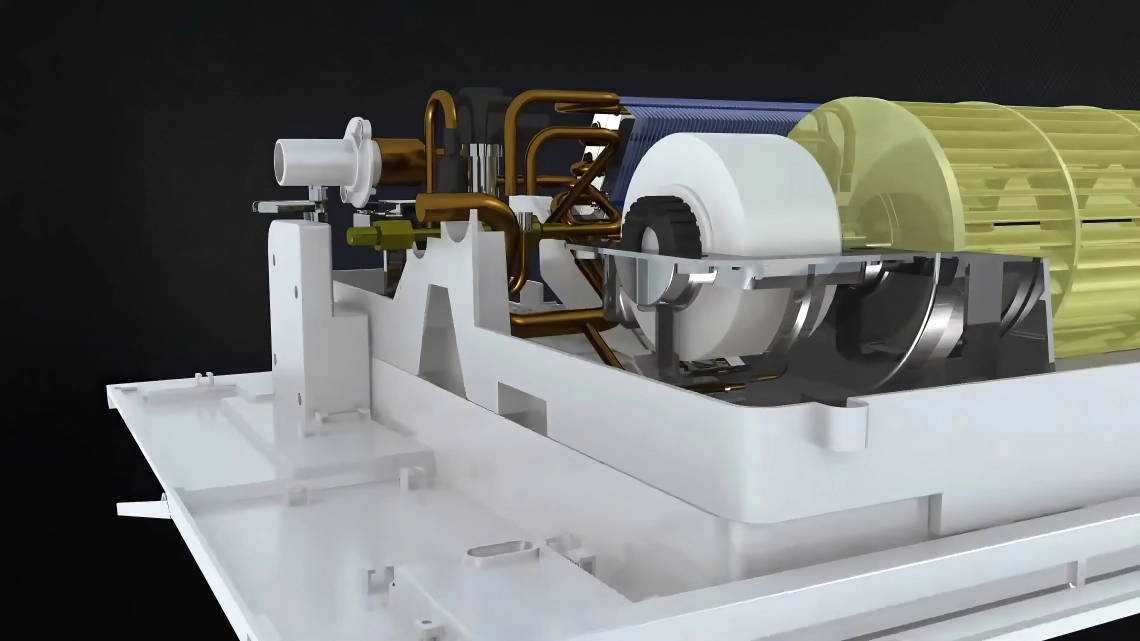

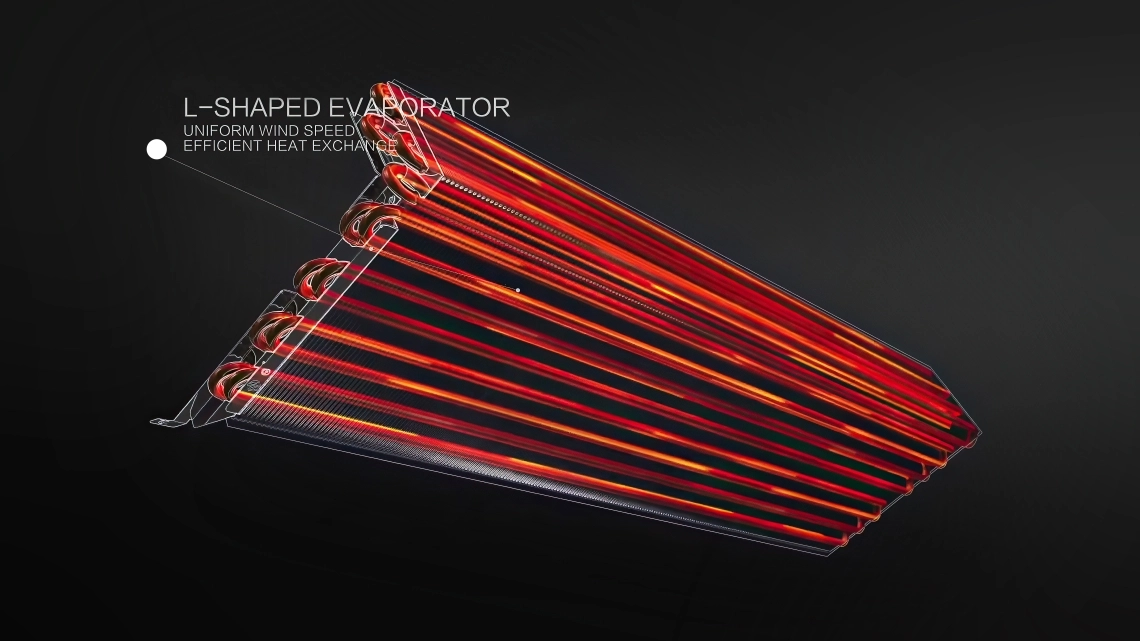

L-shaped evaporator
Increased heat exchange area with compact dimensions.
DC fan motor
Power saving quieter operation Slideway design Anti-stripping hook.
| Specifications | Units | MIBB-07X1EV1AD | MIBB-09X1EV1AD | MIBB-12X1EV1AD | MIBB-16X1EV1AD | MIBB-18X1EV1AD |
| Capacity | ||||||
| Cooling | kW | 2,20 | 2,80 | 3,60 | 4,50 | 5,60 |
| Heating | kW | 2,50 | 3,20 | 4,00 | 5,00 | 6.,30 |
| Electrical Parameters | ||||||
| Power supply | Ph/V/Hz | 1/220-230/50/(60) | 1/220-230/50/(60) | 1/220-230/50/(60) | 1/220-230/50/(60) | 1/220-230/50/(60) |
| Ventilation | ||||||
| Air flow (H/M/L) | m3/h | 840/700/550 | 840/700/550 | 840/700/550 | 840/700/550 | 840/700/550 |
| Sound pressure (H/M/L) |
dB(A) | 42/37/33 | 42/37/33 | 42/37/33 | 44/39/34 | 44/39/34 |
| Sound power (H/M/L) |
dB(A) | 55/50/46 | 55/50/46 | 55/50/46 | 57/52/47 | 57/52/47 |
| Installation – Dimensions | ||||||
| Net dimensions (WxDxH) |
mm | 817x620x220 | ||||
| Packaged unit dimensions (WxDxH) |
mm | 1015x695x278 | ||||
| Net/gross weight | Kg | 21,0/23,0 | 21,0/23,0 | 21,0/23,0 | 21,0/23,0 | 21,0/23,0 |
| Ø Liquid pipe | mm (inch) | 6,35 (1/4) | 6,35 (1/4) | 6,35 (1/4) | 6,35 (1/4) | 6,35 (1/4) |
| Ø Gas pipe | mm (inch) | 9,52 (3/8) | 9,52 (3/8) | 12,70 (1/2) | 12,70 (1/2) | 12,70 (1/2) |
| Panel | ||||||
| Model | M2B-1055IB | M2B-1055IB | M2B-1055IB | M2B-1055IB | M2B-1055IB | |
| Panel Net dimensions (WxDxH) |
mm | 1055x680x68 | 1055x680x68 | 1055x680x68 | 1055x680x68 | 1055x680x68 |
| Panel Packaging dimensions (WxDxH) |
mm | 1110x720x161 | 1110x720x161 | 1110x720x161 | 1110x720x161 | 1110x720x161 |
| Panel Net/gross weight | Kg | 7,0/8,0 | 7,0/8,0 | 7,0/8,0 | 7,0/8,0 | 7,0/8,0 |
| Specifications | Units | MIBB-24X1EV1AD | MIBB-28X1EV1AD | MIBB-30X1EV1AD | MIBB-38X1EV1AD | MIBB-48X1EV1AD |
| Cooling | kW | 7.1 | 8 | 9 | 11.2 | 14 |
| Heating | kW | 8 | 9 | 10 | 12.5 | 16 |
| Electrical Parameters | ||||||
| Power supply | Ph/V/Hz | 1/220-230/50/(60) | 1/220-230/50/(60) | 1/220-230/50/(60) | 1/220-230/50/(60) | 1/220-230/50/(60) |
| Ventilation | ||||||
| Air flow (H/M/L) | m3/h | 1000/850/700 | 1100/950/800 | 1500/1350/1110 | 1700/1450/1200 | 1950/1750/1350 |
| Sound pressure (H/M/L) |
dB(A) | 40/38/35 | 41/39/36 | 42/39/36 | 44/40/36 | 46/42/38 |
| Sound power (H/M/L) |
dB(A) | 56/54/51 | 57/55/52 | 58/55/52 | 60/56/52 | 62/58/54 |
| Installation – Dimensions | ||||||
| Net dimensions (WxDxH) |
mm | 1000x600x290 | 1400x600x290 | |||
| Packaged unit dimensions (WxDxH) |
mm | 1201x680x377 | 1601x680x377 | |||
| Net/gross weight | Kg | 34/41 | 45/54 | 45/54 | 45/54 | 45/54 |
| Ø Liquid pipe | mm (inch) | 9,52 (3/8) | 9,52 (3/8) | 9,52 (3/8) | 9,52 (3/8) | 9,52 (3/8) |
| Ø Gas pipe | mm (inch) | 15.88 | 15.88 | 15.88 | 15.88 | 15.88 |
| Panel | ||||||
| Model | M2B-1560IB | M2B-1560IB | M2B-1560IB | M2B-1560IB | M2B-1560IB | |
| Panel Net dimensions (WxDxH) |
mm | 1160x665x60 | 1560x665x60 | 1560x665x60 | 1560x665x60 | 1560x665x60 |
| Panel Packaging dimensions (WxDxH) |
mm | 1244x748x159 | 1644x748x159 | 1644x748x159 | 1644x748x159 | 1644x748x159 |
| Panel Net/gross weight | Kg | 6.3/12 | 8/14.5 | 8/14.5 | 8/14.5 | 8/14.5 |

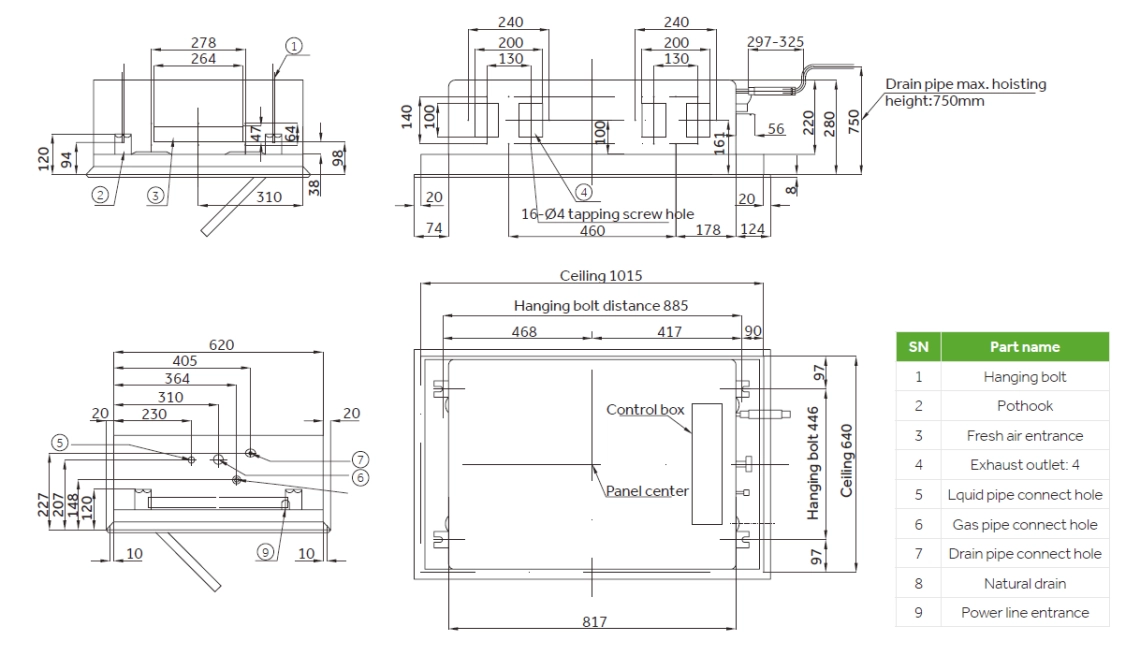

Dimensions
MIBB-07X2EV1AD MIBB-09X2EV1AD MIBB-12X2EV1AD MIBB-16X2EV1AD MIBB-18X2EV1AD
