4-way cassette (570*570)

The flat design and compact size allow the unit to be fully integrated into the suspended ceiling
Cooling capacity: 1.50 ... 4.50 kW
Heating capacity: 1.70 ... 5.00 kW

Want to buy or have questions?
4-way cassette (570*570)

Healthy fresh air function

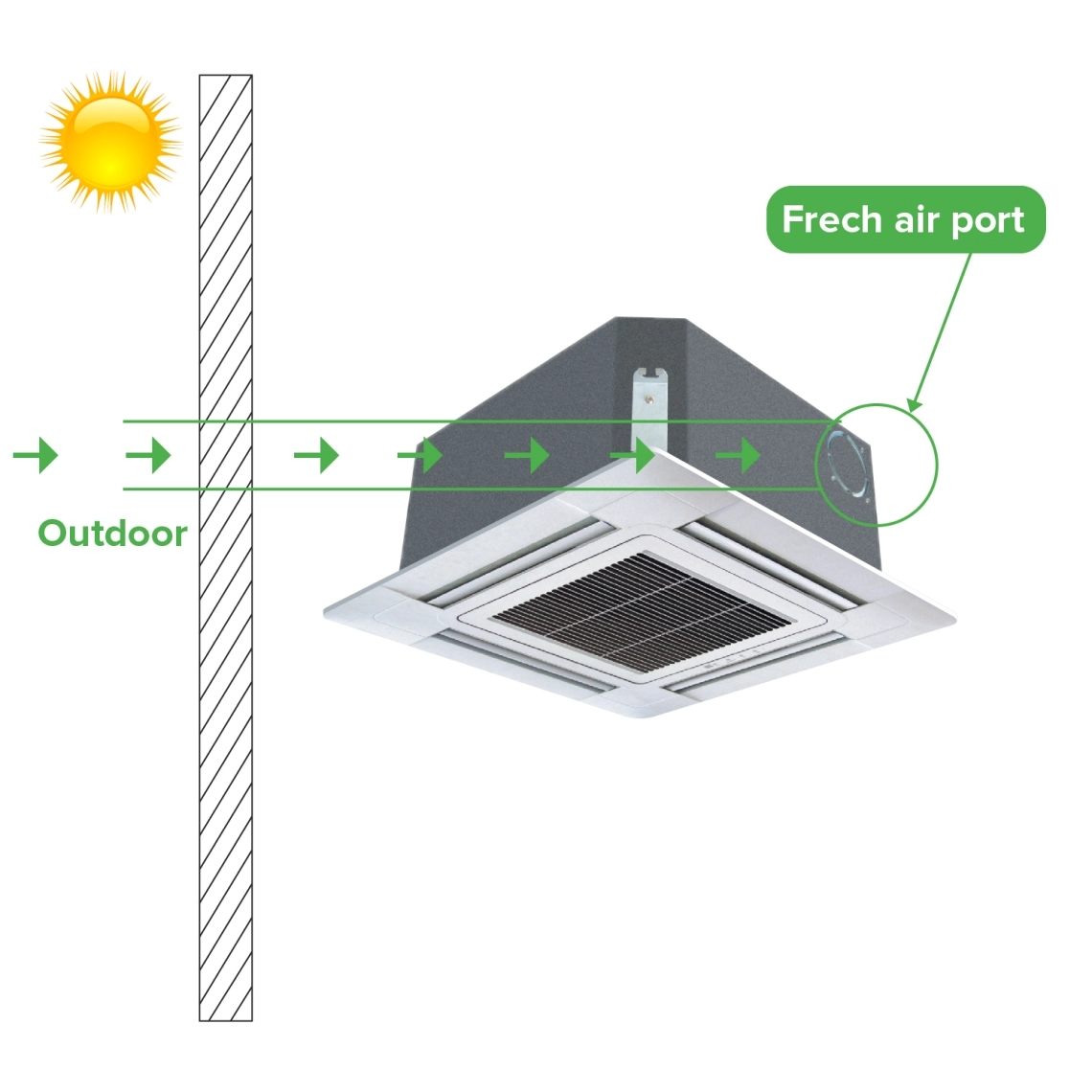

Unique side air inlet, can open to introduce outdoor fresh air, improve indoor air quality.



Compact 4-way ceiling cassette for efficient airflow control.

Key features:

  • Aesthetic Panel 700x700
  • Ready for fresh air  (pre-cut side inlet)
  • Standard condensate drain pump
  • Silent operation



Square panel the whole product unified more beautiful

  • Square design, makes room decoration more harmonious, beautiful and easy to arrange lighting system

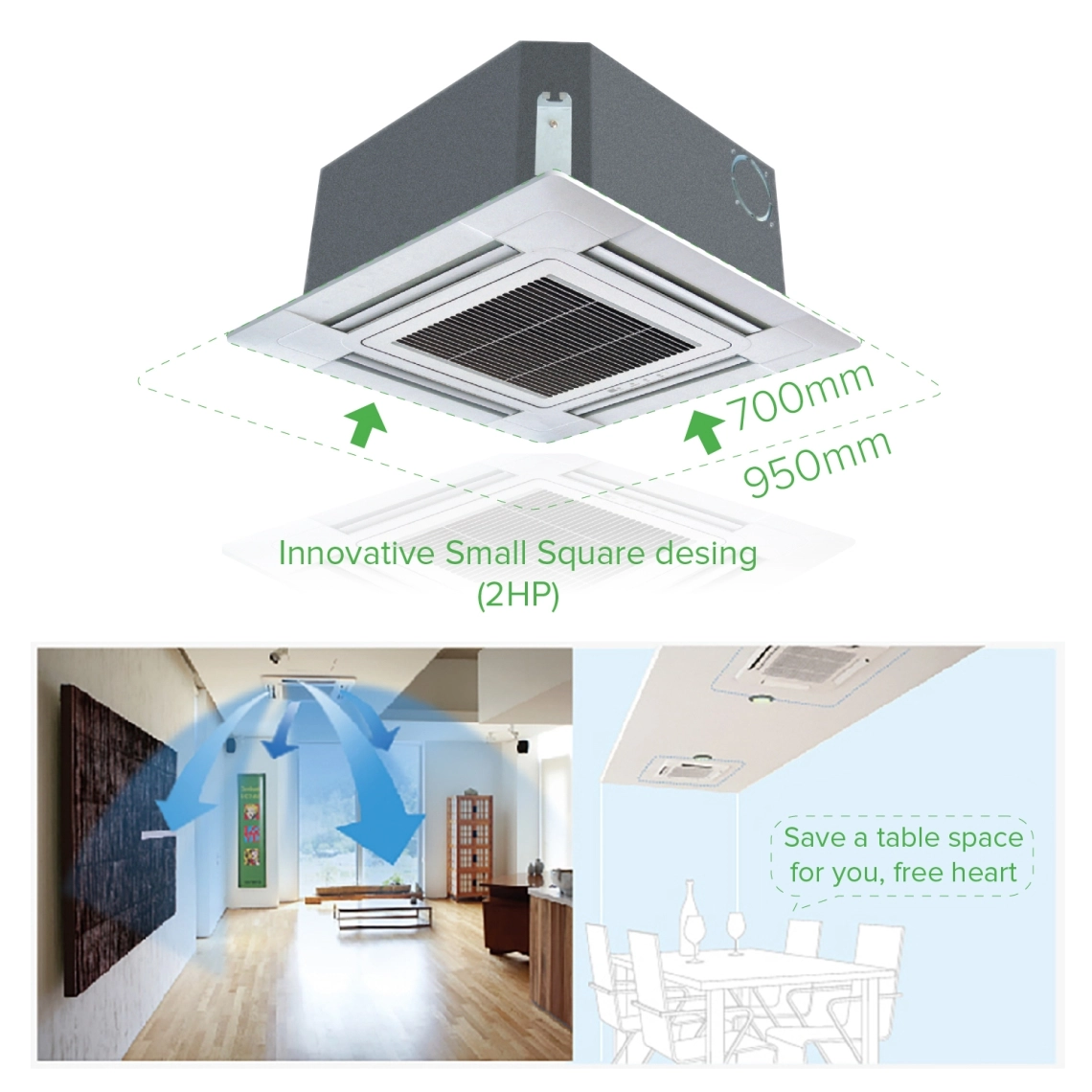

  • Thin design of indoor unit, the height is only 260mm (2HP), even in a small space can be installed
  • Stereo air supply, more comfortable

Compact ceiling-mounted 4-way cassette for efficient air distribution.

Quiet operation, comfortable experience

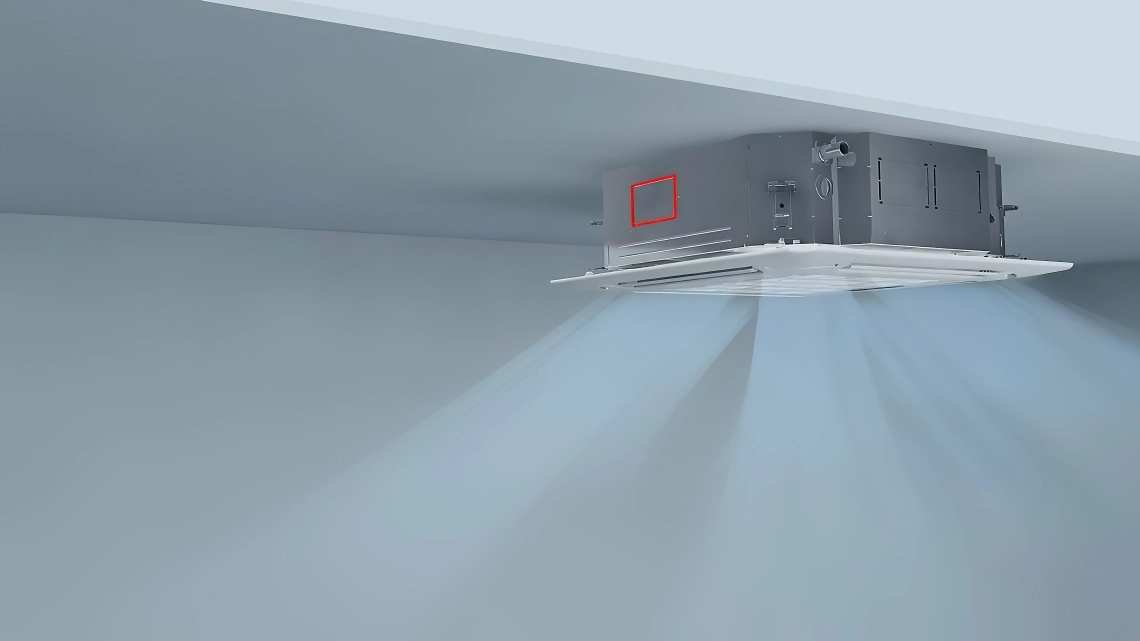

Adopt advanced aviation technology of THREE-DIMENSION­ AL spiral fan and turbine shaped air duct design, greatly reduce the internal resistance, large air volume, low noise, achieve silent operation.



Ceiling installation view of a 4-way cassette system.

Standard condensate lift pump

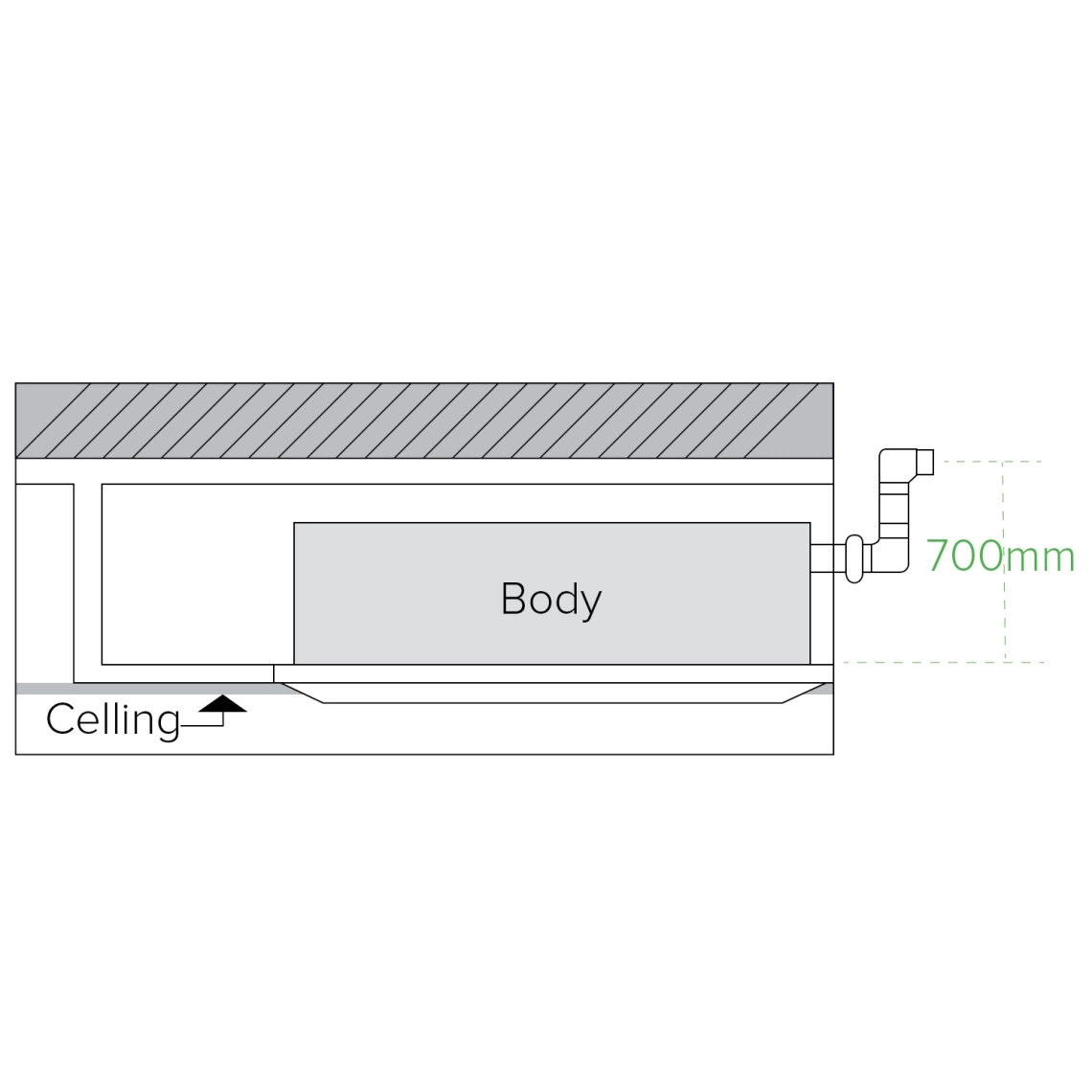

Standard drain pump, the lift is 700mm and built-in float switch, convenient to cooperate with the actual situation to condensate water discharge air conditioning.



Wide-flow air outlet

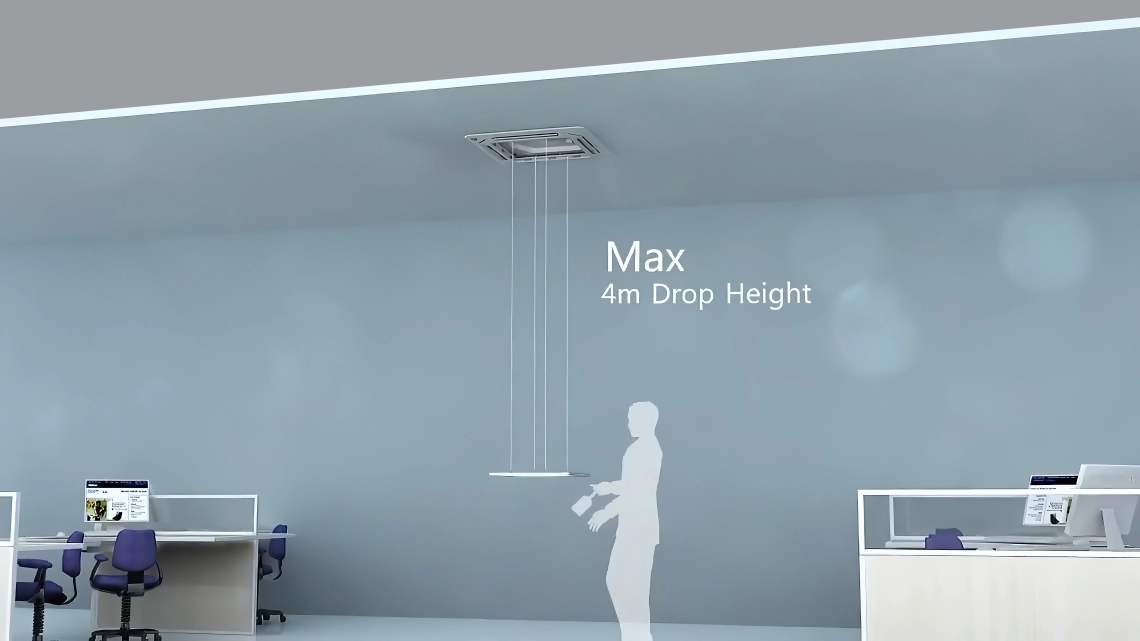

Ceiling cassettes offer a wide-flow air outlet that ensures effective air conditioning even for rooms with ceiling height upto 4 m.

The image shows a sleek and modern 4-way cassette panel designed for efficient air distribution.



Ceiling-mounted four-way cassette for efficient air distribution.

The design of the louvers

The design of the louvers facilitates the distribution of air by creating a gap between the chassis and the ceiling, enabling expansive and widespread airflow dispersion.



Compact design

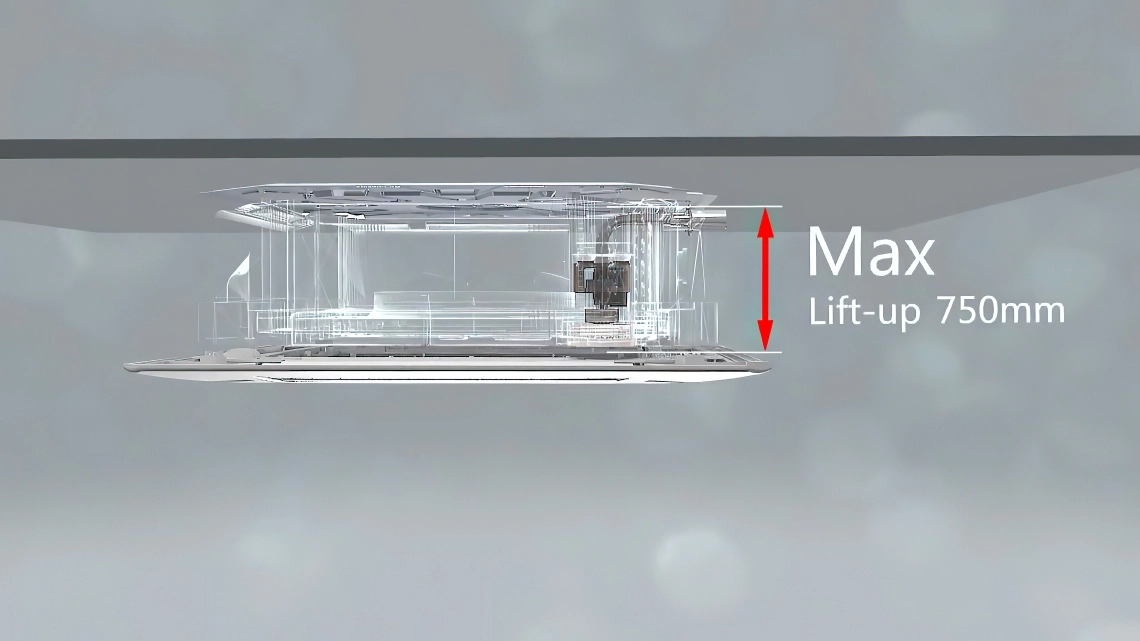

Ceiling cassette models boast a slim body height for smooth and aesthetic installation even in narrow plenum spaces.

Compact 4-way cassette air conditioning unit for efficient airflow distribution.



Ceiling-mounted 4-way cassette air conditioner panel.

Master/slave mode

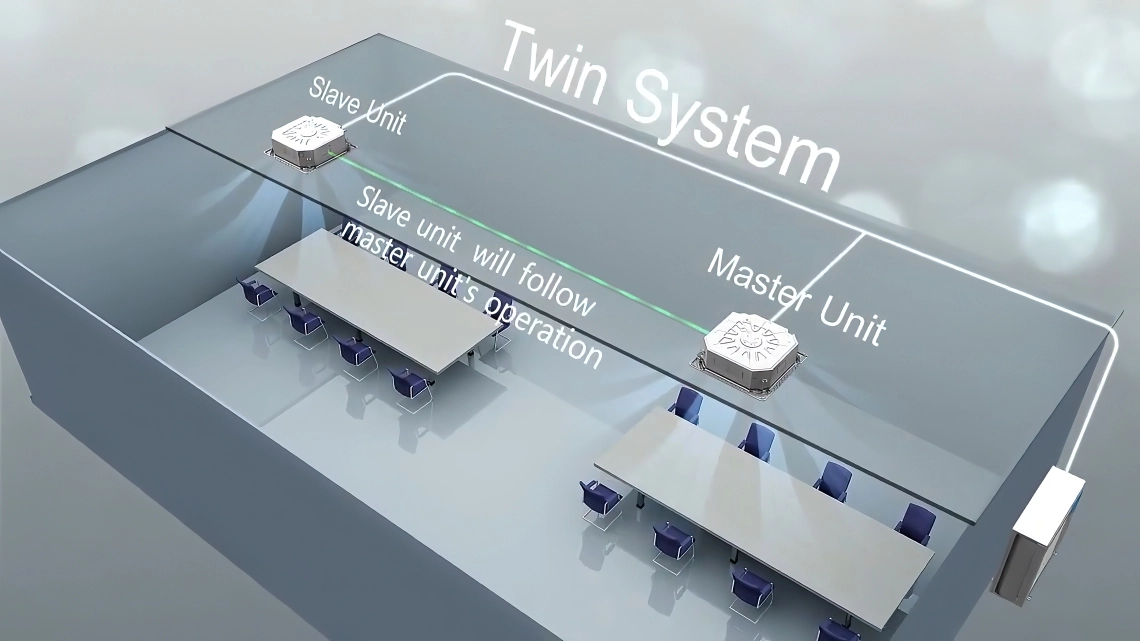

In this setup, one unit serves as the “master” while the others act as “slaves” that follow the master unit’s settings.



Specifications Units MIBC-05X1EV1AA MIBC-07X1EV1AA MIBC-09X1EV1AA MIBC-12X1EV1AA MIBC-16X1EV1AA
Capacity
Cooling kW 1,50 2,20 2,80 3,60 4,50
Heating kW 1,70 2,50 3,20 4,00 5,00
Electrical Parameters
Power supply Ph/V/Hz 1/220~230/50/60
Ventilation
Air flow (H/M/L) m3/h 650/540/430 700/590/480
Sound pressure
(H/M/L)
dB(A) 32/30/29 32/30/29 32/30/29 33/30/29 33/30/29
Sound power
(H/M/L)
dB(A) 45/43/42 46/44/43 46/44/43 46/44/43 47/44/43
Installation – Dimensions
Net dimensions
(WxDxH)
mm 570x570x260
Packaged unit
dimensions
(WxDxH)
mm 718x680x380
Net/gross
weight
Kg 16,0/19,0 16,0/19,0 16,0/19,0 19,0/22,0 19,0/22,0
Ø Liquid pipe mm (inch) 6,35 (1/4) 6,35 (1/4) 6,35 (1/4) 6,35 (1/4) 6,35 (1/4)
Ø Gas pipe mm (inch) 9,52 (3/8) 9,52 (3/8) 9,52 (3/8) 12,70 (1/2) 12,70 (1/2)
Раnel
Model   MB-700IB MB-700IB MB-700IB MB-700IB MB-700IB
Panel Net dimensions
(WxDxH)
mm 700x700x60 700x700x60 700x700x60 700x700x60 700x700x60
Panel Packaging dimensions
(WxDxH)
mm 740x740x115 740x740x115 740x740x115 740x740x115 740x740x115
Panel Net/gross
weight
Kg 2,8/4,5 2,8/4,5 2,8/4,5 2,8/4,5 2,8/4,5

Dimensions

MIDS-05X1EV1AA MIDS-07X1EV1AA MIDS-09X1EV1AA MIDS-12X1EV1AA MIDS-16X1EV1AA

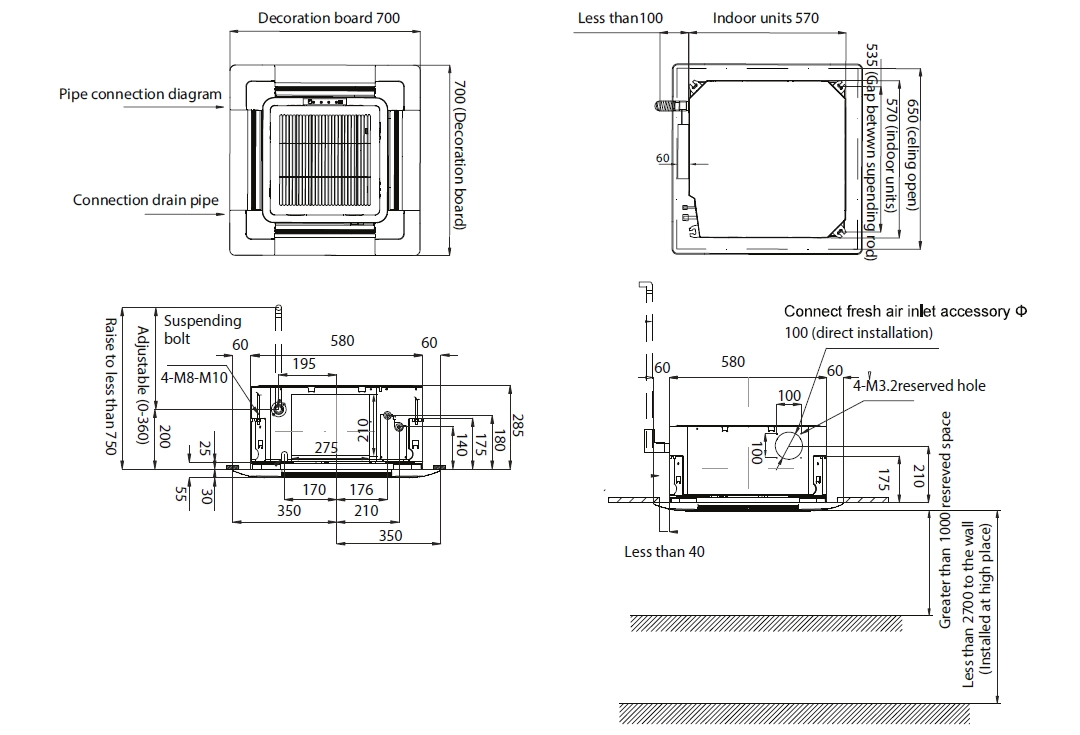

Diagram of a 4-way cassette with 570x570 dimensions.
