MyVent
Ventilation

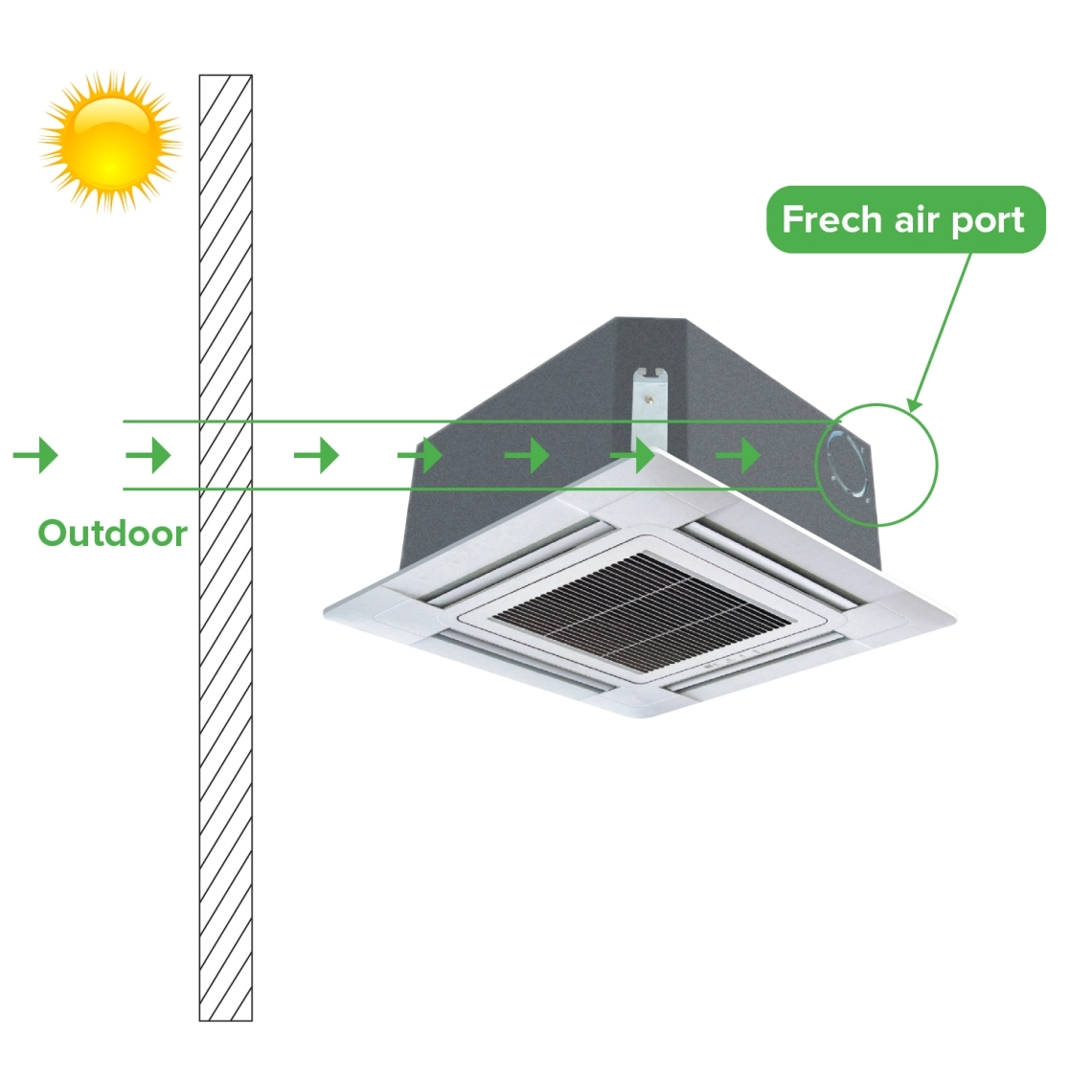

Healthy fresh air function
Unique side air inlet, can open to introduce outdoor fresh air, improve indoor air quality.
6.30 ... 18.00 kW
Heating сapacity:5.60 ... 16.00 kW
Cooling capacity:
Key features:
- Linear and compact panel design
- Preparation for fresh air input (pre-cut)
- Standard condensate drain pump
- Preparation for additional air delivery from unit body

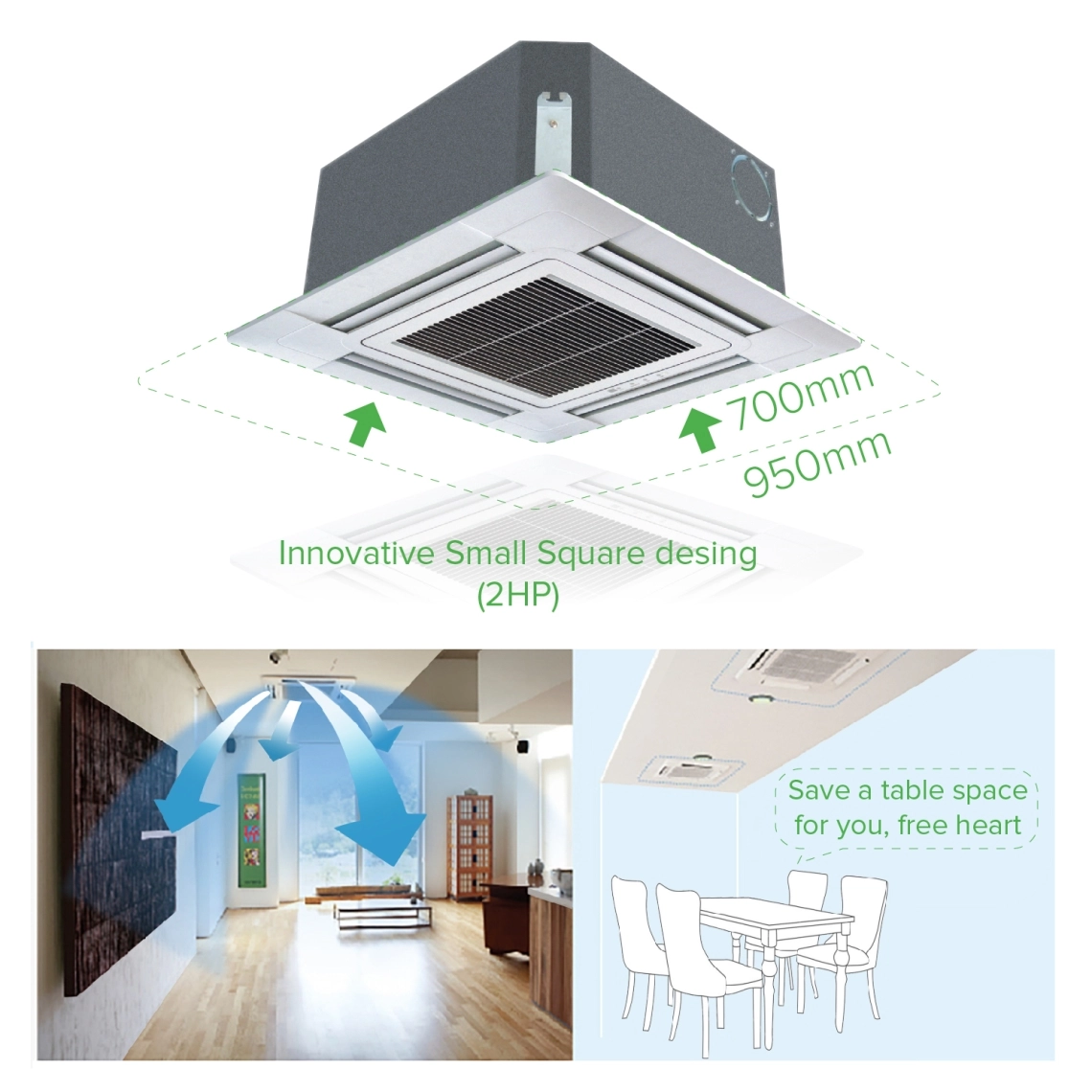

Square panel the whole product unified more beautiful
- Square design, makes room decoration more harmonious, beautiful and easy to arrange lighting system
- Thin design of indoor unit, the height is only 260mm (2HP), even in a small space can be installed
- Stereo air supply, more comfortable

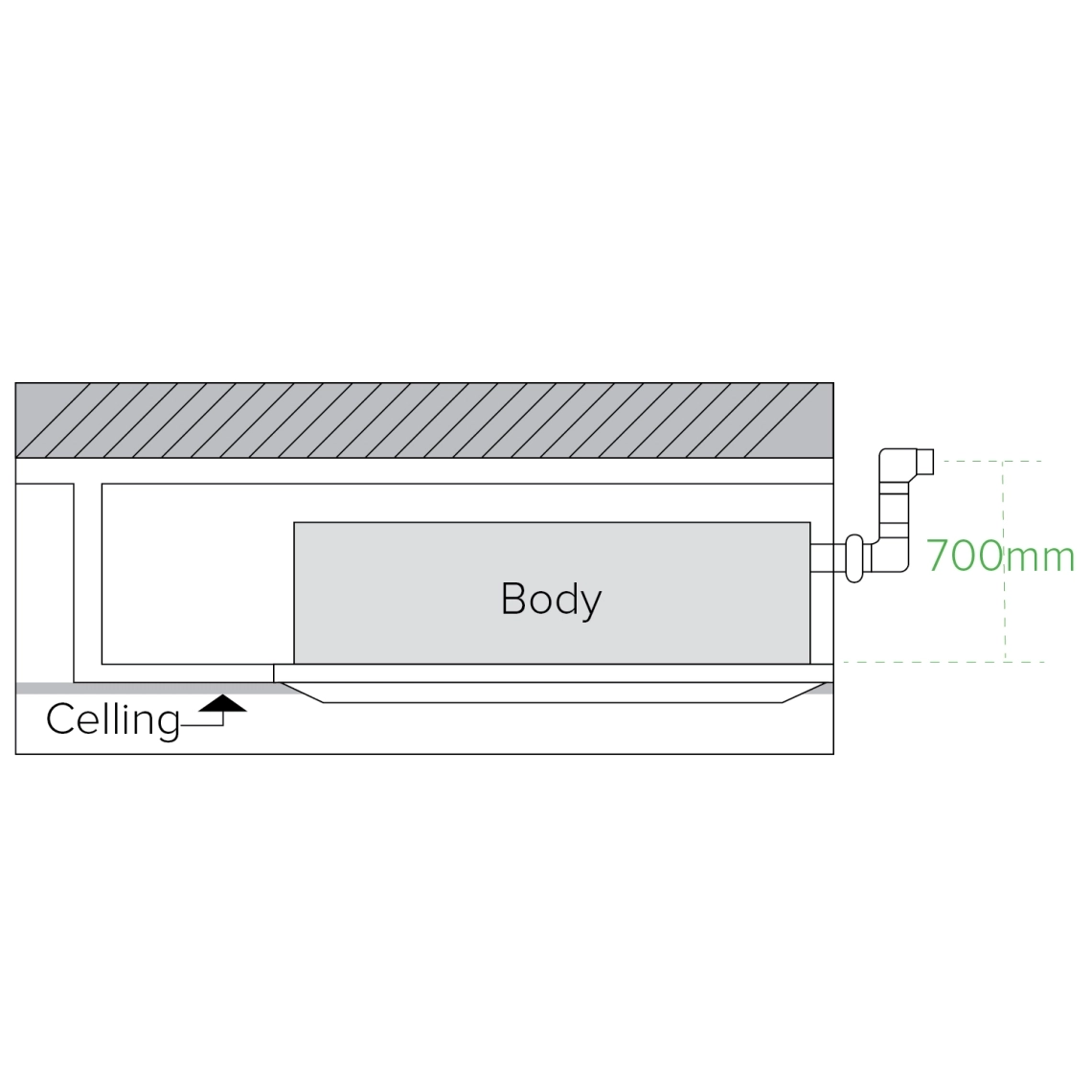

Standard condensate lift pump
Standard drain pump, the lift is 700mm and built-in float switch, convenient to cooperate with the actual situation to condensate water discharge air conditioning.
Quiet operation, comfortable experience
Adopt advanced aviation technology of THREE-DIMENSION AL spiral fan and turbine shaped air duct design, greatly reduce the internal resistance, large air volume, low noise, achieve silent operation.

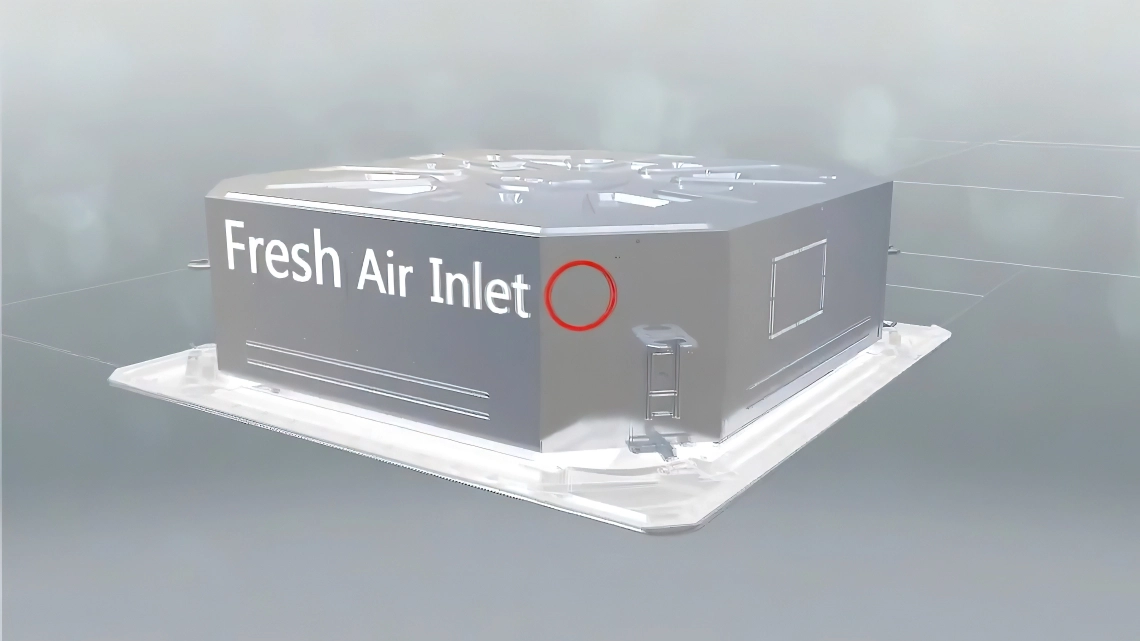

Set-up for duct air distribution
Fresh air’ knockout is incorporated in the chassis to allow fresh air introduction of up to 20% of nominal unit air flow without compromising the cooling capacity.

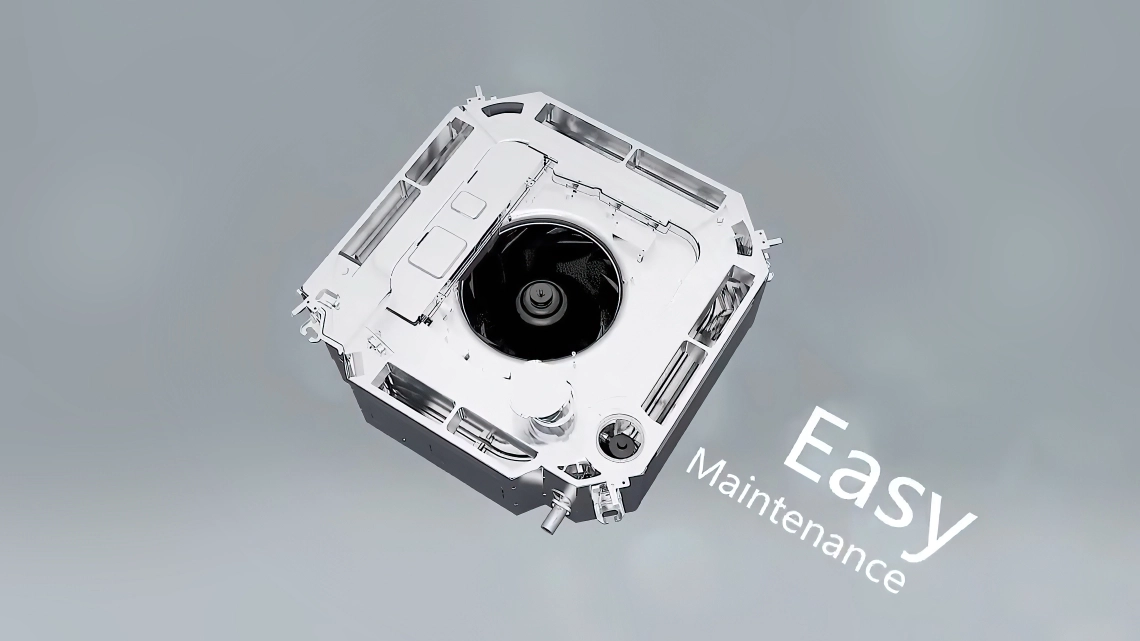

Easy maintenance
The unit is designed to provide easy access to all components and elements for quick and convenient maintenance and repair.

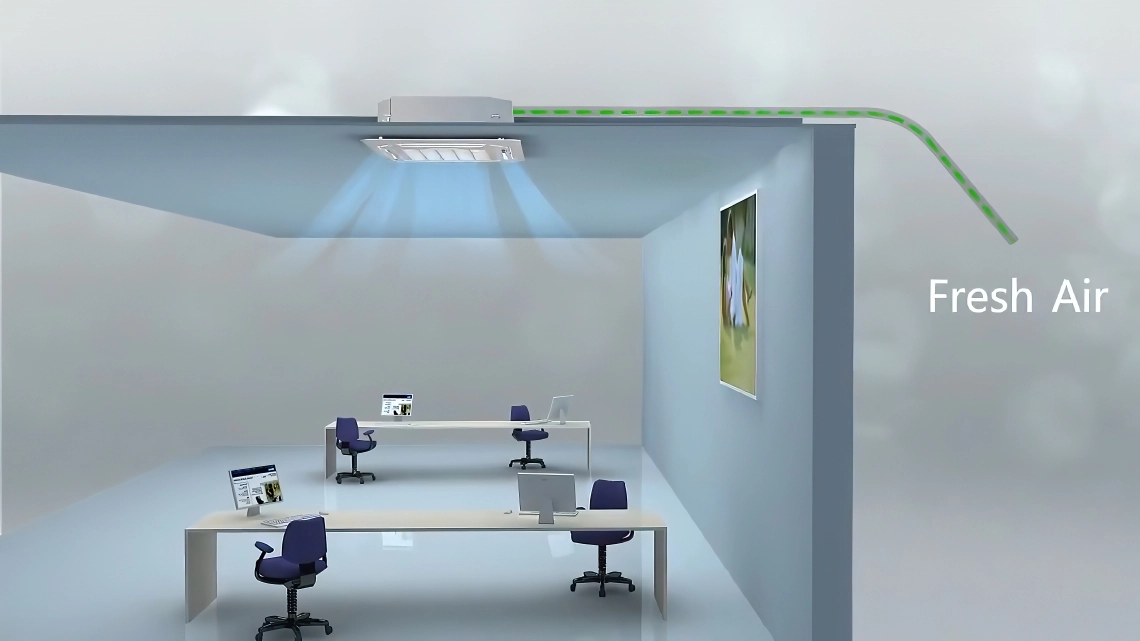

Fresh air
Fresh air intake design, leading in fresh air to improve indoor air quality anytime.
Remote on/off control (optional)
With a smart control board, air conditioners can be turned on/off via external control signal (e.g. room access card).
| Specifications | Units | MIBN-18X1EV1AA | MIBN-24X1EV1AA | MIBN-28X1EV1AA | MIBN-30X1EV1AA | MIBN-38X1EV1AA | MIBN-48X1EV1AA | MIBN-60X1EV1AA |
| Capacity | ||||||||
| Cooling | kW | 5,60 | 7,10 | 8,00 | 9,00 | 11,20 | 14,00 | 16,00 |
| Heating | kW | 6,30 | 8,00 | 9,00 | 10,00 | 12,50 | 16,00 | 18,00 |
| Electrical Parameters | ||||||||
| Power supply | Ph/V/Hz | 1/220-230/50/60 | 1/220-230/50/60 | 1/220-230/50/60 | 1/220-230/50/60 | 1/220-230/50/60 | 1/220-230/50/60 | 1/220-230/50/60 |
| Ventilation | ||||||||
| Air flow (H/M/L) | m3/h | 1000/810/620 | 1380/1190/1000 | 1380/1190/1000 | 2050/1860/1670 | 2050/1860/1670 | 2100/1910/1720 | 2100/1910/1720 |
| Sound pressure (H/M/L) |
dB(A) | 33/30/29 | 35/34/31 | 37/35/31 | 37/35/31 | 37/35/31 | 44/40/36 | 44/40/36 |
| Sound power (H/M/L) |
dB(A) | 47/44/43 | 49/48/45 | 51/49/45 | 51/49/45 | 51/49/45 | 58/54/50 | 58/54/50 |
| Installation – Dimensions | ||||||||
| Sound pressure (H/M/L) |
mm | 840x840x180 | 840x840x204 | 840x840x204 | 840x840x246 | 840x840x288 | 840x840x288 | |
| Packaged unit dimensions (WxDxH) |
mm | 983x983x268 | 983x983x290 | 983x983x290 | 983x983x331 | 983x983x373 | 983x983x373 | |
| Net/gross weight | Kg | 25,0/28,0 | 25,0/28,0 | 25,0/28,0 | 25,0/28,0 | 25,0/28,0 | 25,0/28,0 | 25,0/28,0 |
| Ø Liquid pipe | mm (inch) | 6,35 (1/4) | 9,52 (3/8) | 9,52 (3/8) | 9,52 (3/8) | 9,52 (3/8) | 9,52 (3/8) | 9,52 (3/8) |
| Ø Gas pipe | mm (inch) | 12,70 (1/2) | 15,88 (5/8) | 15,88 (5/8) | 15,88 (5/8) | 15,88 (5/8) | 15,88 (5/8) | 15,88 (5/8) |
| Panel | ||||||||
| Model | MB-950JB | MB-950JB | MB-950JB | MB-950JB | MB-950JB | MB-950JB | MB-950JB | |
| Panel Net dimensions (WxDxH) |
mm | 950x950x60 | 950x950x60 | 950x950x60 | 950x950x60 | 950x950x60 | 950x950x60 | 950x950x60 |
| Panel Packaging dimensions (WxDxH) |
mm | 992x992x115 | 992x992x115 | 992x992x115 | 992x992x115 | 992x992x115 | 992x992x115 | 992x992x115 |
| Panel Net/gross weight | Kg | 6,0/7,5 | 6,0/7,5 | 6,0/7,5 | 6,0/7,5 | 6,0/7,5 | 6,0/7,5 | 6,0/7,5 |

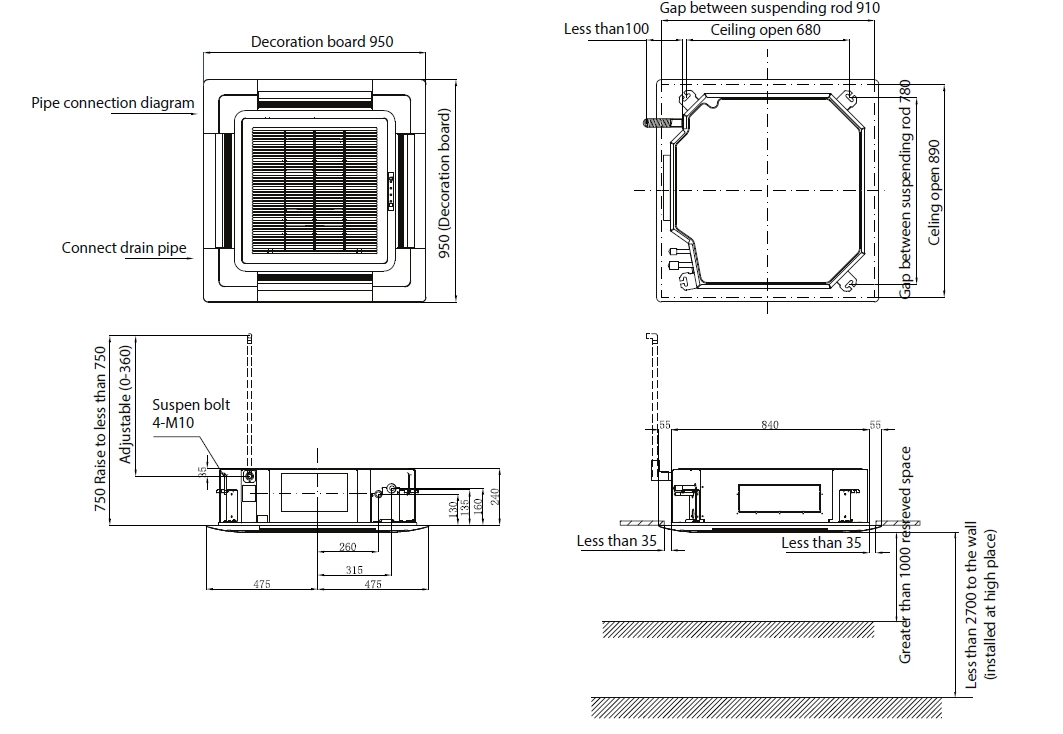

Dimensions
MIBN-18X1EV1AA MIBN-24X1EV1AA MIBN-28X1EV1AA
