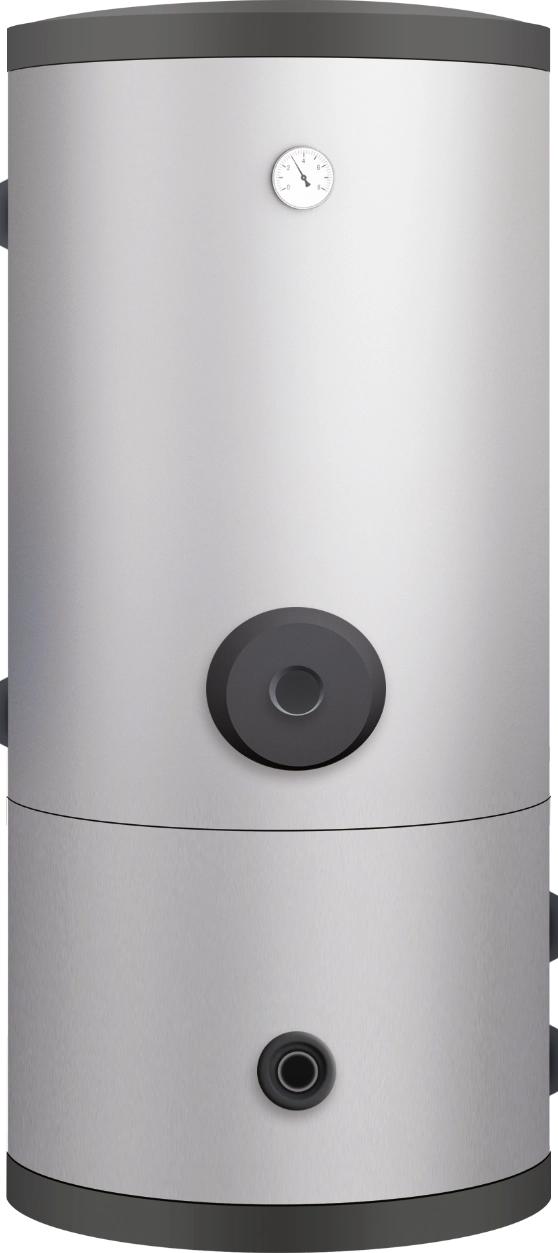

Combined storage tank MT 100/200 HP, MT 100/300 HP

Name: Combined storage tank MT 100/200 HP, MT 100/300 HP
Brand: Myсond - HVAC systems

The combined tank is a perfect solution for a heat pump-based system. It combines a buffer tank for a heating/cooling system and a hot water storage tank. Combined storage tanks provide space-saving solutions for modern boiler rooms

Want to buy or have questions?

Combined storage tank MT 100/200 HP, MT 100/300 HP

Mycond

Buffers and tanks

Key benefits

Combined a buffer tank for a heating system and a hot water storage tank
Simple and quick heat pump system installation
Buffer tank both for the heating and cooling
Huge heat exchange area - perfect for a heat pump. MT 100/300 HP has 4,39 m²heat exchange area.
Corrosion protection anode for DHW tank
Connection in buffer for additional immersion heater
Connection in DHW tank for additional immersion heater for anti legionella purpose

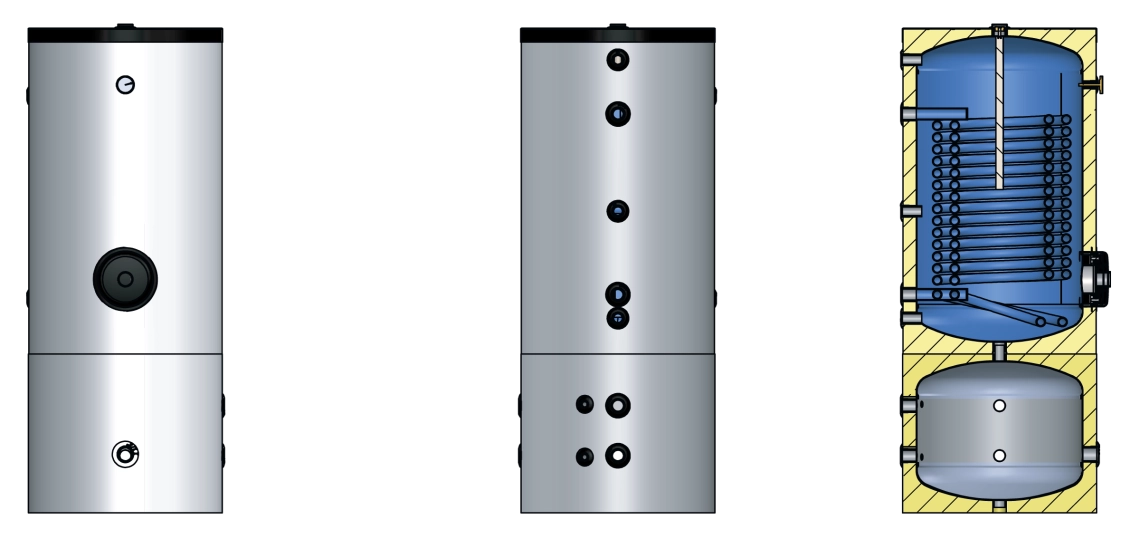

MyCOnd MT 100/200 HP, MT 100/300 HP The image shows the insulated design of a combined storage tank.

Parameters	Unit	MT 100/200 HP	MT 100/300 HP
Total water volume (buffer + DHW tank)	L	300	400
Total height (with thermal insulation)	mm	1500	1759
Diameter	mm	698	700
Buffer tank
Volume	L	100	100
Operation mode		Heating / cooling
Immersion heater		Yes (option)
Inlet/outlet connections	inch	1 ¼
Connection for immersion heater	inch	1 ½
Hot water storage tank
Volume	L	200	300
Heat exchange area	m²	2,9	4,39
Cold/hot water connection	inch	1
Heat exchanger connection	inch	1
Circulation connection	inch	1
Connection for immersion heater		1 ½
