Energy recovery
ventilation units
MVS***-DW series

The energy-saving ventilation unit is designed to supply filtered and heated fresh air into the room
Energy recovery <br/>ventilation units<br/> MVS***-DW series

Mycond MVS***-DW energy recovery ventilator are built with higher efficiency brushless DC motors, power consumption is reduced by up to 70%, resulting in significant energy saving.

300 ... 2600 m3/h
Air flow rate:
Eficient ventilation
Eficient ventilation

The unit supplies fresh air into the room,
while exhausting stale indoor air outside,
so that you enjoy the comfort of natural environment.

Highly efficient energy recovery
Highly efficient energy recovery

During ventilation, the built-in high-efficiency
heat exchanger recovers over 70% of energy from
exhaust air, using it to warm up the intake fresh air.

Perfectly quiet design
Perfectly quiet design

The unit has stylish appearance with a neatly moulded
body. Any operating noise is perfectly silenced thanks to
the micro-perforated anechoic structure with
excellent aerodynamic properties.

Air filtering and purification
Air filtering and purification

Well-engineered air filters inside the unit effectively
remove any pollutants from the intake air
to provide you with fresh and clean air.

By-pass function
By-pass function

The by-pass function enables natural ventilation
under suitable climatic conditions, which
can prolong the service life of the heat
exchanger.Also this mode allows to use free-cooling mode in spring/autumn and heat
exchanger defrosting in winter.

Air-proff design and easy maintenance

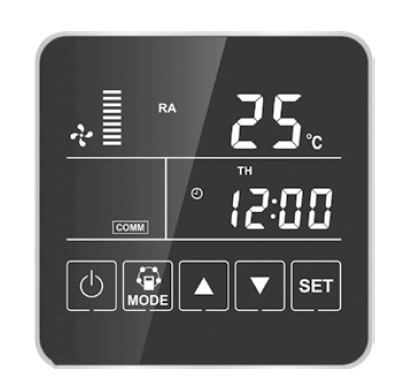

MYCOND Touch Screen (touch control panel)

Air-proff design and easy maintenance

The heat exchanger is connected via a moulded-in rail and sealed with special soft and dense packings. As a result, it is removable by hand and easy to maintain, while completely separating fresh and exhaust air flows to avoid cross-pollution.

Overall performance:

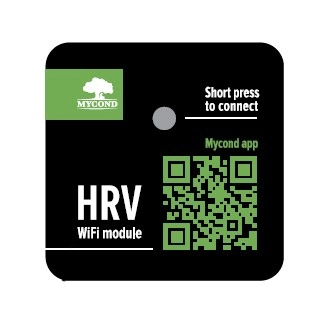

Wi-Fi module*

Overall performance:
  • BLDC fan motors
  • Fresh air supply (600 to 2600 m3/h)
  • Heat recovery: up to 75 %
  • Moisture recovery: up to 65 %
  • Air filtering and purification
  • Quiet and reliable operation
The units have standard feature set :
The units have standard feature set :
  • Fan speed control (10 speeds)
  • Four integrated temperature sensors
  • Recuperator freeze protection
  • Free cooling system
  • Intelligent recuperator defrosting system
  • Control over the external electric air heater
  • Weekly timer
  • Integrability with a building management system
Features:

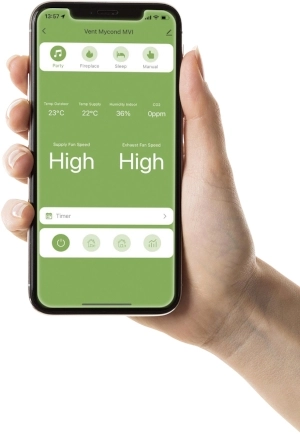

Download the free app for control*

Features:
  • Air flow ranging from 200 to 2000 m3/h
  • Energy recovery
  • Cross-flow heat exchanger
  • Quiet operation, DC motors
  • New aluminium-encased filters
  • Easy ceiling installation
  • By-pass function
  • High ESP design



* Available as an option

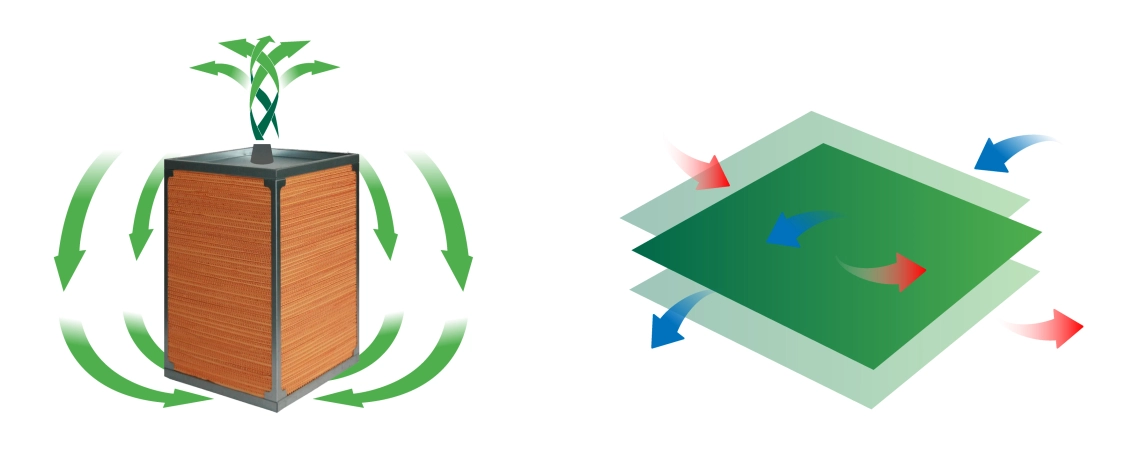

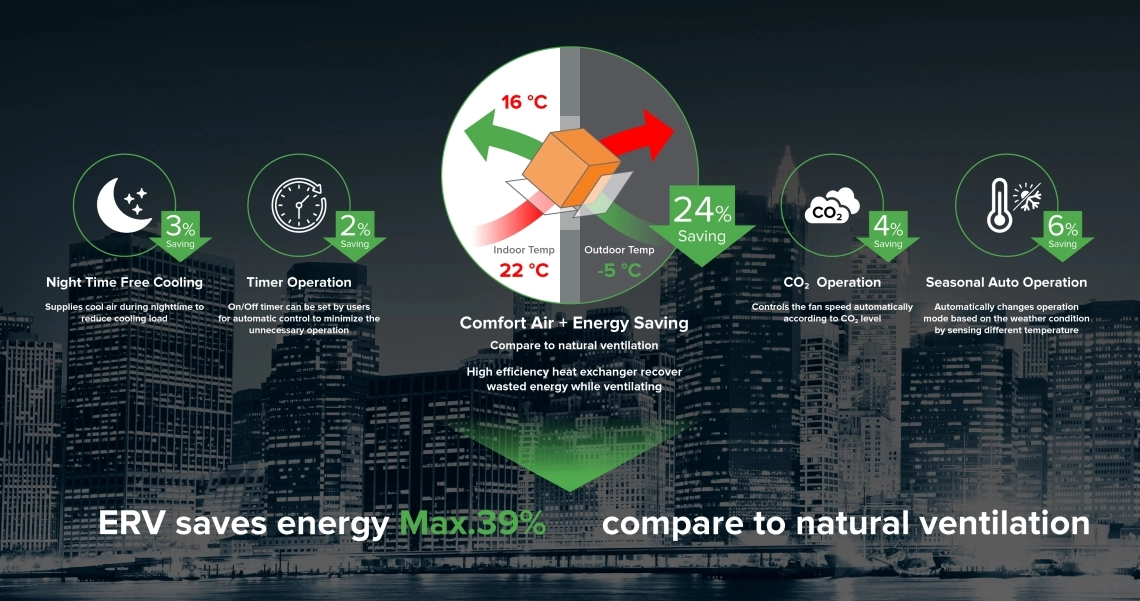

Higher efficiency with 3rd generation enthalpy exchanger

The 3rd generation enthalpy exchanger is made of the latest nanofiber structure to ensure higher efficiency. The heat exchange materials are mildew resistance and fire retardant. Crossflow enthalpy exchanger is built in this RV, heat recovery efficiency up to 82% in winter, the allowance of moisture exchange between fresh air and exhaust air make a comfortable indoor temperature and humidity.

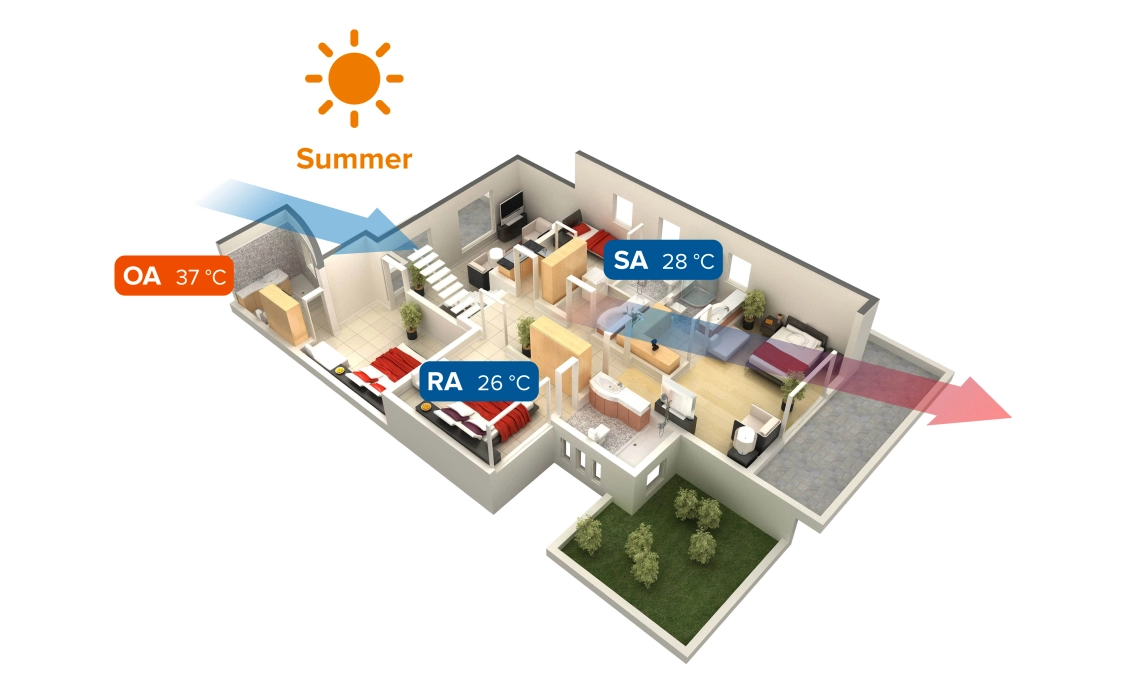

In summer, the heat recovery system saves electric power on air conditioning by returning part of the outdoor heat back outside.

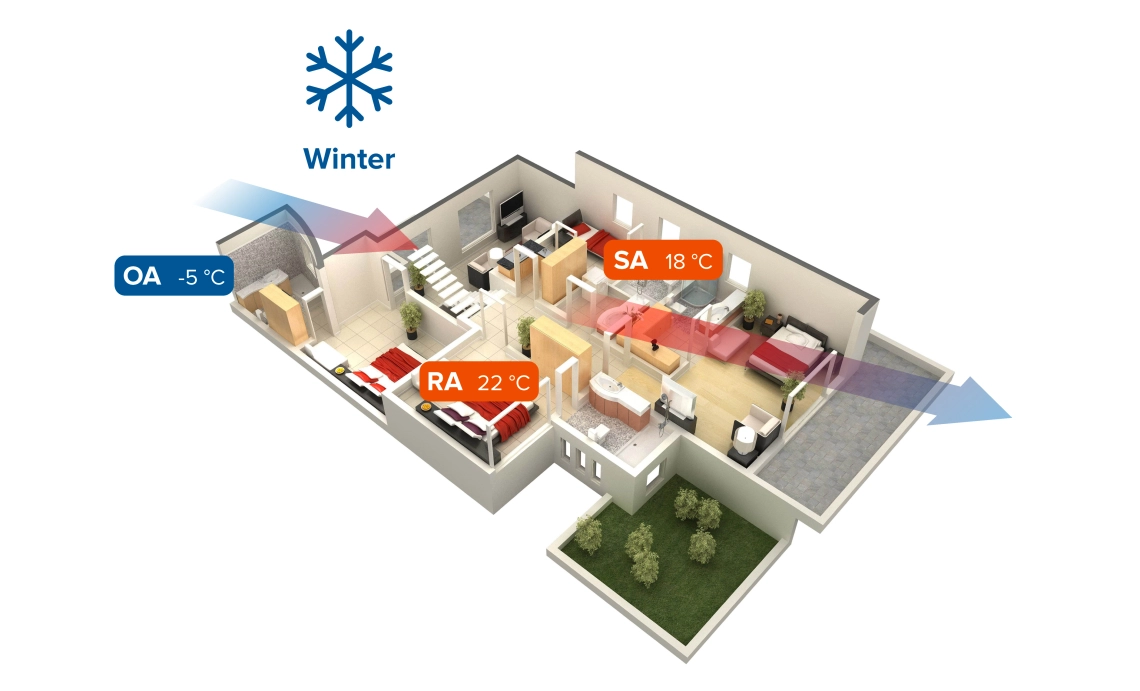

In winter, part of the indoor heat is returned into the room, providing considerable savings on space and air heating.





The data are given for reference. Much depends on the indoor air humidity, outdoor humidity, heat insulation of the room, heat insulation and length of the air ducts, etc.

Specifications Units MVS400-DW MVS500-DW MVS700-DW MVS900-DW MVS1100-DW MVS1400-DW MVS1600-DW MVS2200-DW MVS2800-DW
Air flow rate

m3/h

300 400 600 800 1000 1300 1500 2000 2600
External pressure Pa 85 88 97 100 86 90 72 77 81
Enthalpy efficiency, cooling % 57-70 57-70 59-74 55-66 58-70 56-68 63-71 60-68 56-68
Enthalpy efficiency, heating % 61-72 60-74 61-78 57-76 62-75 59-70 65-73 62-72 59-70
Heat transfer efficiency % 68-82 69-83 70-83 68-83 70-83 70-83 76-80 76-82 70-83
Noise level  dB(A) 34.5 37.5 39 41 42 43 50 51.5 53
Voltage   220-240 V / 1 phase / 50 Hz
Input power W 80 116 162 290 327 424 700 724 848
Power cable mm2 3×1.5 3×1.5 3x1.5 3x1.5 3x1.5 3x1.5 3x1.5 3x1.5 3x1.5
Control cable mm2 2×0.5 2×0.5 2x0.5 2x0.5 2x0.5 2x0.5 2x0.5 2x0.5 2x0.5
Control, standard   Yes (7-day clock)
Control (BMS), Modbus   Yes
Fan type   BLDC fan motor
Fan speed (supply air)   10-speed fan control
Fan speed (exhaust air)   10-speed fan control
Bypass   Yes (automatic within an adjustable range)
Defrosting   Yes (automatic within an adjustable range)
CO2 control   Additional sensor (on/off control within an adjustable range)
Fault alarm output contacts   Yes Yes Yes Yes Yes Yes Yes Yes Yes
Fire shutdown   Yes Yes Yes Yes Yes Yes Yes Yes Yes
Weight kg 25 31 34 53 61 71 106 122 142
Dimensions: LxWxH mm 744×599×270 744×599×270 867×902×280 1134×884×388 1134×1134×388 1193×1243×388 1134×884×776 1134×1134×776 1193×1243×776
Connection duct diameter mm 150 150 200 250 250 250 650×280 650×280 650×280
Dimensions

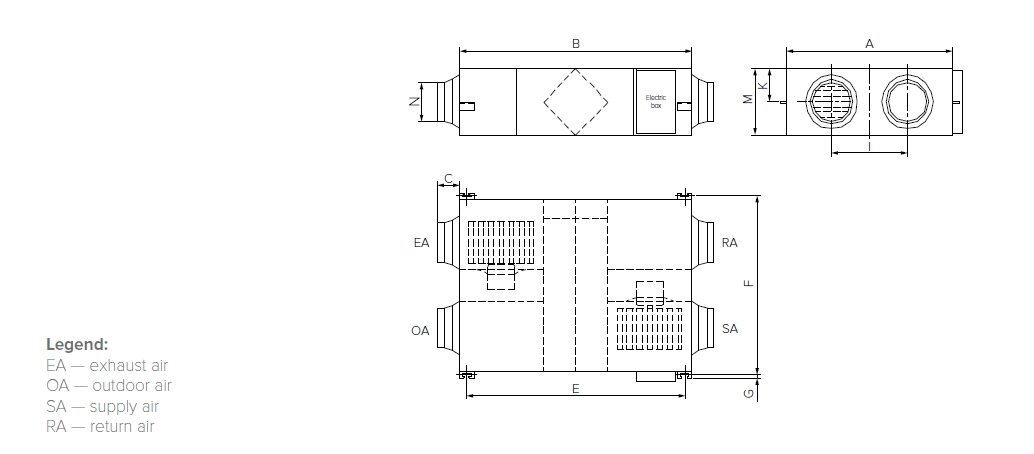

Ventilation units MVS400-DW – MVS500-DW
Dimensions



Модель A B C E F G I K M N
MVS400-DW 599 744 100 675 657 19 315 111 270 Ø144
MVS500-DW 804 744 100 675 862 19 480 111 270 Ø144

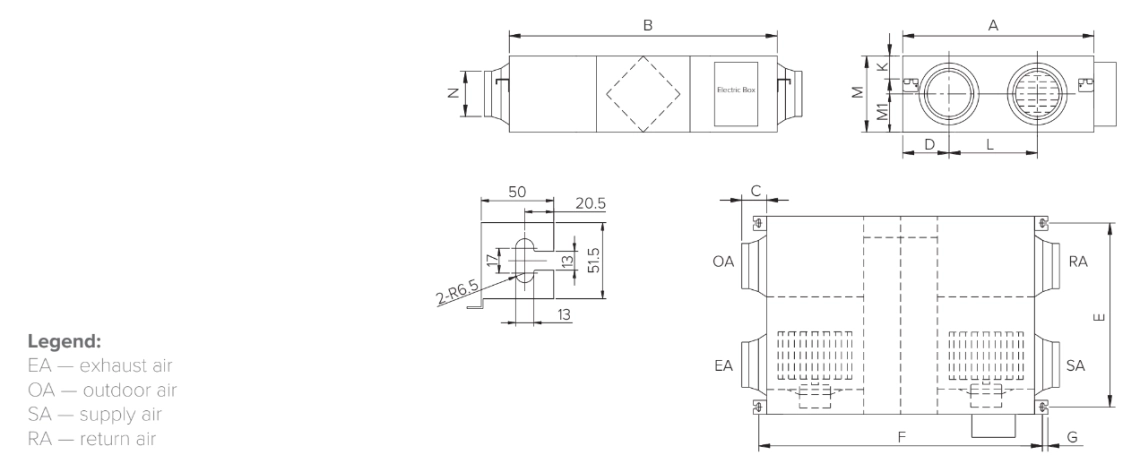

Dimensions
Ventilation units MVS700-DW – MVS1100-DW
Dimensions
Model A B C D E F G L K M M1 N
MVS700-DW 902 867 107 197 833.5 922 20.5 451.5 115.5 280 139.5 Ø194
MVS900-DW 884 1134 85 202 818 1189 20.5 378 128 388 194 Ø242
MVS1100-DW 1134 1134 85 202 1068 1189 20.5 628 128 388 194 Ø242

All measurements are in millimetres.

Dimensions

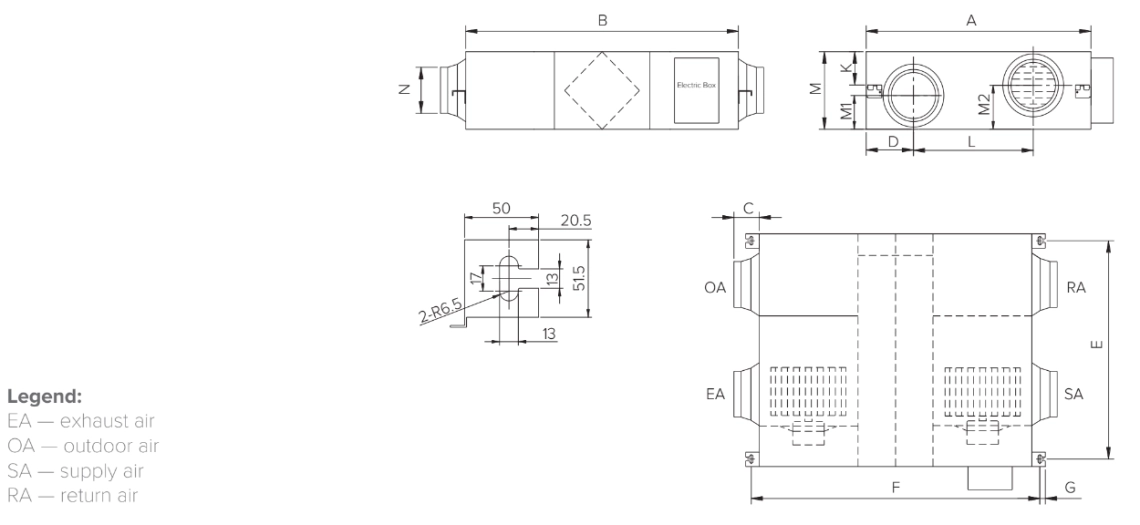

Ventilation unit MVS1400-DW
Dimensions



Model A B C D E F G L K M M1 M2 N
MVS1400-DW 1243 1193 85 241 1172.5 1248 20.5 629.5 133 388 191 241 Ø242

All measurements are in millimetres.

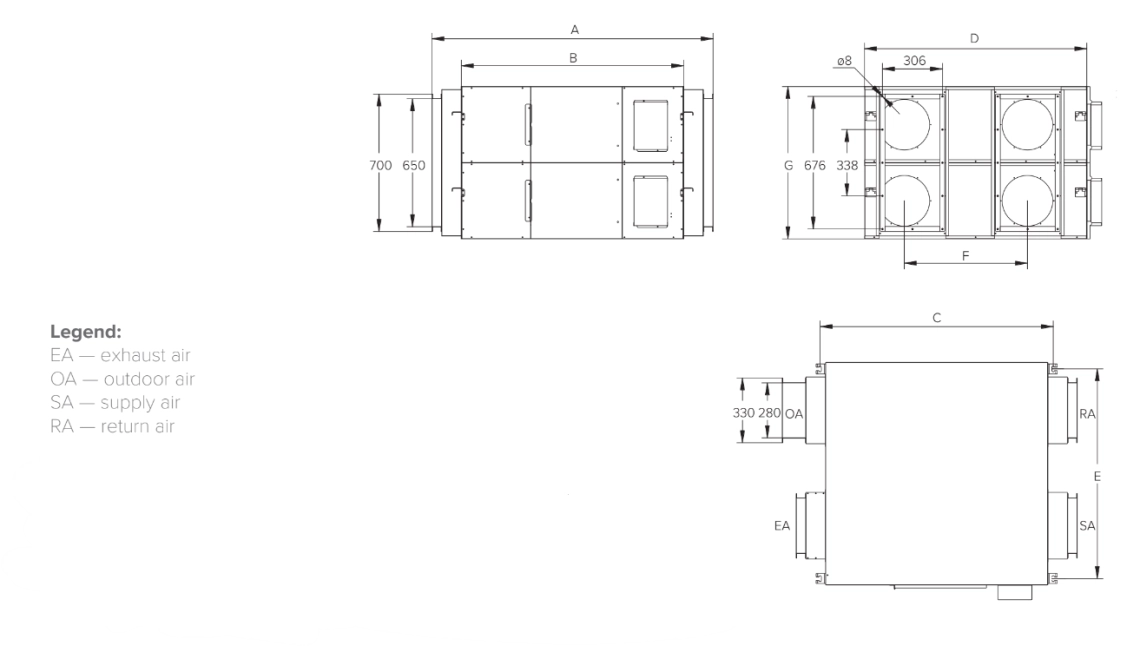

Dimensions
Ventilation units MVS1600-DW – MVS2800-DW
Dimensions



Model

A B C D E F G H L
MVS1600-DW 1434 1134 1189 884 818 378 776 650 280
MVS2200-DW 1434 1134 1189 1134 1068 628 776 650 280
MVS2800-DW 1493 1193 1248 1243 1173 629.5 776 650 280

All measurements are in millimetres.

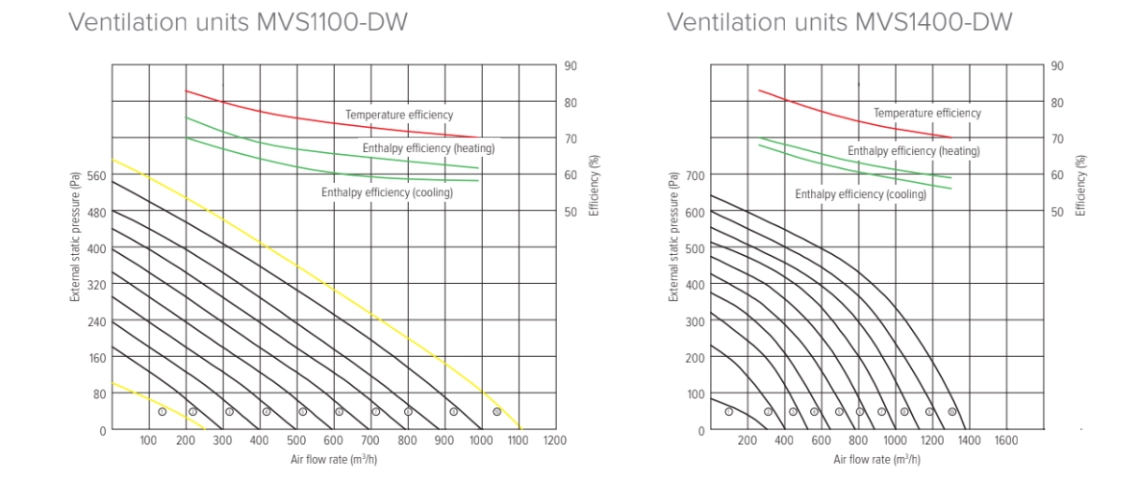

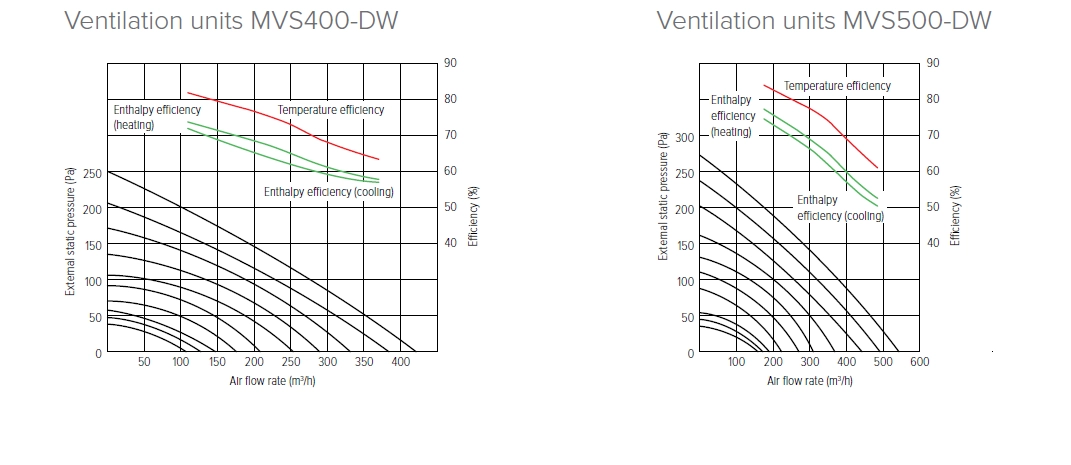

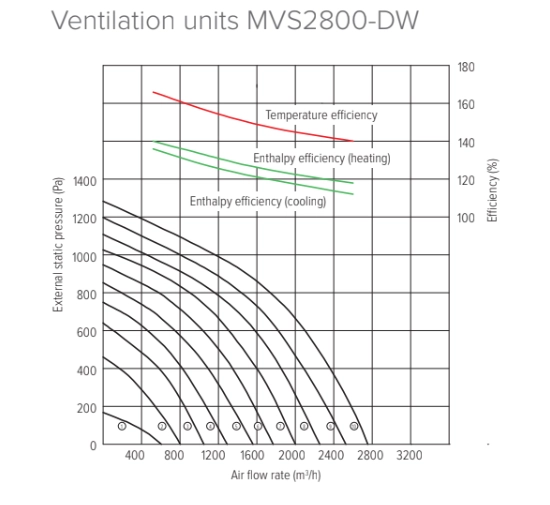

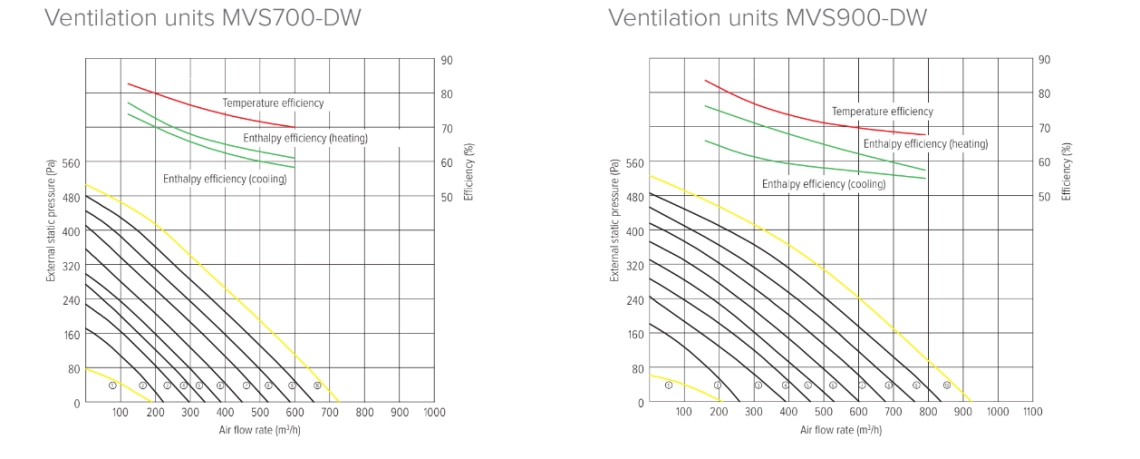

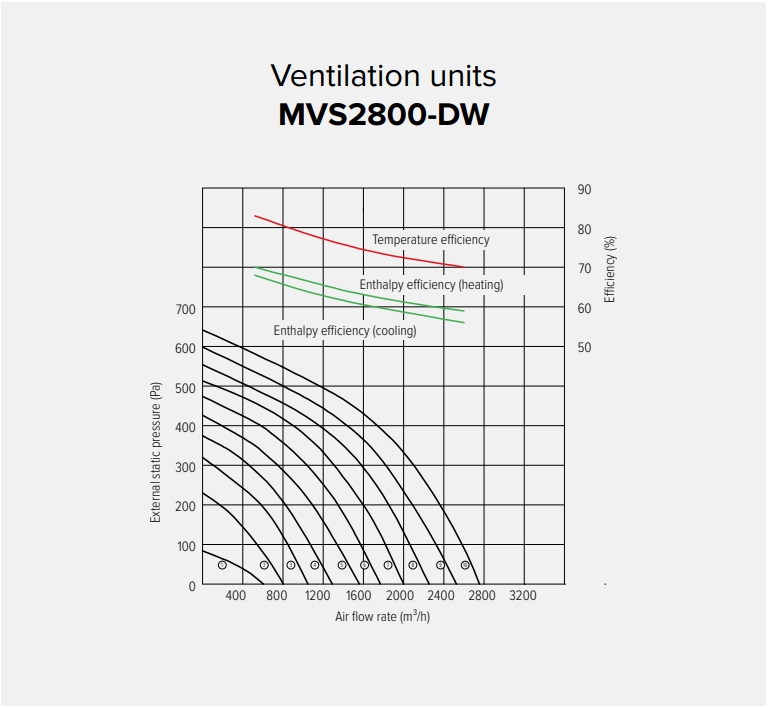

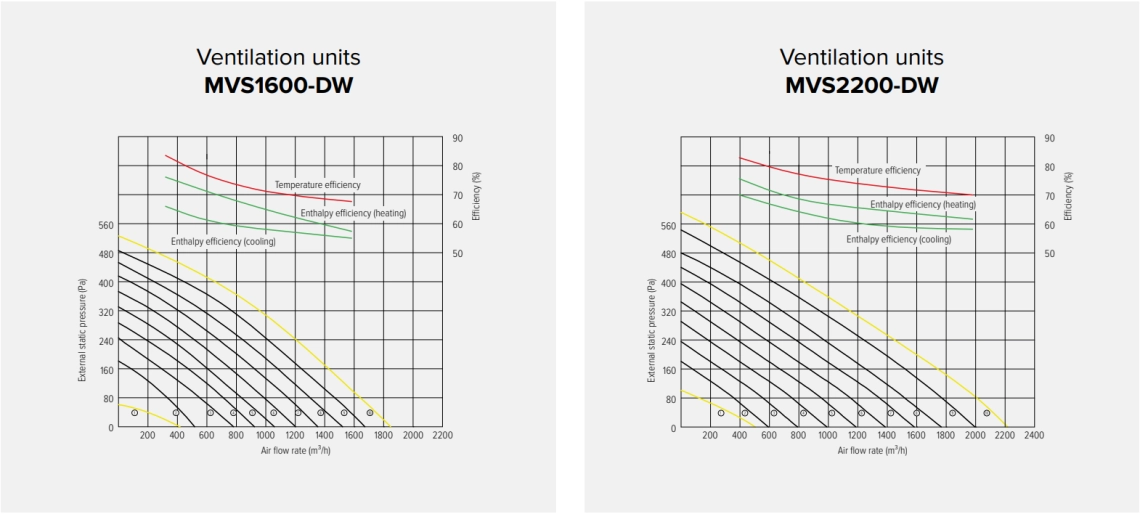

Perfomance parameters
Perfomance parameters
Perfomance parameters
Perfomance parameters
Perfomance parameters
Perfomance parameters
Perfomance parameters
Perfomance parameters
Perfomance parameters
Perfomance parameters
