Fan coil thermostat Mycond TRF-B2 white /black
Advantages
- Touch control

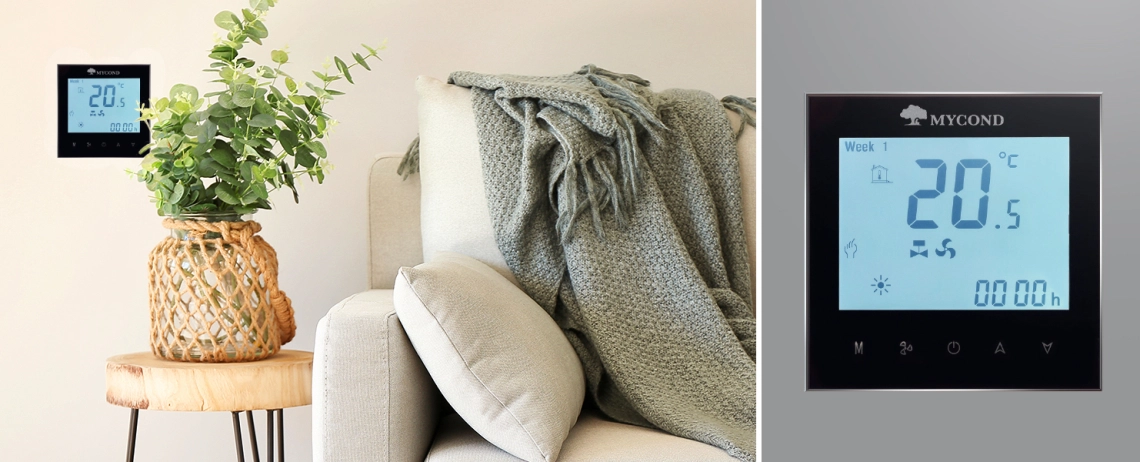

- Large display with blue backlighting and large font
- Temperature adjustment within +5 °C to +35 °C
- Programmable mode
- Lockable control buttons
- Fan control (3 speeds + Auto)
- Valve control*
- 3 work modes (ventilation, cooling or heating)
Additional modifications :
- MODBUS for connection to a building management system or a smart home
- Support of 2-pipe systems
- Support of 4-pipe systems
- Wi-Fi, wireless control by Mycond SmartApp on smartphone
- 0-10 V for fan and 24 V operating voltage
- 0-10 V for fan and 220 V operating voltage
- 0-10 V for valve control
* 1 or 2 valves for a 2- or 4-pipe system respectively

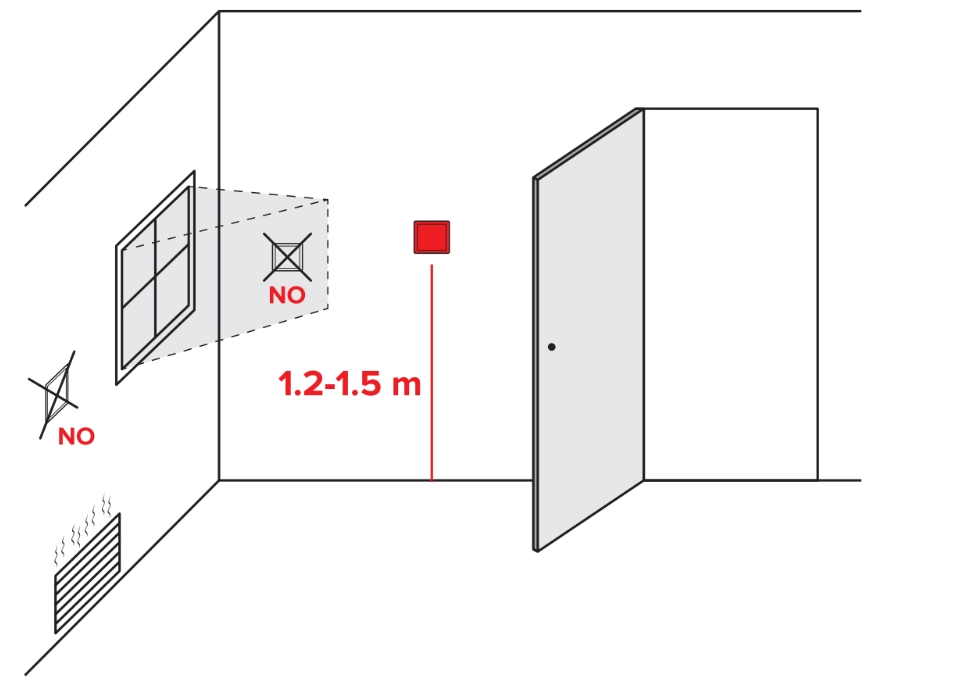

Installation tips
Install the thermostat at about 1.2-1.5 m above the floor in a well-ventilated
area with moderate ambient temperature.
Do not install in locations where the thermostat can be affected by:
- Drafts or dead spots behind doors and in corners
- Hot or cold air from ducts
- Sunlight or radiant heat from appliances
- Concealed pipes or chimneys
- Unheated/uncooled areas such as an outside wall behind the thermostat
