Heat recovery ventilation units MCFA series

The unit is equipped with twin high-efficiency EC fans and high-efficiency counter-flow heat exchangers (with efficiency up to 95%). The unit features a master control panel and a remote LCD controller panel (available as an option). The G4 / F7 filter (available as an option) effectively prevents ingress of outdoor dust, keeping the indoor air fresh and clean.

The heat recovery ventilation unit features twin high-efficiency EC fans and a counter-flow heat exchanger for optimized air purification and energy efficiency.

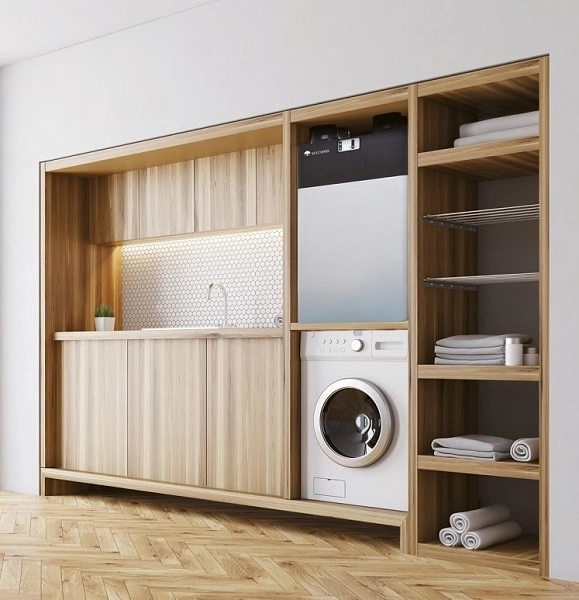

The unit takes in fresh outdoor air and creates a healthy, oxygen-rich, near zero-pollutant living environment with a suitable temperature and humidity through air exchange. With a very convenient layout and quiet operation, this reliable and user-friendly system will suit both a house and an apartment.

Overall perfomance:

  • Fresh air supply (250 – 500 m3/h)
  • Extremely efficient heat exchange (up to 95%)
  • EC fans with adjustable air flow rate
  • Highly efficient air purification
  • Quiet and reliable operation
  • Remote control

Feature set:

  • Automatic bypass function
  • Defrosting function
  • Humidity adjustment
  • Modbus control
  • Remote control via Mycond app*
  • Air filtering and purification
  • Flexible installation

Automatic bypass function of MCFA series heat recovery ventilation unit with remote control options.

* Soon available as an option
**Sold separately

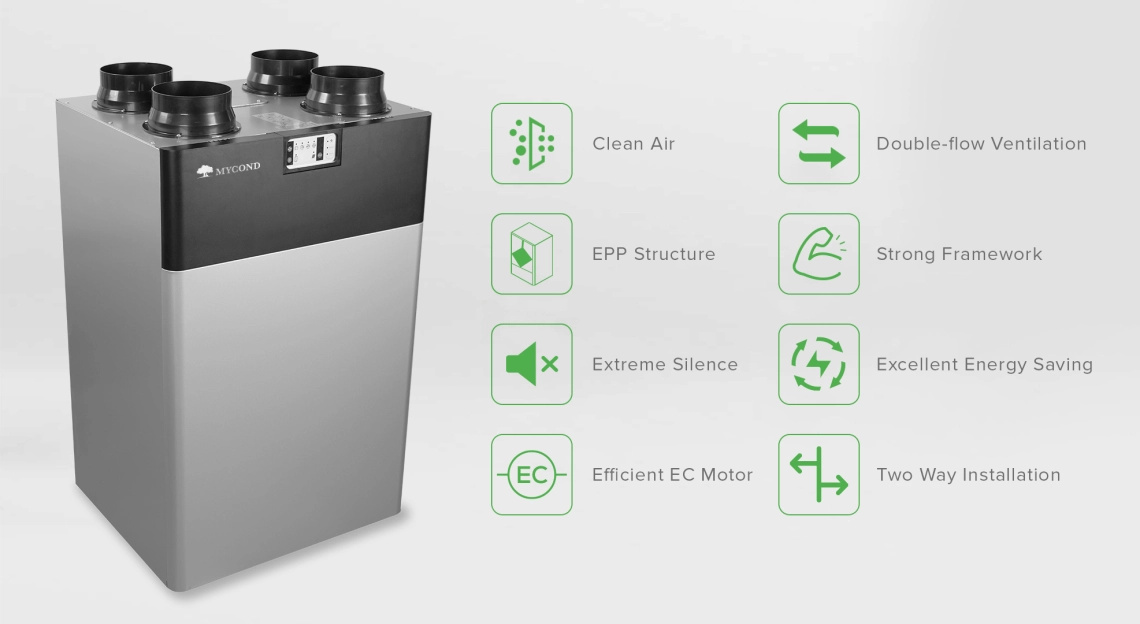

Benefits:

Clean air
High-efficiency air purification. G4 / F7 (optional) filters effectively prevent ingress of outdoor dust, pollen, and other particles to make the air fresh and clean.

Very quiet
The lowest operating noise level down to 31 dB(A).

Constant airflow EC fans
The unit is equipped with constant airflow EC fans. The EC fans can automatically adjust the airflow according to the set value regardless of different pipe lengths, presence of filter blocks, or any other pressure drop situations.

EPP structure
The internal structure is made of EPP, which is a lightweight, heat-preserving, silent, eco-friendly and odorless material. It has good air tightness and heat-insulating properties.

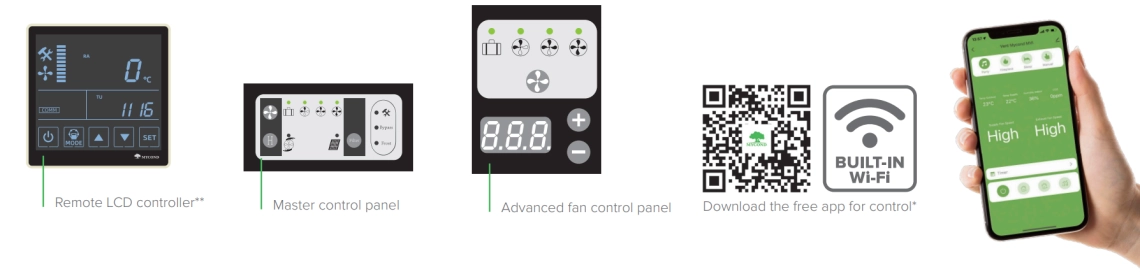

Versatile control functions
The controls include a main control, a commissioning control, and a remote LCD control panel (optional), enabling real time display, one-key operation, fault alarm, remote control and centralized control.


The MCFA series heat recovery ventilation unit with twin high-efficiency EC fans and counter-flow heat exchangers offers versatile control functions.

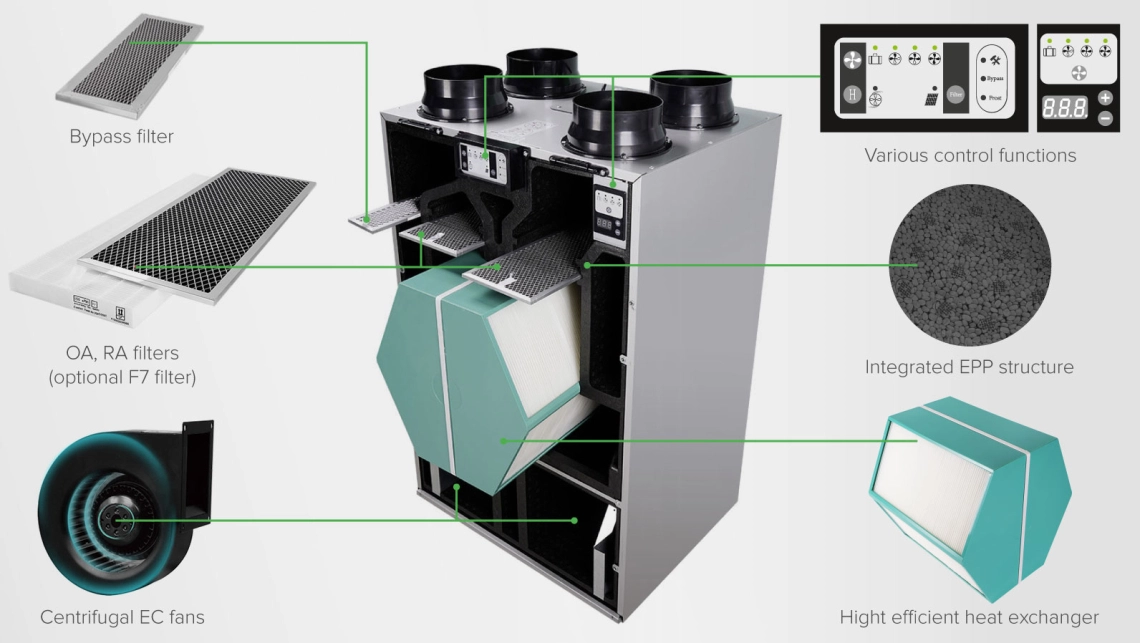

Diagram showing the high-efficiency EC fans and counter-flow heat exchangers of the MCFA ventilation unit.

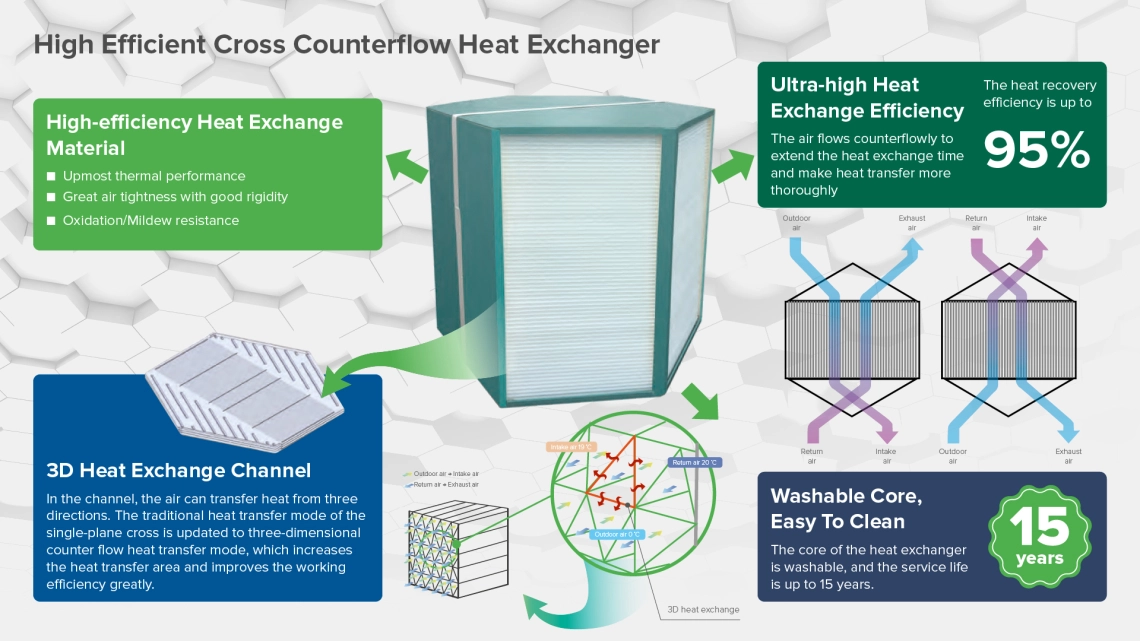

Enhanced energy saving

The unit is equipped with twin high-efficiency EC fans and high-efficiency counterflow heat exchangers (efficiency up to 95%).

High-efficiency ventilation unit with EC fans and counter-flow heat exchangers for clean, quiet, and controlled air supply.

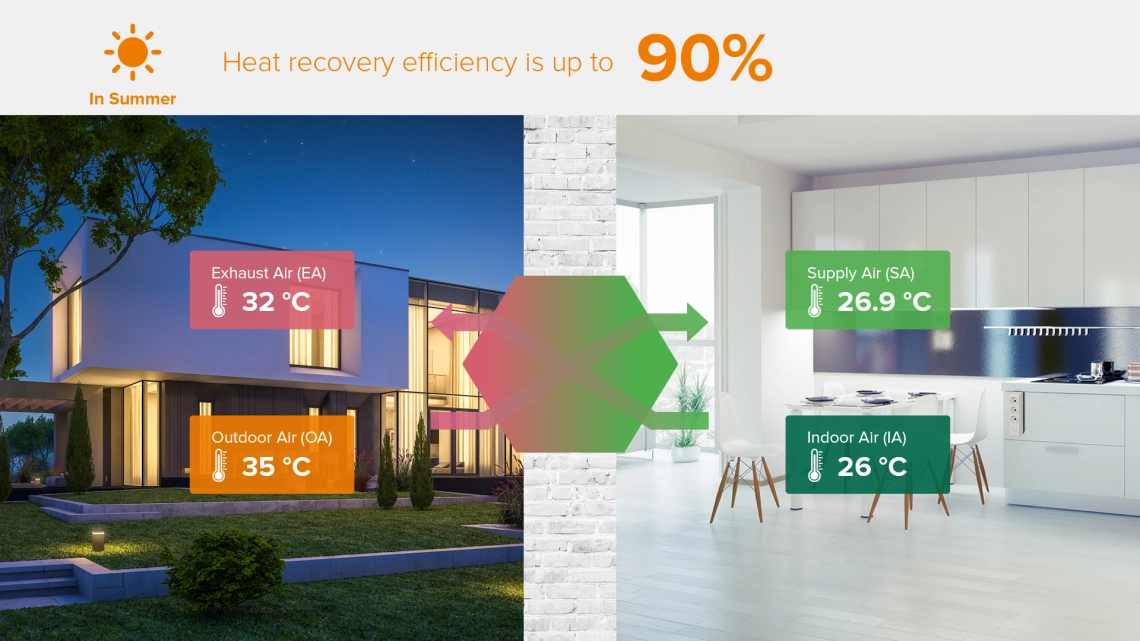

In summer, the heat recovery system saves electric power on air conditioning by returning part of the outdoor heat back outside.

High-efficiency MCFA ventilation unit with twin EC fans and counter-flow heat exchangers.

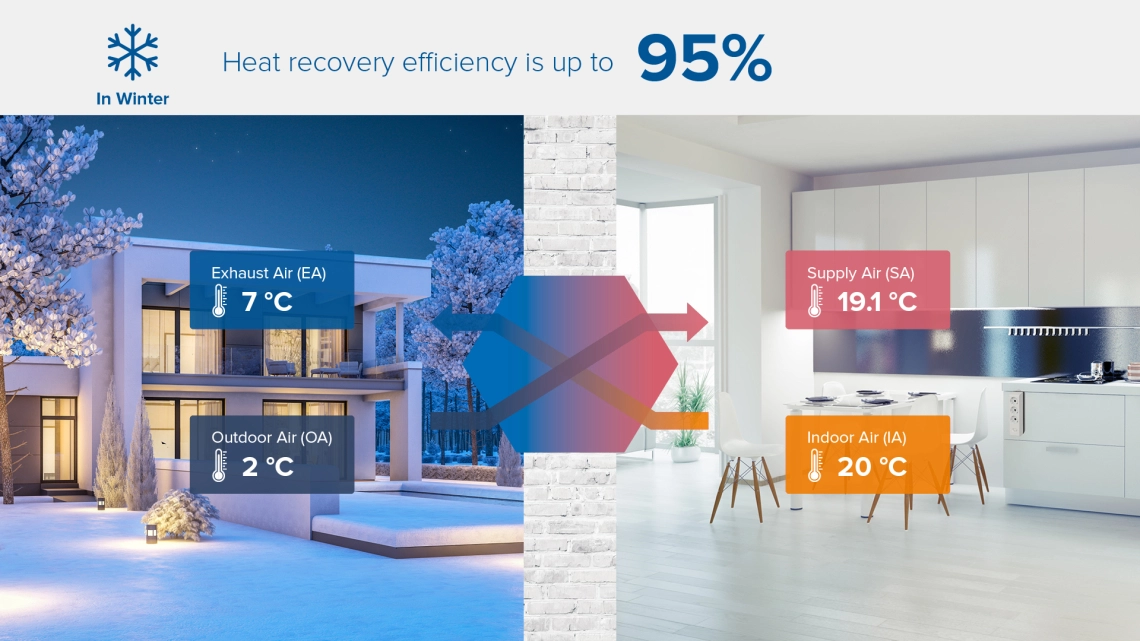

In winter, part of the indoor heat is returned into the room, providing considerable savings on space and air heating.

High-efficiency ventilation unit with EC fans for clean air supply and energy-saving heat exchange.

The data are given for reference. Much depends on the indoor air humidity, outdoor humidity, heat insulation of the room, heat insulation and length of the air ducts, etc.

Specifications Units MCFA 250 MCFA 350 MCFA 500
Power supply V/Hz 230 V / 50 Hz 230 V / 50 Hz 230 V / 50 Hz
Air flow rate m3/h 250 350 500
External static pressure Pa 130 150 160
Thermal efficiency at the rated air flow rate % 85 85 85
Max. thermal efficiency % 95 95 95
Rated capacity W 170 320 480
Noise level dB(A) 35 37 39
Energy efficiency class   A A A
Weight kg 40 40 50

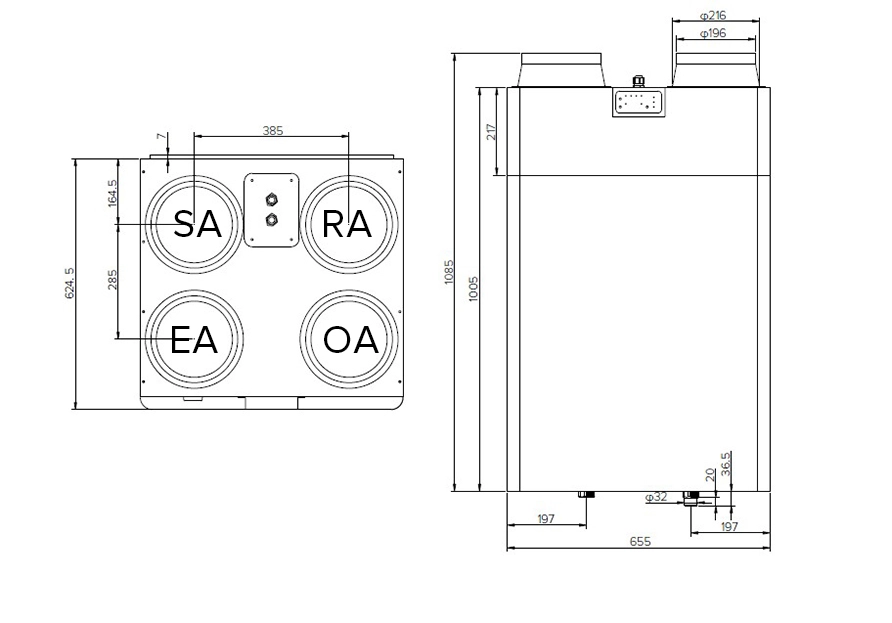

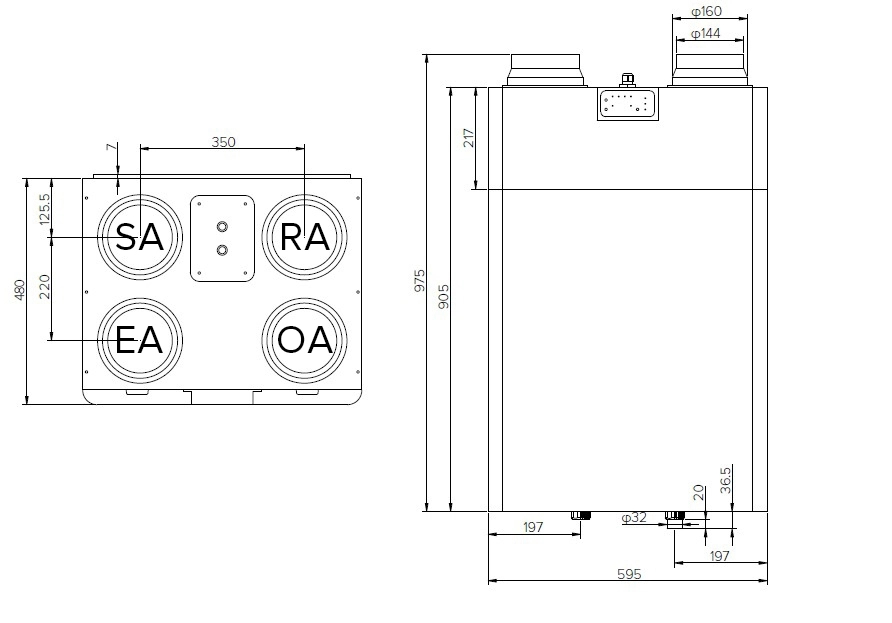

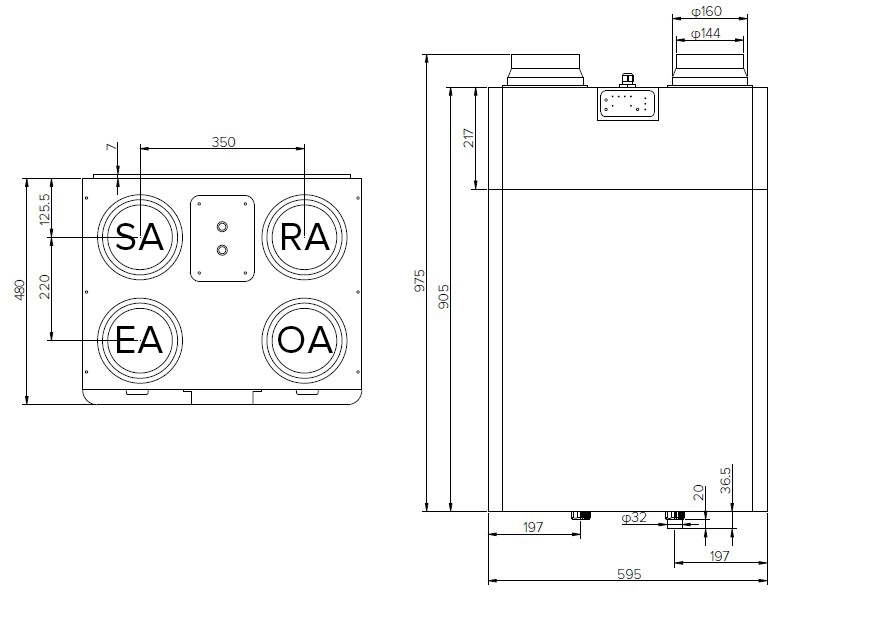

Dimensions

Ventilation units MCFA 250 — MCFA 350

  • EA - exhaust air
  • OA - outdoor air
  • SA - supply air
  • RA - return air


High-efficiency EC fans and heat exchangers in MCFA series unit for optimal air quality and energy efficiency.

Dimensions

Ventilation units MCFA 500

  • EA - exhaust air
  • OA - outdoor air
  • SA - supply air
  • RA - return air

The MCFA series unit with high-efficiency EC fans and heat exchangers for enhanced energy saving and air purification.
