Heating floor thermostat Mycond Block

Control of the heating operation is carried out using sensors: built-in — the temperature sensor of the air environment in the room and/or by the floor temperature sensor placed in the underfloor…

Want to buy or have questions?
Heating floor thermostat Mycond Block

Black Mycond Block heating floor thermostat with touch control and LED display.

Mycond Block thermostat controlling room air and floor temperature for efficient heating.

Control of the heating operation is carried out using sensors: built-in — the temperature sensor of the air environment in the room and/or by the floor temperature sensor placed in the underfloor heating system. This or that type of control is selected by the settings on the touch panel of the thermostat.
The possibility of programming the operating modes of the heating equipment for all days of the week provides savings on heating costs of up to 30 percent or more. Heating floor thermostat Mycond Block provides settings for water circuits against freezing and protection of underfloor heating circuits against overheating.
Purpose: control of heating equipment with electric heating up to 3.5 kW with a current load of up to 16 A or with systems of water circuits of a heated floor (3A). Іn addition to boiler equipment, Block thermostats can work with infrared heating systems, electric radiators or convectors.

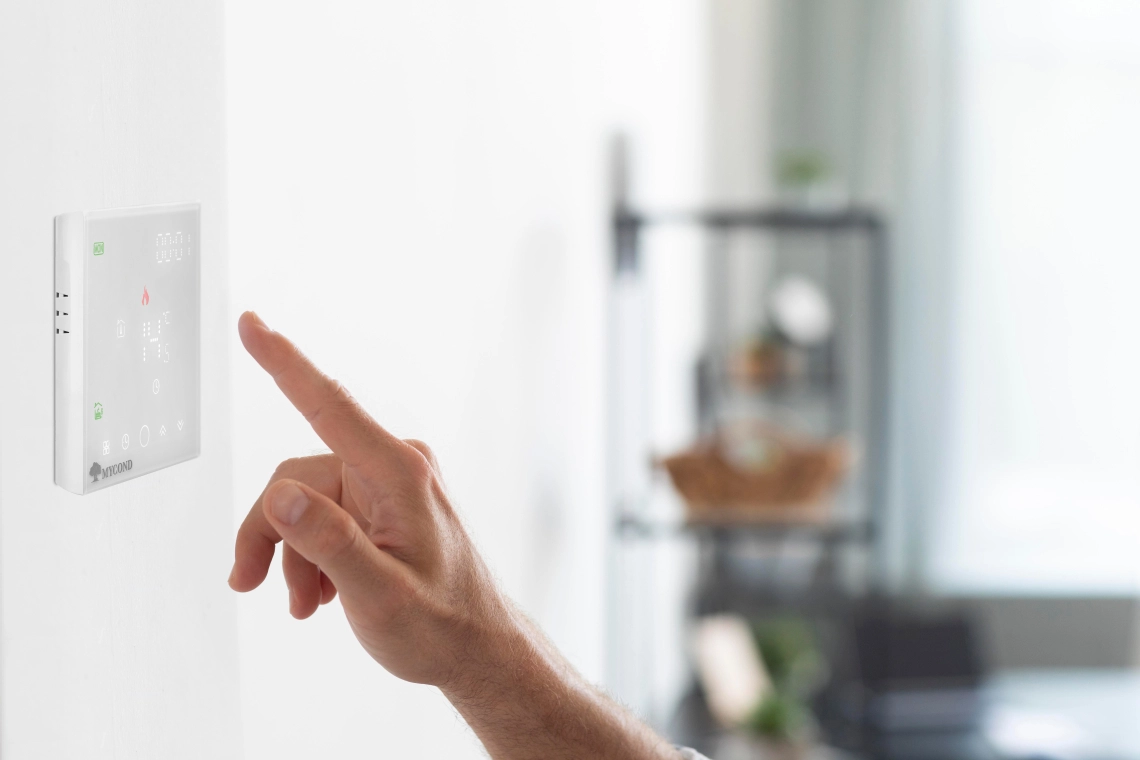

Control of the heating floor thermostat Mycond Block

 Уou can choose temperature control by two sensors, as well as by floor and air temperatures.
The set parameters of the air temperature are maintained with an accuracy of 1 °C, all settings are carried out using illuminated touch buttons located on the bottom panel.
By programming the weekly mode of operation, separately for working days and separately for weekend days, as well as setting the minimum air temperature for the economical mode for the time when no one is in the rooms, provide savings on heating costs in the amount of more than 30%.

You can control the operation of the thermostat through the Mycond SmartApp mobile application.
In addition, by setting the minimum temperature that can be maintained, you can not worry about the system freezing. And by setting the maximum possible floor temperature, you can protect the floor covering from overheating and damage. by default, protection against freezing assumes a temperature in the room not lower than 5 °C, and protection against overheating for the floor — at a temperature of 45 °C.


A Mycond Block thermostat with temperature settings displayed.

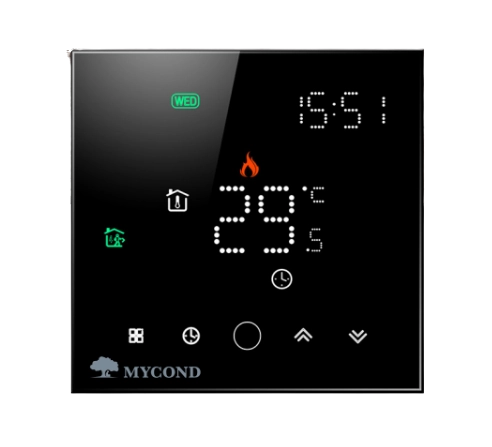

Indication of the thermostat

Display of Mycond Block thermostat showing room temperature, active mode, and control options.

The display of the Block thermostat shows:

  • On/Off network indicators;
  • configured and current air temperature in the room;
  • indicators of the active mode of operation — automatic or manual;
  • indicators of the selected control option — by air temperature sensor and/or with floor temperature control;
  • indicators of the day of the week and blocking of the setting buttons;
  • hour phase indicator during automatic mode;
  • indicator of the current time of day.

At the bottom of the panel there are touch buttons for setting modes and menu transitions. These buttons are backlit.
With the buttons for automatic mode, you can choose time ranges and the desired air temperature separately for weekdays and weekends.
Adjustments are made according to the sequence outlined in the Installation and Adjustment Instructions.

Benefits

  • Touch control
  • Large white LED display
  • Glass display cover
  • Body material: fire-resistant plastic
  • Dual temperature control (air and floor temperature)
  • Programmable mode
  • Freeze and overheat protection
  • Floor temperature sensor included
  • Lockable control buttons

    ТУТ ПОВИННИЙ БУТИ КРУТЯЩИЙСЯ ТЕРМОСТАТ ЧОРНОГО КОЛЬОРУ


    Additional modifications :

  • Wi-Fi, wireless control via Mycond SmartApp on smartphone

    Heating floor thermostat Mycond Block with dual temperature control and touch panel.

Specifications

  • Accuracy of measurement ± 1 °C
  • Adjustable temperature range: 5-35 °C
  • Power consumption: < 3 W
  • Error: 1%
  • Power supply: AC95~240V 50~60Hz
  • Load: up to 16A
  • Wi-Fi 802.11b
  • Dimensions: 86 x 86 x 13.3 mm
  • Installation box: 60 mm
  • Operating conditions: operating temperature range from 0 to 45 °C, relative air humidity from 5 to 90%

Installation of the heating floor thermostat Mycond Block

Heating floor thermostat is intended for wall installation in a mounting box and in-wall installation of an external sensor and network wires. Аn external sensor for monitoring the temperature of the floor is placed in the structure of the heating floor, equidistant between the adjacent turns of the water circuit or cable heating system. The place of installation is chosen away from door and window openings, from heating radiators or areas warmed by the sun.

Heating floor thermostat Mycond Block will help not only provide heat in the house in advance before your arrival, but also significantly save your resources during the heating season.

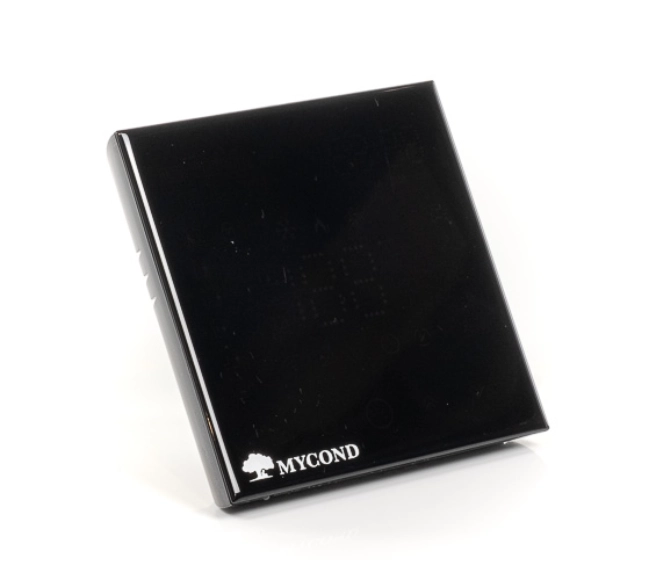

Black Mycond Block thermostat with touch controls and large LED display for heating management.

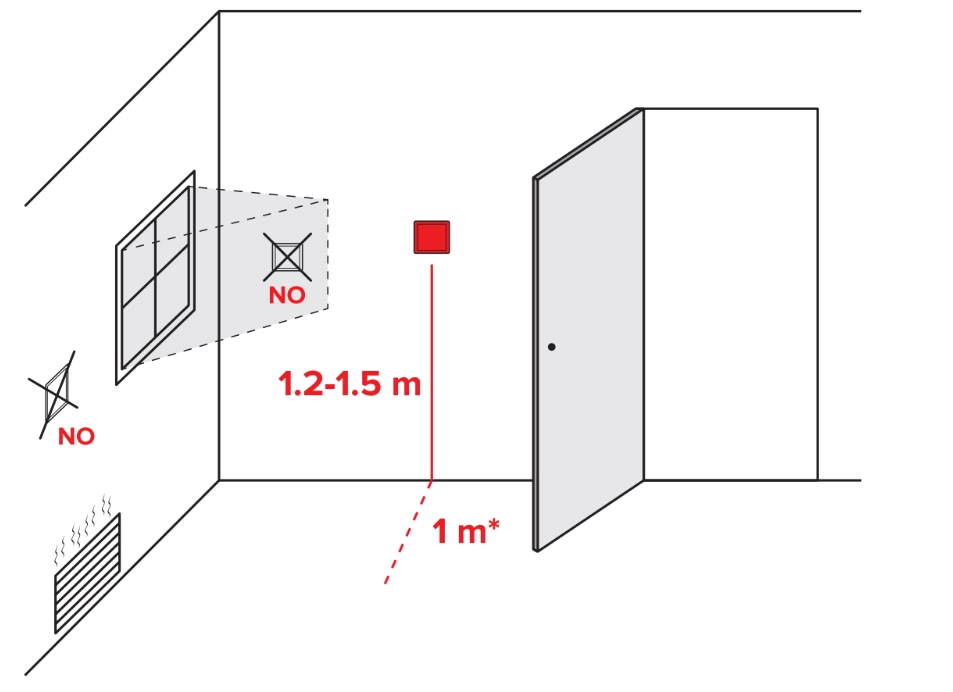

Installation tips

Install the thermostat at about 1.2-1.5 m above the floor in a well-ventilated
area with moderate ambient temperature.

 Do not install in locations where the thermostat can be affected by:

  • Drafts or dead spots behind doors and in corners
  • Hot or cold air from ducts
  • Sunlight or radiant heat from appliances
  • Concealed pipes or chimneys
  • Unheated/uncooled areas such as an outside wall behind the thermostat
