Heating floor thermostat Mycond New Touch

Advantages

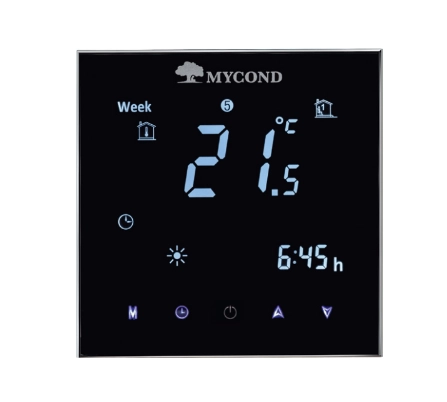

• Touch control
• Large dark display with backlighting
• Temperature adjustment within +5 °C to +35 °C
• Dual temperature control (air and floor temperature)
• Programmable mode
• Freeze and overheat protection
• Floor temperature sensor included
• Lockable control buttons

Additional modifications :

• Wi-Fi, wireless control via Mycond SmartApp on smartphone

Specifications

• Accuracy of measurement ± 1 °C
• Adjustable temperature range: 5-35 °C
• Power consumption: < 3 W
• Error: 1%
• Power supply: AC95~240V 50~60Hz
• Load: up to 16A
• Wi-Fi 802.11b
• Dimensions: 86 x 86 x 13.3 mm
• Installation box: 60 mm
• Operating conditions: operating temperature range from 0 to 45 °C, relative air humidity from 5 to 90%

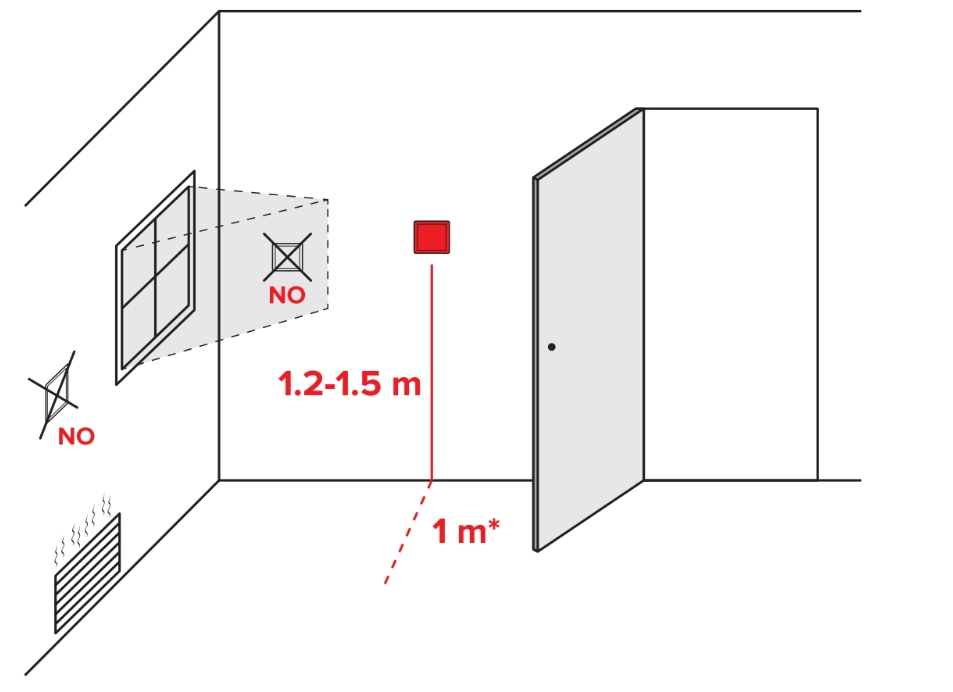

Installation tips

Install the thermostat at about 1.2-1.5 m above the floor in a well-ventilated
area with moderate ambient temperature.

 Do not install in locations where the thermostat can be affected by:

• Drafts or dead spots behind doors and in corners
• Hot or cold air from ducts
• Sunlight or radiant heat from appliances
• Concealed pipes or chimneys
• Unheated/uncooled areas such as an outside wall behind the thermostat
