Medium ESP duct fan coil units MCFC series

An air conditioning system that works both for cooling and heating. The system creates a comfortable microclimate in offices, industrial premises, commercial and residential buildings, hotels, banks, administrative buildings, etc.
Medium ESP duct fan coil units MCFC series

Wide range of capacities. The fan coil has cooling, heating and ventilation functions. It is designed to maintain comfortable conditions in residential, office, commercial and other premises.

1,2 ... 12,6 kW
Cooling capacity :
1,8 ... 18,9 kW
Heating capacity :

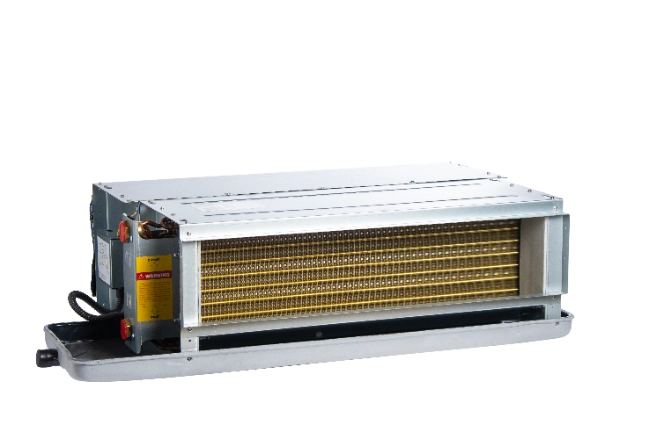

Features and advantages:
  • Optimized heat exchanger with increased heat exchange area ensures high fan coil efficiency.
  • Centrifugal fan with metal blades and galvanized steel casing ensure high reliability and fire resistance.
  • 2-pipe fan coil with 3-row heat exchanger.



  • Choice of AC or DC motor type.
  • Left-hand pipe connection.
  • Drain pan with an inclination ensures safe and complete drainage of condensate from its lowest point.
  • Static pressure up to 50 Pa.
  • Low power consumption.
  • Low noise level.
  • ModBus control (as an option).
  • Wi-Fi control (as an option).
  • Thermostat is purchased separately.

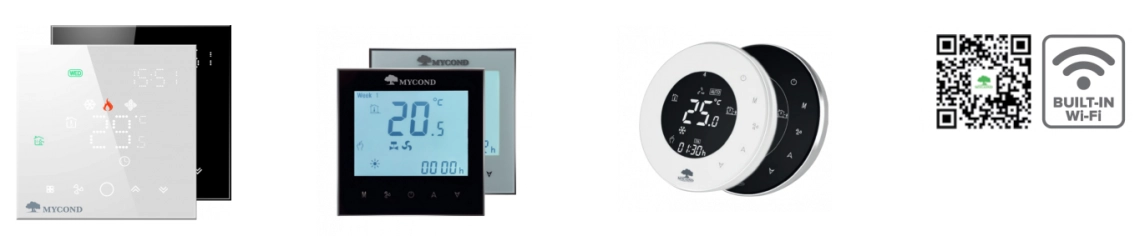

Fan coil thermostat Mycond Block
Fan coil thermostat Mycond  TRF-B2 white /black
Fan coil thermostat Mycond ORB Fan
The optimal set of automation for affordable and simple control by smartphone

Specifications Units MCFC-034 MCFC-051 MCFC-068 MCFC-085 MCFC-102
Air flow rate, high / medium / low. m3/h 340/255/170 510/382/255 680/510/340 850/638/425 1020/765/510
Cooling capacity, high / medium / low. W 1800/1440/1170 2700/2160/1755 3600/2880/2340 4500/3600/2925 5400/4320/3510
Heating capacity, high / medium / low. W 2700/2160/1755 4050/3240/2633 5400/4320/3510 6750/5400/4388 8100/6480/5265
External static pressure Pa. 50 50 50 50 50
Noise level dB(A) 42 44 46 47 49
Water consumption m3/h 0,39 0,55 0,7 0,82 0,91
Drop in water pressure kPa 12 16 20 23 26
  Number of fans   1 2 2 2 2
Fan motor Number of engines   1 1 1 1 1
  Low speed W 49 66 84 100 118
Maximum working pressure MPa 1,6 1,6 1,6 1,6 1,6
Inlet / outlet water pipe mm Rc3/4”(DN20) Rc3/4”(DN20) Rc3/4”(DN20) Rc3/4”(DN20) Rc3/4”(DN20)
Drain pipe mm R3/4”(DN20) R3/4”(DN20) R3/4”(DN20) R3/4”(DN20) R3/4”(DN20)
Net weight kg 17 19 20 22 25





Specifications Units MCFC-136 MCFC-170 MCFC-204 MCFC-238
Air flow rate, high / medium / low. m3/h 1360/1020/680 1700/1275/850 2040/1530/1020 2380/1785/1190
Cooling capacity, high / medium / low. W 7200/5760/4680 9000/7200/5850 10800/8640/7020 12600/10080/8190
Heating capacity, high / medium / low. W 10800/8640/7020 13500/10800/8775 16200/12960/10530 18900/15120/12285
External static pressure Pa. 50 50 50 50
Noise level dB(A) 50 52 54 56
Water consumption m3/h 1,34 1,59 1,8 2,07
Drop in water pressure kPa 40 40 40 50
  Number of fans   3 4 4 4
Fan motor Number of engines   1 1 1 1
  Low speed W 174 210 250 300
Maximum working pressure MPa 1,6 1,6 1,6 1,6
Inlet / outlet water pipe mm Rc3/4”(DN20) Rc3/4”(Ду20) Rc3/4”(DN20) Rc3/4”(DN20)
Трубка для конденсату mm R3/4”(DN20) R3/4”(DN20) R3/4”(DN20) R3/4”(DN20)
Net weight kg 31 37 42 44



Note.
1. The cooling capacity was tested under the following conditions: inlet air temperature 27°C dry bulb / 19.5°C wet
bulb; inlet/outlet water temperature 7°C / 12°C.
2. The heat output was tested under the following conditions: inlet air temperature 21°C dry thermometer; inlet
water temperature 60/50°C.
3. The noise level was tested in a completely echo-free room.
4. These performance and flow rates are given at a static pressure of 30Pa.

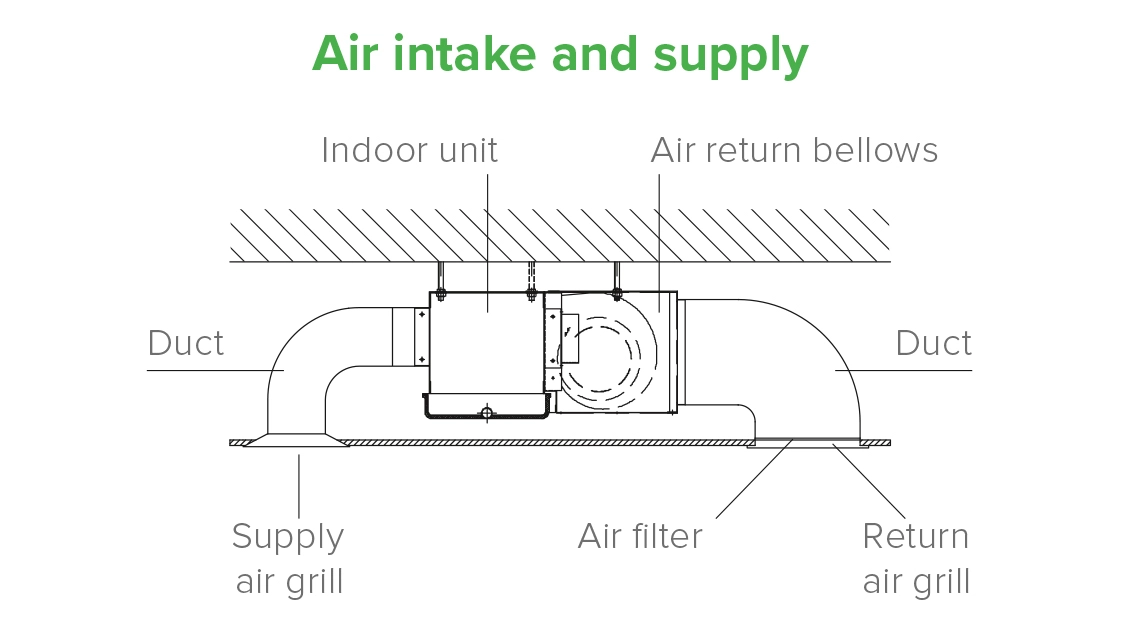

Installation methods
Installation methods

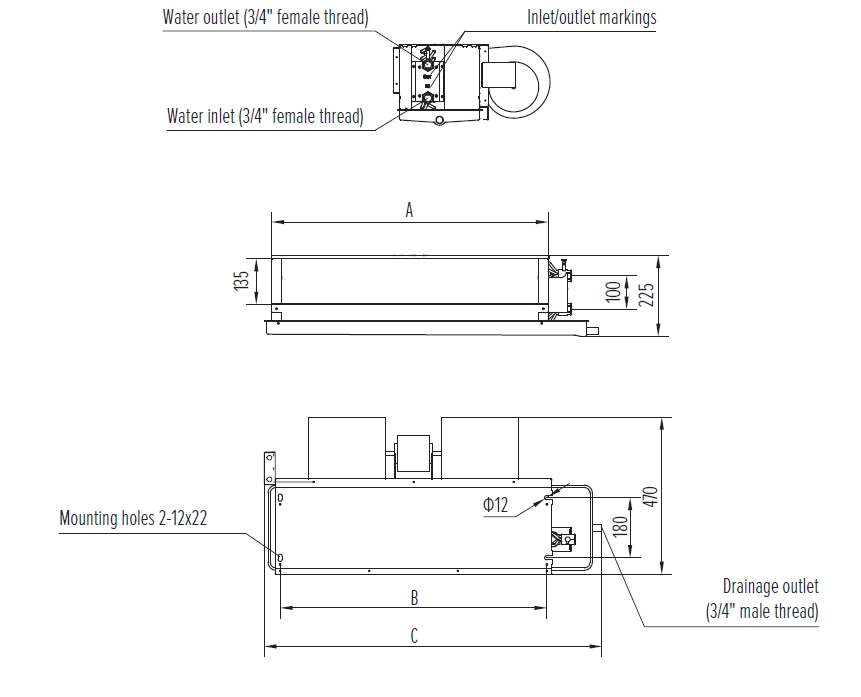

Dimensions
Dimensions
Model Units MCFC-034 MCFC-051 MCFC-068 MCFC-085 MCFC-102 MCFC-136 MCFC-170 MCFC-204 MCFC-238
A мм 510 640 745 830 960 1260 1410 1630 1830
B мм 480 610 715 800 930 1230 1380 1600 1800
C мм 693 823 928 1013 1143 1443 1593 1813 2013
Dimensions

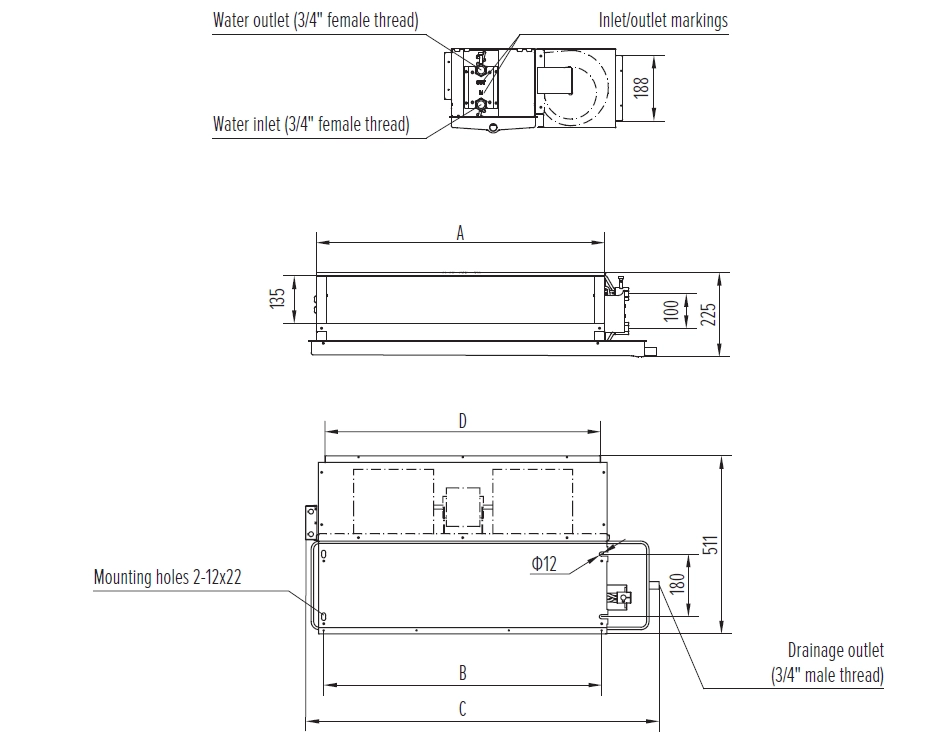

Horizontal installation models with rear air intake chamber
Dimensions
Model Units MCFC-034 MCFC-051 MCFC-068 MCFC-085 MCFC-102 MCFC-136 MCFC-170 MCFC-204 MCFC-238
A мм 510 640 745 830 960 1260 1410 1630 1830
B мм 480 610 715 800 930 1230 1380 1600 1800
C мм 693 823 928 1013 1143 1443 1593 1813 2013
D мм 420 540 680 740 860 1060 1320 1520 1660
