Modular heat pump STANDARD MCU-YH series

High efficiency, power saving and environment protectionThe heat pump uses an eco-friendly refrigerant R410A. It is a chlorine-free, stable and non-toxic refrigerant that does not deplete the ozone…
Cooling capacity: 66-460 kW
Heating capacity: 70-485 kW
Modular heat pump STANDARD MCU-YH series

High efficiency, power saving and environment protection

The heat pump uses an eco-friendly refrigerant R410A. It is a chlorine-free, stable and non-toxic refrigerant that does not deplete the ozone layer, being safe for the environment. This refrigerant ensures efficient heat transfer, which means higher capacity of the modular heat pump and lower power consumption.


High-efficiency modular heat pump with eco-friendly refrigerant R410A, designed for power saving and environmental protection.

Modular heat pump featuring eco-friendly refrigerant R410A with modular design for high efficiency.

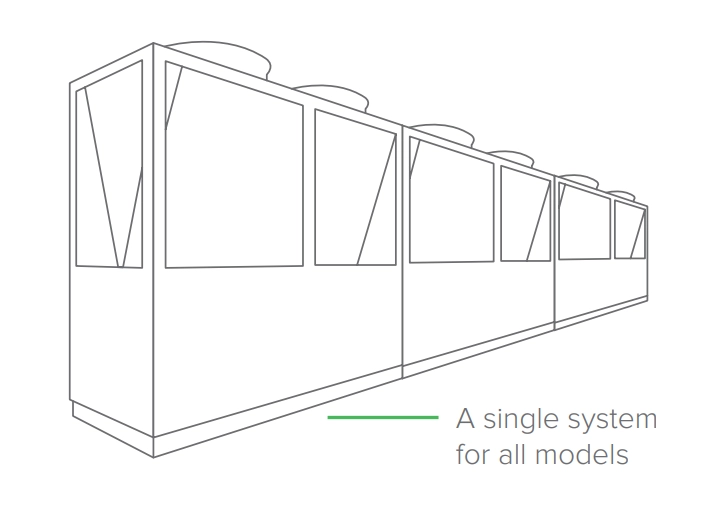

Modular design

The unique feature of the series is its modular design with the ability to combine up to 16 modules (165YH, plus up to 8 modules) in a single system. This feature allows extending the capacity over 1 MW with the number of capacity stages being equal to the number of compressors, so that you can have up to 32 capacity stages with 16 chiller modules (in dual-compressor models). The entire system is controlled via a single remote controler connected to the master module, while the rest are slave modules. This results in a N-module monoblock heat pump.





An individual heat pump connected to a wired controller, capable of operating as a master pump.

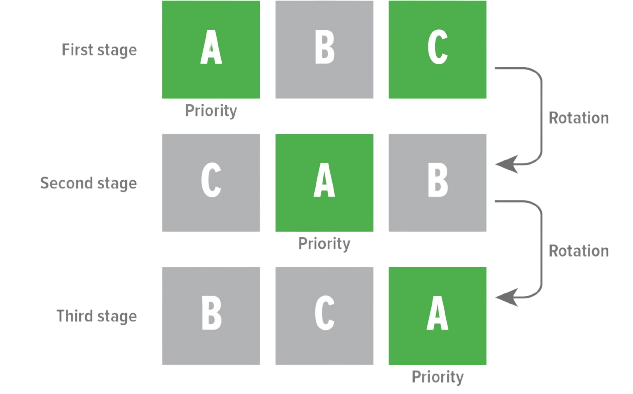

Floating master heat pump

Any individual heat pump can operate as a master pump: you just need to connect it once to the wired controller. This eliminates the problem of the entire system going out of service, when the master heat pump fails.

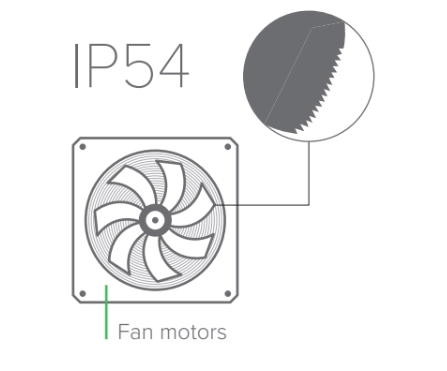

Metal fan blades with saw-shaped edges for increased airflow and low noise.



High-efficiency fans

Metal fan blades with saw-shaped edges ensure increased air flow rate and high strength along with low noise level. The fan motors with IP54 rating ensure safe and reliable operation even in harsh weather.

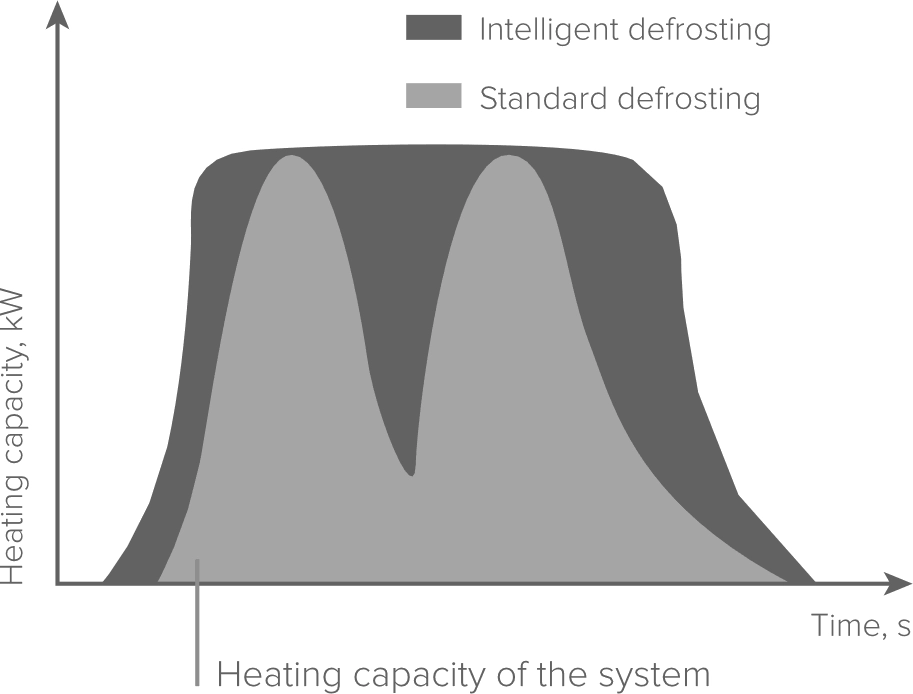

Intelligent defrosting

The controller detects the current extent of freezing by analysing the air flow rate, temperature drop and refrigerant pressure in the outdoor heat exchanger. In the first method, defrosting is periodically enabled and disabled on a timer. In the second method, the start of defrosting is coordinated with a outdoor heat exchanger temperature sensor.

Intelligent defrosting system for MCU-YH modular heat pump with eco-friendly refrigerant R410A.



Ease of maintenance

Turning off one of the modules does not stop the entire system. As a result, you can repair, troubleshoot/service, replace or even add any module at any time, while cooling or heating the facility without interruption.

Powerful protection

The heat pump is equipped with powerful protection, including a self-diagnostic feature that ensures longlived, steady and reliable operation. The heat pump can be set to quickly resume the current operation after power recovery.

Heat pump module equipped with powerful protection and self-diagnostic feature for reliable operation.

  • Compressor overload protection
  • High / low pressure protection
  • High / low voltage protection
  • Water shortage protection
  • Compressor short-cycling protection
  • Fan motor overheat protection
  • Power supply protection
  • Exhaust temperature protection
  • Outlet water temperature protection

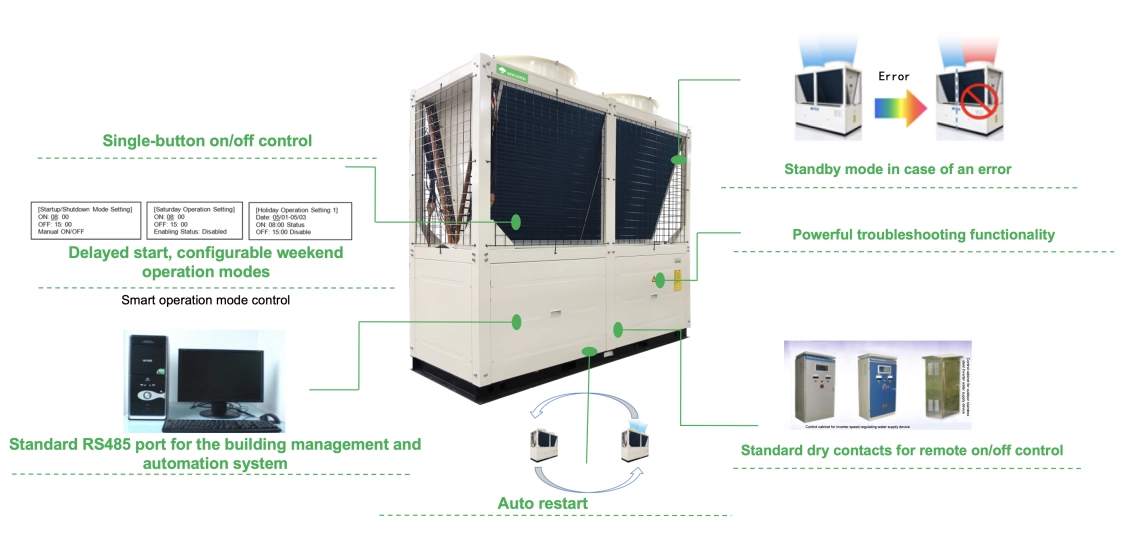

Control system

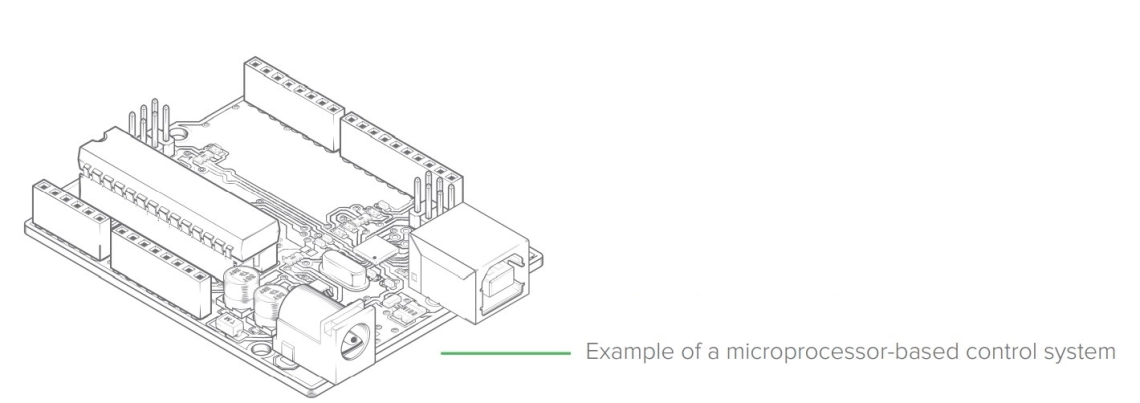

The heat pump is equipped with a 3rd generation microprocessor-based control system and a state-of-the-art remote control. The modular control system built into the heat pump features USB ports for easy maintenance and upgrade of the control software.


Modular heat pump control system with USB and Modbus connectivity for efficient management and maintenance.

Modbus

The Modbus board is included as a standard, so that the heat pump can be connected to either new or existing management system for convenient remote control and analysis via a PC.

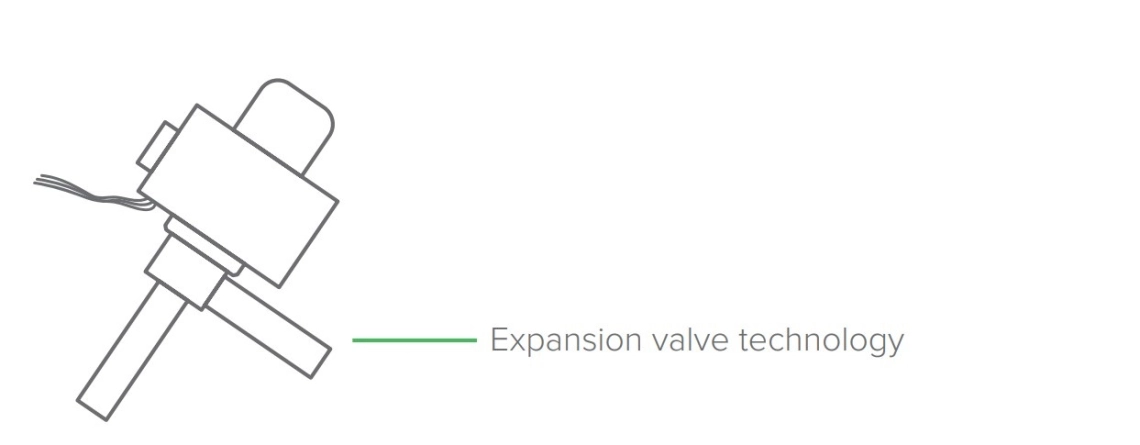

Precise EXV

The heat pump is equipped with a 480-step EXV for precise refrigerant flow control. The patented control technology enables quick and accurate dynamic adjustment of the refrigerant level in the system based on the load changes, thus considerably improving the energy efficiency.


Modular heat pump with precise EXV for efficient refrigerant control in the STANDARD MCU-YH series.

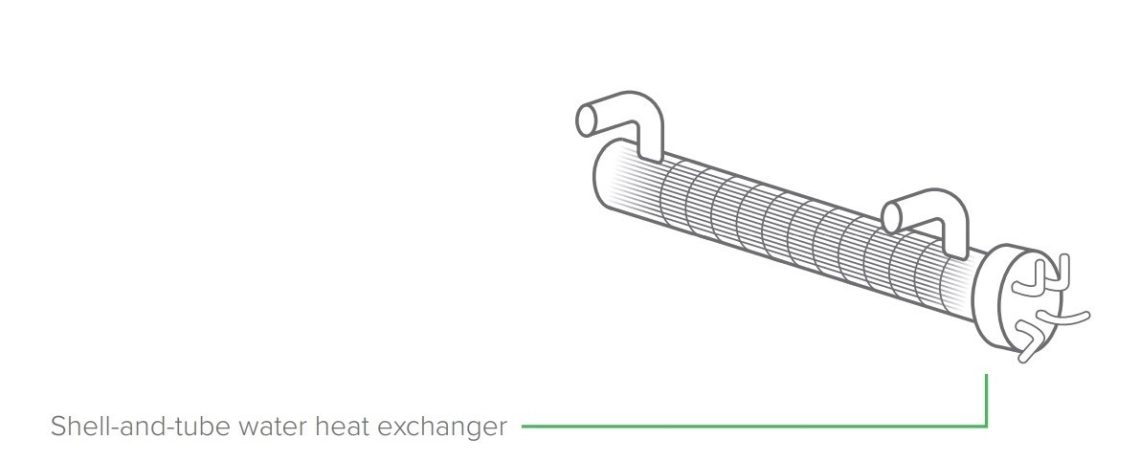

Shell-and-tube heat exchanger

The heat pump is equipped with a high-efficiency shell-and-tube water heat exchanger. The grooved inner surface along with a screw-shaped section improves heat transfer, while expanded fluid channels as compared to a plate heat exchanger reduce the flow resistance and prevent the tubes from clogging. As a result, the shell-and-tube heat exchanger is less sensitive to water quality and more freeze-resistant.

High-efficiency shell-and-tube water heat exchanger with grooved inner surface for improved heat transfer.

The V-shaped air heat exchanger enhances airflow and heat transfer efficiency.

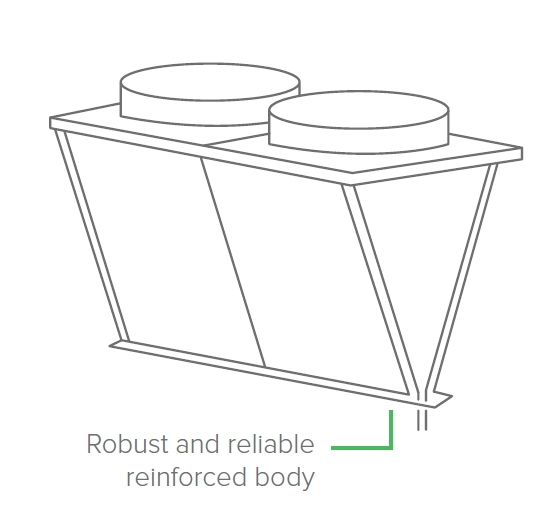

V-shaped condenser

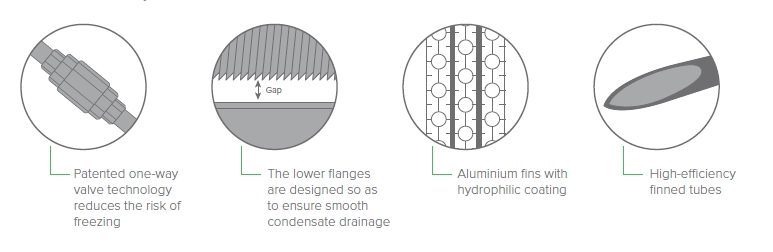

The special V-shaped design of the air heat exchanger provides increased air flow, while hydrophilic aluminum fins and corrugated inner tubes improve the efficiency of heat transfer. Metal fan blades and mesh grilles provide greater reliability and protection against external impacts. A check valve installed in the refrigerant circuit at the bottom of the heat exchanger prevents circulation of low-temperature refrigerant in the heating mode, while enabling circulation of high-temperature refrigerant in the defrosting mode. This prevents formation of ice, protecting the heat exchanger from freezing.





The technology used prevents formation of ice, protecting the heat exchanger from freezing. There also is a gap between the heat exchanger bottom and the pan, which ensures free flow of the thaw water, thus improving drainage and preventing the water from accumulating and freezing.


The modular heat pump with technology preventing ice formation on the V-shaped heat exchanger.

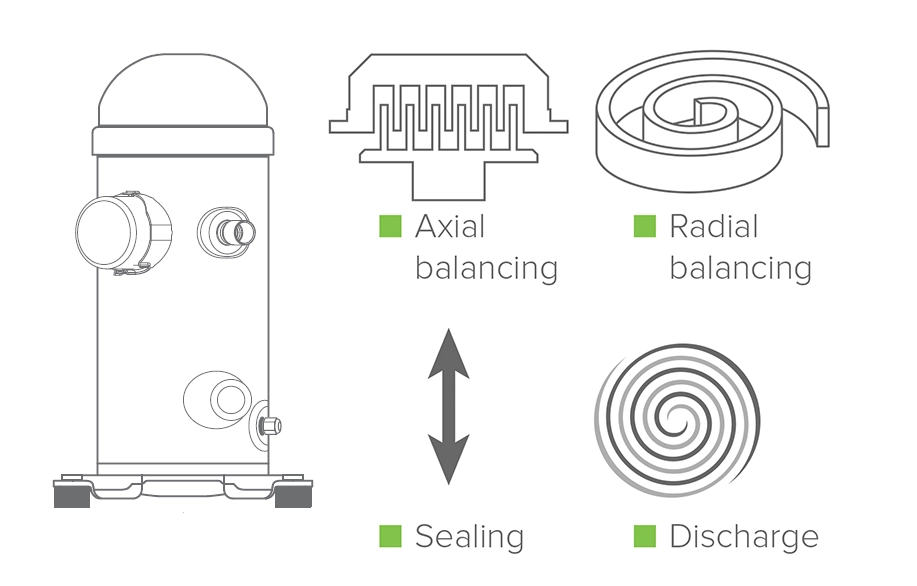

Efficient scroll compressor

The heat pump is equipped with efficient hermetically sealed scroll compressors from world-renowned brands. Axial balancing and non-contact sealing of the spirals ensure frictionless operation and minimize the leakages. This ensures higher compressor efficiency and reliable operation, as well as low vibration and noise levels.

Efficient hermetically sealed scroll compressor for eco-friendly and energy-saving heat pump.

Efficient scroll compressors for MCU-YH heat pump ensure low vibration and noise.

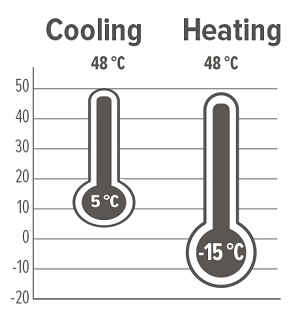

Operation limits

The heat pump operates down to -15 degrees in heat mode and up to + 48 degrees in cold mode.









Specifications Units MCU066YH MCU130YH MCU165YH MCU260YH MCU340YH * MCU460YH *
Cooling capacity kW 66 130 165 260 340 460
Heating capacity kW 70 140 180 280 370 485
Capacity steps % 0/50/100 0/50/100 0/25/50/75/100 0/25/50/75/100 0/33.3/66.7/100 0/25/50/75/100
Power supply   380-415 V,3 phases, 50 Hz 380-415 V,3 phases, 50 Hz 380-415 V,3 phases, 50 Hz 380-415 V,3 phases, 50 Hz 380-415 V,3 phases, 50 Hz 380-415 V, 3 phases, 50 Hz
Electric power, cooling EER kW W/W 21,29 3,1 41,9 3,1 53,2 3,1 83,8 3,1 109 3,1 148,3 3,1
Electric power, heating COP kW W/W 21,85 3,2 43,7 3,2 56,2 3,2 87,4 3,2 115,2 3,2 154,8 3,2
Refrigerant type   R410A R410A R410A R410A R410A R410A
Compressor type   Hermetic scrollcompressor Hermetic scrollcompressor Hermetic scrollcompressor Hermetic scrollcompressor Hermetic scrollcompressor Hermetic scrollcompressor
Number of compressors   2 4 4 4 3 4
Water heat exchanger type   Shell-and-tube Shell-and-tube Shell-and-tube Shell-and-tube Shell-and-tube Shell-and-tube
Water flow rate m3/h 11,4 22,4 28,4 44,8 58,5 79,1
Water perssure drop kPa 45 45 45 45 52 56
Connection diameter   DN 65 (flange) DN 65 (flange) DN 80 (Coupling) DN 100 (Coupling) DN 125 (Coupling) DN 125 (Coupling)
Air heat exchanger type   Copper andaluminium Copper andaluminium Copper andaluminium Copper andaluminium Copper andaluminium Copper andaluminium
Fan type   Axial Axial Axial Axial Axial Axial
Number of fans   2 2 4 4 6 8
Air flow rate m3/h 28000 48000 66000 112000 123000 164000
Dimensions (LxWxH) mm 2200×860×2000 2200×1100×2205 2200×1720×2000 2200×2400×2235 3500×2250×2450 4700×2250×2520
Weight kg 580 900 1460 2050 3100 3700



* Temporarily unavailable in the EU



Notes:
1. Cooling capacity and electric power consumption during cooling operation refer to the rated water flow rate, outlet water temperature 7 °C and ambient air temperature 35 °C.
2. Heating capacity and electric power consumption during heating operation refer to the rated water flow rate, outlet water temperature 45 °C and ambient air temperature 7 °CDB.
