MyVent
Ventilation
12.10 ... 31.50 kW
Heating сapacity:12.10 ... 31.50 kW

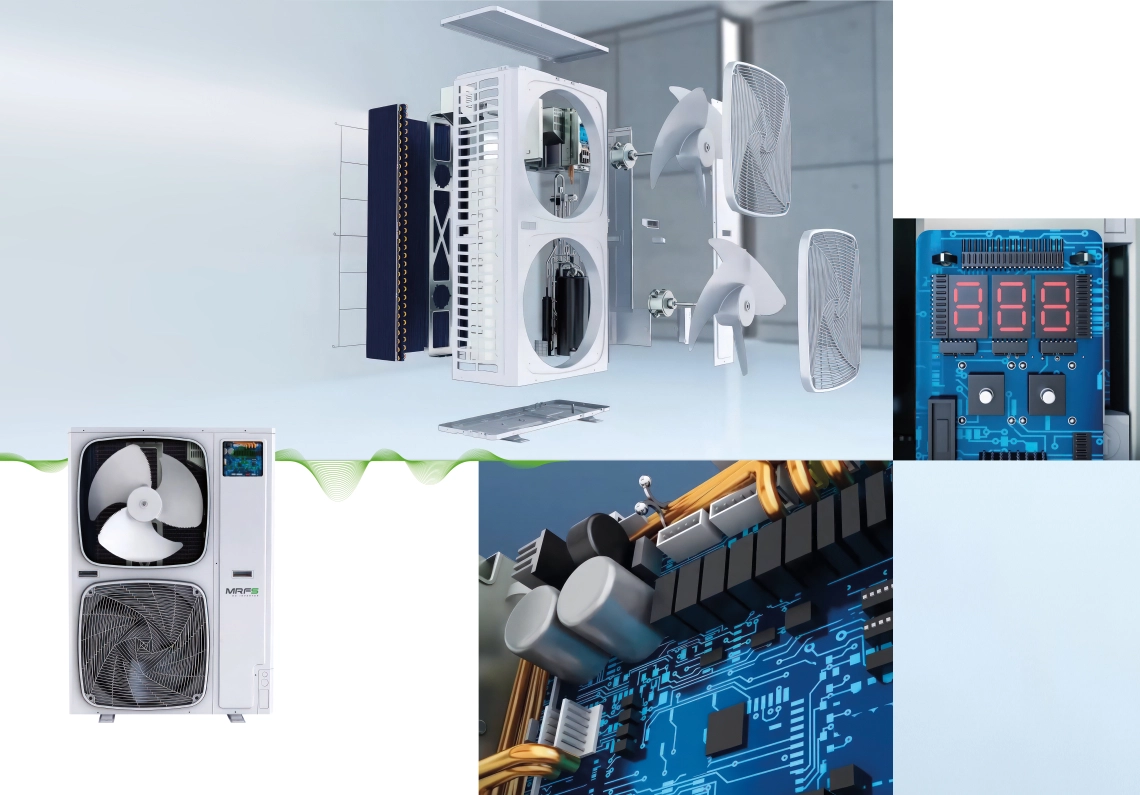

Cooling capacity:Advantages of the MRF S system
The self-diagnostic function allows you to quickly and easily detect possible system malfunctions. The board has a 3-digit display and buttons to directly start the fast cooling mode and check the system.
Special housing structure for improved cooling of printed circuit boards. “Special housing structure”.
- New aerodynamic fan 550 mm super big diameter aerospace helix fan. lowering sound level by 3 dB(A).
- Enlarged air inlet path and spiral air outlet path. Air flow direction follows the grill direction which reduces sound levels by 2-4 dB(A).
- Automatic sound reduction capability. Night mode set by the PCB is 8 dB(A) lower.
Аdvanced technology
Leadership in technology(4-6hp)

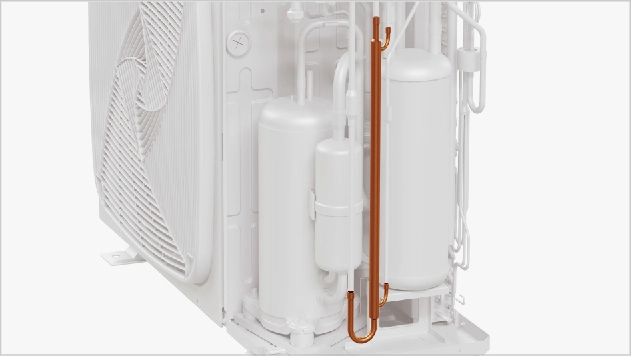

- Two-stage supercooling cycle technology, increased unit efficiency by 9%. (Double fan)
- Maximizing 30°C undercooling, increase unit refrigerating capacity by 46%
Increasing enthalpy replenish gas, realize the unit powerful heating capacity
Taking the heating cycle as an example, when environment tempetature is low, heat exchanged capability of outdoor unit is depressed. The amount of air returned by compressor is reduced, Increase the amount of refrigerant in the heating cycle of the indoor unit heat exchanger, Thereby achieving improved heating capacity.
High EER and COP(8/10/12HP)
The promotion of energy efficiency.
DC FAN and FAN motor
DC inverter fan motor more higher efficiency in part load running
- 16-stage speed control; high efficiency running especially in low speed
- Efficiency increase 45% comparing with AC motor and power input largely decrease
Big diameter fan
- 570mm big diameter fan, more big air flow and more higher efficiency(8/10/12HP)
Upgraded configuration, upgraded performance (8/10/12hp side discharge)
Bigger outdoor capacity, more flexible application.
Indoor units and outdoor units self-cleaning
Indoor units and outdoor units cleaning mode conversion with nonstop, make abundant use of ODU waste heat to IDU defrosting. At the same time, the IDU uses the waste heat of the ODU to defrost the heat exchanger, to dry the condensed water, effectively prevent mold breeding.

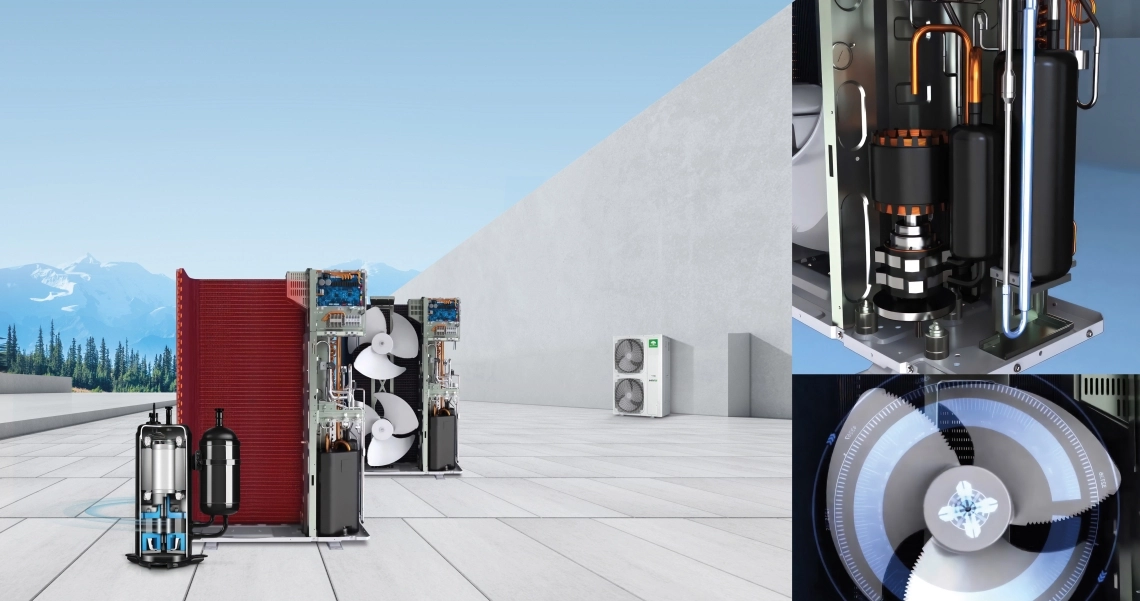

Energy efficiency of the MRF S system
Twin-rotary DC compressor
Mycond offers a DC inverter compressor, that consumes 5% less energy (14 kW model). DC fan motor and large 550 mm fan 38% more power consumption and 8% more airflow. Larger heat exchanger. Heat exchange area increased by 10%.
The smart defrosting program is initiated based on the efficiency of heat exchange and the system’s capacity. This results in minimized temperature fluctuations and guarantees comfortable conditions, even during winter.
The new fan design provides, good dynamic balance, the system runs stably, little vibration, low noise, high efficiency. More higher efficiency in part load running.
Low noise level
Night Quiet Operation Function Noise can be reduced to 45dB(A).
New DC inverter twin rotary compressor
- Small torque change, good dynamic balance, the system runs stably, little vibration, low noise, high efficiency
- More higher efficiency in part load running
Super comfort
- New aerodynamics fan 550mm super big diameter aerospace helix fan. lowering sound level 3dB(A)
- Enlarged air inlet path and spiral air outlet path Air flow direction follows the grill direction.lowering sound level 2-4 dB(A)
- Automatic sound-lowering programme Night mode set by PCB, 8dB(A) low er.
Low noise operation
- DC INVERTER compressor, smooth operation, no need frequent start the com pressor, effectively reduce the noise outdoor
- Vector inverter control, more precise control
- DC fan motor, motor bracket used the non-resonance structure, ensure smooth running of the motor, reduce operating noise
- Big diameter fan, design according to aviation quieter principle
Easy installation

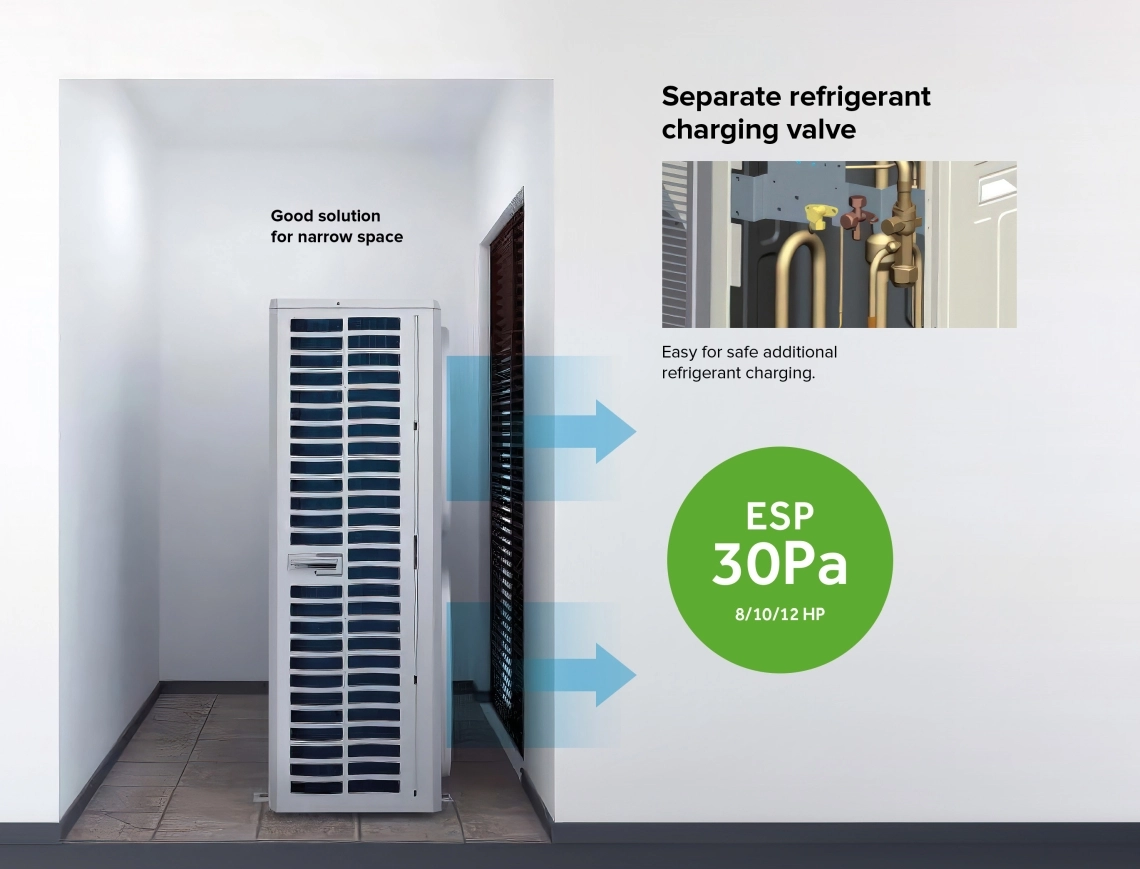

Compact Side Discharge Design, Big Capacity, Small Footprint / Small footprint, only 0.42m2, 43% floor area can be reduced.

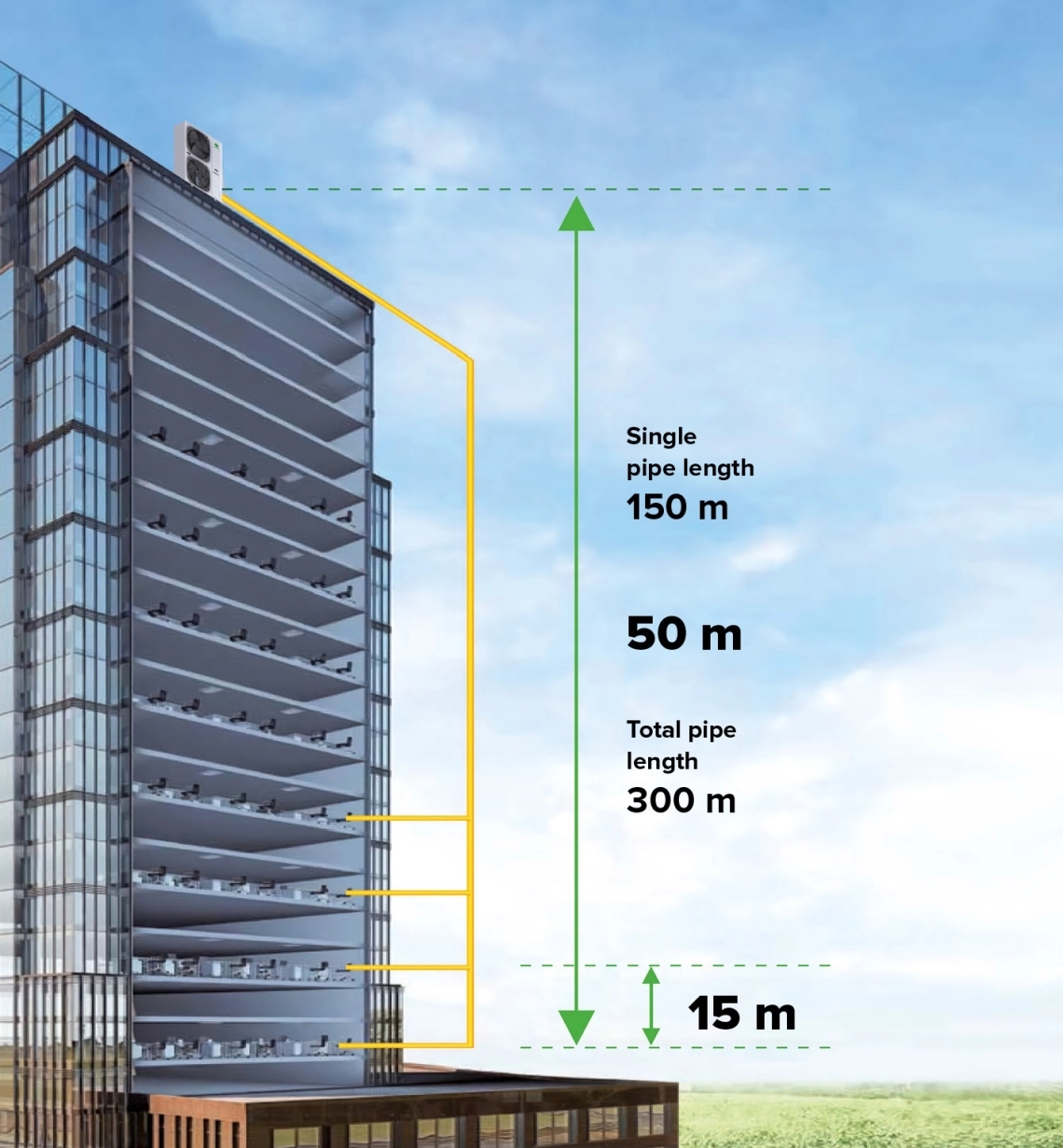

Long pipe length, increased height drop
- Total pipe length: 300 m
- Single pipe length: Max. 150 m*1
- From ODU to the first branch: 110 m
- From the first branch to the furthest IDU unit: 40 m
- Height drop: 50 m (ODU above)/ 40 m (ODU below)
- Height drop between indoor units: 15 m
*1 Need contact your local distributor/dealer for individual design.
Compact side discharge design
Compact dimensions of outdoor units allow you to maximize the use of floor space for for other purposes, such as office, commercial or residential areas. This helps to increase the functionality of the building.
1ph/220 240V/50(60)Hz
3ph/380 400V/50(60)Hz
| Specifications | Units | Specifications. 1-phase units | Specifications. 3-phase units | |||||
| MOS-04X1EV2AD | MOS-05X1EV2AD | MOS-06X1EV2AD | MOS-04X1EW2AD | MOS-05X1EW2AD | MOS-06X1EW2AD | |||
| Power Class | HP | 4 | 5 | 6 | 4 | 5 | 6 | |
| Capacity[1] | Cooling | kW | 12,10 | 14,00 | 15,50 | 12,10 | 14,00 | 15,50 |
| Heating | kW | 12,10 | 14,00 | 15,50 | 12,10 | 14,00 | 15,50 | |
| Power supply | Ph/V/Hz | 1/220~240/50(60) | 1/220~240/50(60) | 1/220~240/50(60) | 3/380~400/50(60) | 3/380~400/50(60) | 3/380~400/50(60) | |
| Rated power input - Cooling | kW | 3,61 | 4,33 | 5,17 | 3,61 | 4,33 | 5,17 | |
| Max input current - Cooling | A | 34,10 | 35,50 | 36,90 | 11,40 | 11,90 | 12,90 | |
| Rated power input - Heating | kW | 3,23 | 3,76 | 5,00 | 3,23 | 3,76 | 5,00 | |
| Max input current - Heating | A | 32,70 | 34,10 | 35,50 | 10,90 | 11,40 | 11,90 | |
| Electrical parameters | EER energy class | / | 3,35 | 3,23 | 3,00 | 3,35 | 3,23 | 3,00 |
| COP energy class | / | 3,75 | 3,72 | 3,10 | 3,75 | 3,72 | 3,10 | |
| SEER energy class (T1) | / | 6,82 | 6,65 | 6,80 | 6,82 | 6,65 | 6,80 | |
| SCOP energy class (T1) | / | 4,05 | 4,11 | 4,05 | 4,05 | 4,11 | 4,05 | |
| ŋs,h % | % | 270 | 263 | 269 | 270 | 263 | 269 | |
| ŋs,h % | % | 159 | 161 | 159 | 159 | 161 | 159 | |
| Fan | Air flow | m3/h | 7200 | 7200 | 7200 | 7200 | 7200 | 7200 |
| Pressure sound level | Sound pressure level (Cooling) | dB(A) | 57 | 58 | 59 | 57 | 58 | 59 |
| Sound pressure level (Heating) | dB(A) | 57 | 58 | 59 | 57 | 58 | 59 | |
| Dimensions | Unit Dimensions WxDxH | mm | 950x370x1350 | 950x370x1350 | 950x370x1350 | 950x370x1350 | 950x370x1350 | 950x370x1350 |
| Packaged unit dimensions WxDxH | mm | 1023x471x1420 | 1023x471x1420 | 1023x471x1420 | 1023x471x1420 | 1023x471x1420 | 1023x471x1420 | |
| Weight | Net/Shipping weight | kg | 108/123 | 108/123 | 108/123 | 108/123 | 108/123 | 108/123 |
| Compressor type | / | DC inv. twin-rotary | ||||||
| Compressor | Motor Power | W | 4130 | 4130 | 4130 | 4060 | 4060 | 4060 |
| Compressor quantity | / | 1 | 1 | 1 | 1 | 1 | 1 | |
| Refrigerant | Refrigerant type | / | R410A | R410A | R410A | R410A | R410A | R410A |
| Pre-charged refrigerant qty. | kg | 4,00 | 4,00 | 4,00 | 4,00 | 4,00 | 4,00 | |
| Ø Liquid side refrigerant pipe | mm (inch) | 9,52 (3/8) | 9,52 (3/8) | 9,52 (3/8) | 9,52 (3/8) | 9,52 (3/8) | 9,52 (3/8) | |
| Ø Gas side refrigerant pipe | mm (inch) | 15,88 (5/8) | 15,88 (5/8) | 15,88 (5/8) | 15,88 (5/8) | 15,88 (5/8) | 15,88 (5/8) | |
| Maximum piping length | m | 300 | 300 | 300 | 300 | 300 | 300 | |
| Piping | Max linear piping length (Equivalent/Real) |
m | 175/150 | 175/150 | 175/150 | 175/150 | 175/150 | 175/150 |
| Std. drop between IU and OU | m | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max. drop between IU *3 | m | 15 | 15 | 15 | 15 | 15 | 15 | |
| Connection ratio | Indoor / Outdoor Capacity Ratio | % | 50-130 | 50-130 | 50-130 | 50-130 | 50-130 | 50-130 |
| Maximum number of connectable IUs | / | 8 | 10 | 13 | 8 | 10 | 13 | |
| Working temp. | Cooling | °C | -5~50 | -5~50 | -5~50 | -5~50 | -5~50 | -5~50 |
| Cooling | °C | -20~27 | -20~27 | -20~27 | -20~27 | -20~27 | -20~27 | |
(*) The specifications indicated are obtained with the following test conditions: in Cooling mode, Indoor temperature of 27°C DB / 19°C WB
and Outdoor temperature of 35°C DB / 24°C DB. In Heating mode, Indoor temperature of 20°C DB and Outdoor temperature of 7°C WB / 6°C DB
3ph/380 400V/50(60)Hz
| Specifications | Units | MOS-08X1EW2AD | MOS-10X1EW2AD | MOS-12X1EW2AD | |
| Power Class | HP | 8 | 10 | 12 | |
| Capacity[1] | Cooling | kW | 22,60 | 28,00 | 31,50 |
| Heating | kW | 22,60 | 30,50 | 31,50 | |
| Power supply | Ph/V/Hz | 3/380~415/50/(60) | 3/380~415/50/(60) | 3/380~415/50/(60) | |
| Rated power input - Cooling | kW | 6,95 | 8,67 | 11,52 | |
| Max input current - Cooling | A | 19,00 | 23,80 | 25,40 | |
| Rated power input - Heating | kW | 5,79 | 8,03 | 8,49 | |
| Max input current - Heating | A | 18,00 | 22,60 | 24,20 | |
| Electrical parameters | EER energy class | / | 3,25 | 3,23 | 2,73 |
| COP energy class | / | 3,90 | 3,80 | 3,71 | |
| SEER energy class (T1) | / | 7,67 | 7,65 | 7,47 | |
| SCOP energy class (T1) | / | 4,05 | 4,16 | 4,21 | |
| ŋs,h % | % | 304 | 303 | 296 | |
| ŋs,h % | % | 159 | 163 | 165 | |
| Fan | Air flow (High) | m3/h | 10000 | 10000 | 10000 |
| Pressure sound level | Sound pressure level (Cooling) | dB(A) | 63 | 64 | 65 |
| Sound pressure level (Heating) | dB(A) | 63 | 65 | 67 | |
| Dimensions | Unit Dimensions WxDxH | mm | 1050x400x1636 | 1050x400x1636 | 1050x400x1636 |
| Packaged unit dimensions WxDxH | mm | 1150x510x1790 | 1150x510x1790 | 1150x510x1790 | |
| Weight | Net/Shipping weight | kg | 149/168 | 149/168 | 149/168 |
| Compressor type | / | DC inv. twin-rotary | |||
| Compressor | Motor Power | W | 6270 | 6270 | 6270 |
| Compressor quantity | / | 1 | 1 | 1 | |
| Refrigerant | Refrigerant type | / | R410A | R410A | R410A |
| Pre-charged refrigerant qty. | kg | 5,10 | 5,10 | 5,10 | |
| Ø Liquid side refrigerant pipe | mm (inch) | 9,52 (3/8) | 9,52 (3/8) | 9,52 (3/8) | |
| Ø Gas side refrigerant pipe | mm (inch) | 19,05 (3/4) | 22,22 (7/8) | 25,40 (1) | |
| Maximum piping length | m | 300 | 300 | 300 | |
| Piping | Max linear piping length (Equivalent/Real) |
m | 175/150 | 175/150 | 175/150 |
| Std. drop between IU and OU | m | 50 | 50 | 50 | |
| Max. drop between IU *3 | m | 15 | 15 | 15 | |
| Connection ratio | Indoor / Outdoor Capacity Ratio | % | 50-130 | 50-130 | 50-130 |
| Maximum number of connectable IUs | / | 13 | 16 | 19 | |
| Working temp. | Cooling | °C | -5~50 | -5~50 | -5~50 |
| Cooling | °C | -20~27 | -20~27 | -20~27 | |
(*) The specifications indicated are obtained with the following test conditions: in Cooling mode, Indoor temperature of 27°C DB / 19°C WB
and Outdoor temperature of 35°C DB / 24°C DB. In Heating mode, Indoor temperature of 20°C DB and Outdoor temperature of 7°C WB / 6°C DB
The data is purely indicative as the data may vary. Please be advised to check the accuracy of the data with the supplier before purchasing products

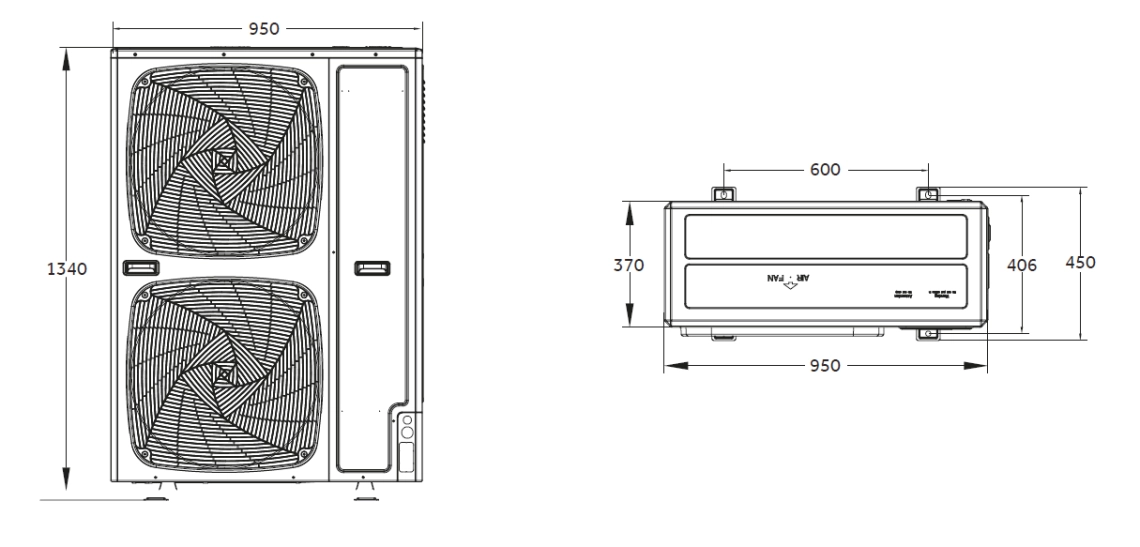

Dimensions
MOS-04X1EV2AD MOS-05X1EV2AD MOS-06X1EV2AD MOS-04X1EW2AD MOS-05X1EW2AD MOS-06X1EW2AD

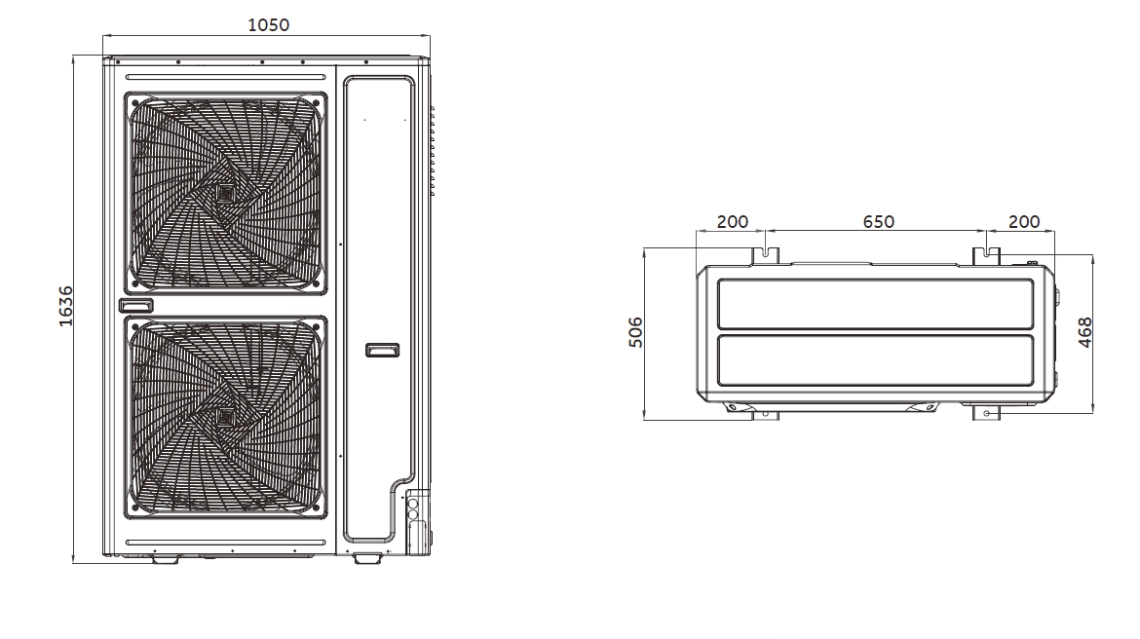

Dimensions
MOS-08X1EW2AD MOS-10X1EW2AD MOS-12X1EW2AD
