MBA-G series pool dehumidifiers absorbs clammy air and transfer it to warm and dry air, Mycond MBA-G dehumidifier can easily tackle problem that cause condensation and furniture corrosion. Moreover, it is a perfect partner of Mycond ventilation system and also capable of working independently on different residential occasions.
53 ... 103 l/day
Dehumidification capacity:
Competitive advantages:
- High efficiency. The dehumidifier capacity can be up to 4,3 l/hour at ambient air temperature of +30 °C and relative humidity of 80 %.
- Extremely quiet operation. The dehumidifier circulates the air using a DC fan motor with its noise level as low as up to 46 dB, which means quiet operation.

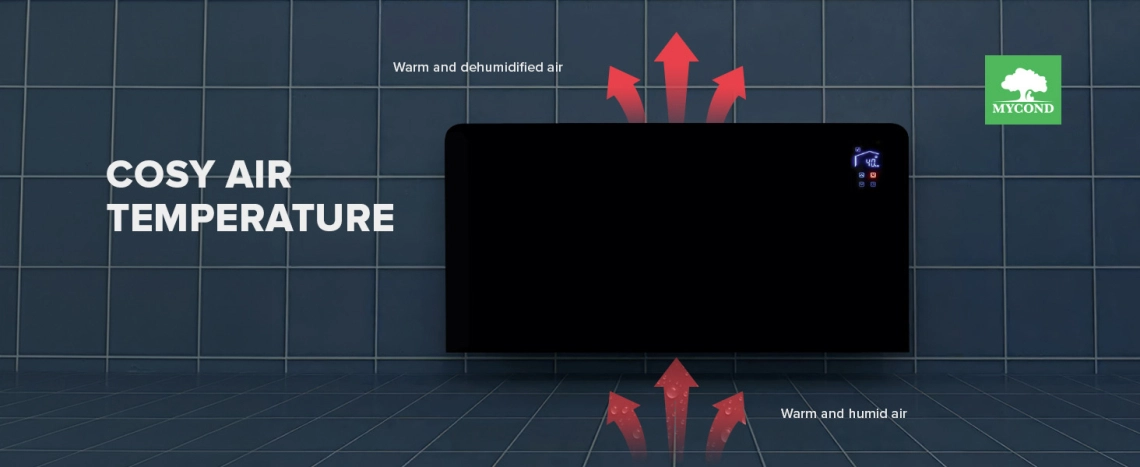

- Comfortable air temperature
The dehumidifier is improved with warm and comfortable air
outlet. To realize that, the unit is equipped with a hot water coil
heater which can connect your own heat source, such as a
heat pump.
- Super silent running

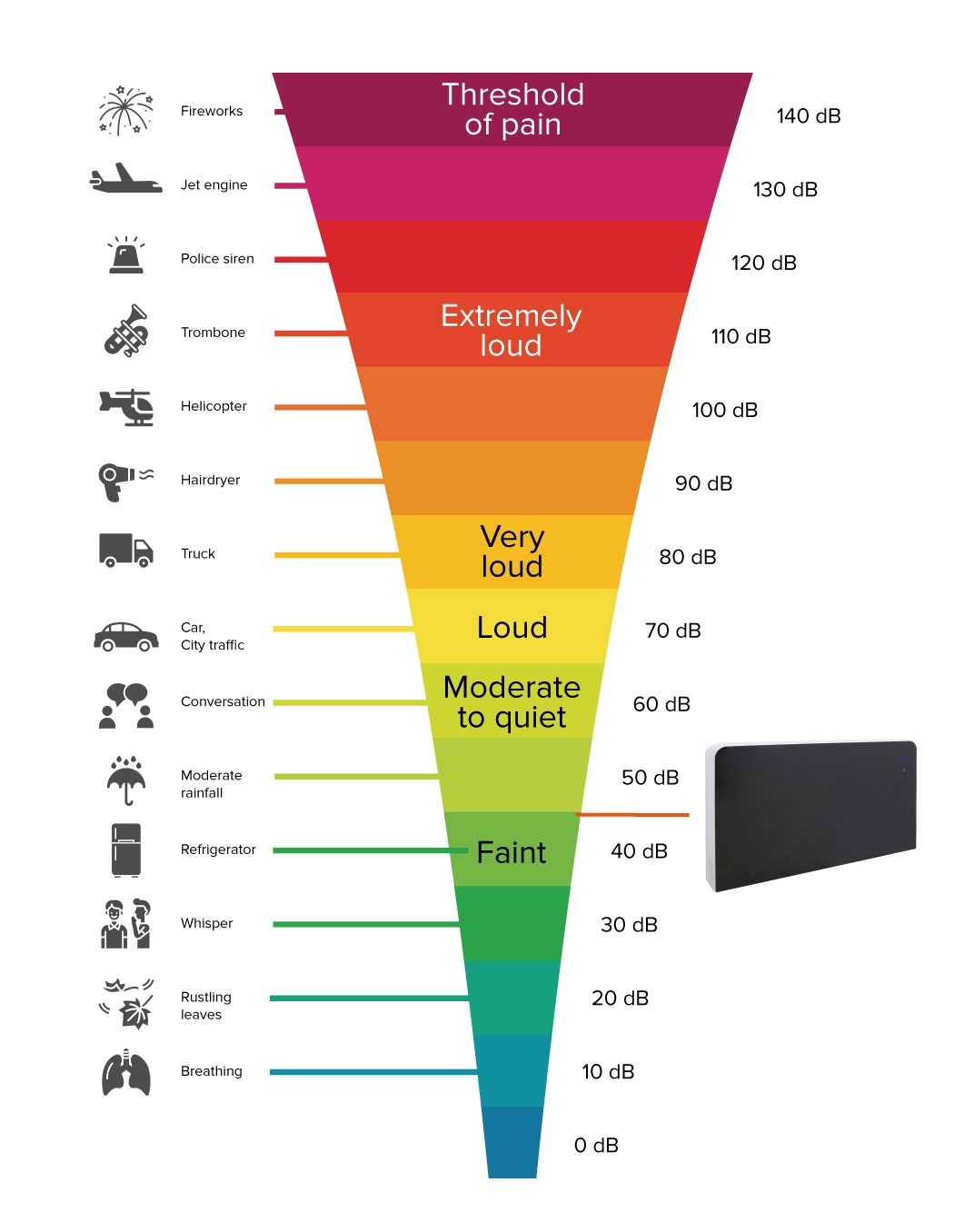

Due to a new noise-reduce improvement and DC fan motor adopted for air circulating, the unit works silently at 44-46 dB(A) and the sound is even lower than a moderate rainfall.
- Golden epoxy heat exchanger
The heat exchanger has a golden epoxy coating that has excellent anti-corrosion properties and improves hydrophobicity, which ensures a long service life.
- Ultra-slim body. Due to its compact design and ultra-slim body only 248 mm thick, the unit requires little space and will easily fit into any home.

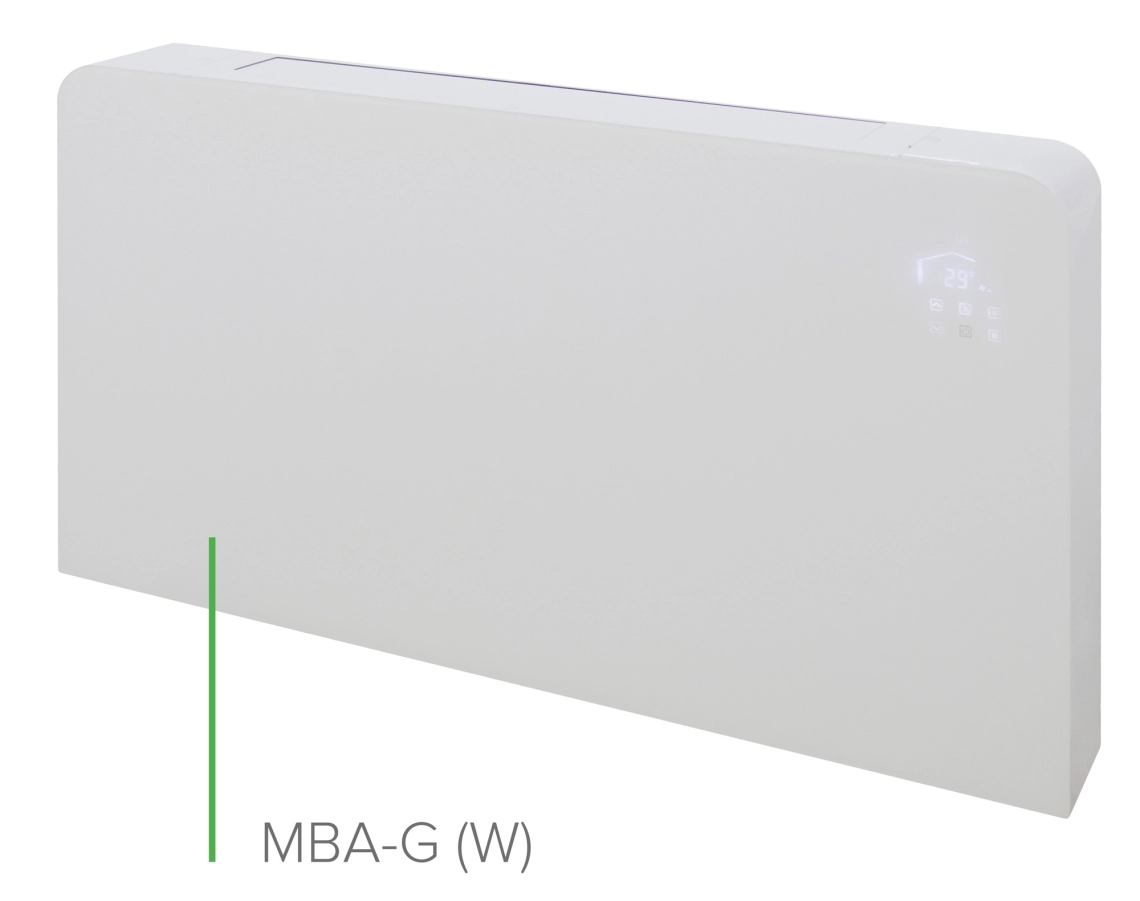

- Stylish appearance. The dehumidifiers are available in two styles. The customer can choose a body with either white or black glass panel.
| Specifications | Units | MBA05G | MBA07G | MBA10G |
| Rated capacity* | l/h | 2.2 | 3.5 | 4.5 |
| Daily moisture removal | l | 53 | 84 | 108 |
| Air flow rate | m3/h | 450 | 600 | 750 |
| Noise level | dB(A) | 44 | 44 | 46 |
| Rated voltage/frequency | 220-240 VAC / 50 Hz | 220-240 VAC / 50 Hz | 220-240 VAC / 50 Hz | |
| Rated power consumption | kW | 0,89 | 1,09 | 1,95 |
| Rated operating current | A | 4,0 | 5.0 | 8,8 |
| Max. power consumption | 1,89 | 2,09 | 2,7 | |
| Max. operating current | 9 | 10 | 12 | |
| Relative humidity | % RH | 40-90 | 40-90 | 40-90 |
| Operating temperature | °C | 10-32 | 10-32 | 10-32 |
| Dimensions (LxWxH) | mm | 1343х248х790 | 1543х248х790 | 1743х248х790 |
| Net weight | kg | See the rating plate / packing label | ||
| Refrigerant | R32 | |||
| Condensate tube diameter | mm | 7 | 7 | 7 |
*The capacity is based on the following condition: 30° ambient temperature, 80% relative humidity.
